Yuelian S82 GB/T 2792-2014 Adhesive Tape Peel Strength Tester

Overview

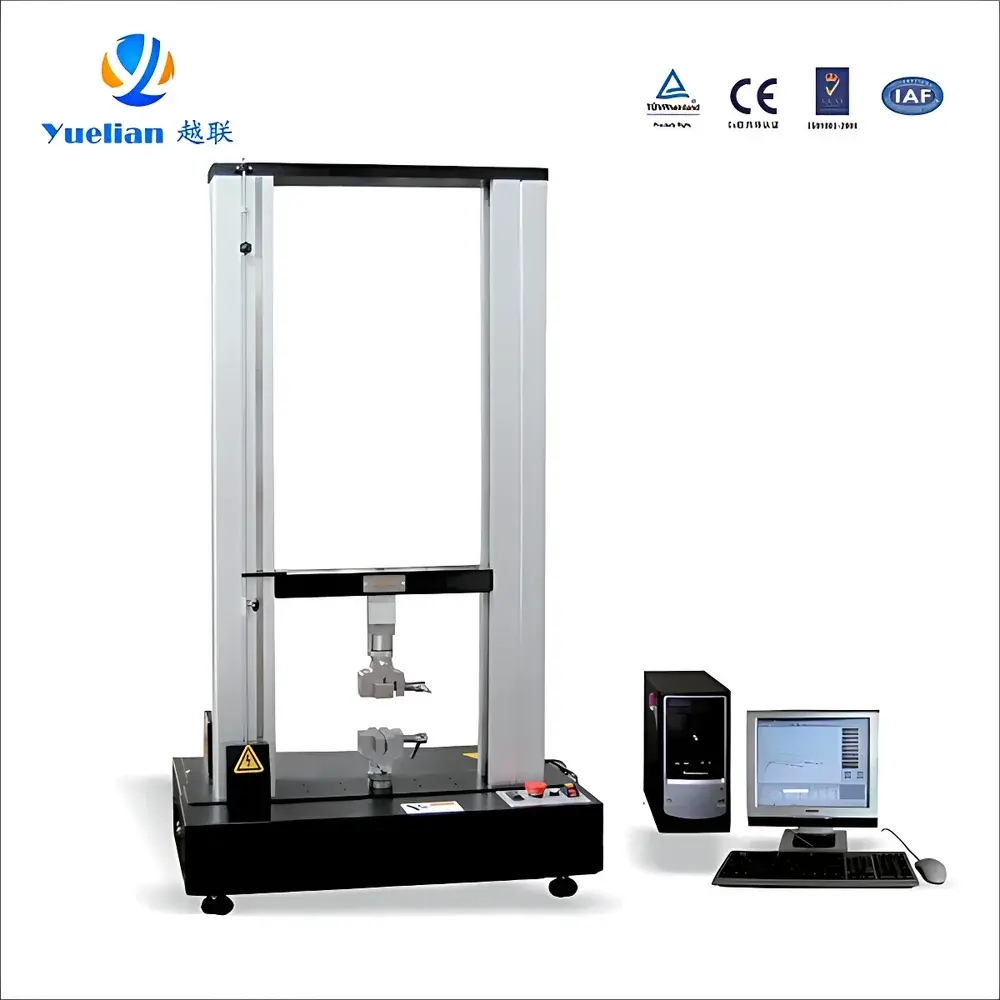

The Yuelian S82 GB/T 2792-2014 Adhesive Tape Peel Strength Tester is a precision-engineered universal tensile testing system specifically designed and validated for quantitative peel strength evaluation of pressure-sensitive adhesive tapes, labels, medical dressings, laminated films, and other bonded flexible substrates in accordance with the Chinese national standard GB/T 2792–2014. This standard aligns closely with ISO 8510-2 and ASTM D3330, specifying 180° peel geometry, controlled peel rate, defined substrate conditioning, and standardized specimen preparation protocols. The instrument employs a high-stiffness dual-column frame, AC servo motor actuation, and preloaded precision ground ball screws to ensure minimal deflection and high positional repeatability under dynamic loading. Its closed-loop force control architecture enables stable, low-noise force acquisition across the full 5 kN capacity range, making it suitable for both low-force (e.g., thin PET film on release liner) and high-force (e.g., industrial double-sided tape on stainless steel) peel configurations.

Key Features

• Compliance-ready design: Fully supports GB/T 2792–2014 test methodology including 180° peel angle fixture mounting, constant-rate displacement control (0.01–500 mm/min), and automatic fracture detection.
• High-resolution motion control: 0.01 mm displacement resolution with 600 mm effective stroke; programmable multi-step test sequences with up to 120 auto-sampling points per curve.
• Dual-mode force sensing: Load cell polarity switchable for tension/compression mode verification; calibrated traceability to national metrological standards.
• Robust mechanical architecture: Anodized aluminum screw guards, ABS polymer enclosure with electrostatic spray finish, and integrated overload protection (mechanical limit switches + software-based upper/lower bound enforcement).
• Modular fixture interface: Quick-release coupling system compatible with standardized peel jigs (e.g., 25 mm width, fixed-angle mandrels), tensile grips, bending fixtures, and custom tooling per ASTM D6252 or ISO 11339.
• Real-time multi-curve visualization: Simultaneous display of force–displacement, force–time, displacement–time, and stress–strain plots with crosshair cursor, zoom/pan, and overlay comparison of up to 10 historical datasets.

Sample Compatibility & Compliance

The S82 accommodates specimens conforming to GB/T 2792–2014 dimensions (typically 25 mm × 200 mm), as well as broader ISO and ASTM formats (e.g., ISO 8510-2: 25 mm width; ASTM D3330 Method A: 25.4 mm width). It supports rigid substrates (aluminum, stainless steel, glass), flexible backings (PET, PVC, paper), and compliant liners (silicone-coated release paper). All test parameters—including peel rate, pre-load dwell time, and data sampling interval—are configurable to satisfy GLP-compliant audit trails. Software logs include operator ID, timestamp, calibration certificate ID, environmental conditions (optional sensor integration), and raw binary data export (CSV, XML) for FDA 21 CFR Part 11–compliant systems when deployed with electronic signature modules.

Software & Data Management

The embedded Windows-based control suite provides full method definition, real-time statistical processing, and regulatory-grade reporting. Statistical outputs include peak peel force (N), average peel force over specified intervals (e.g., last 50 mm), coefficient of variation (CV%), standard deviation, CPK indices, and outlier rejection (high/low mean exclusion). Data acquisition occurs at 50 Hz with 20-bit ADC resolution. Export formats support LIMS integration (ODBC, HL7), PDF report generation with embedded digital signatures, and raw ASCII files for third-party analysis (MATLAB, Python Pandas). Audit trail functionality records all parameter changes, test starts/stops, and user logins—meeting ISO/IEC 17025 documentation requirements for accredited laboratories.

Applications

• Quality control of PSA tapes in packaging, electronics assembly, and automotive trim bonding.
• Development validation of medical adhesives (e.g., transdermal patches, wound dressings) per ISO 22895 and YY/T 0148.
• Comparative peel performance assessment across substrate surface energies (dyne level correlation), aging conditions (thermal/humidity cycling), and shelf-life studies.
• Failure mode analysis: Cohesive vs. adhesive failure identification via post-test specimen inspection and force plateau analysis.
• Multi-material interface characterization: Laminated pouches (PET/AL/PE), flexible printed circuits, and battery electrode coatings.

FAQ

Does the S82 comply with international peel testing standards beyond GB/T 2792–2014?
Yes — its mechanical accuracy, speed control fidelity, and software configurability enable full compliance with ISO 8510-2, ASTM D3330 (Method A & B), PSTC-101, and AFERA 4001 when appropriate fixtures and test protocols are applied.
Can the system perform other mechanical tests besides peel?
Yes — equipped with interchangeable fixtures, it executes tensile, compression, bend (3-point/4-point), tear, puncture, and cyclic fatigue tests per GB/T 1040, ISO 6892-1, and ASTM D790.
Is force calibration traceable to national metrology institutes?
All load cells ship with NIST-traceable calibration certificates (CNAS-accredited lab); annual recalibration is recommended per ISO/IEC 17025 Clause 6.5.
What data security and audit features are included?
Role-based user accounts, encrypted database storage, immutable electronic audit trails, and electronic signature workflows support 21 CFR Part 11 and EU Annex 11 compliance when deployed on validated IT infrastructure.
Are extension devices such as video extensometers supported?
Yes — optional non-contact digital image correlation (DIC) modules and clip-on axial/two-point extensometers integrate via USB or analog output channels for strain measurement during peel or tensile testing.
