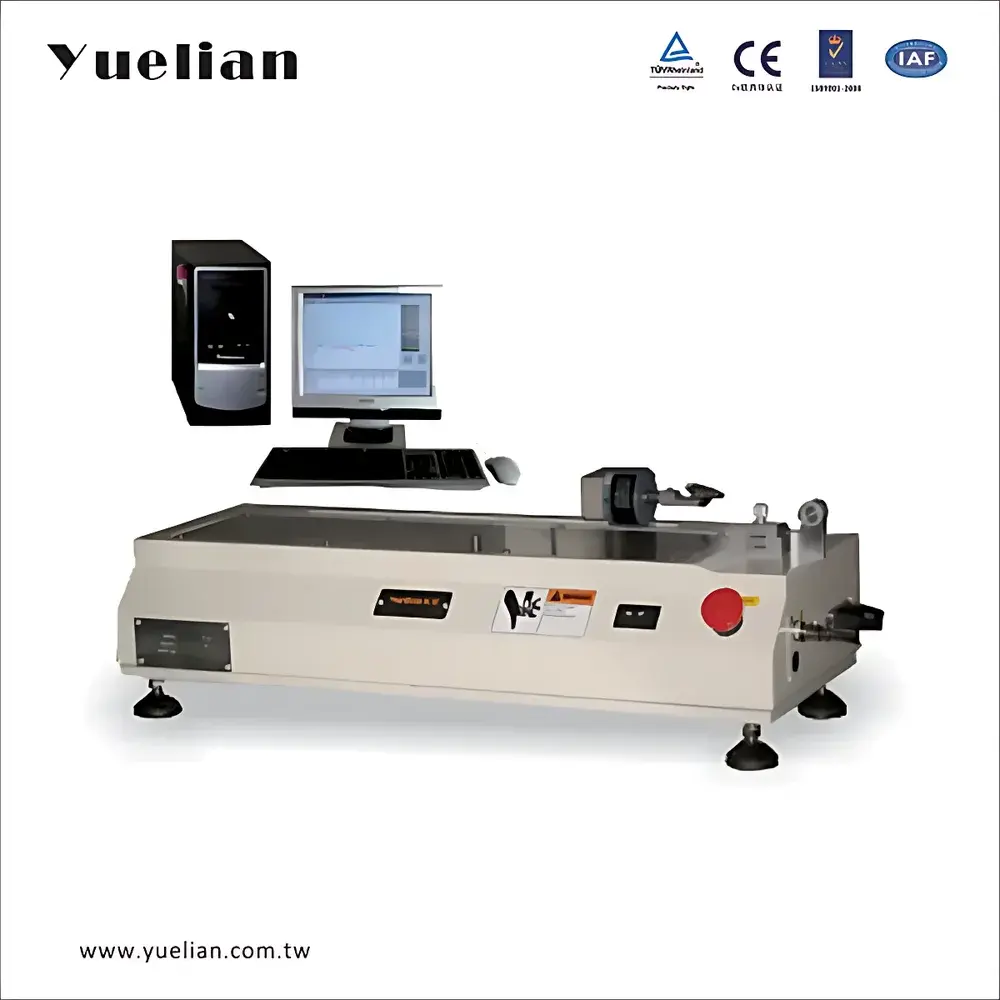

Yuelian YL-1103S GB/T 2792 Peel Adhesion Tester

Overview

The Yuelian YL-1103S GB/T 2792 Peel Adhesion Tester is an electromechanical universal testing system engineered for high-reproducibility quantitative measurement of peel adhesion strength in pressure-sensitive adhesive (PSA) tapes, labels, medical patches, flexible packaging laminates, and carrier tapes used in electronics manufacturing. It operates on the principle of controlled tensile separation—applying a defined peeling angle (typically 90° or 180° per GB/T 2792 and ASTM D3330) while measuring force response in real time. Designed to meet the mechanical and metrological requirements of standardized peel testing protocols, the system delivers traceable, repeatable results suitable for QC release, R&D material qualification, and regulatory documentation under GLP-compliant environments.

Key Features

• Microprocessor-controlled closed-loop actuation with stepper motor drive, precision ball screw transmission, and synchronous belt coupling—ensuring smooth, low-noise motion and minimal backlash across the full speed range (5–500 mm/min).
• Dual-range load cell configuration support (e.g., 10 N / 100 N), enabling optimal signal-to-noise ratio for both ultra-thin film substrates and high-adhesion industrial tapes.
• Force resolution of 1 part in 500,000 full scale and certified accuracy of ±0.3% of reading—aligned with ISO 7500-1 Class 0.5 requirements for static force measurement systems.
• Integrated automatic return-to-start function post-test, reducing operator intervention and improving throughput in high-volume lab settings.
• Modular fixture mounting platform (140 mm test width) compatible with standard GB/T 2792 peel jigs—including fixed-angle 90° and 180° peel arms, roller-type specimen guides, and adjustable clamping mechanisms for consistent pre-peel tensioning.
• Safety-critical stop logic: overload cutoff, emergency stop button, specimen rupture detection, programmable upper/lower travel limits, and hardware interlock monitoring.

Sample Compatibility & Compliance

The YL-1103S is validated for use with flat, flexible specimens conforming to GB/T 2792–2014 (equivalent to ISO 8510-2), ASTM D3330–18 (Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape), and related specifications including JIS Z 0237 and PSTC-101. It supports peel testing of single-coated and double-coated PSAs, transfer tapes, masking tapes, protective films, and surface-mount device (SMD) carrier tapes per EIA-481-D requirements. All mechanical components are constructed from corrosion-resistant anodized aluminum and hardened steel, ensuring long-term dimensional stability under ambient laboratory conditions (23 ± 2 °C, 50 ± 5% RH). The system’s mechanical design complies with EN ISO 12100 for machinery safety, and its electrical architecture conforms to IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-2 (immunity).

Software & Data Management

The embedded PC-based control and analysis suite provides full test sequence programming, real-time force–displacement curve visualization, and automated parameter extraction—including peak peel force, average peel force over specified displacement intervals, and post-yield energy absorption (area under curve). Data acquisition occurs at ≥1 kHz sampling rate via a calibrated USB-connected interface board. Raw test data is stored in structured MS Access database format (.mdb), supporting SQL queries, batch report generation, and export to CSV, Excel, or PDF. Audit trail functionality records user ID, timestamp, test parameters, calibration history, and any manual overrides—enabling compliance with FDA 21 CFR Part 11 requirements when deployed in regulated pharmaceutical or medical device manufacturing environments. Optional digital signature integration and electronic record archiving modules are available for GMP-aligned validation packages.

Applications

• Quality control of pressure-sensitive adhesive performance across tape, label, and graphic film production lines.
• Comparative evaluation of aging effects (thermal, UV, humidity) on peel adhesion retention.
• Validation of cleaning process impact on substrate surface energy and subsequent bond integrity.
• Development and specification of SMD carrier tape peel strength for automated pick-and-place equipment compatibility.
• Failure mode analysis of delamination in multilayer flexible packaging structures (e.g., PET/AL/PE laminates).
• Supporting technical documentation for ISO 9001 internal audits and customer-facing material declarations (e.g., RoHS, REACH).

FAQ

Does the YL-1103S comply with international peel test standards beyond GB/T 2792?
Yes—it is configured and validated for ASTM D3330, ISO 8510-2, JIS Z 0237, and PSTC-101 methodologies, with adjustable peel angle, speed, and sample geometry inputs to match each standard’s procedural requirements.

Can the system be integrated into an existing LIMS or MES environment?
The software supports ODBC-compliant database connectivity and includes a documented API for programmatic data ingestion into third-party laboratory information management systems (LIMS) or manufacturing execution systems (MES).

Is calibration certification included with shipment?
Each unit ships with a factory-issued calibration certificate traceable to NIM (National Institute of Metrology, China), covering force and displacement axes. Optional UKAS-accredited calibration services are available upon request.

What maintenance is required to sustain measurement accuracy over time?
Annual verification of load cell linearity, crosshead alignment, and encoder resolution is recommended. Routine checks include lubrication of the ball screw assembly every 6 months and inspection of grip surfaces for wear or contamination.
