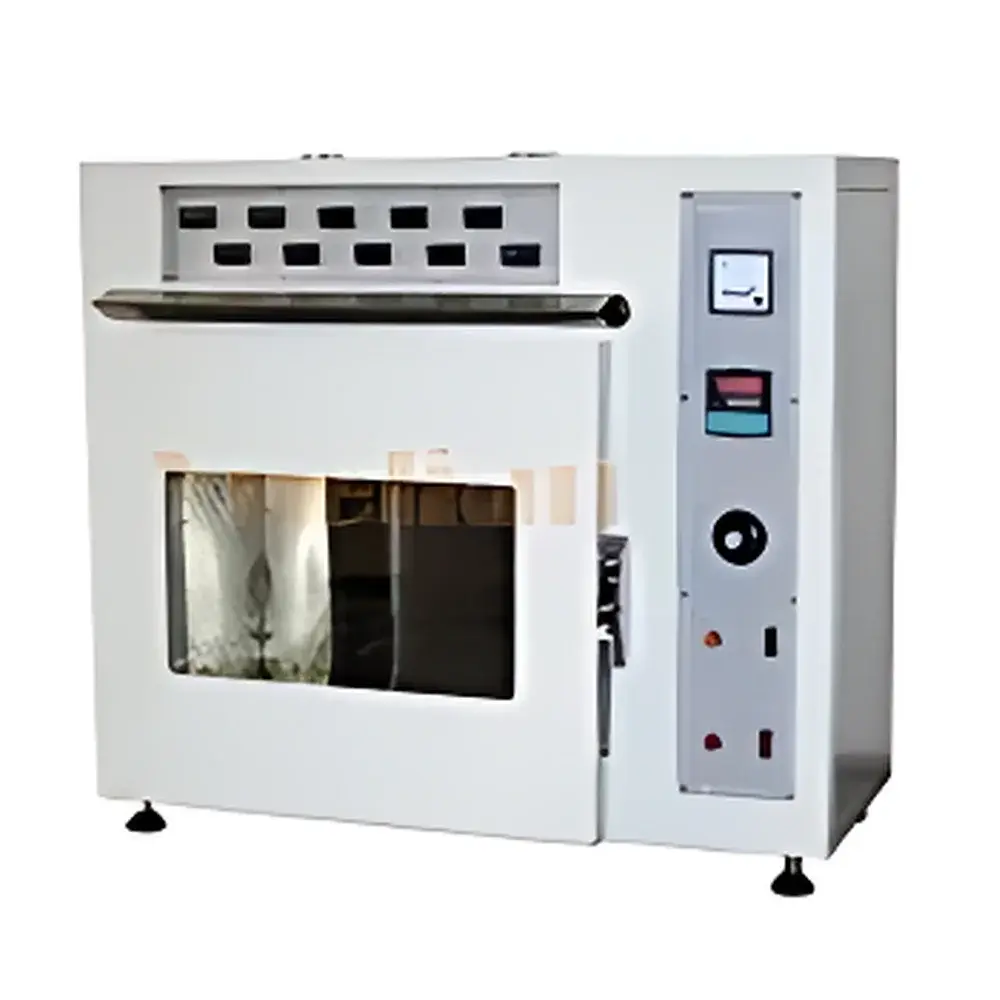

Yuelian YL-8808 Constant-Temperature Tape Holding Power Tester

Overview

The Yuelian YL-8808 Constant-Temperature Tape Holding Power Tester is a precision-engineered instrument designed to evaluate the long-term adhesive stability of pressure-sensitive tapes under controlled thermal conditions. It operates on the principle of static load application—where a standardized mass is suspended vertically from a tape specimen bonded to a polished stainless steel substrate—while maintaining a uniform, programmable temperature environment within an insulated chamber. This methodology directly aligns with internationally recognized adhesion durability protocols, enabling quantifiable assessment of time-to-failure (i.e., debonding onset) under thermally accelerated stress. Unlike ambient-temperature holding power testers, the YL-8808 integrates a microprocessor-controlled PID heating system and optimized airflow distribution to ensure spatial temperature uniformity across all 10 test stations—critical for inter-laboratory reproducibility and regulatory compliance in quality assurance workflows.

Key Features

• Microprocessor-based PID temperature controller with ±0.3°C accuracy and 0.1°C display resolution, supporting stable setpoint maintenance from +5°C to 150°C
• 10 independent test stations, each equipped with a dedicated SUS#304 stainless steel test plate and electromagnetic release-triggered digital timer
• Self-retaining electronic timers (999 h 59 min 59 s range, 60-base format) with automatic hold-on-failure functionality—no external power required for time capture
• Integrated audible alarm and automatic heater cutoff upon complete specimen detachment across all stations
• Chamber construction: fully welded interior lining of corrosion-resistant SUS#304 stainless steel; exterior finished with industrial-grade epoxy-polyester powder coating
• Load configuration: ten standardized 1 kg stainless steel weights (ASTM-compliant mass tolerance), supplied with calibrated suspension hooks and alignment guides

Sample Compatibility & Compliance

The YL-8808 accommodates standard 25 mm × 100 mm tape specimens applied to vertically oriented, mirror-finished SUS#304 substrates per ASTM D3654/D3654M and ISO 29862 prerequisites. Its thermal uniformity profile (< ±0.5°C deviation across full chamber volume at 70°C and 100°C setpoints, verified per IEC 60068-3-5) ensures equivalence with reference methods in GB/T 4851–2014 (Chinese national standard for peel and holding power) and PSTC-7 (Pressure Sensitive Tape Council specification). The system meets structural and operational requirements for GLP-compliant environments—including traceable calibration documentation, audit-ready timer logs, and hardware-level fail-safes for thermal runaway prevention. While not FDA 21 CFR Part 11–certified out-of-the-box, its deterministic timer architecture supports validation for regulated pharmaceutical packaging adhesion testing when integrated into validated laboratory information management systems (LIMS).

Software & Data Management

The YL-8808 operates as a standalone electromechanical platform with no embedded firmware or network connectivity—intentionally minimizing validation complexity for regulated settings. All timing data are stored locally in non-volatile memory per channel and displayed on high-contrast LCD modules. For laboratory integration, users may manually transcribe results into Excel-based tracking templates or import timestamps into LIMS via USB-connected data loggers (optional accessory). Each timer module retains the final elapsed time upon detachment until manually reset, eliminating operator-dependent data loss. Calibration certificates for temperature sensors (traceable to NIM, China) and load masses (certified to OIML R111 Class M1) are provided with shipment, supporting ISO/IEC 17025 documentation requirements.

Applications

• Quality control of high-temperature masking tapes used in automotive paint curing ovens (e.g., 120–140°C exposure)
• Stability screening of medical device fixation tapes intended for prolonged skin contact under elevated ambient conditions
• R&D evaluation of acrylic vs. silicone-based PSA formulations for aerospace bonding applications requiring >100°C service life
• Supplier qualification testing against contractual holding power clauses referencing GB/T 4851 or PSTC-7 pass/fail thresholds
• Accelerated aging studies correlating time-to-failure at elevated temperatures with real-world shelf-life predictions

FAQ

What standards does the YL-8808 explicitly support?
It is mechanically and functionally aligned with GB/T 2792, GB/T 4851, PSTC-7, CNS 11887, and CNS 11888. Test geometry, substrate material, load magnitude, and timing logic conform to these specifications.
Can the temperature uniformity be independently verified?
Yes—users may deploy NIST-traceable thermocouple probes at multiple spatial locations (top/mid/bottom, center/periphery) during stabilization. Deviation limits are defined in IEC 60068-3-5 Annex B.
Is the 1 kg load configurable to other masses?
The fixture accepts custom-calibrated weights (e.g., 0.5 kg, 2 kg) provided they maintain identical dimensional footprint and center-of-gravity alignment per ASTM D3654.
How is thermal safety managed during unattended operation?
A dual-stage overtemperature protection circuit disables heating elements if chamber temperature exceeds setpoint by >5°C; simultaneous activation of the audible alarm and visual LED indicator ensures immediate operator awareness.
Does the instrument require annual recalibration?
Temperature sensors and load masses should be recalibrated annually—or after any physical impact or environmental shock—per ISO/IEC 17025 Clause 6.5, using accredited metrology providers.
