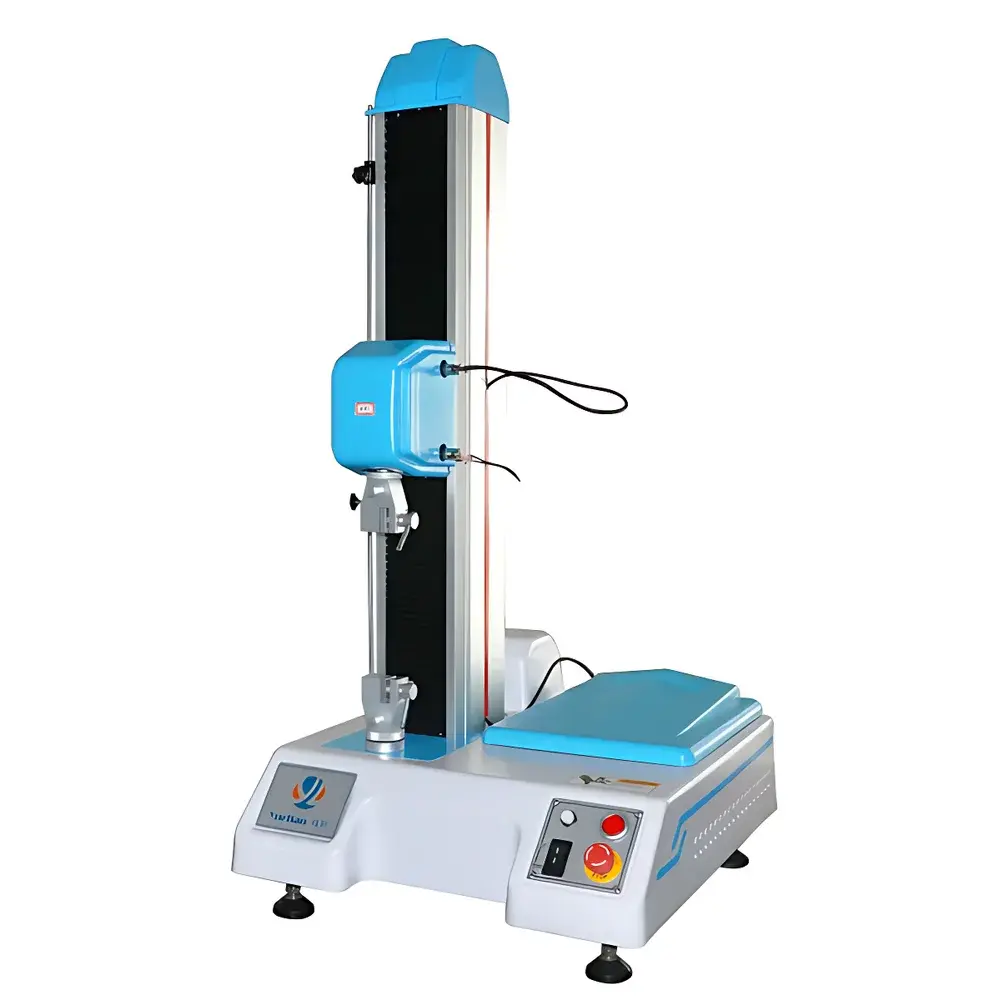

Yuelian YL-H03 Horizontal Peel Force Tester
| Brand | Yuelian |
|---|---|
| Origin | Guangdong, China |
| Model | YL-H03 |
| Instrument Type | Electronic Universal Testing Machine |
| Load Capacity Options | 10, 20, 50, 100, 200 N |
| Force Resolution | 1/250,000 full scale |
| Test Stroke | 400 mm |
| Stroke Resolution | 0.005 mm |
| Speed Range | 5–500 mm/min (computer-programmable) |
| Maximum Specimen Width | 110 mm |
| Dimensions (W×D×H) | 110 × 30 × 26 cm |
| Weight | 36 kg |
| Power Supply | Single-phase, 100–240 VAC, 3 A |
Overview

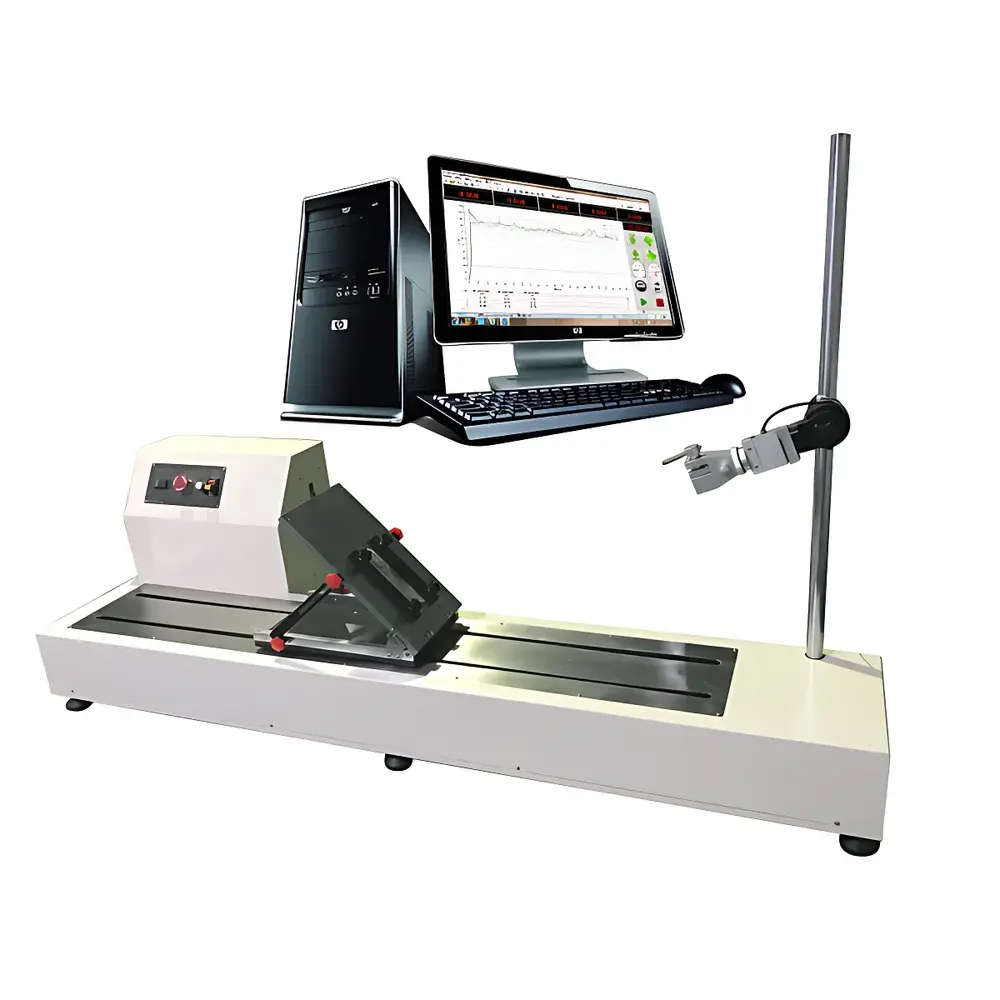

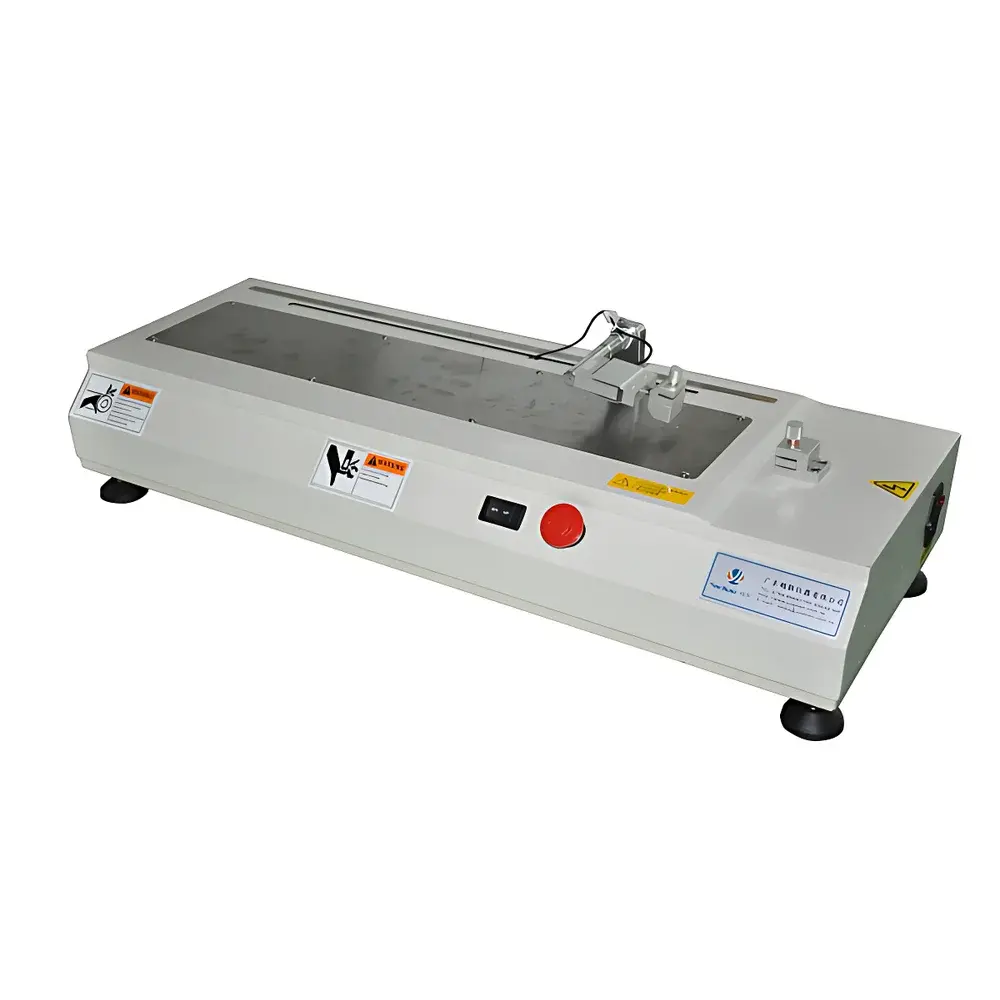

The Yuelian YL-H03 Horizontal Peel Force Tester is an electronically actuated universal testing system engineered specifically for standardized 180° peel adhesion testing of flexible packaging materials, pressure-sensitive tapes, laminated films, and carrier tapes used in electronics manufacturing (e.g., EIA-481 compliant embossed or punched carrier tapes). It operates on the principle of controlled displacement-driven tensile separation, where a specimen—comprising a substrate bonded to a backing or liner—is clamped at fixed angular orientation and peeled at a constant rate while measuring the instantaneous force required to separate the layers. The horizontal configuration minimizes gravitational influence on specimen alignment and ensures consistent peel geometry throughout the test stroke, critical for ASTM D903, ISO 8510-2, and JIS Z 0237 compliant evaluations. Its microprocessor-based control architecture interfaces bidirectionally with host PC software, enabling real-time data acquisition, closed-loop speed regulation, and traceable test execution under GLP-aligned workflows.
Key Features
- Horizontal loading frame optimized for repeatable 180° peel geometry, eliminating vertical sag effects common in upright configurations
- High-resolution load cell with 1/250,000 full-scale resolution across selectable capacities (10–200 N), ensuring precise quantification of low-force peel transitions and peak adhesion events
- Programmable crosshead speed from 5 to 500 mm/min via PC interface, supporting both static and dynamic peel rate protocols per ISO 11339 and PSTC-101
- 400 mm travel range with 0.005 mm position resolution, accommodating extended peel lengths required for statistical sampling and failure mode analysis
- Dual-channel digital I/O for external trigger synchronization with high-speed cameras or environmental chambers (optional)
- Robust aluminum alloy frame with precision-ground linear guides, rated for continuous operation in QC laboratory environments
Sample Compatibility & Compliance
The YL-H03 accommodates specimens up to 110 mm wide and supports standardized strip widths per ASTM D3330 (25 mm), ISO 8510-2 (25 mm), and EIA-481-D (8 mm, 12 mm, 16 mm, 24 mm carrier tape widths). It accepts both rigid and flexible substrates—including PET, PI, PVC, aluminum foil, and copper-clad laminates—when paired with appropriate jaw fixtures (flat, serrated, or pneumatic). The system meets mechanical accuracy requirements defined in ISO 7500-1 Class 1 for force measurement and ISO 204 for displacement verification. While not certified to EN ISO/IEC 17025, its hardware architecture and software logging capabilities support internal validation against USP , FDA 21 CFR Part 11 (with optional electronic signature module), and GMP-relevant audit trails when deployed within qualified laboratory systems.
Software & Data Management
The included Windows-based control and analysis suite provides full test method definition, real-time force–displacement curve visualization, automatic peak/average/minimum force extraction, and statistical reporting (n ≥ 5). Raw data exports to CSV, Excel, and XML formats; graphical outputs comply with ISO 14644-1 documentation standards for cleanroom-associated material qualification. Audit logs record operator ID, timestamp, calibration status, and parameter changes—enabling retrospective review during regulatory inspections. Software supports multi-user role-based access control and integrates with LIMS platforms via ODBC drivers. Firmware updates are delivered via signed binary packages with SHA-256 checksum verification.
Applications
- Quantitative evaluation of adhesive bond strength in surface-mount technology (SMT) carrier tapes prior to component placement
- Quality assurance of medical device packaging seals (Tyvek–polyethylene laminates) per ASTM F88
- Comparative analysis of acrylic vs. silicone PSAs on release liners under accelerated aging conditions
- Process validation of hot-melt adhesive lamination lines in flexible packaging production

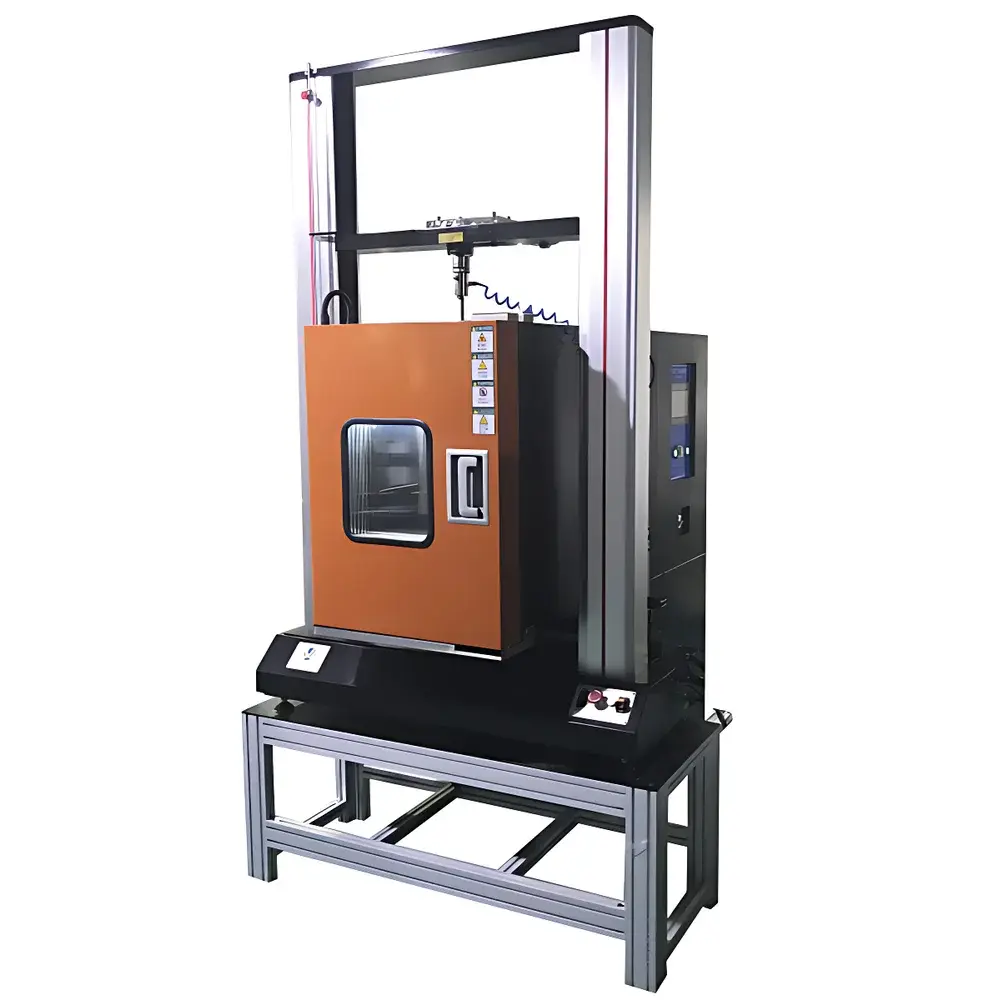

- R&D screening of novel biodegradable film adhesives under variable humidity and temperature profiles (when coupled with environmental chamber)
FAQ
What peel angle does the YL-H03 support?
The system is mechanically constrained for 180° peel testing only; angular adjustment is not supported.
Is calibration certification included with shipment?
A factory-issued as-found/as-left calibration report (traceable to NIM, China) is provided; third-party ISO/IEC 17025 calibration is available upon request.
Can the tester perform tensile strength tests on non-peel specimens?

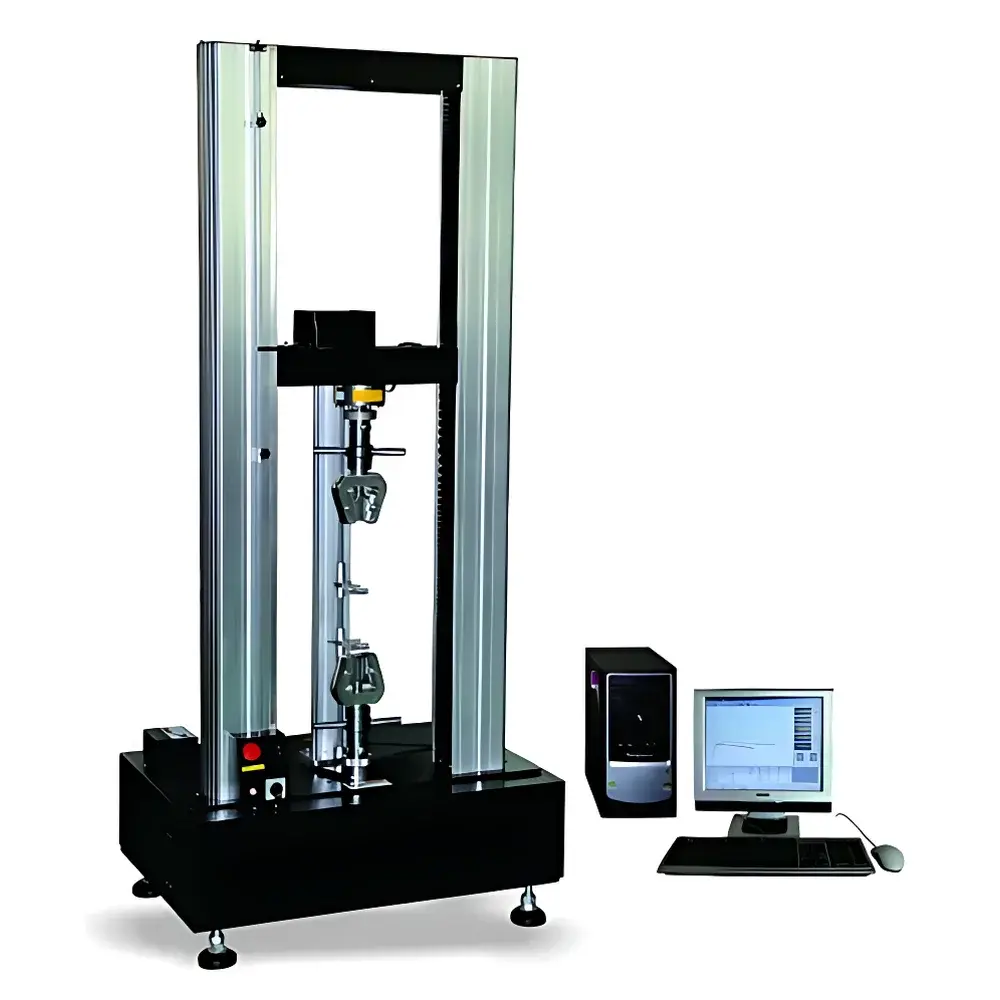

Yes—using optional tensile grips and method templates, it functions as a general-purpose electronic universal tester for ISO 527-2 and ASTM D638 Type I–V specimens up to 200 N.
Does the software support automated pass/fail decision logic?
Yes—user-defined upper/lower limits can be assigned per test method, triggering visual alerts and exporting compliance flags to CSV reports.
What maintenance intervals are recommended?
Linear guide lubrication every 6 months; load cell verification annually or after 10,000 cycles; firmware updates applied before major audit cycles.
