Yuntang YT-600A Constant-Temperature Ring Method Interfacial Tensiometer

Overview

The Yuntang YT-600A Constant-Temperature Ring Method Interfacial Tensiometer is a precision instrument engineered for the quantitative determination of surface and interfacial tension using the classical Du Noüy ring method. Based on the principle of measuring the maximum force required to detach a platinum-iridium ring from the liquid–air or liquid–liquid interface, the system delivers traceable, reproducible results in accordance with standardized physical measurement protocols. Its integrated temperature control subsystem—utilizing PID auto-tuning logic—maintains thermal stability within ±1 °C of the setpoint (typically 25 °C), ensuring compliance with ISO 1409:2016 and ASTM D971 for interfacial tension testing. Designed specifically for routine QC laboratories, formulation R&D centers, and academic surface science facilities, the YT-600A provides robust architecture for high-throughput analysis of surfactants, emulsions, crude oils, pharmaceutical excipients, and polymer solutions.

Key Features

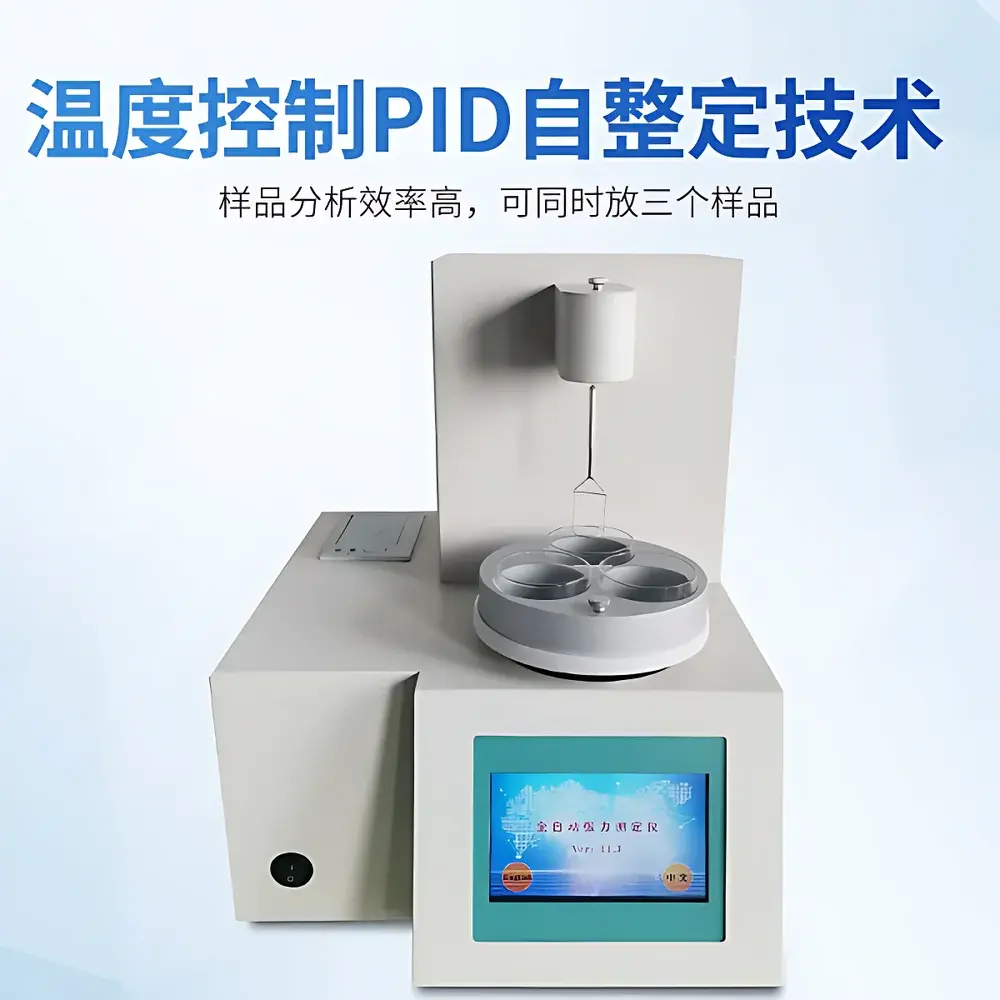

• Constant-temperature operation with PID-controlled thermal regulation (±1 °C stability at 25 °C), minimizing thermal drift during dynamic tension acquisition
• Triple-sample holder configuration enabling sequential or parallel analysis without manual repositioning
• Automatic parameter compensation when switching between standard platinum–iridium rings of differing diameters (e.g., 19.2 mm and 25.4 mm), eliminating manual correction factors

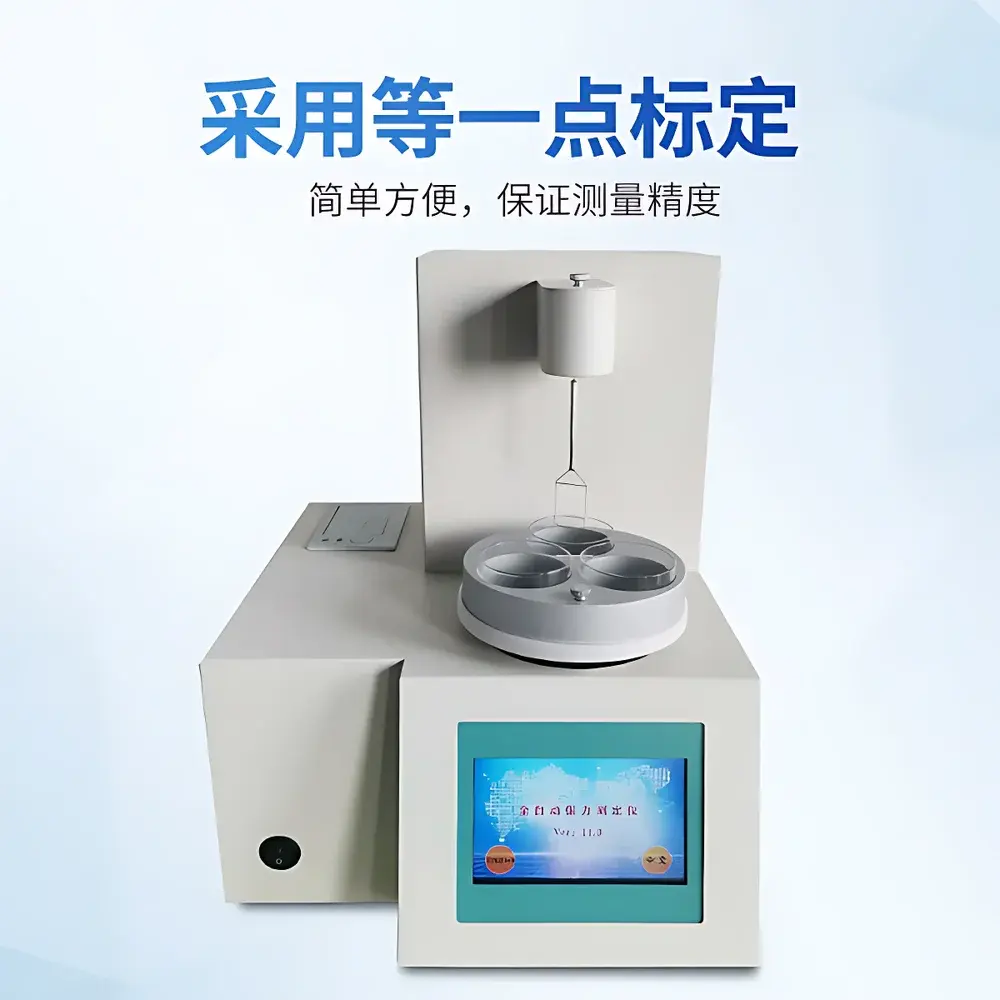

• Single-point calibration protocol compliant with ISO 30012 and USP <721>, reducing operator dependency and validation overhead

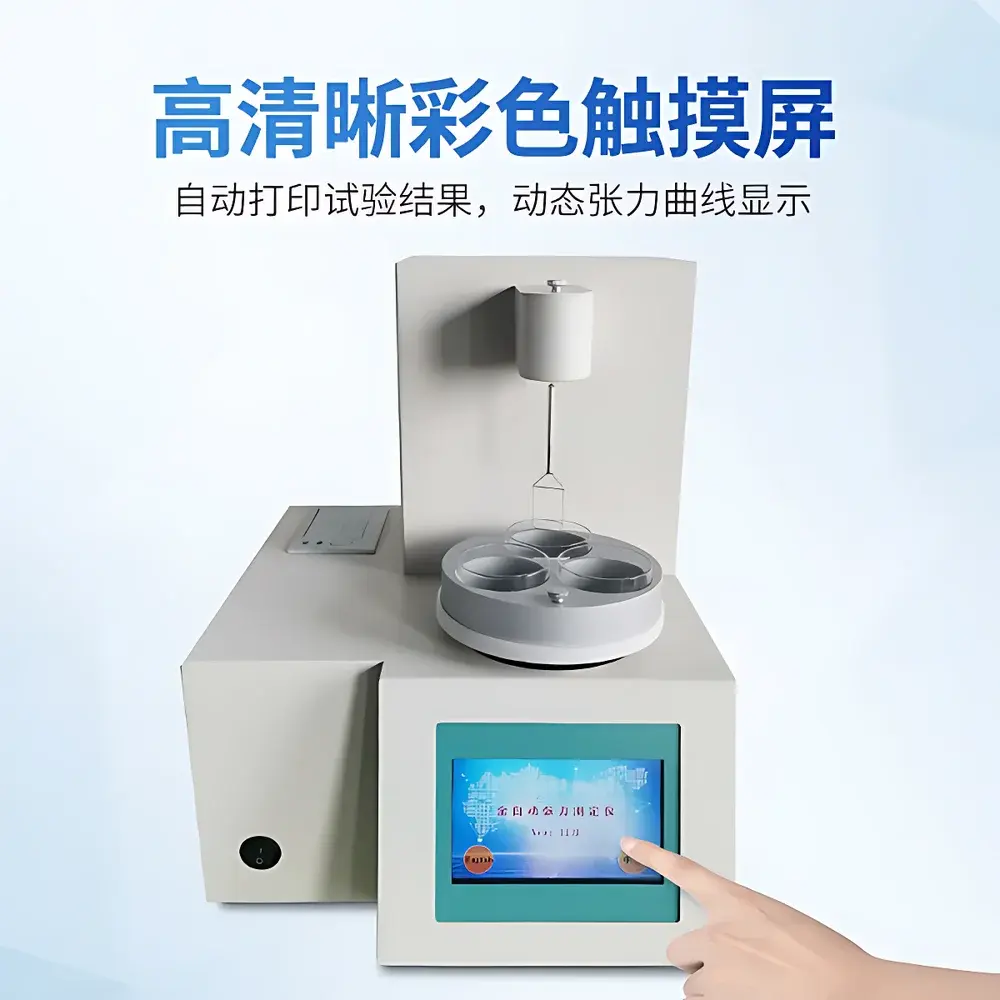

• Real-time graphical display of dynamic surface/interfacial tension evolution via embedded high-resolution color touchscreen (800 × 480 px)
• Integrated thermal printer for immediate hardcopy output of test reports including timestamp, sample ID, measured value, and curve metadata
• Low-power consumption design (50 W nominal) suitable for continuous operation in shared laboratory environments

Sample Compatibility & Compliance

The YT-600A supports aqueous, organic, and biphasic systems—including water–oil, water–surfactant, and polymer–solvent interfaces—within its validated measurement range of 2–500 mN/m. It accommodates standard Du Noüy ring geometries per ISO 1409 Annex A and ASTM D1331 specifications. The instrument meets essential electrical safety requirements per IEC 61010-1:2010 and operates reliably under ambient conditions of 5–40 °C and ≤85% RH (non-condensing). While not certified for GMP production environments out-of-the-box, its single-point calibration workflow, audit-ready print logs, and stable thermal performance make it suitable for GLP-compliant studies and pre-validation phases in regulated sectors such as cosmetics, agrochemicals, and generic pharmaceutical development.

Software & Data Management

The YT-600A operates autonomously via its embedded firmware—no external PC or proprietary software installation required. All measurement data, including raw force values, calculated tension, temperature readings, and time-stamped curve profiles, are stored internally and printed in real time. The touchscreen interface enables direct entry of sample identifiers, operator initials, and batch numbers. Although the current firmware does not support USB export or network connectivity, the printed reports include all elements necessary for traceability under FDA 21 CFR Part 11 Annex A (electronic record integrity) when used in conjunction with lab-controlled documentation practices. Future firmware updates may introduce CSV export capability via micro-USB port (hardware-ready).

Applications

• Quality control of surfactant purity and critical micelle concentration (CMC) profiling in detergent and personal care formulations
• Interfacial tension characterization of enhanced oil recovery (EOR) agents in reservoir simulation workflows
• Stability assessment of oil-in-water and water-in-oil emulsions across temperature gradients
• Surface activity screening of novel biosurfactants and green solubilizers in biotechnology R&D
• Evaluation of coating solution wettability prior to spin-coating or dip-coating processes
• Teaching laboratory implementation for undergraduate physical chemistry and colloid science curricula

FAQ

What measurement principle does the YT-600A employ?
It implements the Du Noüy ring method, based on force measurement during ring detachment from the interface, as defined in ISO 1409 and ASTM D971.

Is the instrument suitable for liquid–liquid interfacial tension measurements?
Yes—provided both phases are immiscible and the ring is fully immersed in the lower phase before lifting through the interface.

Does the system support multi-point calibration?
No—it uses a validated single-point calibration procedure aligned with ISO 30012; this approach is sufficient for routine industrial applications where reference standards (e.g., pure water at 25 °C = 72.0 mN/m) are employed.

Can the temperature setpoint be adjusted beyond 25 °C?
The system is optimized for 25 °C operation with ±1 °C stability; no user-accessible temperature setpoint adjustment is provided in current firmware.

What ring materials are compatible with the YT-600A?
Standard platinum–iridium alloy rings conforming to ISO 1409 geometry specifications (e.g., 19.2 mm outer diameter) are recommended for long-term repeatability and corrosion resistance.
