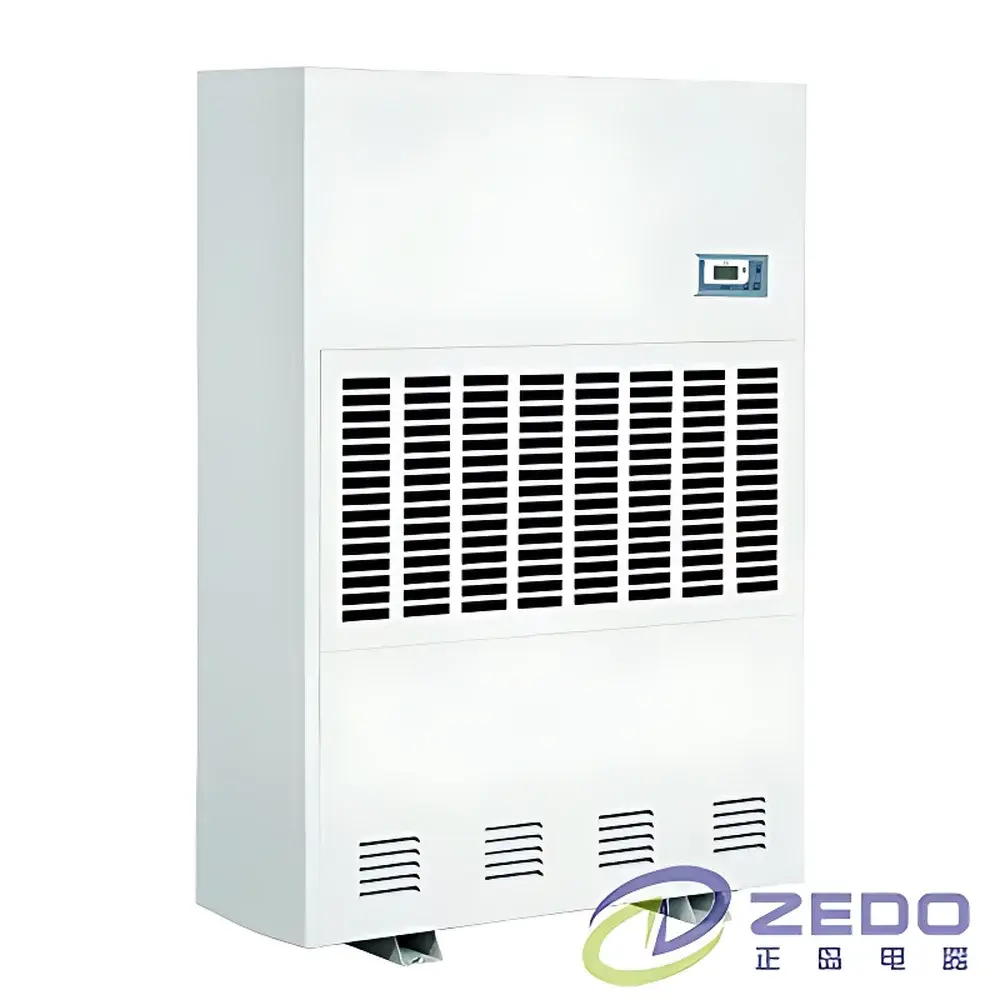

ZEDO ZD-8168C Industrial Desiccant Dehumidifier

Overview

The ZEDO ZD-8168C Industrial Desiccant Dehumidifier is a high-capacity, compressor-driven environmental control system engineered for continuous operation in demanding industrial and laboratory-grade environments. Unlike desiccant-based units relying on adsorption chemistry, this model employs refrigerant-cycle condensation physics—cooling saturated air below its dew point across a precisely engineered hydrophilic aluminum fin-tube heat exchanger—to extract moisture as liquid condensate. Its design targets stable relative humidity (RH) maintenance between 30% and 60% RH in spaces up to 180 m², making it suitable for precision manufacturing, controlled storage, and regulated research infrastructure where hygroscopic degradation, electrostatic discharge (ESD), or microbial growth must be mitigated per ISO 14644-1 cleanroom guidelines and ASTM D6193 ambient conditioning standards.

Key Features

• Industrial-grade scroll compressor with R410A refrigerant—optimized for thermal efficiency, low vibration, and extended service life under 24/7 duty cycles.
• Dual-centrifugal external rotor fan assembly delivering high volumetric airflow (>1200 m³/h) at ≤52 dB(A), ensuring uniform air distribution without turbulent recirculation zones.
• Hydrophilic aluminum fin-tube heat exchanger with internally grooved copper tubing—maximizing surface contact area and latent heat transfer coefficient while resisting corrosion in humid, particulate-laden airstreams.
• Microprocessor-based controller with Shinyo (Japan) high-accuracy capacitive RH/T sensor (±2% RH, ±0.3°C)—enabling closed-loop humidity setpoint regulation with hysteresis-free response and real-time fault diagnostics.
• Modular mechanical architecture separating airflow ducting from refrigeration circuits—reducing cross-contamination risk and simplifying field-level maintenance per ISO 55001 asset management protocols.
• Comprehensive electrical protection suite including high/low pressure switches, thermal overload relays, undervoltage monitoring, and 3-minute anti-short-cycling delay for compressor longevity.

Sample Compatibility & Compliance

The ZD-8168C is not a sample-processing instrument but an ambient conditioning system supporting integrity-critical workflows across multiple regulated sectors. It maintains RH stability required for ASTM E1447 (pharmaceutical packaging validation), ISO 11140-5 (sterile barrier systems), and USP (packaging for sterile products). Its construction complies with IEC 60335-1 general safety requirements for industrial electrical appliances and meets CE marking criteria for electromagnetic compatibility (EN 61000-6-3/-4). While not intrinsically rated for Class I Division 1 hazardous locations, optional ATEX-compatible variants are available upon request for chemical processing environments.

Software & Data Management

The unit operates via embedded firmware—not cloud-connected software—ensuring deterministic control logic and immunity to network vulnerabilities. All operational parameters—including runtime hours, compressor cycles, fault logs (e.g., “High Pressure Trip,” “Sensor Calibration Drift”), and current RH/T readings—are stored locally in non-volatile memory with timestamped entries. Data export requires physical USB interface connection; no remote telemetry or FDA 21 CFR Part 11-compliant audit trail is natively supported. For GLP/GMP-aligned deployments, third-party data loggers (e.g., Testo 177-H1) may be integrated via analog 4–20 mA output (optional accessory).

Applications

• Electronics manufacturing: Preventing solder paste oxidation, PCB delamination, and MOSFET gate oxide damage during SMT reflow and post-assembly storage (per IPC-STD-033B).
• Pharmaceutical cold chain staging: Maintaining ≤45% RH in lyophilization support rooms and secondary packaging suites to inhibit excipient hygroscopicity.
• Optical metrology labs: Stabilizing RH to ±3% to eliminate refractive index drift in interferometric calibration setups (ISO 230-6).
• Battery dry rooms: Supporting lithium chloride and NMC cathode handling zones where dew point must remain ≤−40°C (equivalent to ~0.5% RH at 23°C).
• Museum archival storage: Controlling RH in climate-buffered vaults housing cellulose acetate film, parchment, and textile artifacts per ISO 11799.
• Defense logistics depots: Preserving ordnance guidance components and radar waveguide assemblies against condensation-induced corrosion.

FAQ

What is the minimum ambient temperature at which the ZD-8168C remains effective?
It is rated for continuous operation between 5°C and 38°C. Below 5°C, evaporator coil frosting may occur without defrost cycle integration—external pre-heating of inlet air is recommended for sub-10°C applications.
Can this unit be ducted for centralized dehumidification?
Yes—integrated static pressure capability supports up to 15 Pa external static resistance; custom duct adapters and insulated flexible ducting kits are available as accessories.
Does the unit include a condensate pump?
No—the standard configuration uses gravity drainage via 10 m PVC hose; an optional 5 m head condensate pump kit (ZP-2000) is offered for elevated discharge scenarios.
Is the activated carbon filter replaceable, and what is its service interval?
Yes—the filter is user-accessible and should be replaced every 6 months in high-particulate environments or annually under typical industrial conditions.
How is calibration traceability handled for the onboard RH sensor?
Factory calibration uses NIST-traceable reference hygrometers; field recalibration requires disassembly and bench verification—ZEDO provides certified calibration services with ISO/IEC 17025 documentation upon request.
