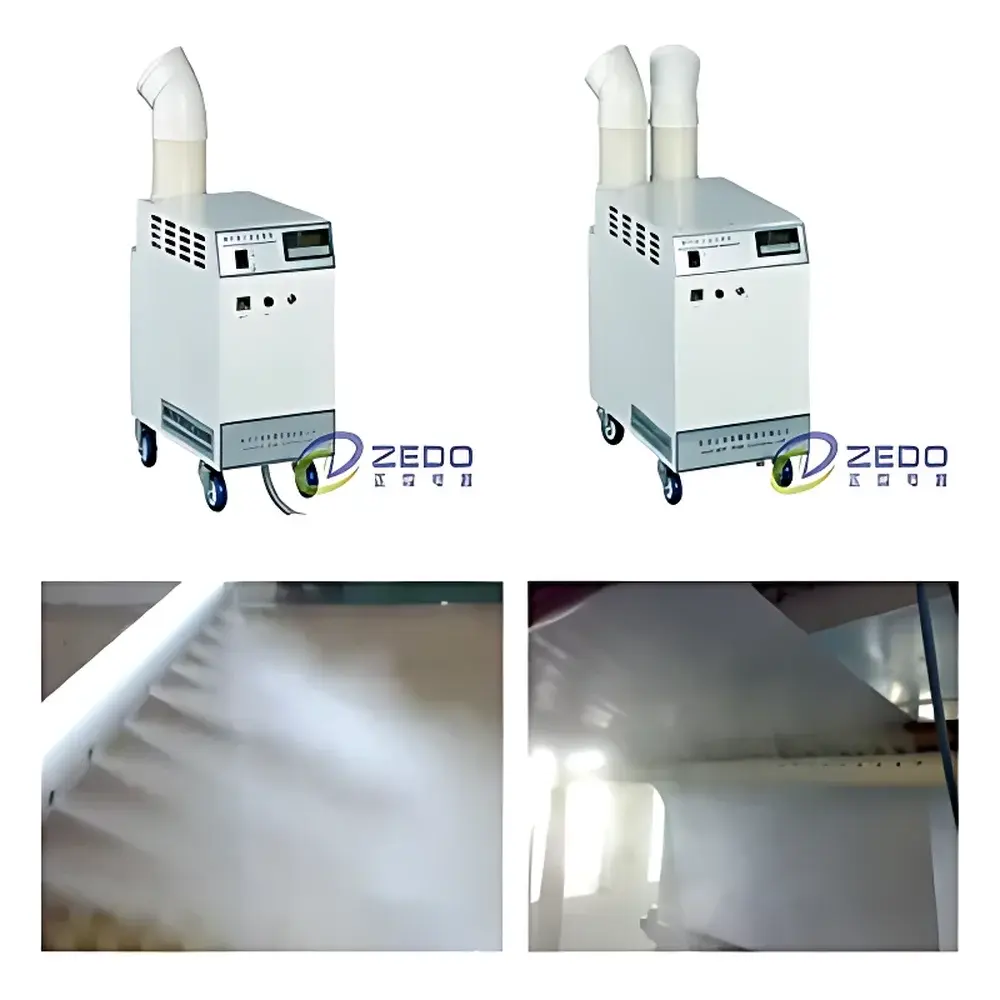

ZEDO ZS-40Z Paper Rehumidification Humidifier

Overview

The ZEDO ZS-40Z Paper Rehumidification Humidifier is an industrial-grade ultrasonic humidification system engineered specifically for controlled moisture restoration in paper handling, storage, and pre-press environments. Unlike general-purpose humidifiers, the ZS-40Z operates on high-frequency ultrasonic oscillation (≥1.7 MHz) to generate sub-10 µm water droplets—enabling rapid, uniform dispersion without wetting surfaces or introducing thermal load. Its core function is not ambient air humidification alone, but targeted rehumidification of hygroscopic paper stock to restore equilibrium moisture content (EMC) within the critical 5–7% w/w range required for dimensional stability, static mitigation, and optimal print registration. Designed for integration into ISO-compliant printing facilities, it supports GMP-aligned environmental control protocols where humidity deviation directly impacts process capability (C_pk) and product conformity per ISO 12647-2 (graphic technology — process control for the production of half-tone colour separations, proof and production prints).

Key Features

• Four-tube ultrasonic atomization system: Delivers consistent 12 kg/h output with <95% aerosol deposition efficiency in airflow paths ≥0.5 m/s; eliminates nozzle clogging and ensures stable output across water hardness up to 300 ppm CaCO₃.
• Full 304 stainless steel construction: Seamless tank, vapor chamber, and structural frame resist corrosion from prolonged exposure to chlorinated municipal water and alkaline paper dust environments.
• IP68-rated variable-frequency power supply: Fully potted electronics withstand immersion at 1 m depth; enables precise amplitude modulation (20–100% output range) and extends transducer service life by reducing thermal stress during partial-load operation.
• Waterproof ball-bearing fan (36 V DC): IP68-rated axial blower provides laminar, low-turbulence air delivery (≥120 m³/h @ 150 Pa static pressure); eliminates bearing seizure risks associated with standard AC fans in high-humidity zones.
• Shinyo high-accuracy RH sensor (±2% RH, 10–90% RH range): Integrated into closed-loop microcontroller (ARM Cortex-M4) with 0.1% RH resolution; supports programmable setpoint ramping, hysteresis tuning, and alarm thresholds for GLP/GMP audit trails.
• Fail-safe fluid management: Dual-level float switches, optical water-level detection, and auto-shutoff upon reservoir depletion prevent dry-firing and ensure compliance with IEC 60335-1 safety requirements for humidifying appliances.

Sample Compatibility & Compliance

The ZS-40Z is validated for use with uncoated, coated, and synthetic papers ranging from 40 g/m² to 300 g/m², including newsprint, offset, and digital media stocks. It meets CE marking requirements under the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. While not a medical device, its operational parameters align with ISO 8573-1:2010 Class 4 compressed air quality standards when integrated into centralized HVAC humidification ducts. For pharmaceutical packaging facilities subject to FDA 21 CFR Part 11, optional RS-485 Modbus RTU interface enables time-stamped humidity logging with user authentication and electronic signature support.

Software & Data Management

The embedded controller features a 4.3-inch capacitive touchscreen with multilingual UI (English, German, Spanish, Chinese). All humidity setpoints, runtime logs, fault codes, and maintenance alerts are stored locally for ≥12 months. Optional Ethernet/Wi-Fi module (IEEE 802.11 b/g/n) enables integration with BMS platforms via BACnet MS/TP or MQTT protocol. Audit trail functionality complies with ALCOA+ principles: attributable, legible, contemporaneous, original, accurate, complete, consistent, enduring, and available—supporting FDA and EU Annex 11 validation requirements for computerized systems in regulated environments.

Applications

• Pre-press paper acclimatization chambers (24-hr dwell at 70% RH prior to cutting)
• Roll storage rooms maintaining 65 ± 3% RH to prevent edge curl and cockling
• Offset press feed decks requiring localized humidity compensation (±5% RH tolerance)
• Flexographic and gravure web lines where static-induced misregistration exceeds 25 µm
• Archival document preservation labs adhering to ANSI/NISO Z39.48-1992 environmental guidelines
• Corrugated board manufacturing plants controlling flute stiffness via moisture equilibration

FAQ

What is the recommended operating humidity setpoint for paper rehumidification?
For most offset and digital papers, 65–70% RH is optimal for restoring EMC to 5.5–6.5%; however, coated papers may require 55–60% RH to avoid surface blooming.
Can the ZS-40Z be integrated into existing HVAC ductwork?
Yes—optional duct-mount adapter kit (ZS-DK40) enables inline installation with static pressure drop <80 Pa at rated airflow.
How often must the ceramic transducer be replaced?
Under typical municipal water conditions (TDS < 250 ppm), expected service life is 3,500–4,200 operating hours; replacement requires <15 minutes and no calibration.
Does the unit comply with explosion-proof requirements for solvent-rich printing environments?
No—the ZS-40Z is rated for non-hazardous locations only (IEC 60079-0); for ATEX Zone 2 compliance, consult ZEDO’s intrinsically safe ZS-EX series.
Is remote firmware update supported?
Yes—via secure HTTPS OTA (over-the-air) update channel with SHA-256 signature verification and rollback protection.
