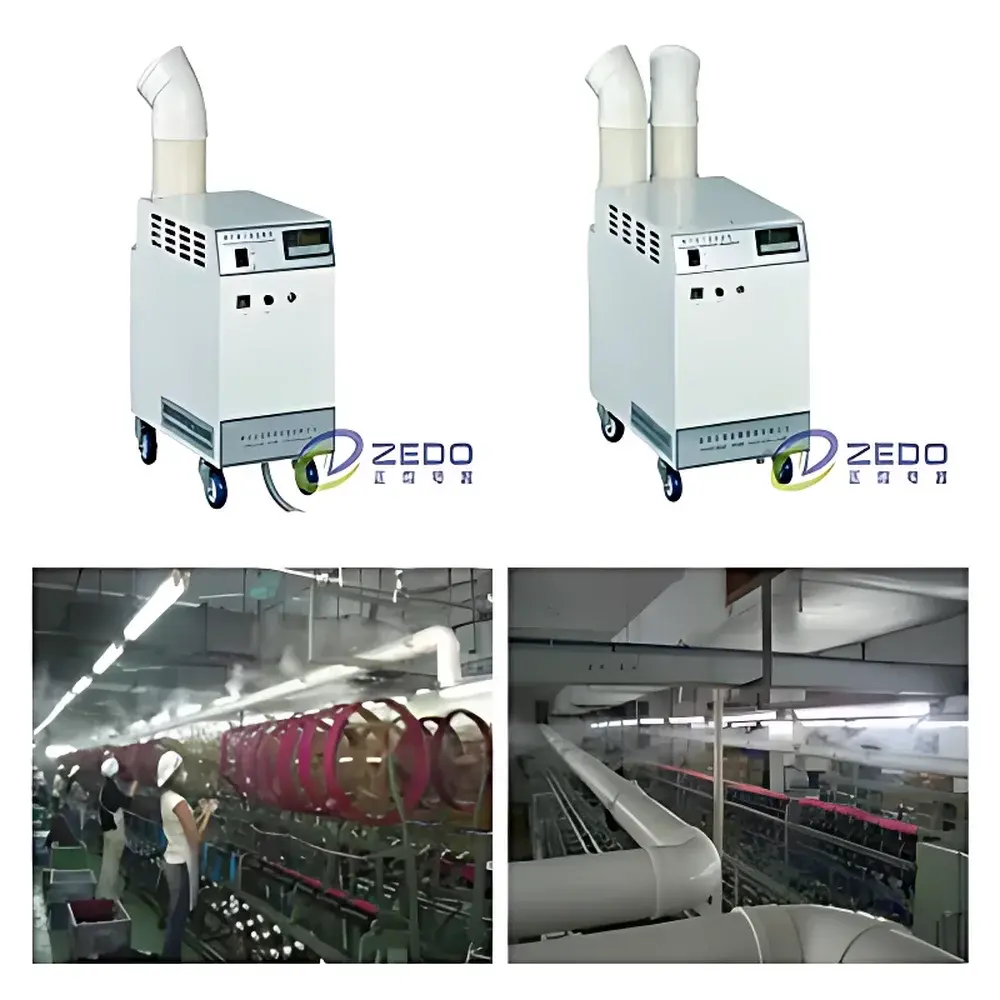

ZEDO ZS-40Z Textile-Specific Ultrasonic Industrial Humidifier

Overview

The ZEDO ZS-40Z Textile-Specific Ultrasonic Industrial Humidifier is an engineered environmental control system designed explicitly for humidity-critical textile manufacturing environments. Unlike general-purpose humidifiers, the ZS-40Z operates on high-frequency ultrasonic oscillation (1.7 MHz), generating sub-10 µm water droplets via piezoelectric ceramic transducers—ensuring rapid evaporation without wetting surfaces or equipment. This principle eliminates condensation, drip formation, and corrosion risks commonly associated with steam or centrifugal humidification methods—critical considerations when operating near precision looms, spinning frames, and automated winding systems. The unit delivers a stable, controllable output of 12 kg/h of saturated vapor, enabling precise maintenance of relative humidity (RH) within the narrow operational bands required across cotton, wool, silk, and synthetic fiber processing stages—from carding and drawing to weaving and finishing.

Key Features

• Full 304 stainless steel enclosure with electrophoretic coating—resistant to oxidation, alkali exposure, and industrial cleaning agents.
• Four-tube ultrasonic atomization architecture—provides uniform spatial distribution and scalable saturation across large floor areas (up to 3,000 m³ per unit).
• IP68-rated sealed variable-frequency power supply and 36 V waterproof ball-bearing fan—designed for continuous operation in high-dust, high-humidity, and splash-prone zones.
• Alkaline/acid-resistant ceramic transducers—optimized for hard-water conditions common in industrial municipal supplies; rated for 3,000–5,000 hours of uninterrupted service.
• Integrated Shinyei capacitive RH sensor with ±2% RH accuracy (10–90% RH range) and real-time PID feedback loop—enabling closed-loop humidity regulation compliant with GLP-aligned environmental monitoring practices.
• Microprocessor-based controller with intuitive touch interface, programmable setpoints, event logging, and multi-mode operation (on/off, timer, and humidity-proportional control).

Sample Compatibility & Compliance

The ZS-40Z is validated for use in Class D cleanroom-adjacent production zones and ISO 9001-certified textile facilities. Its non-steam, non-heating humidification method avoids thermal degradation of hygroscopic fibers and eliminates microbiological growth risks associated with stagnant water reservoirs. Units meet CE electromagnetic compatibility (EMC) directives and conform to IEC 60335-1 safety standards for industrial appliances. While not classified as medical or pharmaceutical-grade equipment, its design supports adherence to textile-specific environmental guidelines referenced in ASTM D1776 (Standard Practice for Conditioning and Testing Textiles) and ISO 139 (Textiles — Standard Atmospheres for Conditioning and Testing). Optional data export (RS485 Modbus RTU) enables integration into facility-wide Building Management Systems (BMS) for audit-ready environmental logs.

Software & Data Management

The onboard controller stores up to 30 days of timestamped humidity readings, operational status events (e.g., low-water alerts, transducer fault codes), and user-defined setpoint history. Data can be retrieved locally via USB or exported remotely using optional RS485 communication modules supporting Modbus RTU protocol. No cloud dependency or proprietary SaaS platform is required—ensuring full data sovereignty and compatibility with internal SCADA or MES infrastructure. Audit trails comply with basic traceability requirements under ISO 9001 clause 7.5.3 (Control of documented information), including version-controlled firmware updates and immutable event timestamps.

Applications

• Cotton spinning and weaving—maintaining 75–85% RH during warp preparation and shuttleless loom operation to minimize yarn breakage and static-induced fiber repulsion.
• Wool scouring and combing—stabilizing 65–70% RH to preserve fiber elasticity and reduce dust generation during mechanical handling.
• Synthetic filament texturing—controlling 60–70% RH to prevent electrostatic discharge (ESD) damage to servo-driven texturing nozzles and tension sensors.
• Post-dyeing drying tunnels—supplemental localized humidification to inhibit case-hardening and surface cracking of dyed fabrics.
• Quality assurance labs—environmental conditioning per ASTM D1776 prior to tensile, elongation, and abrasion testing.

FAQ

Is the ZS-40Z suitable for integration into an existing HVAC system?
Yes—via optional duct-mounted adapter kits (sold separately), the unit supports inline installation with differential pressure monitoring and airflow interlock capability.
Does the humidifier require deionized or softened water?
No—ceramic transducers are chemically resistant and rated for total dissolved solids (TDS) up to 500 ppm; routine descaling is unnecessary under standard municipal supply conditions.
Can multiple ZS-40Z units be synchronized for coordinated control?
Yes—using Modbus RTU daisy-chaining, up to 32 units can share a master humidity setpoint and log data to a central HMI.
What maintenance intervals are recommended?
Transducer inspection every 6 months; stainless steel tank cleaning quarterly; sensor calibration annually using NIST-traceable reference hygrometers.
Is the unit compatible with FDA 21 CFR Part 11 requirements?
While not certified for regulated pharmaceutical use, its local data logging, user-access controls, and immutable event timestamps provide foundational elements for Part 11 alignment in non-GxP textile QA environments.
