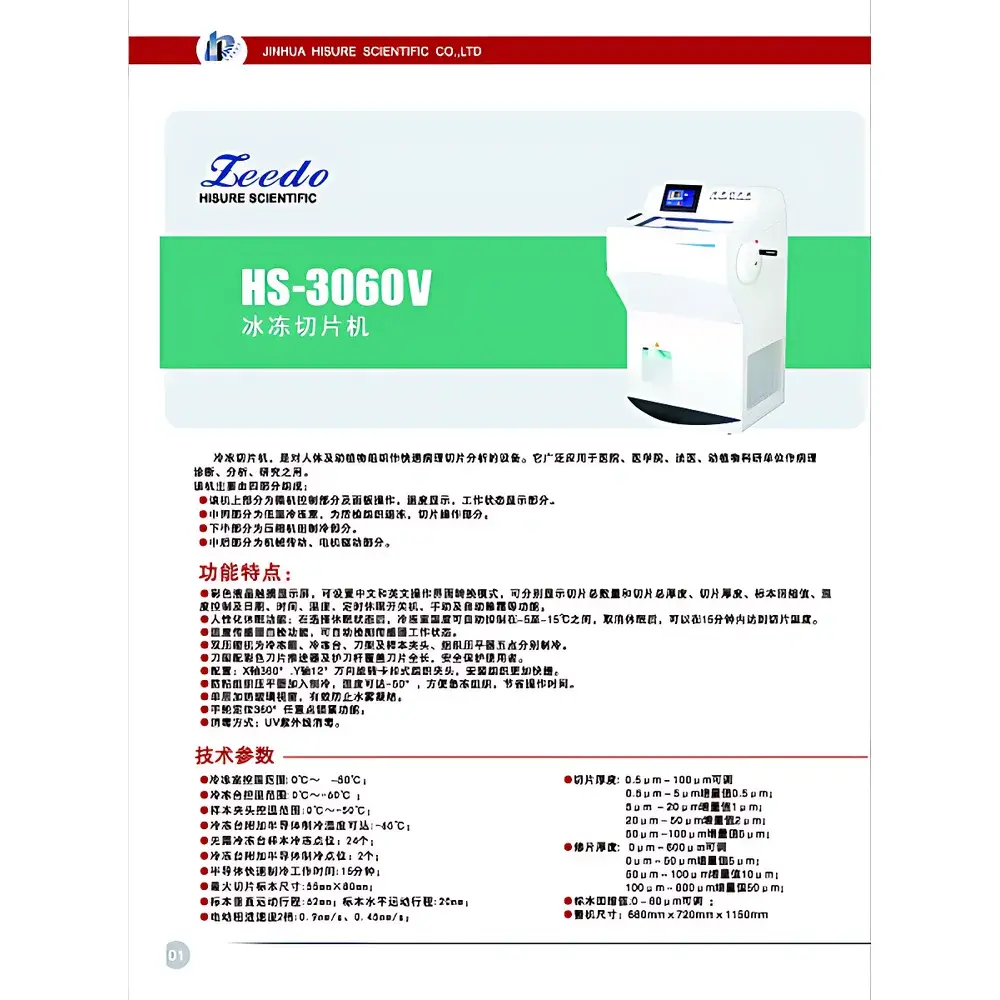

ZEEDO HS-3060V Cryostat Microtome
| Brand | ZEEDO |
|---|---|
| Origin | Zhejiang, China |
| Model | HS-3060V |
| Max Sample Size | 55 mm × 80 mm |
| Section Thickness Range | 0.5 µm – 100 µm (adjustable in increments of 0.5 µm, 1 µm, 2 µm, or 5 µm) |
| Sectioning Step Resolution | 1 µm |
| Cryochamber Temperature Range | 0 °C to –50 °C |
| Cryostage Temperature Range | 0 °C to –60 °C (–65 °C with Peltier assist) |
| Specimen Head & Knife Block Cooling | 0 °C to –50 °C |
| Anti-frost Viewing Window | Single-layer heated glass |
| UV Sterilization | Integrated |
| Dimensions (W×D×H) | 680 mm × 720 mm × 1150 mm |
| Power Supply | 220 V AC, 50/60 Hz |
Overview
The ZEEDO HS-3060V Cryostat Microtome is a precision-engineered benchtop cryosectioning system designed for rapid, high-fidelity frozen section preparation in clinical pathology, biomedical research, and academic histology laboratories. Operating on the principle of cryo-mechanical sectioning—where tissue specimens are rapidly vitrified at sub-zero temperatures to preserve ultrastructural integrity—the HS-3060V enables consistent generation of thin, distortion-free sections from unfixed, non-embedded biological tissues. Its integrated five-zone independent refrigeration architecture (cryochamber, cryostage, specimen head, knife block, and tissue flattener) ensures thermal stability across critical interfaces, minimizing ice crystal artifact formation and improving section adhesion and ribbon continuity. The system complies with standard operational requirements for diagnostic-grade frozen section workflows under ISO 15189 and CLIA-aligned laboratory practices, supporting time-sensitive intraoperative consultations and urgent neuropathological evaluations.
Key Features
- 5-point independent refrigeration system: Dual compressors + Peltier-assisted cryostage deliver stable cooling to chamber (–50 °C), stage (–60 °C, extendable to –65 °C), specimen head (–50 °C), knife block (–50 °C), and tissue flattener (–50 °C).
- High-resolution tactile handwheel with 360° infinitely adjustable locking mechanism for precise specimen positioning and reproducible orientation control.
- Intelligent sleep mode: Automatically maintains cryochamber temperature between –5 °C and –15 °C during idle periods; full operational temperature recovery achieved within ≤15 minutes upon wake-up.
- UV-C germicidal lamp integrated into the cryochamber ceiling for routine surface decontamination between specimens—supporting GLP-compliant workflow hygiene protocols.
- Heated single-pane anti-fog viewing window eliminates condensation without compromising optical clarity or thermal insulation integrity.
- Motorized coarse advance with dual-speed selection (0.9 mm/s and 0.45 mm/s) for efficient specimen approach and fine-tuning prior to sectioning.
- Full-range section thickness adjustment: 0.5 µm–100 µm, with programmable increment logic (0.5 µm steps up to 5 µm; 1 µm up to 20 µm; 2 µm up to 50 µm; 5 µm up to 100 µm); trimming range: 0–600 µm.
- Ergonomic X/Y-axis rotating specimen holder (360° horizontal, 12° vertical tilt) with quick-lock clamping for rapid, repeatable tissue mounting and angular repositioning.
- Self-diagnostic temperature sensor monitoring system provides real-time status feedback and alerts for out-of-spec conditions.
- Color LCD touchscreen interface with bilingual (English/Chinese) UI support, real-time display of cumulative section count, total section thickness, specimen retraction value, ambient and zone-specific temperatures, timestamped operation logs, and scheduled defrost cycles.
Sample Compatibility & Compliance
The HS-3060V accommodates fresh, unfixed human and animal soft tissues—including brain, liver, kidney, tumor biopsies, and embryonic samples—up to 55 mm × 80 mm in planar dimension and 62 mm in vertical travel range. Its –65 °C Peltier-enhanced cryostage supports rapid freezing of high-water-content specimens (e.g., adipose or neural tissues), while the actively cooled tissue flattener minimizes compression artifacts during sectioning. The instrument meets mechanical safety standards per IEC 61010-1 and incorporates electrical isolation compliant with medical device Class I safety requirements. Though not FDA-cleared as an IVD device, its operational parameters align with ASTM E2143 (Standard Practice for Cryosectioning of Biological Tissues) and support documentation traceability suitable for internal audit under CAP/CLIA and ISO/IEC 17025 frameworks.
Software & Data Management
The HS-3060V operates via embedded firmware with no external PC dependency. All user-defined parameters—including section thickness, retraction value, temperature setpoints, defrost scheduling, and language preference—are stored in non-volatile memory with timestamped change logging. The system records operational metadata (start/stop times, temperature profiles, section counts) for up to 30 days, exportable via USB port in CSV format for integration into LIMS or quality management systems. While it does not implement FDA 21 CFR Part 11 electronic signature functionality, its audit trail design supports basic GLP data integrity requirements for research-use-only (RUO) environments.
Applications
- Intraoperative frozen section diagnosis in surgical pathology departments.
- Rapid immunohistochemical and enzyme histochemical staining protocol development.
- Neuroscience research requiring undegraded lipid-rich myelin preservation.
- Plant tissue cryosectioning for developmental biology studies.
- Forensic histopathology of postmortem tissue specimens with minimal autolytic change.
- Quality control of biobanked tissue repositories during retrieval and sectioning.
FAQ
What is the minimum achievable section thickness, and how is resolution maintained at sub-1-µm levels?
The HS-3060V achieves a minimum nominal section thickness of 0.5 µm. Sub-micron consistency relies on mechanical rigidity of the specimen advance mechanism, thermal stabilization of the cryostage, and optimized knife geometry—not on digital interpolation. Users must validate thickness accuracy using calibrated stage micrometers or electron microscopy reference standards.
Does the system support automated section collection or ribbon handling?
No. The HS-3060V is a manual-feed cryostat microtome; section transfer to slides requires manual or semi-automated pickup techniques. It does not integrate ribbon flotation or automated slide loaders.
Can the instrument be validated for GMP-regulated histology workflows?
While the hardware architecture supports reproducible operation, formal GMP validation (IQ/OQ/PQ) requires site-specific protocol development, third-party calibration, and documented evidence of performance under defined environmental controls. ZEEDO provides technical specifications and service manuals to support such efforts.
Is remote monitoring or network connectivity available?
No. The HS-3060V lacks Ethernet, Wi-Fi, or Bluetooth interfaces. All configuration and monitoring occur locally via the front-panel touchscreen.
What maintenance intervals are recommended for compressor and Peltier modules?
Compressor oil and refrigerant integrity should be verified annually by certified service personnel. Peltier elements require no scheduled replacement but benefit from quarterly visual inspection for condensate accumulation and thermal paste degradation at mounting interfaces.
