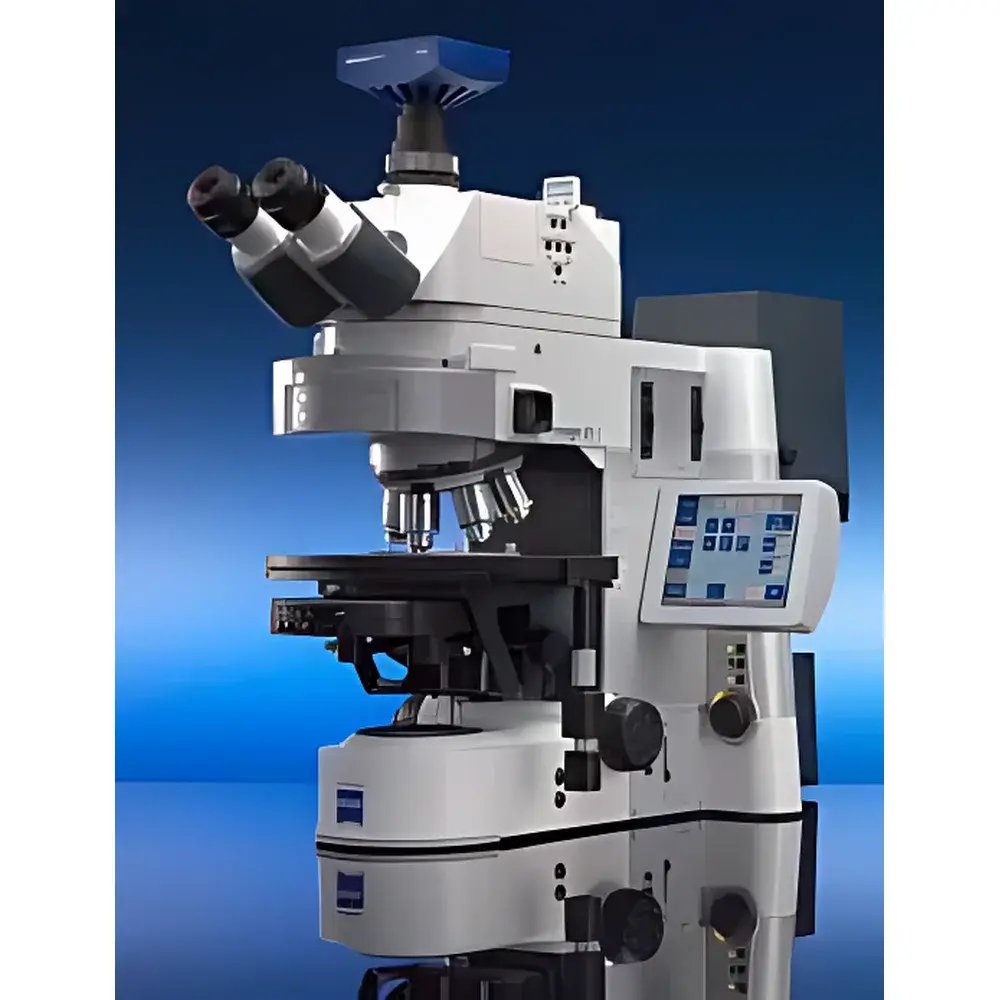

ZEISS Axio Imager 2 Research-Grade Intelligent Upright Metallurgical Microscope

Overview

The ZEISS Axio Imager 2 is a research-grade upright metallurgical microscope engineered for high-precision microstructural analysis in materials science, failure analysis, quality control, and advanced R&D laboratories. Built upon ZEISS’s industry-standard ICCS (Improved Contrast and Color Correction System) optical architecture, it delivers diffraction-limited resolution, exceptional flatness of field, and chromatic aberration correction across the full visible spectrum — critical for quantitative metallography and phase identification. Its FEM-optimized stand features ACR (Automatic Component Recognition) encoded components, enabling hardware-level synchronization between objectives, filters, and illumination modes. Unlike conventional manual or semi-automated systems, the Axio Imager 2 integrates closed-loop motorized focusing, programmable Z-axis positioning (with sub-micrometer repeatability), and real-time feedback-driven focus stabilization — essential for time-lapse imaging, focus stacking, and automated serial sectioning workflows.

Key Features

• Upright configuration optimized for reflected-light observation of opaque, polished, or etched specimens — including metals, ceramics, composites, and electronic packaging substrates.
• 7-position motorized objective turret with ACR encoding; supports simultaneous recognition of magnification, correction type (e.g., Plan-Apochromat), and immersion medium (dry/oil).
• Closed-loop Z-drive system with integrated piezo-assisted fine focus; achieves ≤0.1 µm step resolution and <±0.3 µm positional drift over 8-hour thermal stabilization cycles.
• Intelligent illumination management: 12 V / 100 W halogen source with dynamic intensity and correlated color temperature (CCT) compensation — maintains consistent photometric output regardless of magnification or filter insertion.
• Modular expandability: Native compatibility with ZEISS LSM confocal units, motorized scanning stages (up to 150 × 100 mm travel), Peltier-heated stages (−20 °C to +150 °C), and polarization/DIC/fluorescence modules.
• Touch-enabled control panel with contextual UI; configurable layout and direct access to exposure, contrast, white balance, and acquisition presets without software dependency.

Sample Compatibility & Compliance

The Axio Imager 2 accommodates standard metallurgical sample formats (up to 76 mm diameter, 30 mm height) and integrates seamlessly with automated sample changers and vacuum-compatible stages. All optical paths comply with ISO 9022-3 (optical instruments — environmental testing) and DIN EN 61000-6-3 (EMC immunity). The system meets key regulatory requirements for analytical instrumentation used in GLP and GMP environments: full audit trail support via AxioVision software (including user login, parameter changes, image metadata, and timestamped operation logs), alignment with FDA 21 CFR Part 11 for electronic records and signatures when configured with validated software packages, and traceable calibration protocols aligned with ISO/IEC 17025 for metrological verification of magnification, field-of-view, and depth-of-field parameters.

Software & Data Management

Controlled exclusively through ZEISS AxioVision 4.x — a modular, scriptable imaging platform supporting both standalone operation and networked deployment. The software provides synchronized control of focus, turret, illumination, stage, and camera — enabling fully automated acquisition sequences (e.g., multi-location tile scans, Z-stacks, spectral series). Image data are stored in TIFF-based, metadata-rich formats compliant with MIAME and OME-TIFF standards. Quantitative analysis modules include grain size measurement (ASTM E112), phase fraction analysis (ISO 16232), inclusion rating (ASTM E45), and line-profile intensity profiling. Raw data export supports HDF5, CSV, and XML schemas for integration with MATLAB, Python (via ZEN Blue SDK), or LIMS platforms. Software validation documentation (IQ/OQ/PQ) is available per customer requirement.

Applications

• Automated metallographic evaluation per ASTM E3, E407, and ISO 643 — including grain boundary delineation, precipitate sizing, and carbide distribution mapping.
• Failure analysis of weld zones, fatigue cracks, and intergranular corrosion using DIC and polarized light contrast enhancement.
• Quality assurance in additive manufacturing: pore morphology quantification, melt pool boundary detection, and layer-by-layer defect tracking.
• High-temperature in situ microstructural evolution studies using compatible heating stages and time-resolved image capture.
• Multi-modal correlative workflows: registration of optical images with SEM-EDS maps or XRD phase data via common coordinate referencing.

FAQ

Does the Axio Imager 2 support confocal imaging?
Yes — via optional integration with ZEISS LSM 700, LSM 800, or LSM 900 laser scanning modules, enabling optical sectioning, 3D reconstruction, and fluorescence lifetime imaging (FLIM) on the same platform.
Is remote operation possible?
Yes — AxioVision supports secure remote desktop access and web-based image review via ZEISS ZEN Connect; full instrument control requires local network authentication and TLS-encrypted communication.
What calibration standards are supported?
ZEISS-certified stage micrometers (NIST-traceable), graticules, and focus calibration targets are supplied with documented uncertainty budgets conforming to ISO/IEC 17025.
Can legacy objectives be used?
Only ICCS-corrected ZEISS objectives with ACR encoding are fully supported for automated functions; non-encoded optics may be mounted manually but will not trigger turret recognition or software-linked parameter updates.
Is training and service documentation available in English?
Yes — comprehensive operator manuals, maintenance guides, and SOP templates are provided in English; on-site application training and preventive maintenance contracts are globally available through ZEISS Service Centers.
