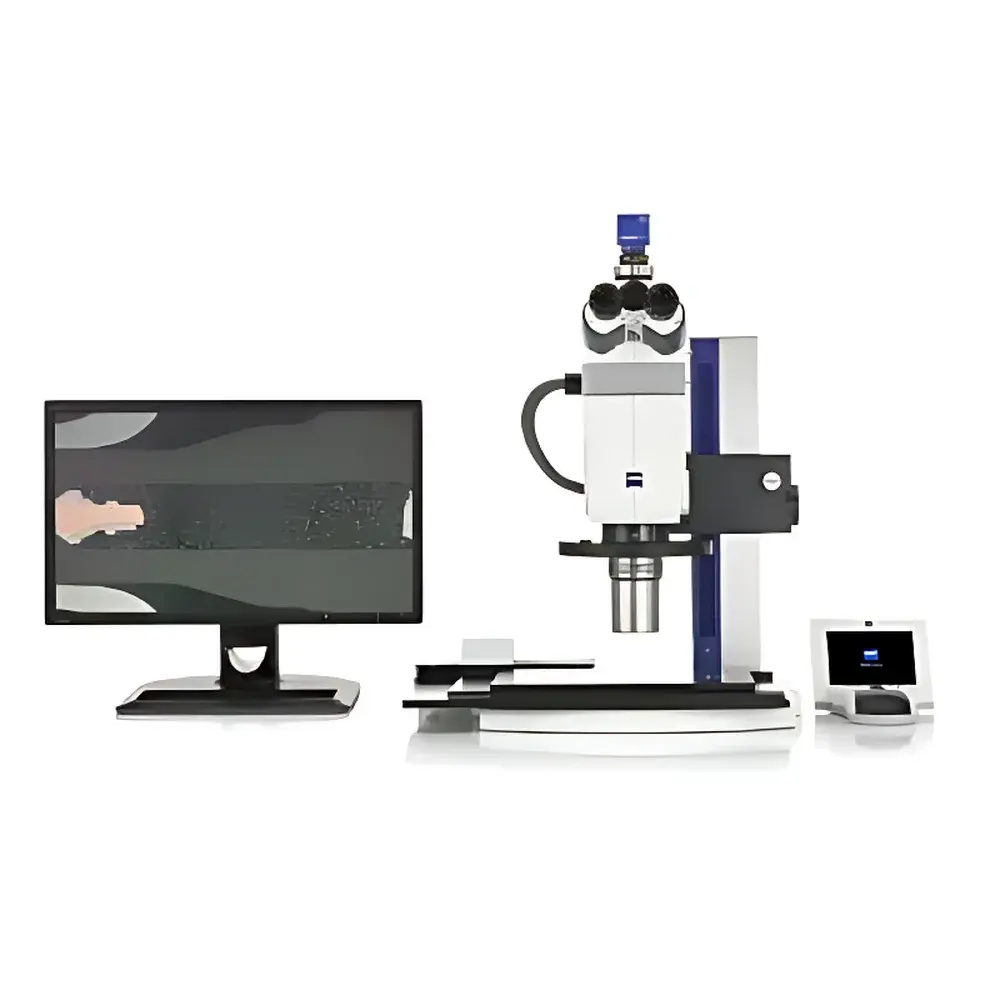

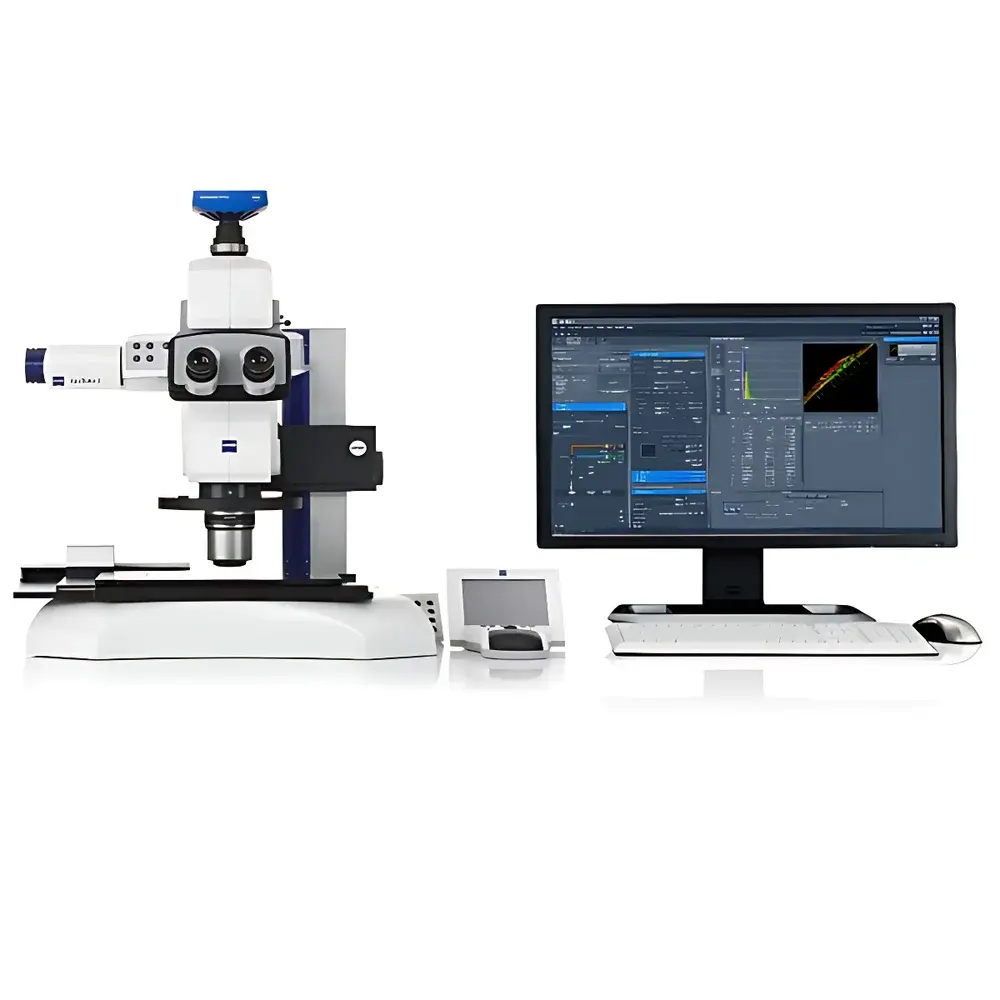

Zeiss Axio Zoom.V16 Large-Field Macro Zoom Microscope

Overview

The Zeiss Axio Zoom.V16 is a high-performance large-field macro zoom microscope engineered for demanding research and quality assurance applications requiring both wide-field overview imaging and high-resolution detail inspection. Unlike conventional stereo microscopes, the Axio Zoom.V16 employs a proprietary optical design based on the principle of zoom optics with parallel light paths—enabling diffraction-limited resolution across its full 16:1 magnification range (0.78× to 12.5× with standard 1× objective). Its unique optical architecture delivers uniform illumination, minimal distortion, and exceptional depth of field—critical for accurate morphological assessment of large, three-dimensional specimens. The system integrates seamlessly into fluorescence workflows, offering up to tenfold higher signal intensity compared to standard stereo platforms due to optimized light throughput and high-transmission filter sets. Designed and manufactured in Oberkochen, Germany, the Axio Zoom.V16 meets stringent Zeiss optical tolerances and is calibrated per DIN ISO 10110 standards for wavefront fidelity and chromatic correction.

Key Features

• 16:1 continuous zoom ratio with motorized or manual control options, supporting rapid magnification adjustment without optical realignment
• Maximum lateral resolution of 1700 line pairs per millimeter (lp/mm) at highest magnification—validated using USAF 1951 resolution targets under ISO 19039 conditions
• eZoom technology: intelligent, software-synchronized control of transmitted LED illumination intensity and aperture to maintain optimal contrast and exposure across zoom changes
• Z-axis precision stage with 350 nm repeatability and sub-micron step resolution—compatible with automated focus stacking and Z-series acquisition
• Modular turret interface supporting single- or dual-position objective mounting; accepts Zeiss PlanNeoFluar Z objectives (0.5×, 1.0×, 2.0×) and specialized long-working-distance variants
• Native integration with ApoTome.3 structured illumination module for optical sectioning in fluorescence mode—enabling artifact-free, confocal-like slice acquisition without laser excitation
• Ergonomic design compliant with ISO 9241-5 and EN 61000-3-2 standards, including adjustable binocular tube inclination (0–30°), height-variable stand, and low-fatigue eyepiece positioning

Sample Compatibility & Compliance

The Axio Zoom.V16 accommodates specimens up to 300 mm × 200 mm × 150 mm (W × D × H) on standard motorized stages, making it suitable for whole-organism imaging (e.g., zebrafish larvae, Drosophila embryos, mouse neonates), industrial components (e.g., spark plugs, PCB assemblies), and geological samples (fossils, thin sections, sediment cores). Its open-stage configuration supports custom sample holders, environmental chambers (-20°C to +60°C), and electrostatic discharge (ESD)-safe accessories. The system complies with IEC 61000-6-3 (EMC emission limits), IEC 61000-6-2 (immunity), and carries CE marking for use in EU-based GLP/GMP laboratories. All fluorescence modules conform to ISO 17025 calibration traceability requirements when paired with Zeiss-certified reference standards.

Software & Data Management

Controlled via ZEN Blue or ZEN Core software (v3.5+), the Axio Zoom.V16 supports DICOM-compliant image export, time-lapse sequencing, multi-channel fluorescence registration, and metadata embedding per MIAME/MINSEQE guidelines. ZEN’s Audit Trail module provides FDA 21 CFR Part 11–compliant electronic records—including user authentication logs, parameter change history, and image provenance tracking. Data export formats include TIFF (16-bit), CZI (Zeiss native), JPEG2000, and HDF5 for downstream analysis in MATLAB, Python (via czifile), or Imaris. Optional integration with LabArchives ELN enables direct image annotation and protocol linking.

Applications

• Biology: Whole-mount fluorescent imaging of transgenic model organisms (e.g., GFP-labeled Drosophila embryos), neural tissue mapping, and developmental staging
• Medical & Veterinary Pathology: Macroscopic examination of biopsy specimens, surgical margin assessment, and forensic tissue documentation
• Microbiology & Plant Science: High-throughput screening of fungal colonies, root architecture analysis, and seed viability assays
• Industrial QA/QC: Defect identification on large-area substrates (e.g., wafer-level inspection, coating uniformity verification), spark plug electrode evaluation, and solder joint integrity assessment
• Forensics & Document Examination: Non-destructive analysis of latent fingerprints, ink differentiation, paper fiber structure, and questioned document reconstruction
• Geosciences: Stratigraphic layer visualization in sediment cores, fossil surface topography, and mineral grain boundary characterization

FAQ

What is the maximum working distance achievable with the Axio Zoom.V16?
Standard configurations provide up to 65 mm working distance with the 0.5× objective; extended WD versions (e.g., PlanNeoFluar Z 0.25×) support up to 140 mm.
Can the Axio Zoom.V16 be used for quantitative fluorescence intensity measurements?
Yes—when calibrated with Zeiss Fluorescence Intensity Reference Kits (FIRK) and operated under ZEN’s Linear Mode, the system supports relative quantification with <3% inter-session CV (n=5, same sample batch).
Is motorized focus compatible with third-party automation platforms?
Yes—the Z-drive interface supports RS-232, USB CDC, and TCP/IP protocols; SDKs are available for LabVIEW, Python, and C# integration.
Does Zeiss offer validation documentation for regulated environments?
Yes—IQ/OQ/PQ protocols, as-built drawings, and 21 CFR Part 11 compliance packages are available upon request through authorized Zeiss service partners.
