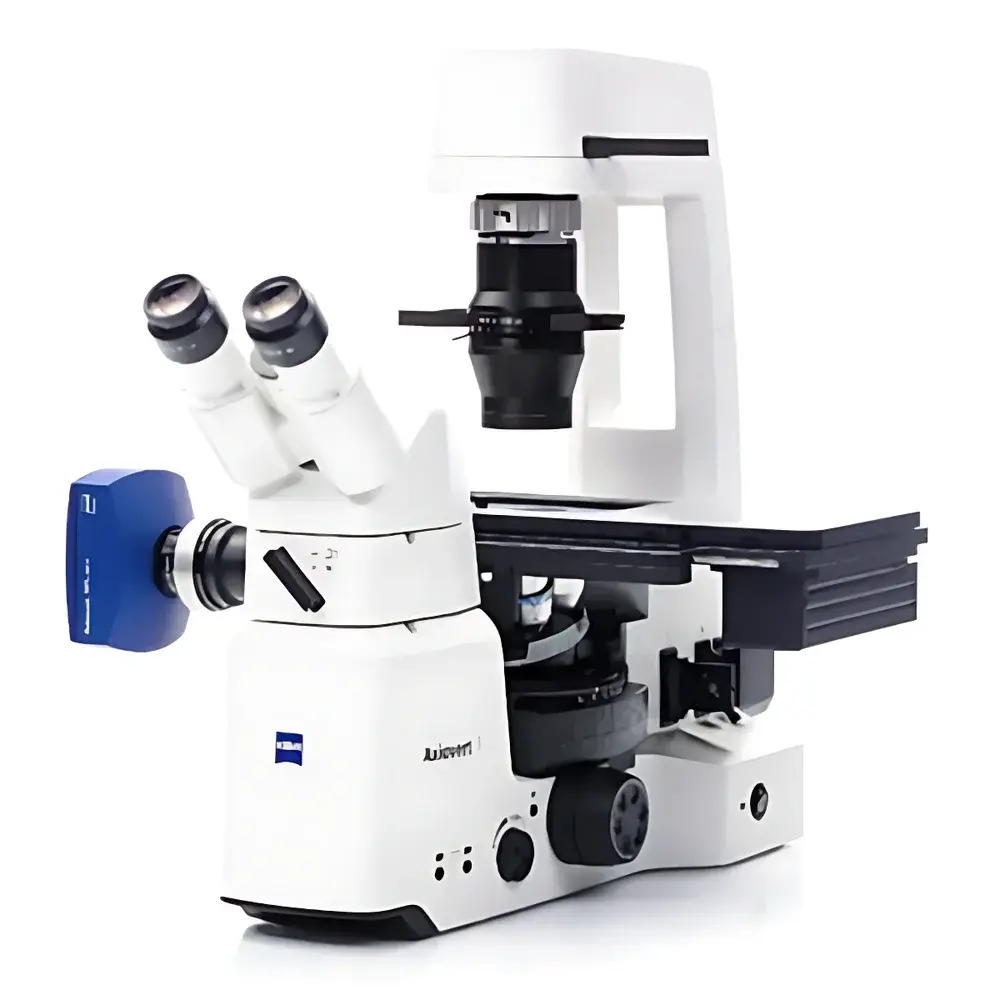

ZEISS AxioVert 5/7 Inverted Microscope

Overview

The ZEISS AxioVert 5/7 is a high-performance inverted microscope platform engineered for rigorous life science research requiring precision, reproducibility, and workflow efficiency in live-cell imaging, tissue culture monitoring, and fluorescence-based assays. Designed and manufactured in Germany, the system implements core principles of modern optical microscopy—including Köhler illumination optimization, chromatic and spherical aberration correction across wide spectral bands, and encoded hardware synchronization—to ensure quantitative image fidelity across modalities. The AxioVert 5 integrates a dedicated SmartControl Box (SCB), functioning as an embedded microcomputer that manages illumination intensity, objective/filter identification, and basic image acquisition—eliminating dependency on external PCs for routine documentation. The AxioVert 7 extends this architecture with semi-motorized encoding and a fully motorized Z-axis, enabling automated focus mapping, depth-resolved z-stack acquisition, and large-area panorama stitching—all calibrated to ZEISS’ metrological standards for axial repeatability (< ±0.1 µm step accuracy). Both models comply with ISO 10934-1 (Microscopes — Nomenclature of Components) and support GLP-aligned documentation when paired with ZEN Blue or ZEN Connect software.

Key Features

• IC2S optical system: Combines achromatic and fluorite correction to minimize longitudinal chromatic aberration and field curvature across visible and near-UV excitation wavelengths (340–700 nm), critical for multichannel fluorescence co-localization.
• 6-position encoded objective turret (HDIC) and 6-position encoded filter cube turret: Enable automatic recognition of magnification, numerical aperture, and fluorescence bandpass configuration—ensuring metadata integrity in image files per MIAME and OMERO standards.
• Integrated high-power LED transmitted-light source with real-time intensity management: Delivers stable, flicker-free illumination at user-defined irradiance levels (0.1–100% range), reducing phototoxicity during time-lapse experiments.
• OSD (On-Screen Display) mode: Outputs live video directly to HDMI monitors without host computer; supports JPEG capture and MP4 recording with timestamped metadata embedded in EXIF headers.
• Labscope A module: Provides algorithm-driven, threshold-independent confluence analysis and object-based cell counting validated against ASTM E2877-22 (Standard Guide for Quantitative Image Analysis in Cell Culture).
• Eco power mode: Initiates full system standby after 15 minutes of inactivity—compliant with IEC 62304 Class B medical device software safety requirements for lab instrumentation.
• Extended sample clearance (up to 220 mm): Accommodates multi-layer cell factories, perfusion chambers, and environmental control stages without mechanical interference.
• AxioVert 7 motorized Z-axis: Supports programmable autofocus routines (contrast- or pattern-based), extended depth-of-field (EDF) synthesis via z-stack fusion, and gigapixel-scale panorama stitching with sub-pixel registration accuracy.

Sample Compatibility & Compliance

The AxioVert 5/7 accommodates standard tissue culture vessels (35–175 mm dishes, flasks, multi-well plates), microfluidic chips, and custom-stage-mounted physiological setups. Its modular stage design supports integration with incubation enclosures (e.g., OkoLab, PeCon), micromanipulators, and patch-clamp rigs. All optical components meet ISO 8578 (Microscope Objectives — Marking Requirements) and are certified for use under EU Directive 2014/30/EU (EMC) and 2014/35/EU (LVD). Fluorescence modules conform to EN 61000-6-3 for radiated emissions and are compatible with USP guidelines for fluorescence assay validation in pharmaceutical QC environments.

Software & Data Management

ZEN Blue (included) provides acquisition control, multi-channel alignment, and basic measurement tools compliant with FDA 21 CFR Part 11 (electronic signatures, audit trails, role-based access). Optional ZEN Connect enables centralized image repository management, DICOM export for cross-platform compatibility, and integration with LIMS via RESTful API. All image files store EXIF-compliant metadata—including objective ID, exposure time, LED intensity, and Z-position—facilitating FAIR (Findable, Accessible, Interoperable, Reusable) data practices aligned with NIH Data Management and Sharing Policy requirements.

Applications

• Long-term live-cell imaging of adherent mammalian lines (e.g., COS-7, HeLa, iPSCs) under controlled CO₂ and temperature conditions.
• Quantitative assessment of cytotoxicity, wound healing, and proliferation kinetics using confluence and morphometric analysis.
• Multiplexed fluorescence imaging of cytoskeletal dynamics (microtubules, actin), organelle distribution (mitochondria, lysosomes), and nuclear events (chromatin condensation, mitotic progression).
• Tissue section screening and 3D spheroid monitoring in drug discovery pipelines.
• Plant protoplast imaging and microbial colony morphology analysis under phase contrast and fluorescence modes.
• Preclinical in vitro pharmacology studies requiring GLP-compliant documentation and traceable instrument calibration logs.

FAQ

Does the AxioVert 5 require a computer for basic imaging?
No—the OSD mode enables direct HDMI output to monitors for real-time viewing, still capture, and video recording without any PC connection.
Can the AxioVert 7 perform autofocus during time-lapse experiments?
Yes—its motorized Z-axis supports scheduled or event-triggered autofocus routines, including contrast-based and pattern-matching algorithms optimized for low-contrast live-cell specimens.
Is the IC2S optical system compatible with oil immersion objectives?
Yes—IC2S-corrected Plan-Apochromat objectives (e.g., 63×/1.4 Oil DIC) are fully supported and maintain correction integrity across immersion media refractive indices (n = 1.518).
How is calibration traceability maintained for quantitative measurements?
ZEISS provides NIST-traceable calibration certificates for stage micrometers and focus drive linearity; all firmware updates include version-locked calibration matrices stored in non-volatile memory.
What fluorescence filter sets are natively supported?
Standard sets include DAPI/FITC/TRITC/Cy5, with optional customization for CFP/YFP/mCherry and far-red dyes up to 800 nm—each cube validated for >95% transmission efficiency and <0.001% autofluorescence background.
