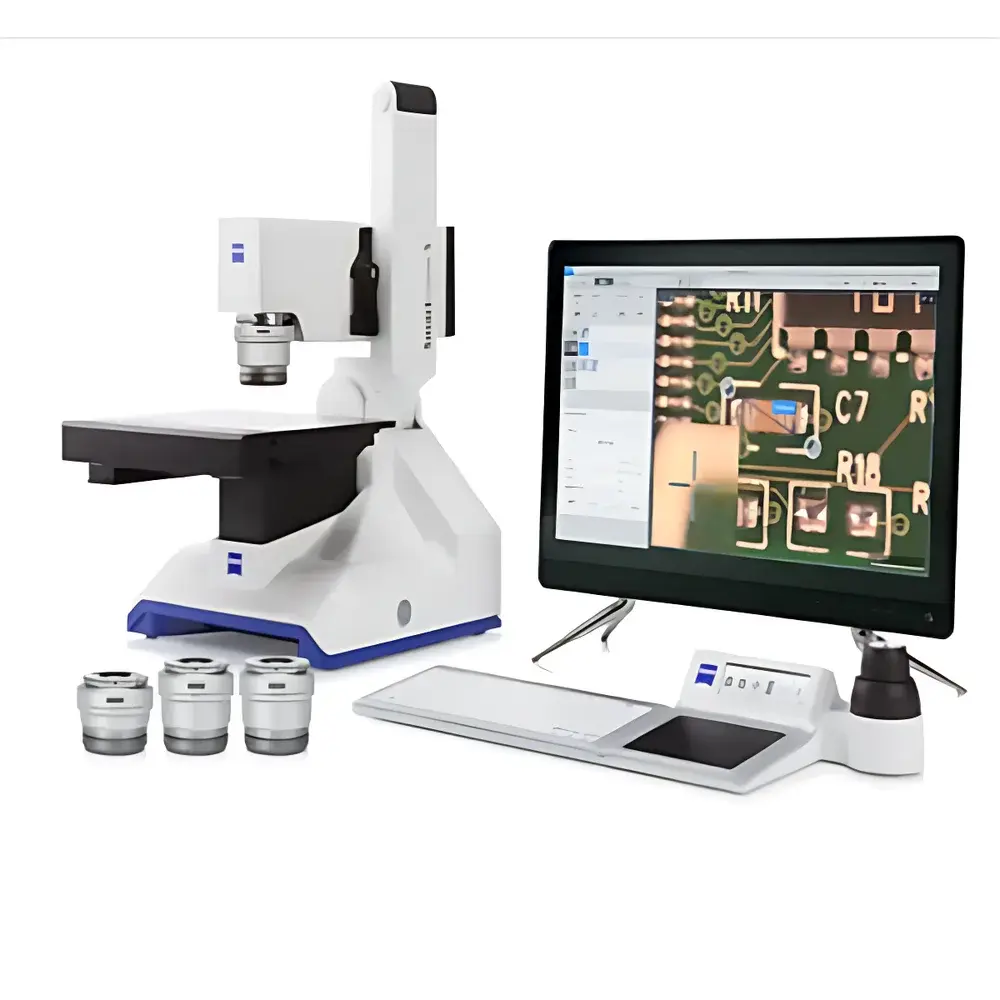

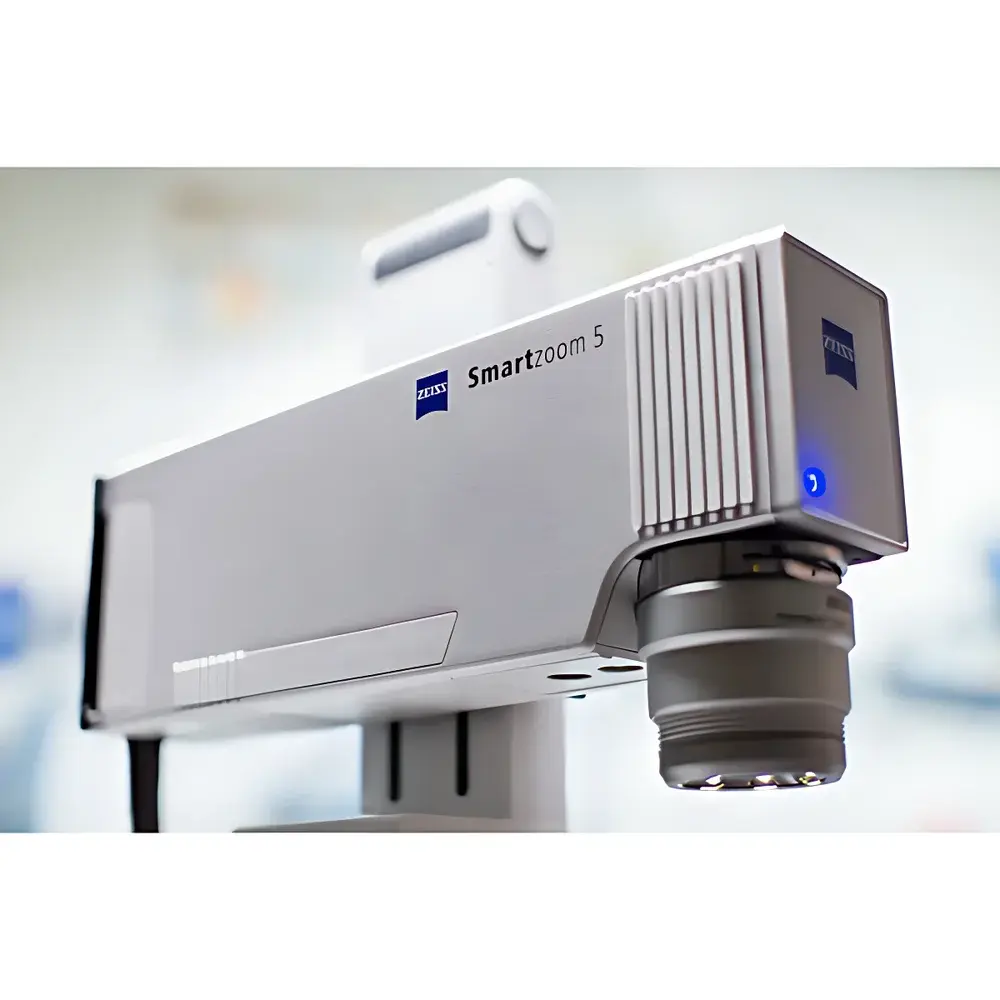

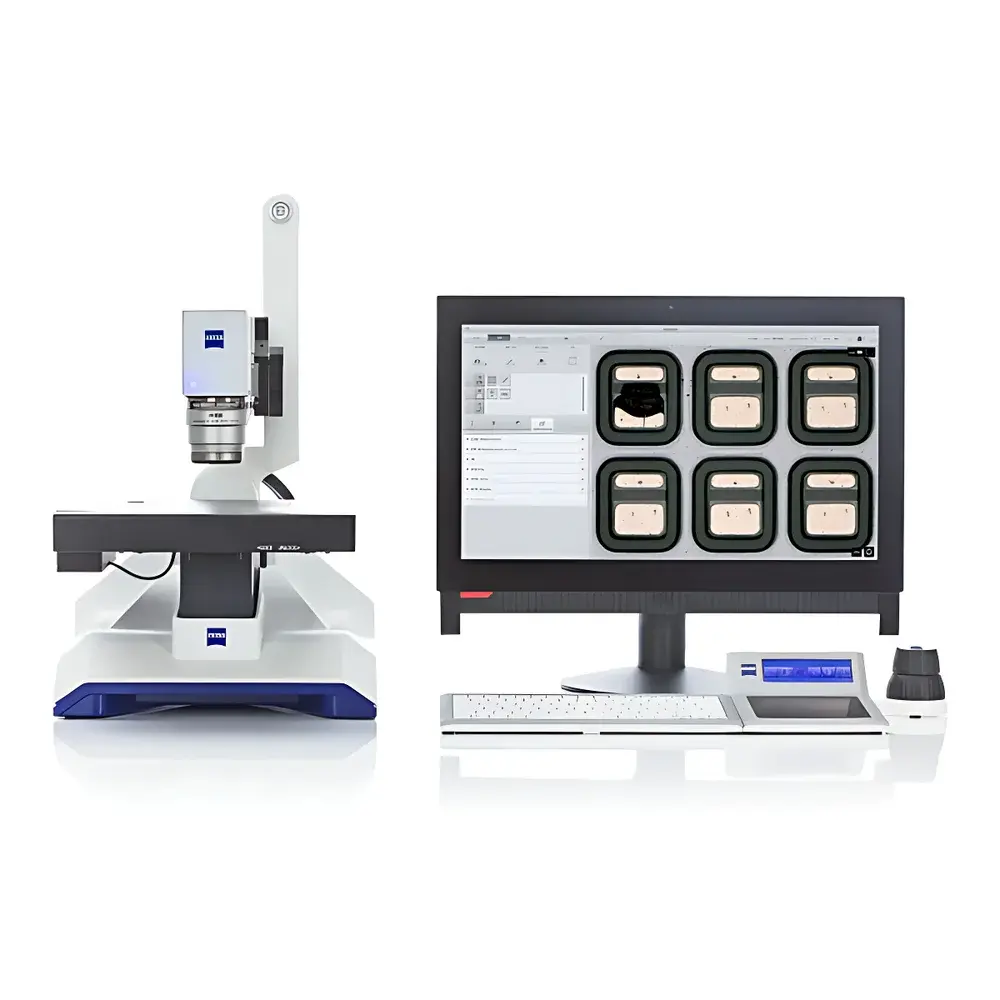

Zeiss Smartzoom 5 Intelligent Digital Microscope

Overview

The Zeiss Smartzoom 5 is an intelligent, fully automated digital stereo microscope engineered for precision surface inspection, dimensional analysis, and documentation in industrial quality assurance and scientific research environments. Unlike conventional optical microscopes constrained by shallow depth of field and high reflectivity artifacts on metallic or polished surfaces, the Smartzoom 5 employs a proprietary coaxial illumination architecture combined with adaptive focus stacking and real-time image optimization algorithms. Its core measurement principle relies on high-resolution stereoscopic imaging enhanced by motorized zoom optics and integrated LED illumination control—enabling consistent, repeatable visualization across reflective, translucent, and topographically complex specimens without manual refocusing or lighting adjustment. The system is designed for use in regulated environments where traceability, audit readiness, and operator independence are critical—making it suitable for incoming inspection, failure analysis labs, and R&D departments requiring rapid transition from observation to report generation.

Key Features

• Motorized continuous zoom optics delivering calibrated magnification from 10× to 2022× (optical + digital), with automatic scaling and pixel calibration retained across all magnifications.
• Integrated coaxial illumination system optimized for glare-free imaging of highly reflective surfaces—including machined metals, solder joints, and coated substrates—without requiring external polarizers or manual lamp alignment.
• Macro Record mode: captures and saves complete workflow sequences—including zoom position, focus height, illumination settings, and annotation layers—for instant replay and re-execution on identical sample types.

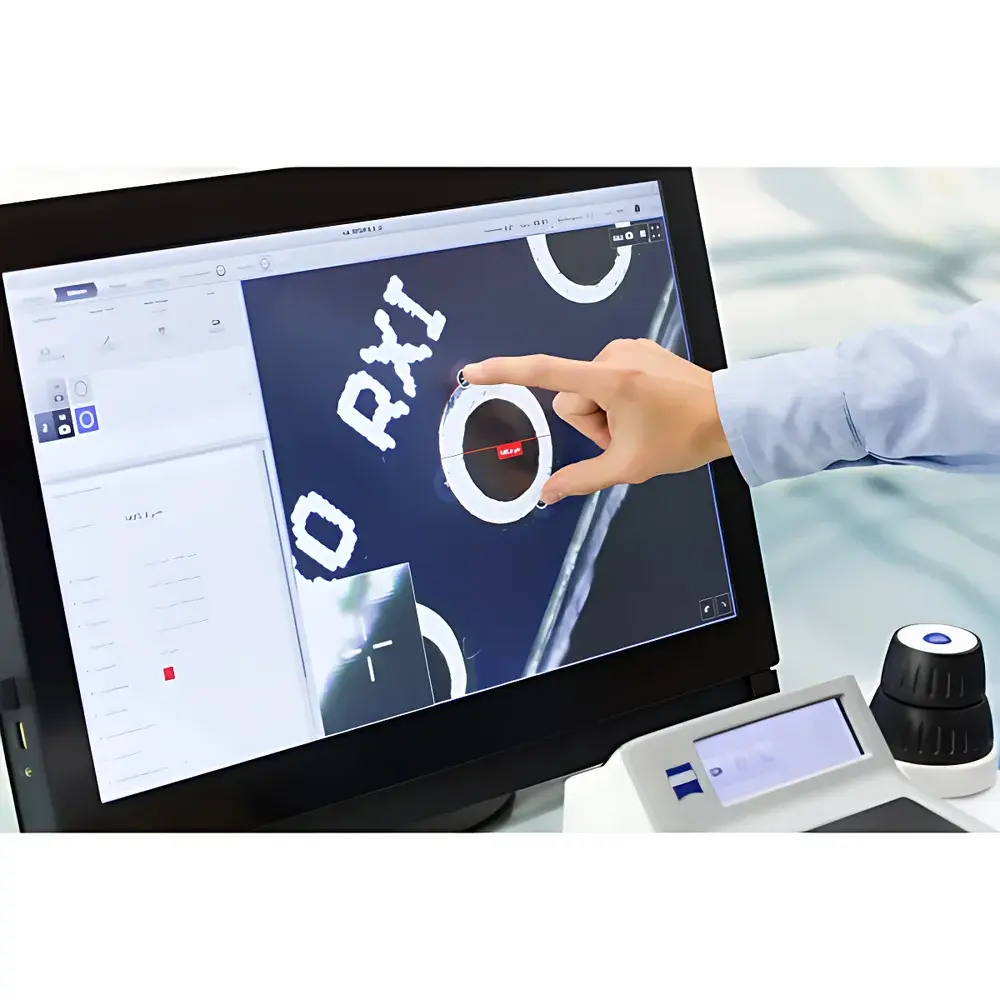

• Intuitive touch-enabled user interface with guided setup wizards; no prior microscopy training required. System auto-configures optimal acquisition parameters based on sample type and illumination mode.
• Onboard panoramic stitching engine enables seamless wide-field overview imaging with sub-micron registration accuracy, supporting rapid region-of-interest navigation and contextual correlation between macro and micro features.
• Real-time annotation tools with customizable overlays (scale bars, arrows, callouts, measurement markers) and one-click export to Microsoft Word templates compliant with internal QA reporting standards.

Sample Compatibility & Compliance

The Smartzoom 5 accommodates a broad range of specimen geometries—from flat PCBs and cross-sectioned metallographic mounts to irregularly shaped geological samples, biological specimens, and forensic evidence (e.g., tool marks, ink impressions, fiber traces). Its large working distance (up to 110 mm at lowest magnification) and tilting stage compatibility support oblique-angle observation of surface wear patterns, scratch morphology, and coating delamination. The instrument meets mechanical and electromagnetic compatibility requirements per EN 61326-1 and is engineered for integration into ISO/IEC 17025-accredited laboratories. All image metadata—including timestamp, operator ID, magnification, illumination profile, and calibration status—is embedded in exported TIFF/PDF files, satisfying traceability requirements under ASTM E2904-22 (Standard Guide for Digital Image Acquisition in Microscopy) and supporting FDA 21 CFR Part 11 compliance when deployed with Zeiss ZEN software in controlled environments.

Software & Data Management

Controlled via Zeiss ZEN Connect software, the Smartzoom 5 supports centralized configuration management, role-based user permissions, and secure data archiving. Image acquisition, measurement (length, angle, area, roughness proxy), and annotation are performed within a validated software framework that maintains full audit trails—including parameter changes, user logins, and export actions. Raw image data is stored in vendor-neutral formats (TIFF, JPEG2000) with EXIF-compliant metadata. Optional integration with LIMS and MES platforms enables automated transfer of measurement results and annotated reports into enterprise quality databases. Software updates follow Zeiss’ formal change control process, with version history and validation documentation available upon request for GxP-regulated deployments.

Applications

• Automated visual inspection of printed circuit boards (PCBs), semiconductor packages, and microelectromechanical systems (MEMS).
• Failure analysis of fracture surfaces, fatigue cracks, and corrosion features in metallurgical and aerospace components.
• Non-contact surface topography assessment—including wear scar quantification, grain boundary delineation, and coating uniformity evaluation.
• Forensic document examination, latent print enhancement, and ballistic toolmark comparison.
• Biological documentation in entomology, botany, and marine taxonomy—supporting morphometric analysis and digital voucher archiving.
• Geological thin-section imaging and fossil surface reconstruction using multi-focus z-stack synthesis.

FAQ

Does the Smartzoom 5 require external PC hardware for operation?
No—the system includes an integrated industrial-grade computing module with touchscreen interface; optional PC connectivity is available for advanced analysis or network integration.
Can measurement data be exported in CSV or Excel format for statistical process control (SPC)?
Yes—ZEN software supports batch export of calibrated measurements (X/Y/Z coordinates, dimensions, intensity profiles) in comma-separated values format compatible with Minitab, JMP, and SPC dashboards.
Is the coaxial illumination adjustable for varying reflectivity levels?
Yes—intensity and color temperature are programmatically controlled and can be saved per application template; dynamic range optimization occurs automatically during focus stacking.
How is calibration maintained across different operators and shifts?
Each session begins with automated verification of magnification scale and illumination uniformity; calibration certificates (traceable to PTB/NIST standards) are generated on demand and archived with image metadata.
What stage options are available for inclined or rotational viewing?

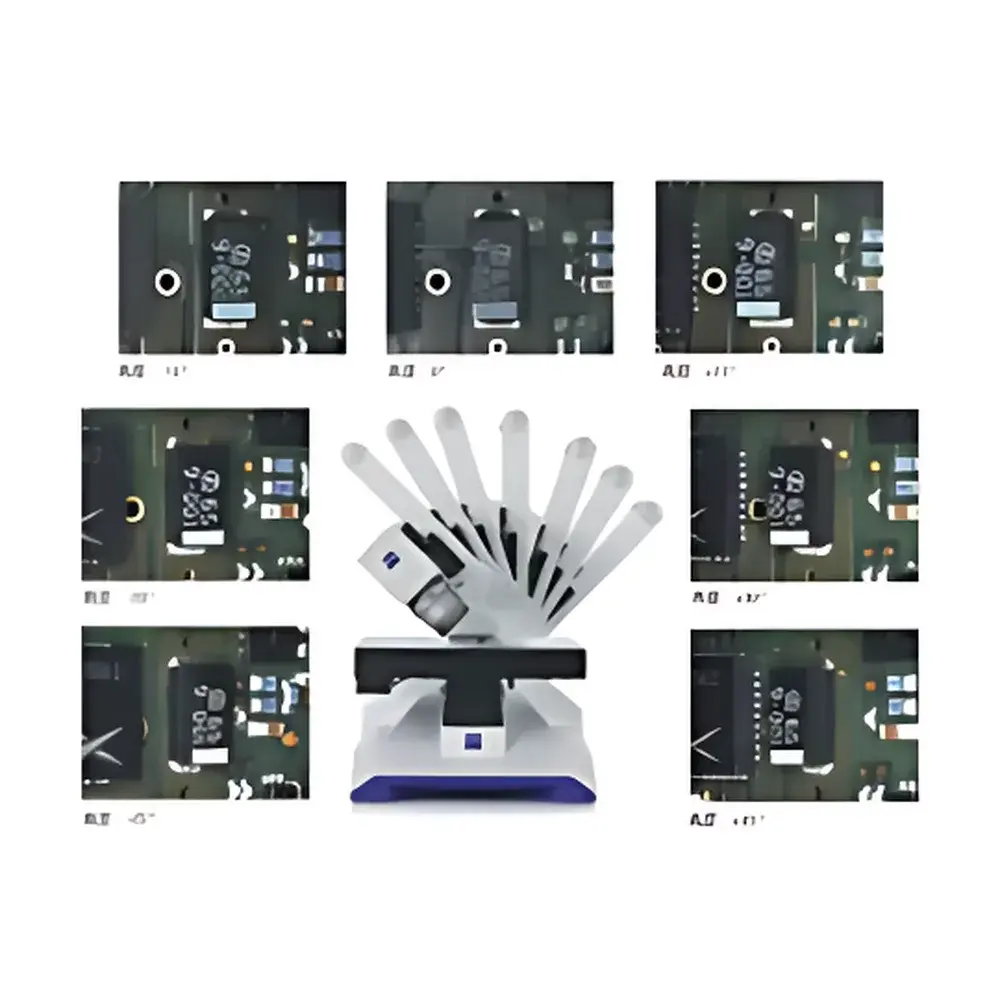

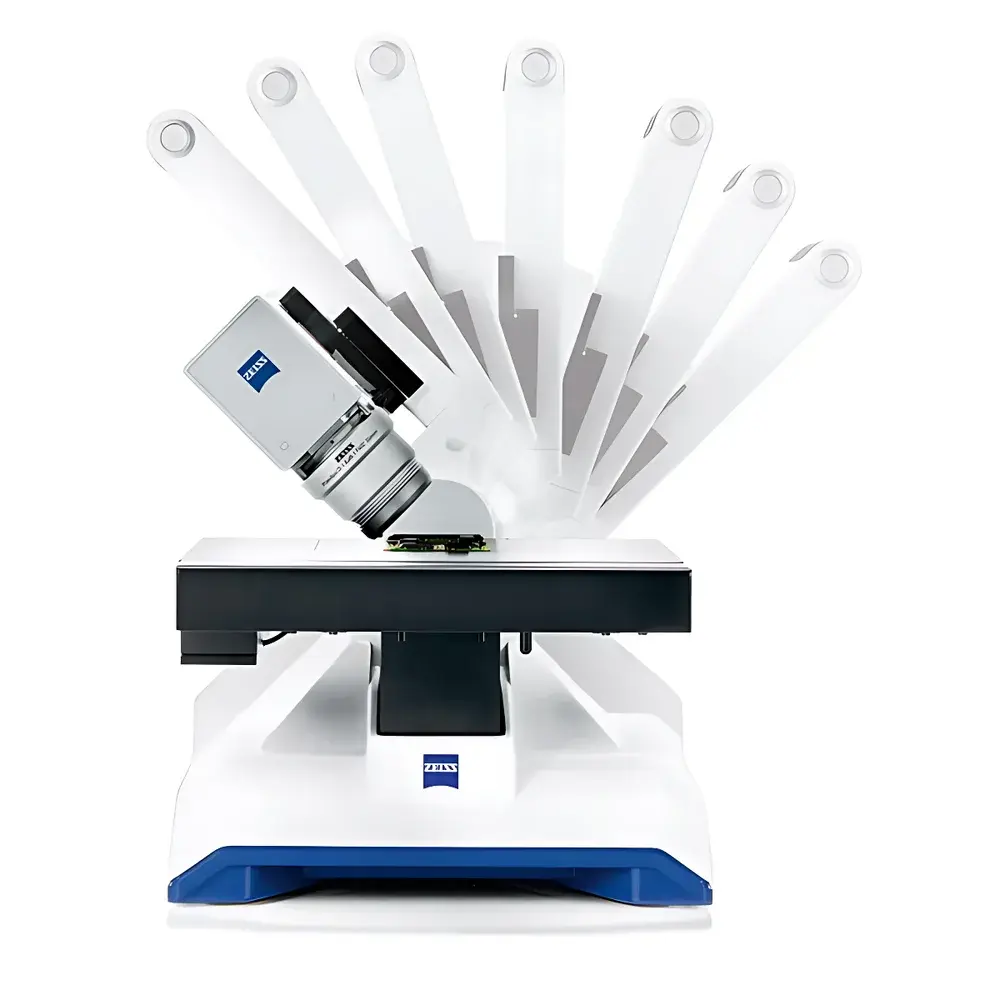

Optional motorized tilt stages (±60°) and rotation stages (360° continuous) are supported, with synchronized coordinate mapping in ZEN software for angular feature annotation and multi-perspective reporting.
