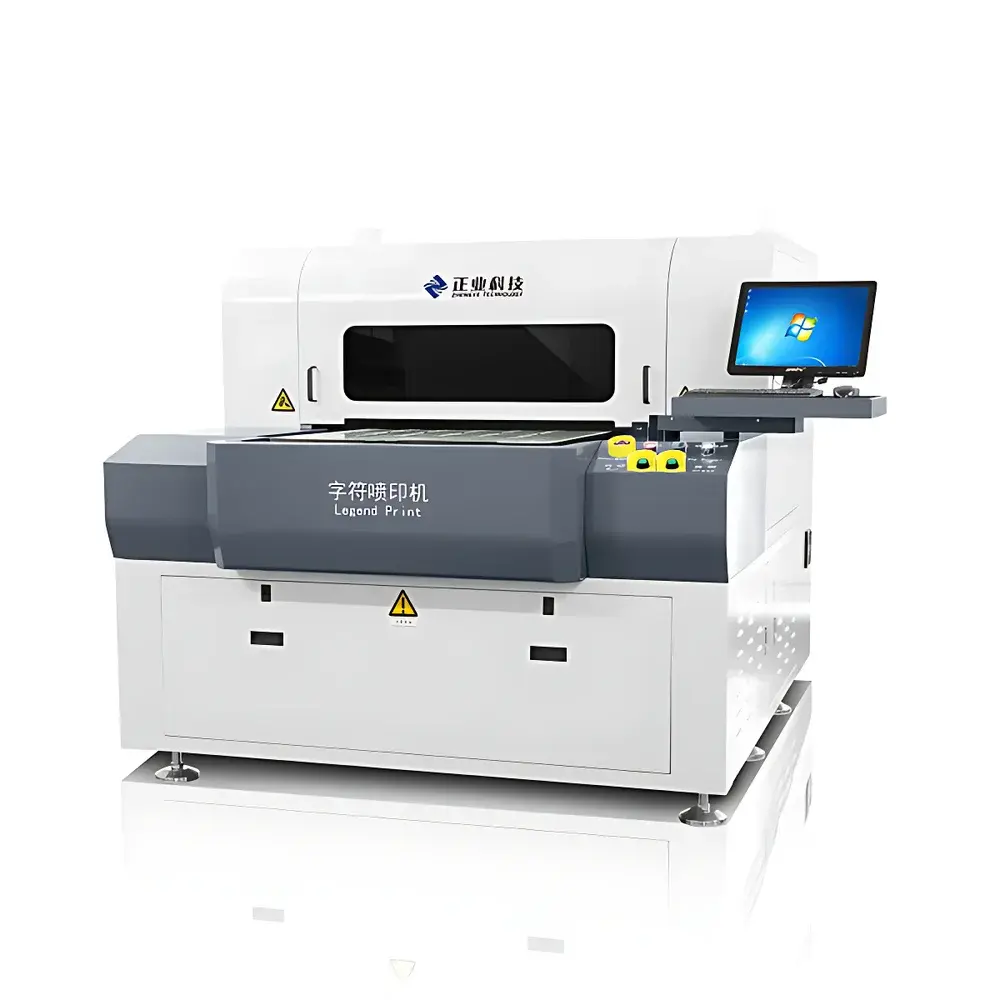

Zhengye PCB Legend Inkjet Printer PCBLegend-UV2

Overview

The Zhengye PCBLegend-UV2 is a dedicated industrial inkjet printing system engineered for high-precision legend (silkscreen) deposition on rigid printed circuit boards (PCBs) and flexible printed circuits (FPCs). Unlike traditional screen printing—limited by stencil wear, alignment drift, and material waste—the PCBLegend-UV2 employs non-contact piezoelectric drop-on-demand (DOD) inkjet technology with real-time fiducial-based registration and dynamic image scaling. It operates under controlled environmental conditions (temperature ±1°C, humidity 45–60% RH) to ensure dimensional stability during print registration. The system is designed for integration into SMT production lines or standalone AOI-qualified post-etch processing stations, supporting IPC-A-600 and IPC-6012-compliant legend placement with positional accuracy ≤±15 µm at 95% confidence (CpK ≥1.33 over 30 consecutive panels).

Key Features

• Precision Motion & Registration: Dual-axis servo-driven gantry with linear motor stages and granite base ensures repeatable positioning (±2 µm bidirectional repeatability). Integrated vision system performs automatic fiducial detection (≥4 points per panel) and compensates for panel expansion/contraction in X/Y directions using real-time thermal and mechanical offset mapping.
• UV-Curable Ink System: Proprietary white and black UV-curable inks formulated for IPC-4552B-compliant adhesion on ENIG, OSP, and immersion tin surfaces. Ink viscosity stabilized at 11–13 cP (25°C); jetting frequency up to 18 kHz per nozzle with droplet volume control between 12–25 pL.
• Dual-Head Printing Architecture: Two synchronized industrial-grade printheads (each with 128 nozzles, 300 dpi native resolution) enable simultaneous printing across dual-panel zones or accelerated single-panel throughput—achieving up to 45 panels/hour (standard 18×24 cm FR-4, 2-layer).
• In-Line UV Pre-Cure Module: Medium-pressure mercury lamp array (365 nm peak) delivers adjustable irradiance (150–800 mW/cm²) with closed-loop radiometric feedback, ensuring consistent partial polymerization prior to handling without compromising ink flow dynamics.
• Embedded Control & Calibration: Onboard motion controller runs deterministic real-time OS (VxWorks), synchronizing vision capture, axis motion, and ink ejection within <100 µs jitter. Automatic nozzle health monitoring and self-calibration routines execute before each job or at user-defined intervals.

Sample Compatibility & Compliance

The PCBLegend-UV2 accommodates standard PCB substrates including FR-4, polyimide (FPC), metal-core (MCPCB), and ceramic-based boards, with thickness ranging from 0.05 mm to 3.2 mm and maximum panel size of 610 × 510 mm. It supports both bare and assembled boards (with component height ≤12 mm clearance). All firmware and motion logic comply with IEC 61508 SIL2 functional safety requirements for industrial automation. Electrical design conforms to CE/EMC Directive 2014/30/EU and RoHS 2011/65/EU. Software architecture supports audit trail logging per FDA 21 CFR Part 11 when configured with optional electronic signature module.

Software & Data Management

The proprietary LegendJet Studio software provides full CAM-to-print workflow: Gerber RS-274X and ODB++ import with layer alignment verification; automatic vector-to-raster conversion optimized for ink spread compensation; and panel nesting with scrap minimization algorithms. All print jobs are timestamped and digitally signed; parameter sets (ink profile, UV dose, motion acceleration) are version-controlled and exportable as XML packages. Data retention policies support GLP/GMP environments—raw logs, calibration records, and operator actions are archived in SQLite database with SHA-256 integrity hashing. Remote diagnostics and firmware updates occur via TLS 1.2-secured HTTPS channel.

Applications

• High-mix, low-volume PCB prototyping requiring rapid legend revision without stencil retooling
• Automotive electronics manufacturing where IPC Class 3 traceability mandates full process documentation
• FPC production for wearable devices demanding fine-pitch legends (<100 µm line width) on curved or thin substrates
• LED module fabrication requiring precise white legend placement over reflective copper pads
• Defense/aerospace subcontractors performing AS9100-certified board finishing with zero-touch manual intervention

FAQ

What file formats does the system accept for legend data?
Gerber RS-274X (with aperture macros), ODB++, and IPC-2581B are natively supported. DXF and PDF imports require pre-conversion validation through LegendJet Studio’s vector integrity checker.
Is the UV ink compatible with lead-free soldering processes?
Yes—ink formulations withstand peak reflow temperatures up to 260°C (per J-STD-020) without cracking, yellowing, or delamination on ENIG and OSP finishes.
Can the system integrate with MES or factory SCADA platforms?
Standard OPC UA server (v1.04) is embedded; Modbus TCP and RESTful API endpoints are available for custom integration with Siemens Opcenter, Rockwell FactoryTalk, or Cimetrix CIMConnect.
What maintenance intervals are recommended for printhead longevity?
Daily capping and automated purge cycle; weekly deep-clean protocol using Zhengye-certified solvent; printhead replacement interval rated at ≥1.2 billion drops per nozzle under nominal operating conditions.
Does the system support IPC-A-600 Class 2 and Class 3 inspection criteria?
Yes—software includes built-in legend conformity checker aligned to IPC-A-600H Section 3.3 (Legend Requirements), with pass/fail flagging for bridging, voids, edge definition, and contrast ratio (measured via integrated spectrophotometer option).
