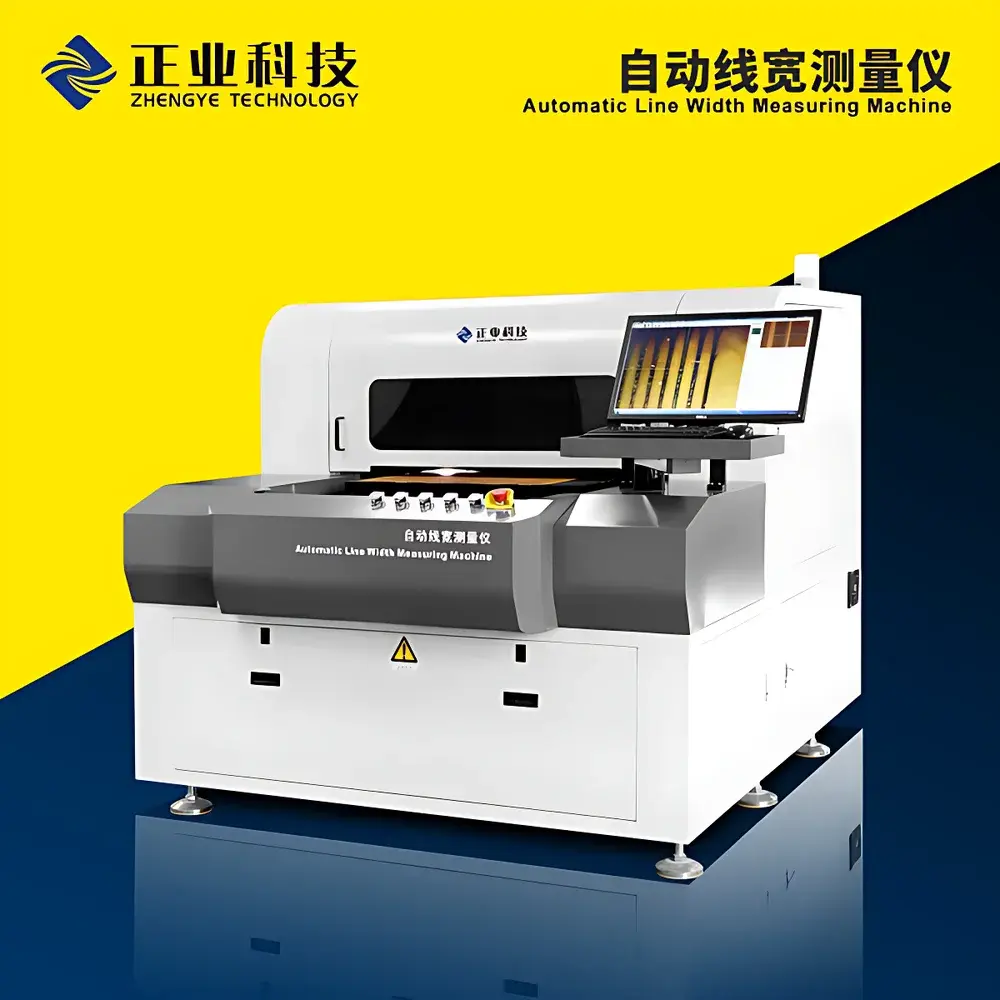

Zhengye PCB Trace Width and Spacing Measurement System XK32

Overview

The Zhengye PCB Trace Width and Spacing Measurement System XK32 is a high-precision optical metrology platform engineered for non-contact, quantitative inspection of printed circuit board (PCB) features during mid- to late-stage fabrication—specifically after etching and prior to solder mask application. It operates on the principle of high-resolution digital image acquisition combined with sub-pixel edge detection algorithms, enabling traceable, repeatable measurement of critical dimensional parameters including conductor line width (top and bottom profiles), inter-trace spacing, pad-to-pad clearance, hole-to-edge distances, circular via diameters (including blind and buried vias), and fine-pitch structures in IC substrates and LCD panel photomasks. Designed for integration into automated production lines and quality control laboratories, the XK32 meets the geometric tolerance requirements defined in IPC-6012, IPC-A-600, and JIS C 5012 standards for rigid and flex PCBs.

Key Features

• Automated Positioning via CAM Data Integration: Supports direct import of Gerber RS-274X files to define measurement coordinates; enables offline programming of inspection routines with full coordinate mapping and fiducial alignment logic.
• Auto-Focus Imaging System: Equipped with motorized Z-axis actuation and contrast-based focus optimization to maintain optimal depth-of-field across varying substrate topographies and surface finishes.
• Motorized Zoom Lens Assembly: Provides seamless, software-controlled magnification switching between discrete optical magnifications (e.g., 10×–100× objective range), eliminating manual lens changes and ensuring consistent calibration traceability.
• On-Screen Navigation Map: Integrated low-magnification overview camera delivers real-time macro navigation with overlayed measurement point markers, accelerating operator-assisted or fully autonomous site selection.
• Sub-Pixel Edge Detection Engine: Proprietary algorithm suite performs simultaneous dual-edge localization on conductor profiles—measuring both upper and lower trace widths in a single acquisition cycle—and computes centerline-to-centerline distances with pixel-level reproducibility.
• Statistical Process Control (SPC) Module: Built-in SPC engine calculates Cp/Cpk, X-bar & R charts, histogram distributions, and trend analysis per feature group; supports alarm thresholds and out-of-control condition flagging per ANSI/ASQ B18.1 guidelines.
• Database-Centric Data Architecture: Native SQL Server and MySQL connectivity enables bidirectional synchronization with MES, ERP, and LIMS systems; supports audit trail logging compliant with ISO 9001:2015 Clause 7.5.3 and FDA 21 CFR Part 11 electronic record requirements.

Sample Compatibility & Compliance

The XK32 accommodates standard PCB panel sizes up to 610 mm × 457 mm (24″ × 18″) with optional vacuum chuck or mechanical clamping fixtures. It supports matte, glossy, and OSP-coated copper surfaces, as well as solder mask-defined (SMD) and non-solder mask-defined (NSMD) pads. Measurement repeatability is validated per ISO 5725-2:2019 (repeatability standard deviation ≤ ±0.5 µm at 50× magnification). The system conforms to CE electromagnetic compatibility (EMC) Directive 2014/30/EU and RoHS 2011/65/EU material restrictions. Calibration protocols align with NIST-traceable reference standards (e.g., NIST SRM 2053 linewidth standards).

Software & Data Management

The proprietary Zhengye TraceVision™ software v4.2 provides a unified interface for measurement setup, real-time imaging, batch reporting, and statistical analysis. All measurement data—including raw images, coordinate logs, edge detection confidence metrics, and operator annotations—are stored in ACID-compliant relational databases with timestamped versioning. Export modules generate ISO/IEC 17025-compliant PDF reports and native Excel (.xlsx) files containing full metadata (machine ID, calibration date, operator ID, environmental conditions). Role-based access control (RBAC), electronic signatures, and 21 CFR Part 11-compliant audit trails are enabled by default.

Applications

• Final inspection of inner/outer layer etched panels before solder mask lamination
• In-process verification of HDI microvia land patterns and fine-line routing (≤ 50 µm line/space)
• Dimensional validation of IC substrate redistribution layers (RDL) and fan-out wafer-level packaging (FOWLP) traces
• Quality gate check for LCD TFT array photomasks and touch sensor ITO pattern fidelity
• Failure analysis correlation with AOI and X-ray inspection results via shared coordinate referencing
• Process capability studies supporting APQP Phase 3 (Production Part Approval Process)

FAQ

Does the XK32 support measurement of solder mask openings or silkscreen features?
Yes—provided sufficient contrast exists between the opening and underlying copper or substrate, the system can quantify mask registration offset, bridge defects, and character legibility using configurable grayscale thresholding.
Can measurement programs be transferred between multiple XK32 units in a multi-fab environment?
Yes—Gerber-based programs and calibration profiles are portable across identical XK32 configurations; cross-unit validation requires re-execution of the system’s geometric distortion correction routine.
Is thermal drift compensation included in the hardware design?
The optical bench incorporates low-expansion aluminum alloy construction and active temperature stabilization (±0.5°C) of the imaging path to minimize thermal-induced measurement drift over extended operational cycles.
What file formats are supported for exporting measurement results to external QA systems?
CSV, XML, and SQL INSERT scripts are natively supported; custom API endpoints (REST/JSON) are available under OEM integration agreements.
How frequently must the system undergo recalibration per industry best practices?
Annual NIST-traceable calibration is recommended; internal verification using certified step gauges should be performed daily or per shift, per ISO/IEC 17025 Clause 6.6.
