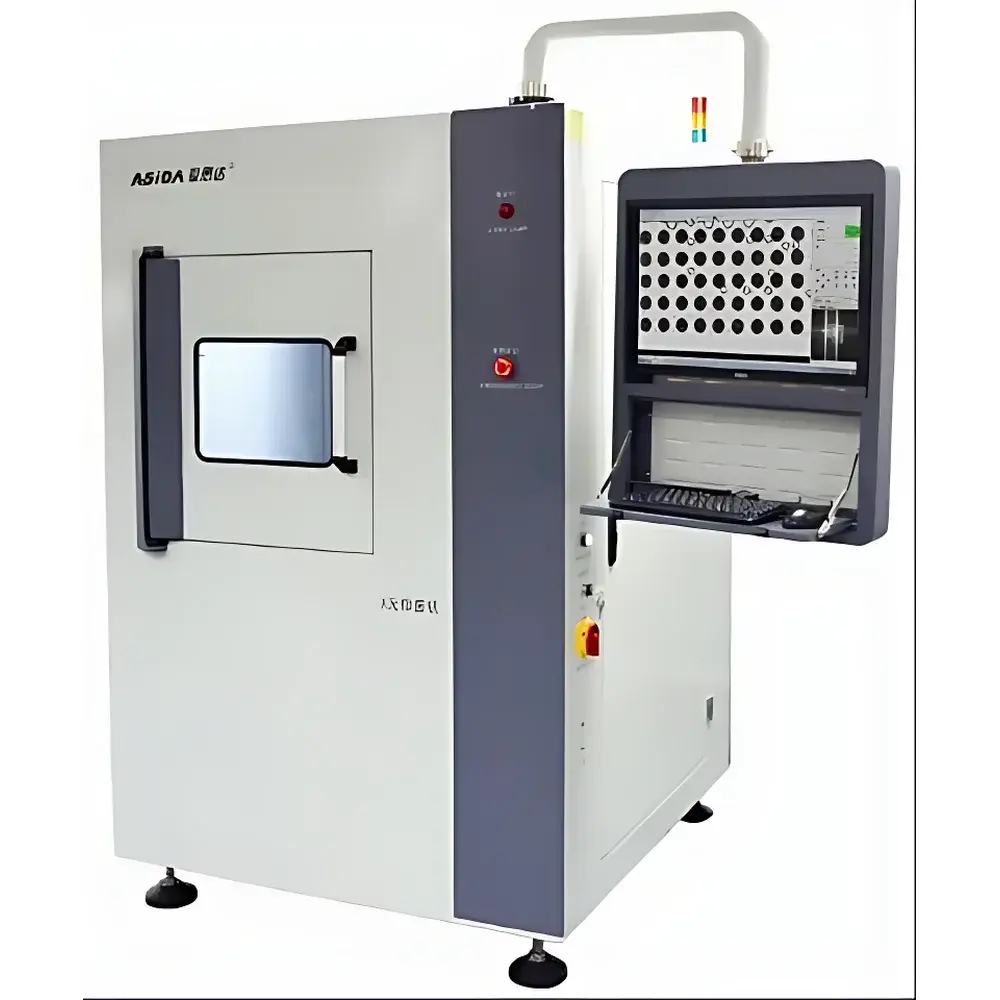

Zhengye XG600 BGA Solder Joint Inspection System – High-Resolution X-ray Radiographic NDT Instrument

Overview

The Zhengye XG600 BGA Solder Joint Inspection System is a high-resolution, cabinet-style X-ray radiographic inspection instrument engineered for non-destructive evaluation (NDE) of electronic assemblies—particularly ball grid array (BGA), chip-scale package (CSP), and fine-pitch QFN components. Operating on the principle of differential X-ray attenuation, the system generates high-contrast 2D transmission images by directing a microfocus X-ray source (typically ≤5 µm focal spot size) through the sample onto a high-sensitivity flat-panel detector. This enables visualization of internal structural features—including solder joint morphology, void distribution, interconnect continuity, and subsurface delamination—without physical disassembly or sample preparation. Designed for integration into SMT line quality assurance, failure analysis labs, and battery cell R&D environments, the XG600 complies with core safety and operational standards for industrial X-ray systems, including IEC 61000-6-3 (EMC) and IEC 62471 (radiation safety classification). Its sealed radiation-shielded enclosure meets Class I cabinet X-ray system requirements per FDA 21 CFR §1020.40, ensuring operator protection during routine operation.

Key Features

• Microfocus X-ray source with adjustable kV (40–90 kV) and µA output, optimized for contrast resolution across PCB substrates, ceramic packages, and lithium-ion cell stacks
• High-dynamic-range flat-panel detector (≥16-bit grayscale depth) supporting real-time image acquisition at up to 30 fps in preview mode and full-resolution capture at ≥5 MP effective pixel count
• Motorized XYZ manipulator with ±0.1 µm repeatability and tilt/rotation capability for oblique-angle imaging and multi-view reconstruction
• Automated defect recognition (ADR) module for void quantification (area %, max diameter), bridging detection, and solder joint continuity mapping—configurable per IPC-A-610 and J-STD-001 criteria
• Integrated lead shielding (≥3 mm Pb equivalent) and interlocked safety door with dual-channel emergency stop circuitry, certified to EN 61326-1 for electromagnetic compatibility in industrial settings

Sample Compatibility & Compliance

The XG600 accommodates samples up to 400 × 300 × 150 mm (W × D × H) and supports inspection of rigid FR-4 PCBs, flexible printed circuits (FPCs), power modules, cylindrical and pouch-format Li-ion cells, and stacked semiconductor packages. It is routinely deployed for conformance verification against IPC-A-610 Class 2/3 acceptance criteria, USP <1087> for medical device electronics, and internal automotive AEC-Q200 component screening protocols. While not a GLP/GMP-certified system out-of-the-box, its audit-ready log files, user-access-level controls, and timestamped image metadata support alignment with ISO/IEC 17025 documentation requirements when configured with optional 21 CFR Part 11-compliant software add-ons.

Software & Data Management

The proprietary Zhengye VisionInspect™ software provides DICOM-compatible image archiving, calibrated measurement tools (line profile, area voiding, thickness estimation), and batch reporting templates aligned with IPC TM-650 test methods. All image acquisitions are time-stamped, user-ID tagged, and stored with embedded acquisition parameters (kV, µA, exposure time, magnification). Raw data export supports TIFF, PNG, and proprietary .ZVI formats; metadata export is available in CSV and XML. Optional modules include automated report generation with pass/fail flagging, database integration via ODBC, and secure remote diagnostics over TLS-encrypted connections.

Applications

• Detection of BGA solder voids (>5% area threshold), cold joints, head-in-pillow defects, and tombstoning in SMT reflow validation
• Verification of electrode alignment and separator integrity in lithium-ion battery cells pre- and post-cycling
• Identification of wire bond fractures, die attach delamination, and internal cracking in power semiconductor modules
• Analysis of copper trace continuity, microvia fill quality, and inner-layer shorting in multilayer HDI PCBs
• Failure root cause analysis of optoelectronic assemblies—including fiber-to-chip coupling misalignment and epoxy voiding in TO-can packages

FAQ

Does the XG600 comply with international radiation safety regulations?

Yes—the system is classified as a Class I cabinet X-ray device per FDA 21 CFR §1020.40 and incorporates redundant mechanical and electronic interlocks, lead-equivalent shielding, and third-party radiation leakage testing reports.

Can the system perform quantitative void analysis on BGA joints?

Yes—using calibrated grayscale thresholds and user-defined region-of-interest (ROI) segmentation, the software calculates void area percentage, maximum void diameter, and spatial distribution relative to IPC-A-610 Annex B guidelines.

Is remote operation supported?

Local operation is standard; optional remote desktop access (with role-based authentication) and API-driven control via TCP/IP are available under extended service agreements.

What training and documentation are provided?

Includes on-site installation commissioning, 2-day operator certification, English-language technical manuals (hardware, software, safety), and IPC-aligned application notes for SMT and battery inspection workflows.
