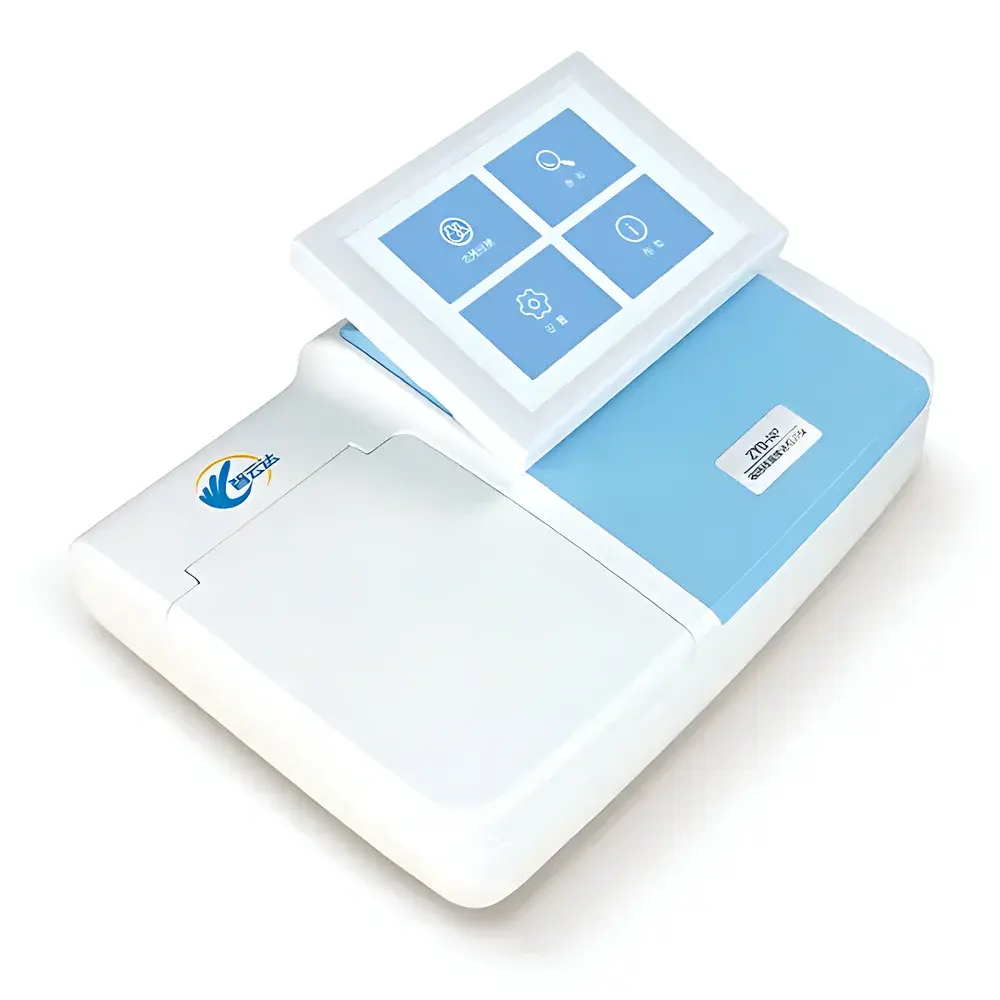

Zhiyunda ZYD-NP(12A) Pesticide Residue Rapid Tester

Overview

The Zhiyunda ZYD-NP(12A) Pesticide Residue Rapid Tester is a benchtop enzymatic assay platform engineered for high-throughput, on-site screening of organophosphorus and carbamate pesticide residues in fresh produce, cereals, tea, and potable water. It operates on the well-established principle of acetylcholinesterase (AChE) inhibition—where residual pesticides competitively inhibit enzyme activity, resulting in quantifiable colorimetric signal attenuation proportional to inhibitor concentration. This method aligns with internationally recognized biochemical screening paradigms and is harmonized with the Chinese national standard GB/T 5009.199–2003, which specifies protocol parameters including substrate incubation time, reagent formulation, and absorbance measurement at 412 nm. Unlike chromatographic or mass spectrometry-based confirmatory methods, the ZYD-NP(12A) serves as a primary triage tool—delivering semi-quantitative inhibition rate data within 10–15 minutes per batch—enabling laboratories and field inspection units to prioritize samples for definitive analysis while maintaining operational throughput.

Key Features

• Twelve independently controlled optical detection channels, each equipped with dedicated LED light source and photodiode sensor to eliminate cross-channel interference and ensure parallel processing without dilution or carryover effects.
• Integrated 8-inch capacitive touchscreen interface with intuitive Android-based UI, supporting multilingual menu navigation (English, Spanish, Arabic, and Simplified Chinese preloaded), real-time result visualization, and on-device calibration management.
• Built-in thermal printer compliant with ESC/POS protocol, enabling immediate hard-copy generation of test reports including sample ID, timestamp, inhibition rate, pass/fail flag per channel, and operator signature field.
• Dual-network connectivity architecture: simultaneous support for IEEE 802.11 b/g/n Wi-Fi and 10/100 Mbps Ethernet (RJ45), facilitating secure data upload to LIMS or cloud-based food safety dashboards via HTTPS or SFTP protocols.
• Onboard data storage capacity of ≥10,000 test records with time-stamped metadata, encrypted using AES-128, and exportable via USB 2.0 port in CSV or PDF format—fully traceable for internal audit or regulatory review.

Sample Compatibility & Compliance

The ZYD-NP(12A) is validated for homogenized extracts prepared from leafy vegetables (e.g., spinach, lettuce), fruit pulps (e.g., apples, strawberries), milled grains (rice, wheat), dried tea leaves, and drinking water. Sample preparation follows standardized extraction protocols outlined in GB/T 5009.199–2003, typically involving phosphate-buffered saline (PBS) extraction, centrifugation, and supernatant filtration. While not intended for regulatory confirmation, the instrument’s performance meets the sensitivity and repeatability requirements stipulated by ISO/IEC 17025 for screening-level testing in accredited food safety laboratories. Its design supports Good Laboratory Practice (GLP) workflows through electronic audit trails, user access levels (admin/operator), and password-protected method editing—features essential for facilities undergoing FDA or CNAS assessments.

Software & Data Management

The embedded Android OS runs a purpose-built application with role-based access control, configurable test templates, and automatic firmware update capability via OTA. All measurements are tagged with GPS coordinates (when enabled), environmental temperature/humidity (via optional external sensor), and operator ID. Data synchronization supports HL7-compliant message formatting for integration with enterprise-grade food safety information systems. Audit logs record every critical action—including calibration events, parameter modifications, and report deletions—with immutable timestamps and digital signatures, satisfying documentation requirements under US FDA 21 CFR Part 11 for electronic records and signatures where local jurisdiction permits.

Applications

• Routine surveillance in municipal food safety supervision centers conducting daily market inspections across multiple vendors.
• Pre-harvest and post-harvest quality assurance at agricultural cooperatives and large-scale agri-processing facilities.
• Third-party certification laboratories performing initial screening prior to GC-MS or LC-MS/MS confirmatory analysis.
• Import/export quarantine stations performing rapid clearance checks on consignments of fresh horticultural commodities.
• Educational use in university food science curricula for hands-on instruction in rapid enzymatic assay principles and food safety risk assessment.

FAQ

What types of pesticides does the ZYD-NP(12A) detect?

It detects organophosphorus (e.g., chlorpyrifos, diazinon) and carbamate (e.g., carbaryl, methomyl) pesticides based on their shared mechanism of acetylcholinesterase inhibition.
Is the instrument suitable for quantitative analysis?

No—it provides semi-quantitative inhibition rate (%) values; results require correlation with reference standards and are intended for screening, not final compliance determination.
Can the device be calibrated with certified reference materials?

Yes—calibration is performed using standardized AChE activity controls and paraoxon/methomyl reference solutions traceable to NIST SRMs or equivalent national metrology institutes.
Does it support remote software updates?

Yes—firmware and application updates can be deployed over Wi-Fi or Ethernet using signed package verification to ensure integrity and authenticity.
What is the expected service life of the enzymatic reagents?

Lyophilized AChE and DTNB substrate kits maintain activity for ≥12 months when stored at 2–8 °C; shelf-life is tracked automatically via barcode-scanned lot numbers integrated into the software.
