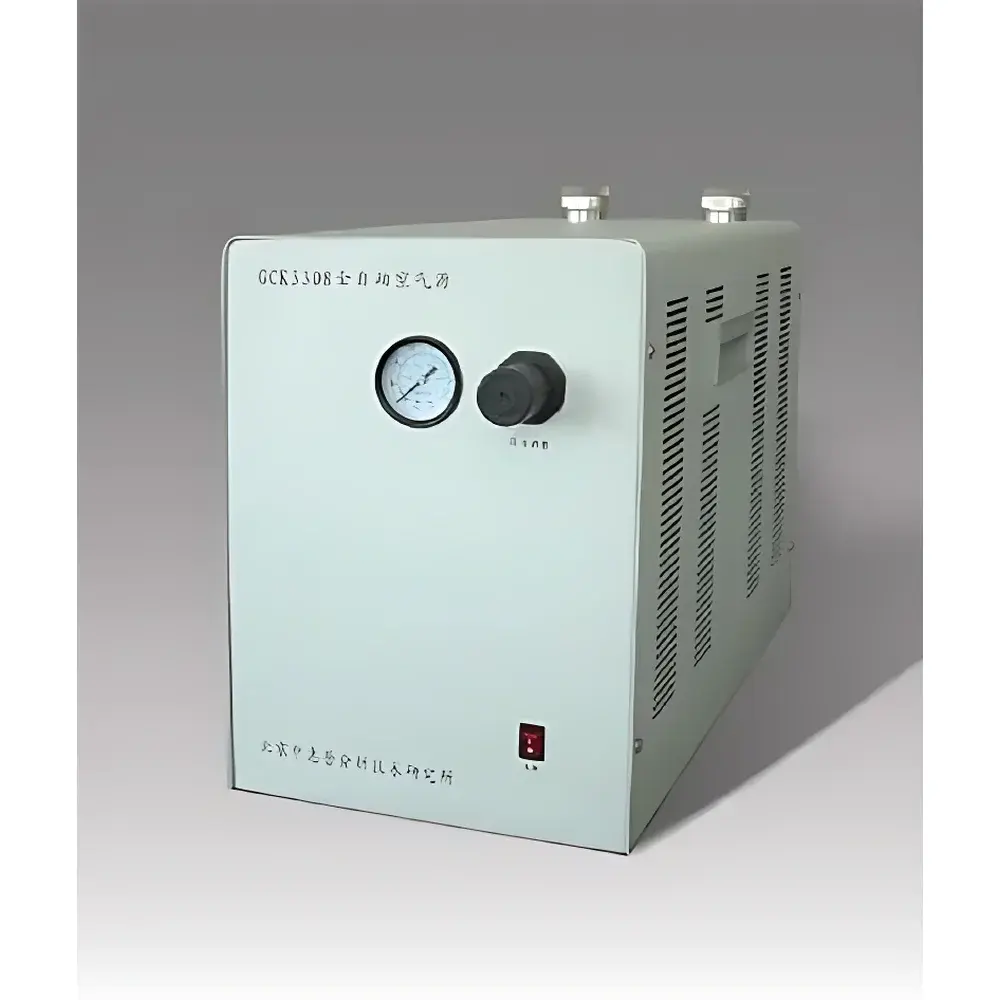

Zhonghuipu GCK3302/GCK3308 Fully Automatic Air Generator

Overview

The Zhonghuipu GCK3302/GCK3308 Fully Automatic Air Generator is an engineered solution for laboratories requiring clean, dry, oil-free compressed air as a carrier, fuel, or support gas—primarily for gas chromatography (GC), GC-MS, flame ionization detectors (FID), nitrogen-phosphorus detectors (NPD), and other analytical instrumentation demanding stable, low-contamination airflow. Unlike conventional oil-lubricated compressors, this unit employs a maintenance-free, oil-free diaphragm compressor coupled with multi-stage filtration and dual pressure-regulation architecture to deliver consistent airflow across variable load conditions. Its design adheres to fundamental pneumatic engineering principles: continuous flow regulation via proportional pressure control, thermal management of compression stages, and passive moisture separation via coalescing and desiccant-based drying. The system operates within ISO 8573-1 Class 3:4:3 air quality specifications (solid particles ≤ 5 µm, dew point ≤ −40 °C, oil content ≤ 0.1 mg/m³), making it suitable for routine QC labs, pharmaceutical stability testing suites, and environmental analysis facilities where long-term baseline integrity and detector longevity are critical.

Key Features

• Dual-stage precision pressure regulation ensures flow stability under dynamic demand—critical for multi-instrument configurations and sequential GC runs.
• Oil-free diaphragm compressor with atmospheric-pressure startup reduces mechanical stress, extending service life beyond 10,000 operating hours with minimal maintenance intervals.
• Integrated automatic condensate drainage via timed electromagnetic valve sequencing eliminates manual intervention and eliminates continuous operational noise during water ejection.
• 6-liter stainless steel (1.5 mm wall thickness) storage tank minimizes compressor cycling frequency, thereby lowering thermal fatigue and improving energy efficiency.
• Low-sulfur silicone O-rings and dual-stage stainless steel particulate filters (pre-filter + final filter) prevent trace sulfur compounds and hydrocarbon contamination—essential for FID baseline stability and low-noise detector operation.
• Configurable output pressure up to 0.8 MPa (optional factory calibration) supports specialized applications such as pressurized sample introduction or auxiliary purge gas lines.
• Acoustically optimized enclosure and vibration-damped mounting reduce operational noise to < 35 dB(A), enabling installation in shared laboratory spaces without acoustic isolation.

Sample Compatibility & Compliance

The GCK3302/GCK3308 is compatible with all major GC platforms—including Agilent, Thermo Fisher, Shimadzu, and PerkinElmer—when configured with standard 1/4″ NPT or BSPP inlet/outlet fittings. It meets the mechanical and electrical safety requirements of GB 4793.1–2019 (Chinese equivalent of IEC 61010-1). While not certified to UL or CE standards out-of-the-box, its architecture supports third-party conformity assessment for CE marking under the EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU upon request. For regulated environments, the unit supports integration into GLP-compliant workflows through external logging of runtime, pressure setpoints, and power-on cycles; however, it does not include built-in 21 CFR Part 11 audit trail functionality unless paired with validated external data acquisition systems.

Software & Data Management

This air generator operates as a standalone hardware device with no embedded microcontroller, touchscreen interface, or proprietary software stack. All control logic is implemented via industrial-grade electromechanical relays and analog pressure transducers, ensuring deterministic behavior and immunity to firmware corruption or cybersecurity vulnerabilities. Pressure setpoints and timer-based drainage intervals are adjusted manually via front-panel potentiometers and DIP switches. For laboratories requiring digital monitoring, optional analog 4–20 mA output signals (pressure and flow) can be interfaced with PLCs, SCADA systems, or LabVIEW-based DAQ platforms. No drivers, SDKs, or cloud connectivity are provided—consistent with ISO/IEC 17025-aligned instrument qualification practices that prioritize hardware traceability over software complexity.

Applications

• Carrier gas supply for capillary GC columns operating at constant linear velocity or pressure programming modes.
• Fuel gas (air) for hydrogen-air flame ionization detectors (FID), ensuring stoichiometric combustion and minimizing carbon deposition on jet tips.
• Make-up gas for electron capture detectors (ECD) and thermal conductivity detectors (TCD), where low moisture and hydrocarbon content directly impact signal-to-noise ratio.
• Purge gas for headspace samplers, autosampler wash stations, and GC inlet septum purge lines.
• Support air for FTIR gas cells, laser alignment systems, and optical bench purging where particle-free airflow prevents lens fouling.
• Backup or primary air source in multi-GC laboratories where centralized compressed air systems introduce variability in dew point or particulate load.

FAQ

Can the GCK3302/GCK3308 supply multiple GC instruments simultaneously?
Yes—its maximum output capacity of 8000 mL/min at 0.4 MPa enables simultaneous operation of up to three mid-range GC systems with standard FID configurations, assuming properly sized distribution manifolds and pressure-drop compensation.
Is the unit suitable for use with mass spectrometry interfaces?
It is not recommended for direct connection to MS vacuum systems or electrospray ionization (ESI) sources due to lack of ultra-high-purity polishing (e.g., catalytic hydrocarbon scrubbers or sub-ppb oxygen removal); however, it may serve as auxiliary air for heated transfer lines or collision cell cooling when paired with additional inline purification modules.
What maintenance is required beyond automatic drainage?
Annual replacement of the coalescing filter element and desiccant cartridge is advised; compressor diaphragms require inspection every 3 years under continuous operation; stainless steel tank integrity remains stable over >15 years per ASTM E1252 accelerated corrosion testing protocols.
Does the generator include overload or thermal shutdown protection?
Yes—the unit incorporates bimetallic thermal cutouts on the motor windings and pressure-sensing interlocks that halt compression if outlet pressure exceeds 0.45 MPa, preventing over-pressurization of downstream GC pneumatic modules.
Can output pressure be calibrated to 0.8 MPa without voiding warranty?
Factory recalibration to 0.8 MPa is available as a configuration option (GCK3308-HighPressure variant); field modification is not supported and will invalidate the manufacturer’s warranty and safety certification.
