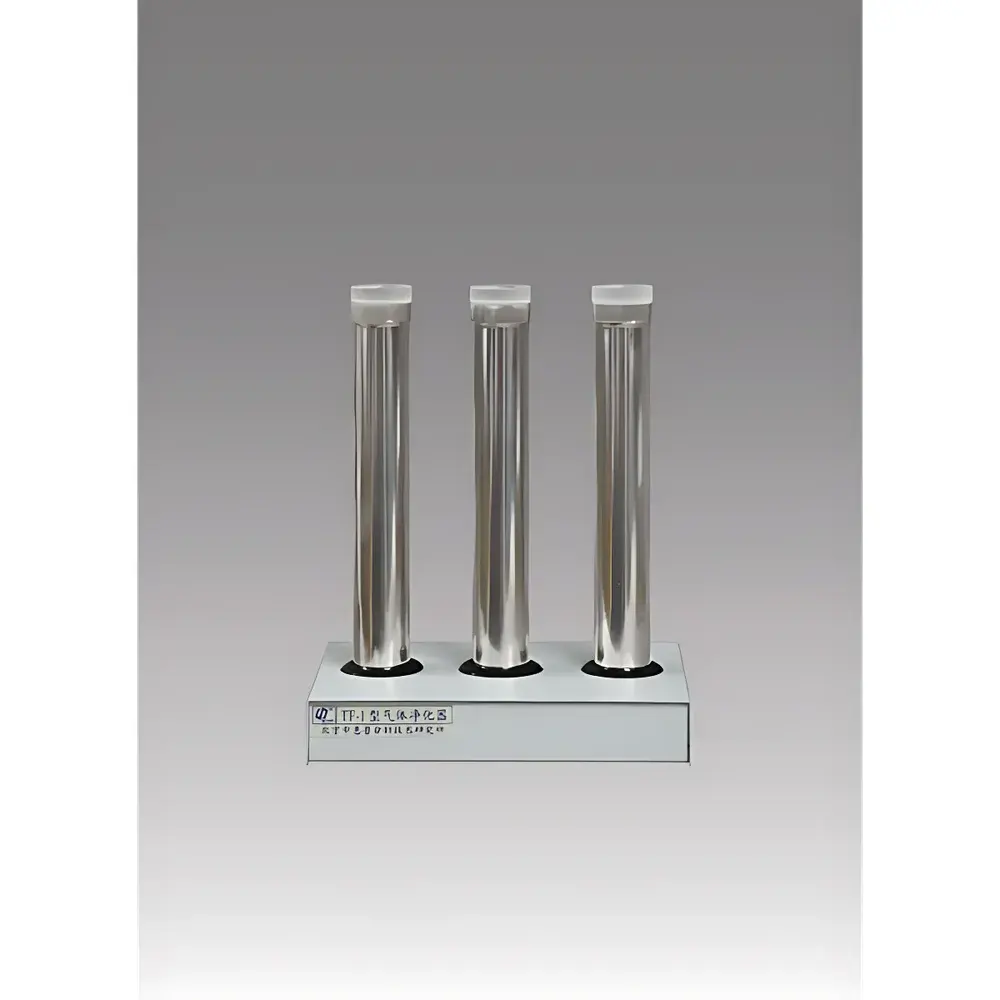

Zhonghuipu TF-1 Gas Purifier
| Brand | Zhonghuipu |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | TF-1 |
| Pricing | Available Upon Request |
Overview
The Zhonghuipu TF-1 Gas Purifier is an engineered solution for high-integrity gas purification in analytical laboratories requiring consistent, ultra-pure carrier and auxiliary gases. Designed around a modular three-channel parallel flow architecture, the TF-1 implements selective adsorption-based purification to remove trace contaminants—including water vapor, hydrocarbons (e.g., CH₄, C₂H₆), oxygen, CO₂, and sulfur compounds—from compressed air, nitrogen, hydrogen, helium, argon, and other common laboratory gases. Its operation relies on physical adsorption and chemical trapping mechanisms within replaceable, user-configurable cartridges. Each channel operates independently under controlled pressure (up to 1.0 MPa), enabling flexible deployment across single- or multi-gas applications without cross-contamination risk. The device is routinely deployed upstream of gas chromatographs (GC), elemental analyzers (e.g., CHNS/O instruments), environmental monitoring systems, food safety testing platforms, and materials characterization setups where baseline stability, detector sensitivity, and column lifetime are critically dependent on gas purity.
Key Features
- Triple independent gas channels—enabling simultaneous purification of three distinct gas streams or sequential staging for multi-step contamination removal
- High-pressure stainless steel filter housings rated to 1.0 MPa (145 psi), certified for continuous operation in pressurized gas supply networks
- Low-sulfur silicone O-rings compliant with ASTM D1418 and ISO 1629 specifications, minimizing sulfur-related interference in sulfur-sensitive analyses (e.g., sulfur chemiluminescence detection)
- User-replaceable purification media cartridges—compatible with molecular sieves (3Å/4Å/13X), color-indicating silica gel, activated carbon, copper catalysts, and custom sorbents
- Modular configuration supports both parallel operation (for multi-gas labs) and series cascading (for ultra-high purity requirements, e.g., <10 ppb H₂O, <50 ppb total hydrocarbons)
- Compact benchtop footprint (W × D × H: 320 × 220 × 280 mm) with front-access cartridge bays and pressure-rated quick-connect fittings (¼” NPT or Swagelok® compatible)
Sample Compatibility & Compliance
The TF-1 accommodates inlet gases across standard laboratory pressure ranges (0.1–1.0 MPa) and flow rates up to 5 L/min per channel. It is validated for use with inert gases (N₂, Ar, He), reducing gases (H₂), and oxidizing gases (synthetic air, O₂-enriched mixtures), provided appropriate sorbent selection is applied (e.g., deoxygenation cartridges for O₂-sensitive applications). All wetted parts—including filter bodies, end caps, and internal tubing—are constructed from electropolished 316 stainless steel meeting ASTM A276 and ISO 8407 corrosion resistance standards. The unit complies with general laboratory safety requirements per IEC 61010-1 and is suitable for installation in ISO/IEC 17025-accredited testing laboratories. While not pre-certified to FDA 21 CFR Part 11, its mechanical design supports integration into GLP/GMP environments when paired with external audit-trail-capable gas monitoring systems.
Software & Data Management
The TF-1 is a hardware-only purification platform with no embedded firmware, microprocessor, or digital interface. This analog architecture eliminates firmware vulnerabilities, reduces calibration drift sources, and ensures long-term operational reliability without software updates or licensing dependencies. Maintenance logging—including cartridge replacement dates, gas type, and estimated service life—is performed manually via lab notebook or LIMS-integrated records. Optional pressure gauges (dual-stage analog or digital transducers) may be installed at inlet/outlet ports to support preventive maintenance scheduling based on ΔP trends—a practice aligned with ISO/IEC 17025 Clause 6.4.2 (Equipment Management).
Applications
- Gas chromatography (GC & GC-MS): Removal of moisture and hydrocarbons to prevent column degradation, ghost peaks, and detector noise
- Elemental analysis (CHNS/O, ICP-MS carrier gas lines): Elimination of O₂ and H₂O to ensure stoichiometric combustion efficiency and isotopic ratio accuracy
- Environmental air monitoring (EPA Method TO-14/TO-15): Preparation of ultra-pure calibration gas standards and zero-air generators
- Food and beverage testing (AOAC 991.22, ISO 15702): Purification of purge-and-trap carrier gases to avoid false positives in volatile organic compound (VOC) analysis
- Materials science (TGA-FTIR, XRD gas atmospheres): Delivery of controlled, contaminant-free purge gases for thermal stability and phase transition studies
FAQ
What types of contaminants does the TF-1 remove?
The TF-1 removes water vapor, hydrocarbons (C1–C6), oxygen, carbon dioxide, sulfur compounds, and particulates—depending on selected sorbent media.
Can the three channels be used in series for deeper purification?
Yes—channels may be plumbed sequentially to achieve multi-stage purification (e.g., coarse dehydration → fine drying → hydrocarbon polishing).
Is the TF-1 compatible with hydrogen gas?
Yes, when equipped with hydrogen-compatible sorbents (e.g., oxygen-scavenging copper catalysts) and operated within specified pressure and flow limits.
How often must cartridges be replaced?
Replacement frequency depends on inlet gas quality, flow rate, and sorbent capacity; typical service life ranges from 3–12 months under standard lab conditions.
Does the TF-1 require electrical power or compressed air?
No—it is a passive, pressure-driven system requiring no external power, vacuum, or auxiliary air supply.
