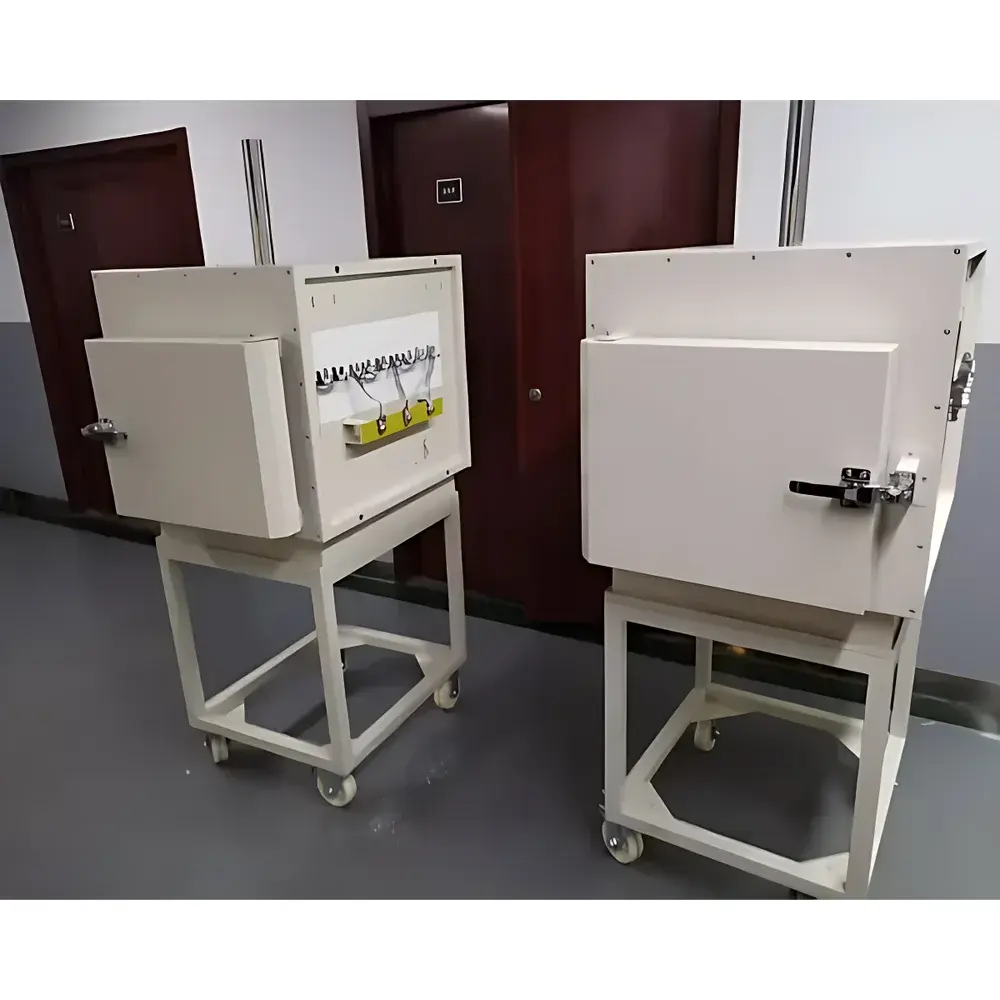

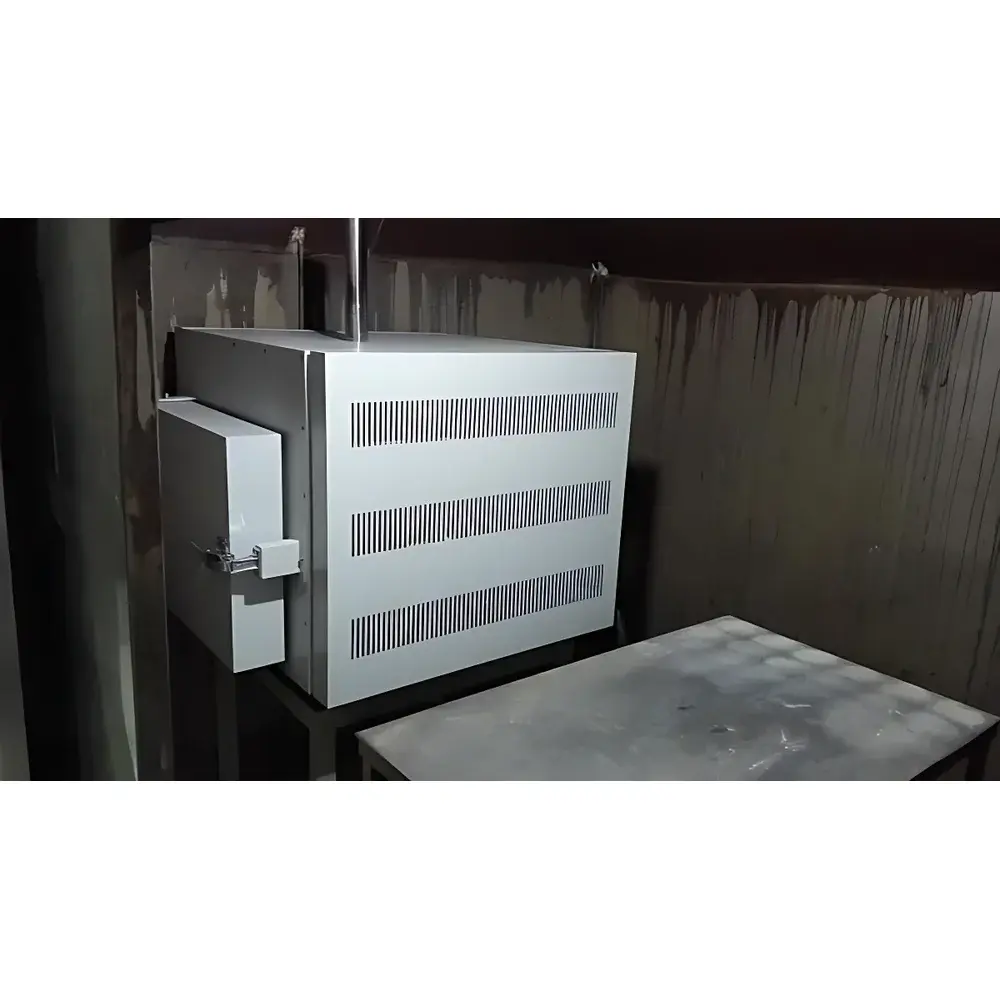

Zhongke Aobo TL-3014 High-Temperature Box Furnace

Overview

The Zhongke Aobo TL-3014 is a high-performance, ceramic fiber-insulated box-type muffle furnace engineered for precision thermal processing in analytical, metallurgical, and materials research laboratories. Operating on the principle of resistive heating via silicon carbide (SiC) rod elements, it delivers uniform temperature distribution across its 30 L chamber while maintaining structural integrity at sustained temperatures up to 1400 °C. Unlike traditional refractory brick furnaces, its lightweight ceramic fiber architecture enables rapid thermal response—achieving 1400 °C from ambient in under 30 minutes—while minimizing thermal mass and energy consumption. The furnace complies with fundamental design requirements for laboratory-grade thermal treatment equipment per ISO 17025-accredited environments and supports standardized test methods including ASTM E1131 (thermogravimetric analysis), ASTM D3174 (ash content in coal), ASTM D3175 (volatile matter), and ISO 562 (coal ash fusion temperature determination).

Key Features

• Robust split-body construction: Independent furnace chamber and intelligent controller unit facilitate service access, reduce electromagnetic interference, and enhance long-term calibration stability.
• Side-hinged door with high-temperature sealing gasket ensures consistent atmosphere isolation and minimizes heat loss during sample loading/unloading.
• Dual-side mounted SiC heating elements provide symmetrical radiant heating and extend service life through simplified replacement—no disassembly of insulation required.
• Ceramic fiber insulation (density: ~128 kg/m³, Al₂O₃ content ≥95%) achieves surface temperatures below 55 °C at 1400 °C hold, meeting IEC 61000-3-2 harmonic current emission limits and reducing operator burn risk.
• PID-based programmable controller with digital setpoint input, real-time ramp/soak profiling (up to 30 segments), and auto-tuning functionality ensures repeatability within ±1 °C across repeated cycles.
• Integrated safety architecture includes over-temperature cut-off (independent thermocouple), door-open interlock, phase-loss protection, and ground-fault detection compliant with IEC 61000-6-2 immunity standards.

Sample Compatibility & Compliance

The TL-3014 accommodates crucibles, boats, and trays made from alumina, silicon carbide, or platinum-group alloys—compatible with ashing, calcination, sintering, and pre-oxidation protocols for geological, environmental, and fuel samples. Its chamber geometry supports standard ASTM/ISO sample containers (e.g., ASTM D3174 porcelain crucibles, ISO 1171 silica crucibles). Optional exhaust port (M12 thread) permits integration with fume hoods or inert gas manifolds (N₂, Ar) for controlled-atmosphere applications. The system meets general electrical safety requirements per IEC 61010-1 and is suitable for use in GLP-compliant laboratories where audit-ready operation logs are maintained via optional RS485/Modbus RTU interface.

Software & Data Management

While the base configuration features a standalone front-panel controller, the TL-3014 supports optional PC connectivity via RS485 serial interface and Modbus RTU protocol. This enables remote monitoring, automated data logging (timestamped temperature profiles), and integration into centralized LIMS or MES platforms. When deployed in regulated environments, the optional data acquisition module provides electronic records compliant with FDA 21 CFR Part 11 requirements—including user authentication, audit trail generation, and non-erasable event logs for thermal validation cycles.

Applications

• Coal and coke analysis: Determination of moisture, ash, volatile matter, fixed carbon, ash fusibility (ISO 562), and elemental composition via subsequent XRF or ICP-OES.
• Environmental testing: Gravimetric determination of total suspended solids (TSS), total dissolved solids (TDS), and organic matter content in soil and sludge per EPA Method 1684.
• Cement and refractory R&D: Loss-on-ignition (LOI) testing, clinker phase stabilization studies, and thermal shock resistance evaluation.
• Metallurgical preparation: Ashing of metal concentrates prior to acid digestion, pre-oxidation of catalyst supports, and binder burnout in powder metallurgy green bodies.
• Academic research: Solid-state reaction kinetics, phase transformation studies, and thermal decomposition behavior of nanomaterials and MOFs.

FAQ

What is the recommended maintenance interval for SiC heating elements?
Under continuous operation at ≤1300 °C, SiC rods typically retain >90% resistance stability for 1,500–2,000 hours; annual visual inspection and resistance measurement are advised.
Can the TL-3014 be used under inert or reducing atmospheres?
Yes—optional gas inlet/outlet ports support N₂, Ar, or forming gas (5% H₂/95% N₂); however, prolonged use above 1200 °C in reducing conditions may accelerate SiC degradation.
Is the furnace compatible with GLP/GMP documentation requirements?
With the optional RS485 data logger and validated software interface, full traceability—including user ID, timestamped setpoints, actual temperature curves, and alarm events—is achievable per ALCOA+ principles.
What is the expected thermal uniformity across the working zone?
At 1400 °C, radial and axial uniformity is ±8 °C within the central 70% of the chamber volume (per internal verification per ASTM E220-19 Annex A2).
Does the unit include calibration certification?
A factory-as-tested temperature uniformity report and NIST-traceable thermocouple calibration certificate are available as optional accessories upon request.
