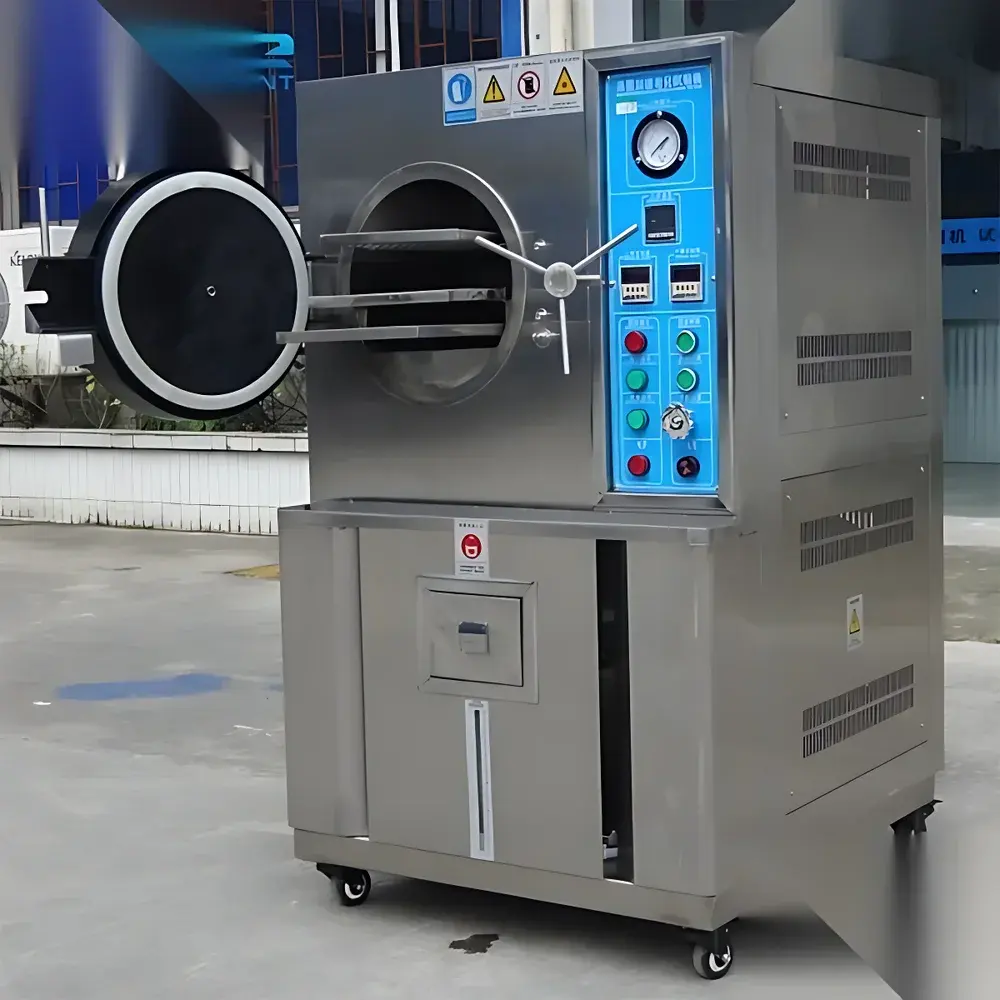

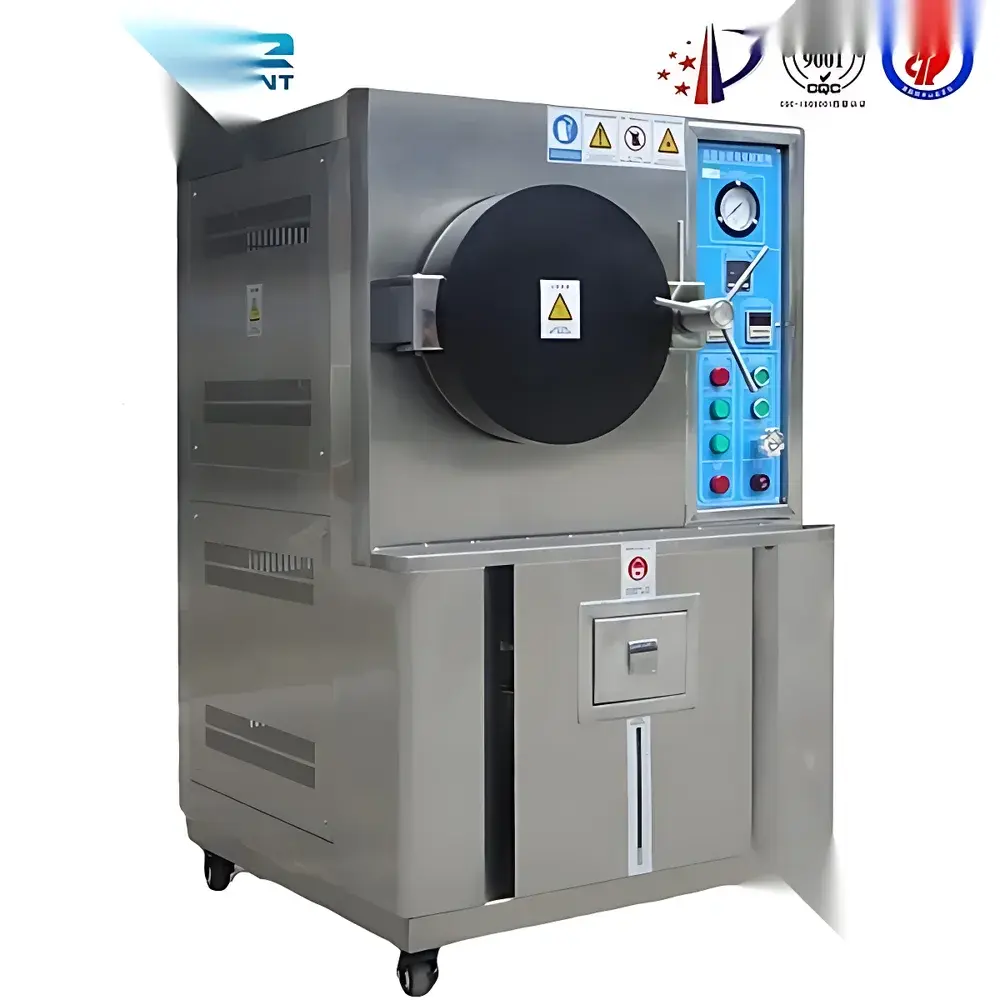

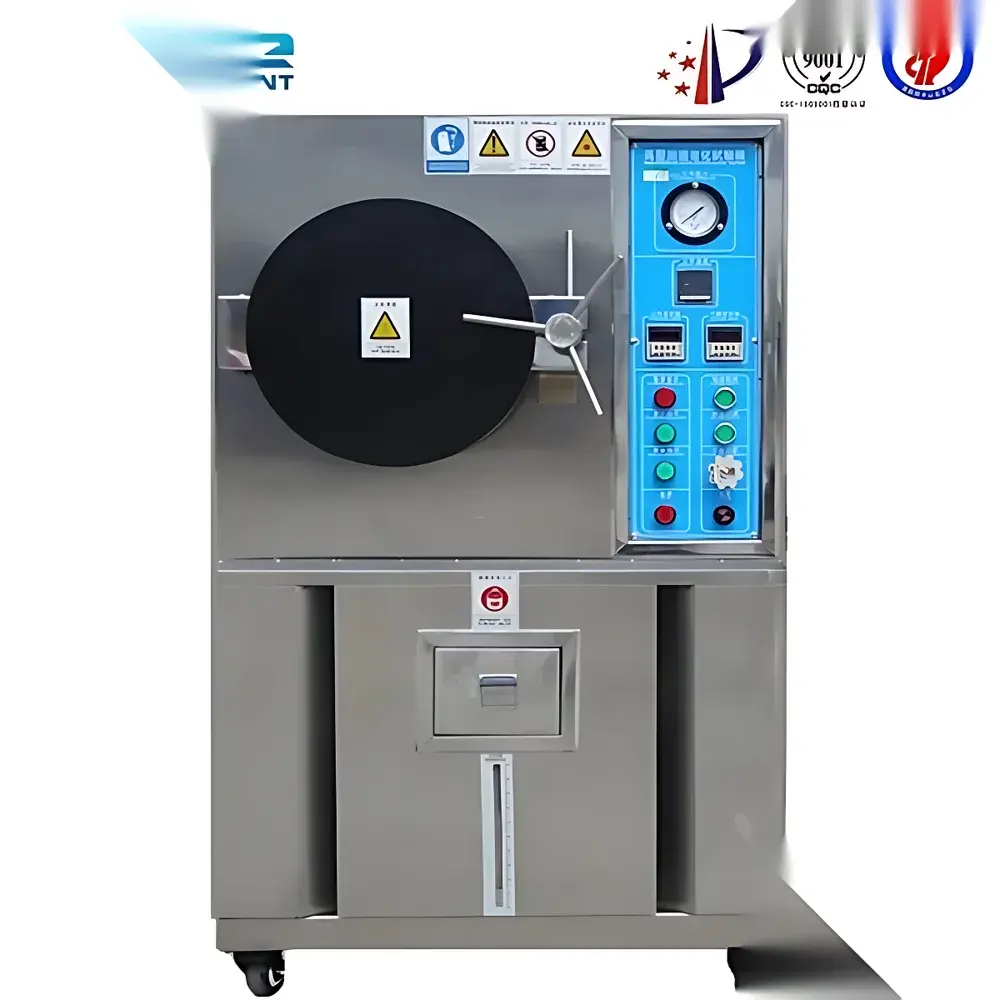

Zhuhai High-Pressure Accelerated Aging Test Chamber

Overview

The Zhuhai High-Pressure Accelerated Aging Test Chamber is a specialized environmental stress screening system engineered for accelerated reliability assessment of electronic components, packaging materials, semiconductor devices, and hermetically sealed assemblies under elevated temperature, humidity, and pressure conditions. Operating on the principle of saturated steam pressurization—commonly aligned with industry-standard Pressure Cooker Test (PCT) and Highly Accelerated Stress Test (HAST) methodologies—the chamber subjects test specimens to controlled high-humidity, high-temperature, and elevated atmospheric pressure environments (typically up to 100% RH, 100–130 °C, and 2–3 bar absolute pressure). This accelerates moisture diffusion into encapsulants, die attach interfaces, and leadframe plating layers, enabling early detection of corrosion, delamination, wire bond degradation, and popcorning failure modes in accordance with JEDEC JESD22-A102, JESD22-A110, and IEC 60068-2-66 test protocols.

Key Features

• Robust cylindrical test chamber (Ø300 mm × L500 mm) constructed entirely from high-purity SUS316 stainless steel—3 mm thickness for interior tank and 1 mm for outer casing—to ensure long-term resistance against chloride-induced pitting and steam-induced oxidation.
• Dual-layer thermal insulation combining mineral rock wool and rigid polyurethane foam (density ≥35 kg/m³), minimizing thermal bridging and maintaining stable internal gradients during extended dwell cycles.
• Platinum-coated finned-tube electric heating elements integrated within the steam generation chamber—designed for uniform vapor saturation, corrosion resistance, and extended service life under continuous condensation exposure.
• Multi-wing centrifugal circulation fan with fully sealed induction motor, eliminating lubricant migration and mechanical centering drift; supports arc-shaped vertical/horizontal airflow distribution for homogeneous temperature and humidity profiles (±0.5 °C / ±2% RH uniformity per IEC 60068-3-5).
• Zero-crossing thyristor-based power control for both heating and humidification circuits—ensuring precise, jitter-free energy delivery and compliance with electromagnetic compatibility (EMC) requirements per EN 61000-6-3.
• Comprehensive multi-tier safety architecture including fuseless circuit breakers, dual-stage thermal limiters (mechanical + electronic), ceramic E-16 fast-acting fuses, compressor high/low-pressure cutouts, overheat protection relays, and intelligent water-level monitoring with staged response (audible alarm at low level; automatic shutdown after sustained depletion).

Sample Compatibility & Compliance

The chamber accommodates standard JEDEC trays (JEDEC STD-20), 8” and 12” wafer carriers, QFN/QFP packages, plastic-encapsulated microcircuits (PEMs), MEMS sensors, and medical-grade polymer housings. Its cylindrical geometry optimizes steam flow dynamics and minimizes stagnant zones—critical for reproducible moisture ingress kinetics. The system meets structural and operational prerequisites for ISO/IEC 17025-accredited laboratories and supports audit-ready documentation for GLP and GMP environments. While not pre-certified to UL 61010-1 or IEC 61010-1, its electrical safety design adheres to Class I protection principles, grounding continuity ≤0.1 Ω, and creepage/clearance distances conforming to pollution degree 2 requirements.

Software & Data Management

This model operates via an embedded industrial PLC-based controller with real-time PID tuning, programmable ramp-soak profiles (up to 99 segments), and onboard data logging (interval resolution: 1–600 seconds). All operational parameters—including chamber pressure (0–300 kPa abs), temperature (RT to 130 °C), relative humidity (30–100% RH), and elapsed time—are timestamped and stored internally for ≥30 days. Data export is supported via USB 2.0 interface in CSV format. Optional RS-485 Modbus RTU integration enables centralized monitoring in SCADA environments. The controller firmware includes configurable user access levels, electronic signature fields for operator validation, and event-triggered log archiving—facilitating alignment with FDA 21 CFR Part 11 expectations for electronic records where local validation is performed.

Applications

• Qualification testing of automotive electronics per AEC-Q200 Rev D (especially moisture sensitivity level (MSL) verification).
• Reliability screening of consumer IoT modules exposed to tropical climates.
• Process validation of conformal coating integrity and solder mask adhesion.
• Accelerated life testing of lithium-ion battery cell housings and sealing gaskets.
• Failure analysis root cause isolation for field returns exhibiting latent moisture-related defects.
• Material compatibility studies involving epoxy molding compounds, silicone encapsulants, and metalized polymer films.

FAQ

What standards does this chamber support for PCT/HAST testing?
It is configured to execute JEDEC JESD22-A102 (saturated steam PCT) and JESD22-A110 (unbiased HAST) test profiles. Users must validate cycle parameters against their internal test plans and applicable product qualification specifications.
Is the chamber suitable for testing non-hermetic packages?
Yes—though test duration and pass/fail criteria must be adjusted per IPC/JEDEC guidelines for semi-hermetic or porous packaging systems.
Does it include pressure calibration certification?
No factory calibration certificate is supplied; users are advised to perform third-party pressure transducer calibration annually per ISO/IEC 17025 requirements.
Can the chamber operate continuously for 96+ hours?
Yes—its thermal management, redundant safety interlocks, and sealed motor design support unattended operation across extended qualification cycles when maintained per manufacturer-recommended water quality and cleaning intervals.
Is remote monitoring available?
Basic remote status viewing is possible via optional Ethernet-to-Modbus gateway; full supervisory control requires integration with existing facility MES or LabVantage systems.
