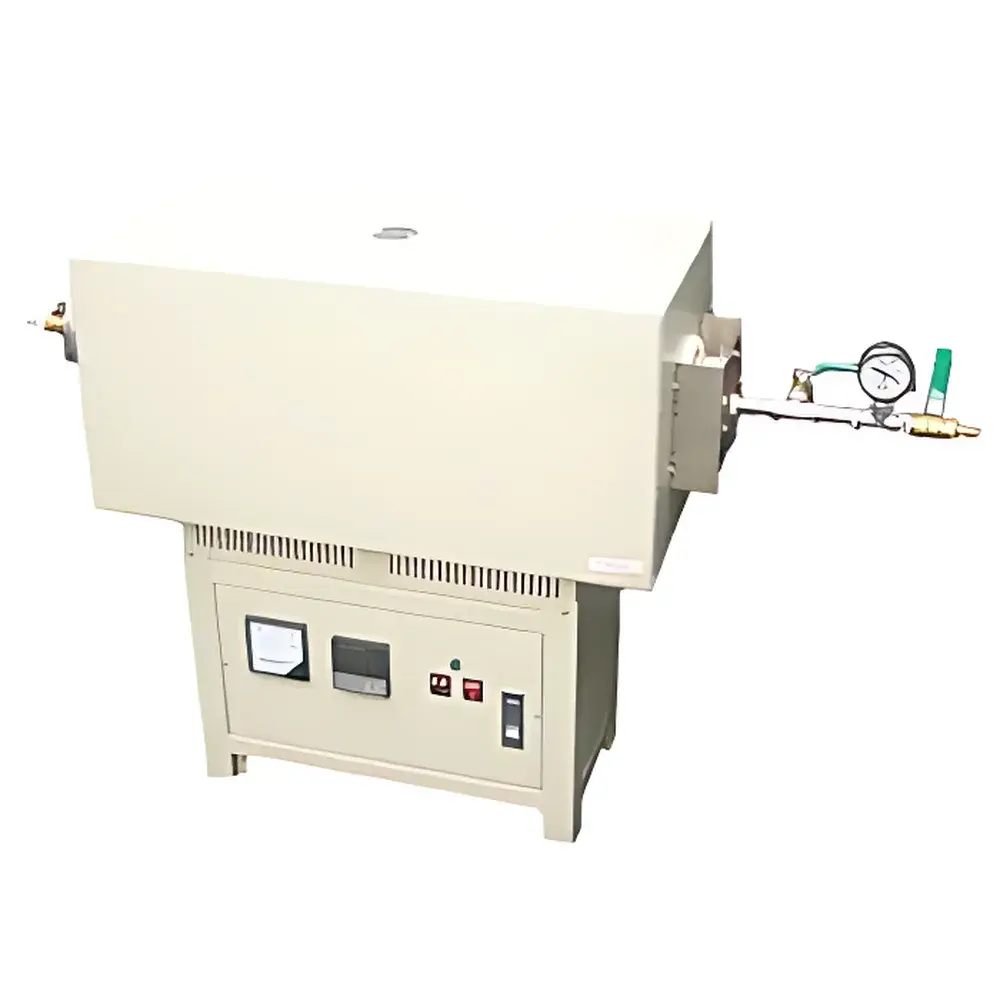

Zhuochi SK3-2-10-5 Energy-Efficient Programmable Vacuum Tube Furnace

Overview

The Zhuochi SK3-2-10-5 is a precision-engineered programmable vacuum tube furnace designed for controlled thermal processing under reduced-pressure conditions. It operates on the principle of resistive heating via high-stability alloy elements embedded within a low-thermal-mass insulation matrix—enabling rapid, reproducible temperature ramping from ambient to 1000 °C in configurable time windows (15–999 minutes). The furnace chamber consists of a fused quartz tube (Ø50 × 600 mm), sealed at both ends using stainless steel flanges and ultra-high-temperature silicone-based gaskets rated to 350 °C continuous service. This architecture ensures minimal outgassing, excellent thermal uniformity (<±5 °C over central 100 mm zone), and compatibility with inert, reducing, or vacuum atmospheres down to 10⁻² mbar (with optional mechanical pump). Its compact footprint (W420 × D520 × H680 mm) and front-access design facilitate integration into fume hoods, gloveboxes, or modular lab workflows.

Key Features

• LTDE-based programmable controller supporting up to 30 segments per profile, including ramp rate control (0.1–30 °C/min), soak dwell, cooling pause, and delayed start/stop functions.
• Energy-optimized thermal design: ultra-lightweight refractory insulation reduces standby heat loss by >40% compared to conventional ceramic fiber linings.
• Sealed vacuum system with integrated analog vacuum gauge (0–760 Torr), dual-port stainless steel inlet valve, and O-ring–free compression sealing interface.
• Modular tube configuration: interchangeable fused quartz or alumina tubes (standard Ø50 × 600 mm); optional flow-through gas fittings available for dynamic atmosphere control.
• Over-temperature protection circuitry (independent limit controller), grounded chassis, and automatic power cutoff upon door/tube disengagement.
• CE-marked electrical safety compliance; meets IEC 61000-6-3 (EMC emission) and IEC 61000-6-2 (immunity) standards.

Sample Compatibility & Compliance

The SK3-2-10-5 accommodates solid-state samples—including powders, pellets, thin films, and small crucibles—within its Ø50 × 400 mm hot zone. Quartz tube transparency permits in-situ optical monitoring (e.g., pyrometry or visual inspection) during heating. The furnace supports applications requiring strict atmospheric control: catalyst activation under N₂/H₂ mixtures, oxide reduction under forming gas, or solvent-free annealing in high-vacuum environments. All materials contacting process gases conform to USP Class VI biocompatibility requirements. For regulated environments, the LTDE controller supports audit-trail-enabled operation when paired with optional data-logging modules compliant with FDA 21 CFR Part 11 Annex 11 requirements. Documentation includes factory calibration certificates traceable to NIST standards.

Software & Data Management

While the base unit operates via standalone LTDE panel interface, optional RS485/Modbus RTU connectivity enables integration with LabVIEW™, MATLAB®, or custom SCADA systems. Third-party software packages (e.g., Eurotherm iTools, Omega OM-DAQ) support real-time temperature logging, alarm notification via email/SMS, and export of CSV-formatted thermal profiles with timestamped metadata. Firmware updates are delivered via USB port, preserving user-defined programs across revisions. All logged data include operator ID, batch tag, and environmental context tags—supporting full traceability in ISO/IEC 17025-accredited laboratories.

Applications

• Thermal treatment of battery electrode materials (LiCoO₂, NMC, Si anodes) under inert vacuum to prevent oxidation.
• Graphitization and annealing of carbon nanotubes and graphene precursors.
• Sintering of ceramic green bodies (Al₂O₃, ZrO₂) with minimized grain growth.
• Pre-treatment of substrates prior to CVD or PECVD deposition.
• Calibration of thermocouples and reference sensors per ASTM E230/E220 protocols.
• Material stability testing per ICH Q1A(R2) guidelines for pharmaceutical excipients.

FAQ

What vacuum level can the SK3-2-10-5 achieve without auxiliary pumping?
The standard configuration achieves ~10⁻¹ mbar with a single-stage rotary vane pump; adding a diffusion or turbo-molecular pump extends capability to 10⁻⁴–10⁻⁶ mbar.
Is the quartz tube replaceable, and what is its expected service life?
Yes—quartz tubes are consumables with typical lifespans of 150–200 cycles at 1000 °C under vacuum; replacement kits include new end caps and seals.
Can the furnace be operated continuously at maximum temperature?
Continuous operation at 1000 °C is permitted for ≤8 hours per cycle; extended runs require active cooling intervals to maintain element longevity.
Does the LTDE controller support PID auto-tuning?
Yes—the controller includes adaptive PID tuning routines that optimize response based on actual thermal load and ambient conditions.
Are custom tube dimensions or alternative tube materials (e.g., alumina) available?
Custom configurations—including Ø60/Ø80 mm tubes, longer lengths up to 1000 mm, and high-purity alumina (99.8%) variants—are available as OEM options with lead-time adjustment.
