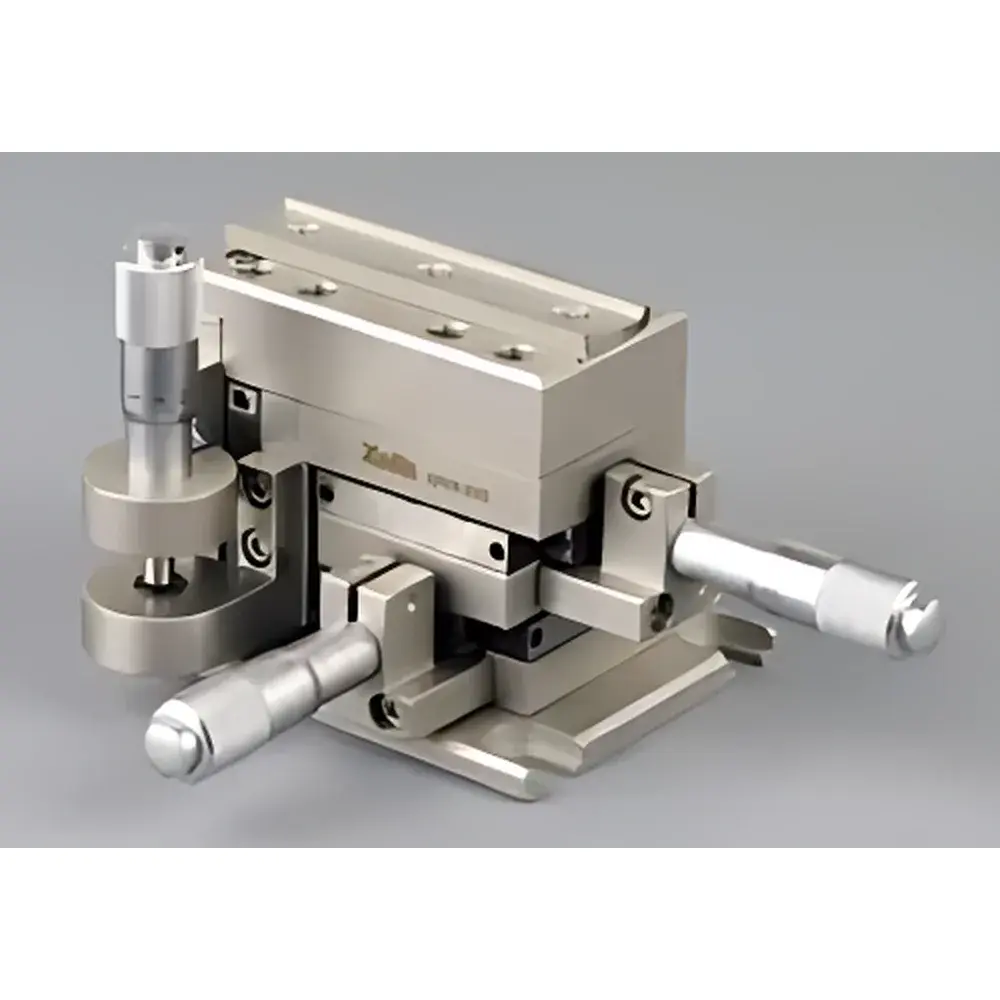

ZOLIX APFP-XYZ Precision Fiber Alignment Translation Stage

Overview

The ZOLIX APFP-XYZ Precision Fiber Alignment Translation Stage is an engineered solution for high-stability, sub-microradian optical alignment in demanding photonic applications. Designed specifically for fiber coupling, free-space-to-fiber interfacing, and interferometric setup calibration, this stage employs a rigid mechanical architecture based on crossed roller bearing guideways—ensuring minimal parasitic motion, exceptional repeatability, and long-term thermal stability. Unlike flexure or ball-screw-based stages, the APFP-XYZ eliminates hysteresis and backlash through its fully constrained kinematic design, making it suitable for applications requiring deterministic positioning under ambient laboratory conditions or within temperature-controlled optical enclosures. Its stainless steel construction minimizes coefficient-of-thermal-expansion (CTE)-induced drift, supporting alignment integrity over extended operational periods without recalibration.

Key Features

• Rigid XYZ translation with independent, orthogonal micrometer-driven actuators—each calibrated for 10 µm resolution and repeatable to ±0.5 µm under load
• Crossed roller bearing guidance system providing low-friction, high-stiffness motion with tilt error strictly limited to <100 µrad across full travel (X/Y/Z)
• Thermally stable stainless steel frame and baseplate, mitigating thermal drift during multi-hour alignment procedures or environmental fluctuations
• Standard燕尾座 (dovetail mounting interface) compatible with industry-standard optical posts, lens mounts, and fiber launch assemblies
• Modular handedness configuration: right-hand (APFP-XYZ) and left-hand (APFP-XYZL) variants accommodate symmetrical optical layouts and space-constrained breadboard integration
• Optical axis height fixed at 79 mm—designed to align precisely with standard optomechanical rails (e.g., Thorlabs 1.5″ or Newport 1.25″) and common fiber collimator heights

Sample Compatibility & Compliance

The APFP-XYZ stage supports a broad range of passive and active photonic components, including single-mode and multimode fiber ferrules (FC/PC, FC/APC, SC), collimators, isolators, wavelength division multiplexers (WDMs), and micro-optical elements (lenses, mirrors, waveplates). Its 2.3 kg load capacity accommodates typical fiber-coupled modules up to 120 mm in length and 45 mm in diameter. While not certified to ISO 9001 or ISO 14001 as a standalone device, the stage is manufactured under ZOLIX’s internal quality management system aligned with GB/T 19001–2016 (equivalent to ISO 9001:2015). Mechanical specifications comply with ASTM E2587–21 (Standard Practice for Use of Statistical Process Control in Manufacturing) for dimensional consistency and surface flatness control (≤0.5 µm over 100 mm span).

Software & Data Management

The APFP-XYZ is a manually operated, analog precision stage with no embedded electronics, firmware, or software dependencies. This design ensures electromagnetic compatibility (EMC) immunity in sensitive laser labs and eliminates potential failure modes associated with motorized controllers or USB interfaces. All adjustment parameters—including micrometer scale readings, positional offsets, and alignment reference points—are documented externally using lab notebooks, spreadsheet-based calibration logs, or third-party metrology software (e.g., MATLAB-based alignment scripts or LabVIEW DAQ systems interfaced via external position sensors). For traceable workflows compliant with GLP or GMP environments, users may integrate optional capacitive or LVDT displacement sensors (sold separately) to record real-time positional data with audit-trail capability per FDA 21 CFR Part 11 requirements.

Applications

• Fiber-to-fiber and fiber-to-waveguide coupling optimization in telecom and quantum photonics testbenches
• Active alignment of laser diodes to pigtailed photonic integrated circuits (PICs)
• Stabilization of interferometer arms in Michelson, Mach–Zehnder, and Sagnac configurations
• Calibration of beam pointing stability in ultrafast amplifier chains and OPCPA systems
• Alignment of free-space optical cavities where sub-100 µrad angular stability is required over 8+ hour sessions
• Integration into automated alignment platforms as a passive, high-fidelity positioning subassembly

FAQ

Is the APFP-XYZ compatible with vacuum environments?
Yes—the all-stainless-steel construction and absence of lubricants or adhesives make it suitable for UHV-compatible modifications (e.g., bake-out to 120 °C); however, standard units are rated for ambient air use only unless specified with vacuum-grade assembly.
Can I mount a 30 mm cage system directly onto the dovetail platform?
Yes—the top platform features a standardized 1/4″-20 tapped pattern and a precision-ground dovetail rail conforming to ANSI/ISO 8015 geometric tolerancing, enabling direct attachment of Thorlabs, Newport, or custom cage plates.
What is the maximum recommended torque for the micrometer knobs?
Do not exceed 0.15 N·m per knob to prevent deformation of the brass nut assembly and maintain specified resolution and repeatability.
Does ZOLIX provide calibration certificates for individual units?
Traceable factory calibration reports (including travel linearity, orthogonality, and tilt error measurements) are available upon request at additional cost and require lead time for metrology scheduling.
Is the APFP-XYZL (left-hand version) identical in performance to the standard model?
Yes—only the orientation of the X- and Y-axis micrometers is mirrored; all mechanical tolerances, load ratings, and thermal stability metrics are identical between APFP-XYZ and APFP-XYZL.
