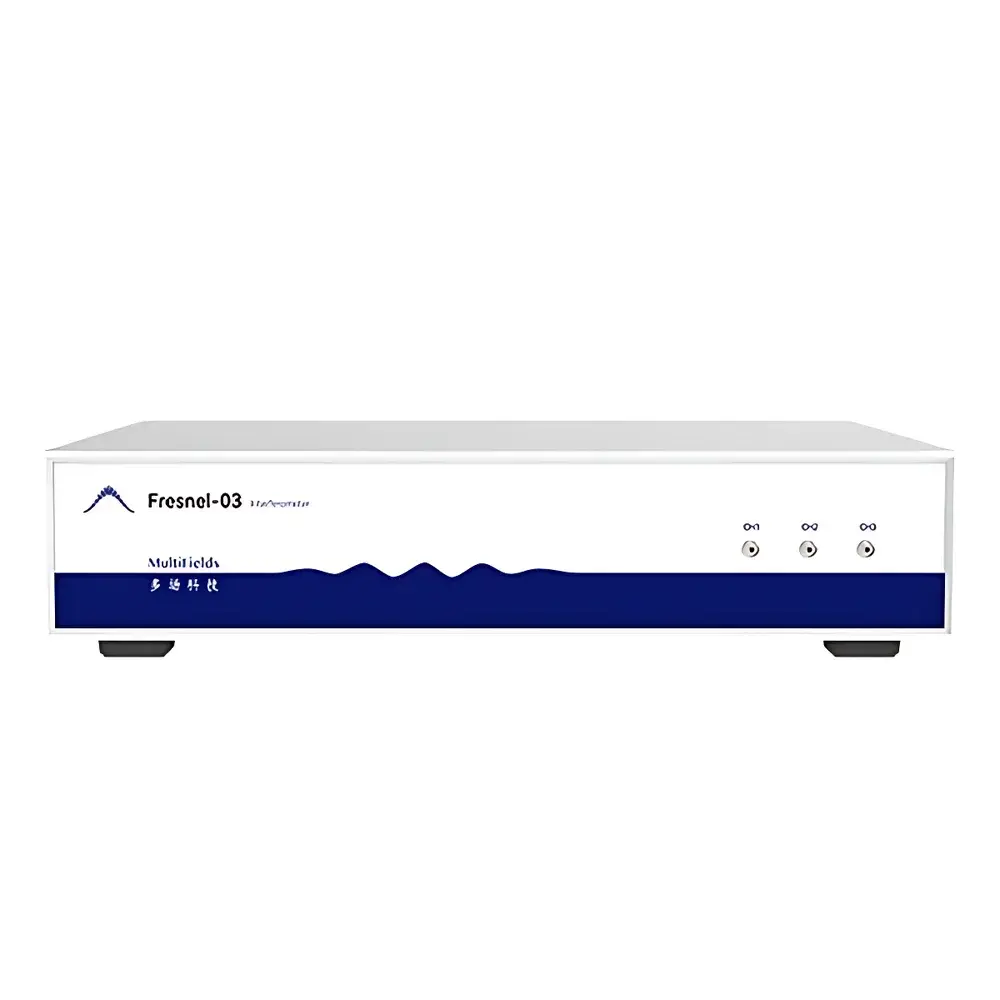

ZOLIX Fresnel-03 Laser Interferometer
| Brand | ZOLIX |
|---|---|
| Model | Fresnel-03 |
| Measurement Channels | 3 |
| Working Distance | 0–10 m |
| Accuracy | < 1×10⁻⁷ m/m (wavelength-limited) |
| Periodic Nonlinearity | 4 nm (p-p, @ 5 cm) |
| Resolution | 0.03 nm (@ 5 cm) |
| Max Target Velocity | 3.8 m/s |
| Max Bandwidth | 5 MHz |
| Max Data Rate | 10 MHz |
| Target Reflectivity Range | 4%–100% |
| Measurement Laser | 1545 ± 15 nm (Class 1 DFB) |
| Guide Laser | 650 ± 15 nm (Class 1) |
| Output Interfaces | TCP/IP, BiSS-C, Quadrature Analog Signals |
| Environmental Options | UHV-Compatible, Cryogenic (-273 °C), High-Magnetic-Field (≥ 10 T) Probes |
Overview
The ZOLIX Fresnel-03 Laser Interferometer is a high-precision, multi-channel displacement metrology system engineered for sub-nanometer resolution and picometer-level stability in dynamic linear motion measurement. Based on heterodyne interferometry with a distributed feedback (DFB) laser source at 1545 nm, it delivers traceable, wavelength-referenced position data compliant with ISO 230-2 and VDI/VDE 2634 standards. Its three independent measurement channels enable simultaneous acquisition of three orthogonal linear degrees of freedom—enabling reconstruction of six-degree-of-freedom (6-DOF) motion when combined with geometric calibration. Unlike single-axis systems, the Fresnel-03 supports coherent multi-axis correlation without time skew, making it suitable for real-time closed-loop positioning in ultra-precise stages, synchrotron beamline alignment, gravitational wave detector path stabilization, and semiconductor lithography stage metrology.
Key Features
- Three synchronized interferometric channels with independent optical paths and digital signal processing units, each capable of full-range linear displacement tracking from 0 to 10 meters.
- Sub-0.03 nm resolution (RMS, 0.01–1 MHz bandwidth) verified via piezoelectric step validation under controlled thermal and vibration isolation conditions.
- Low periodic nonlinearity of ≤ 4 nm peak-to-peak across the full 0–10 m working range—validated by Lissajous analysis and phase error mapping per ISO 230-6 Annex B.
- Modular fiber-coupled probe architecture: interchangeable focused (FB-FP-PC-50), line (LF-FP-PC-50), collimated (CB-MI-APC-5000), and differential (DF-MI-APC-5000) probes—each with FC/PC or FC/APC connectors and optimized beam geometry for specific target geometries and environmental constraints.
- Class 1 laser safety certification (IEC 60825-1:2014) for both measurement and alignment lasers; no external interlocks required during normal operation.
- Environmental compensation interface compatible with optional ZOLIX ECU modules for real-time refractive index correction using temperature, pressure, humidity, and CO₂ concentration inputs per Edlén equation implementation.
Sample Compatibility & Compliance
The Fresnel-03 accommodates a broad spectrum of reflective targets—including front-surface mirrors, corner cube retroreflectors, hollow retroreflectors, and diffusely scattering surfaces with reflectivity ≥ 4%. Probe variants support measurement on flat, cylindrical, or curved surfaces without recalibration. All probes are available in configurations rated for ultra-high vacuum (UHV, ≤ 1×10⁻¹⁰ mbar), cryogenic environments (down to 4 K), and static magnetic fields up to 12 T—verified per ASTM E1509 and IEC 61000-4-8 test protocols. The system meets electromagnetic compatibility (EMC) requirements per EN 61326-1:2013 and is designed for integration into GLP- and GMP-regulated facilities, supporting audit-ready configuration control logs and firmware version traceability.
Software & Data Management
The interferometer operates natively with ZOLIX InterferoSoft™ v4.x—a deterministic, low-latency application framework supporting real-time streaming at up to 10 MHz sample rate. It provides native drivers for LabVIEW, MATLAB, Python (via PyVISA and ctypes bindings), and C/C++ SDKs with thread-safe API calls. Data export formats include HDF5 (with metadata schema compliant with NeXus standard), CSV, and TDMS. For regulated environments, optional 21 CFR Part 11 compliance packages include electronic signatures, role-based access control, audit trail logging (immutable SQLite database with SHA-256 hashing), and configurable retention policies. Raw quadrature signals can be routed externally for custom FPGA-based demodulation or proprietary control loop integration.
Applications
- Nanoscale motion control in atomic force microscopy (AFM) and scanning probe lithography platforms.
- Dynamic calibration of coordinate measuring machines (CMMs) and laser trackers per ISO 10360-12.
- Thermal expansion coefficient measurement in materials science labs using dual-probe differential mode.
- Real-time feedback for adaptive optics systems in astronomical telescopes and EUV lithography tools.
- Vibration mode shape identification in structural dynamics testing, leveraging synchronous multi-channel phase coherence.
- Long-term drift monitoring in geophysical observatories and inertial sensor development labs.
FAQ
What is the maximum achievable measurement bandwidth when all three channels are active?
The system maintains full 5 MHz analog bandwidth per channel simultaneously; digital output throughput is limited to 10 MHz aggregate across all channels via the BiSS-C interface or 100 MB/s via TCP/IP Ethernet.
Can the Fresnel-03 operate in vacuum without outgassing concerns?
Yes—UHV-rated probe variants use metal-sealed housings, ceramic ferrules, and vacuum-compatible adhesives; outgassing rates are certified to < 1×10⁻¹² Pa·m³/s per cm² (per ASTM E595).
Is firmware update supported remotely via network connection?
Yes—secure OTA updates are supported through authenticated HTTPS endpoints with SHA-384 signature verification and rollback protection.
How is periodic nonlinearity characterized and corrected in practice?
Nonlinearity is measured using a calibrated polygon mirror and heterodyne phase analyzer per ISO 230-6; residual error is stored as a 2⁴-point lookup table applied in real time during demodulation.
Does the system support synchronization with external triggers or master clocks?
Yes—TTL-compatible trigger input (5 V CMOS) and PPS (pulse-per-second) input/output ports enable sub-10 ns jitter synchronization with external timing sources such as GPS-disciplined oscillators or femtosecond laser combs.
