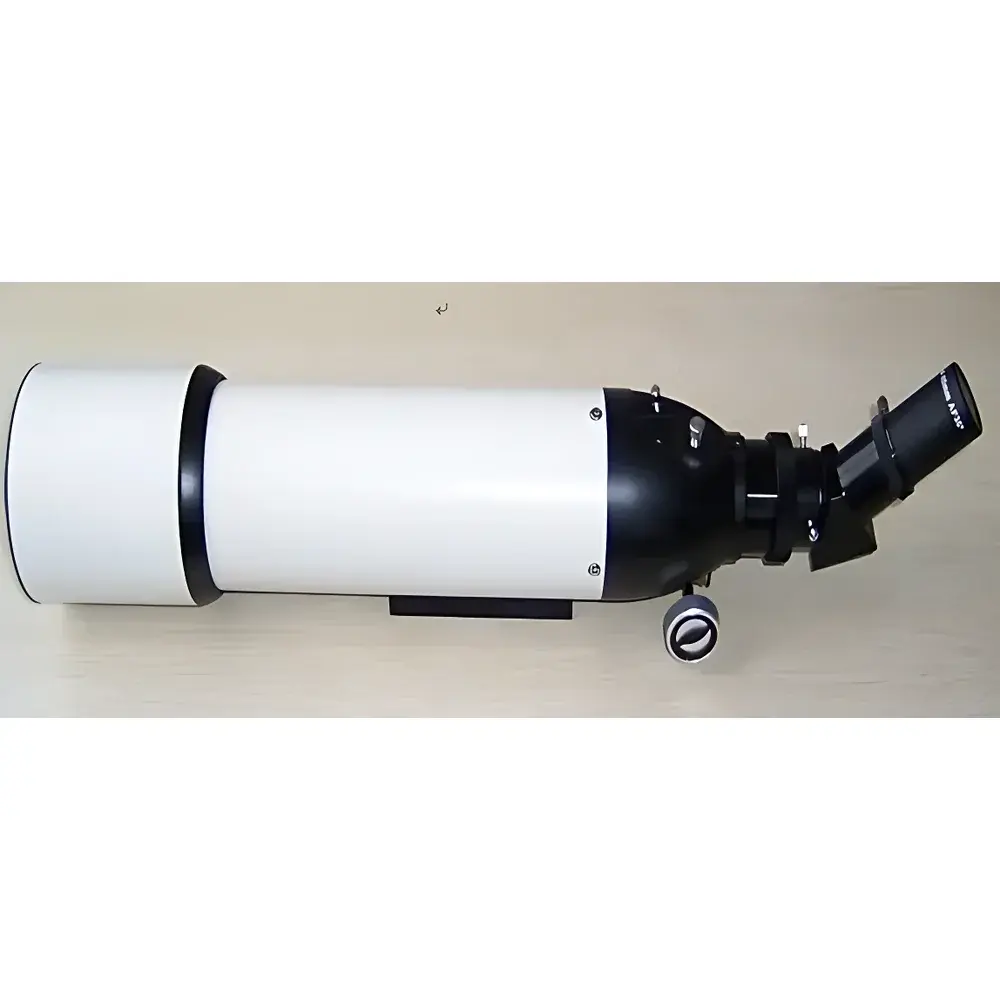

ZY-80 Lingerman Smoke Blackness Meter

Overview

The ZY-80 Lingerman Smoke Blackness Meter is a field-deployable visual opacity assessment instrument engineered for rapid, standardized evaluation of smoke plume darkness in accordance with the internationally recognized Lingerman scale (0–5). Unlike optical transmissometers or real-time particulate analyzers, this device operates on comparative photometric principles: it superimposes a calibrated, etched Lingerman reference chart onto the optical path—integrated directly into the eyepiece reticle—enabling side-by-side visual matching between observed stack emissions and standardized grayscale bands. This method aligns with ISO 13571:2015 (Smoke Opacity Measurement – Visual Assessment) and serves as a primary screening tool under EPA Method 9 (Visual Determination of the Opacity of Emissions from Stationary Sources) and China’s HJ/T 398–2007 standard for flue gas blackness monitoring. Designed for outdoor environmental auditing, regulatory compliance verification, and routine industrial stack inspections, the ZY-80 delivers repeatable qualitative-to-semiquantitative opacity classification without requiring power, calibration gases, or complex setup.

Key Features

• 15× angular magnification optical system with 80 mm objective aperture ensures high-light-gathering capability and sharp image resolution at extended distances (10–2000 m), critical for evaluating tall stacks or dispersed plumes.
• Integrated reticle-mounted Lingerman scale (0–5 grades), permanently engraved on optical glass to prevent fading, misalignment, or calibration drift over time.
• Dual-scale reticle design includes both full-scale Lingerman bands and 2× magnified sub-divisions for enhanced discrimination between adjacent grades (e.g., distinguishing Grade 2.5 from 3.0).
• Robust aluminum alloy chassis with IP54-rated dust/moisture resistance; ergonomic form factor (605 × 110 × 110 mm) optimized for handheld or tripod-mounted operation.

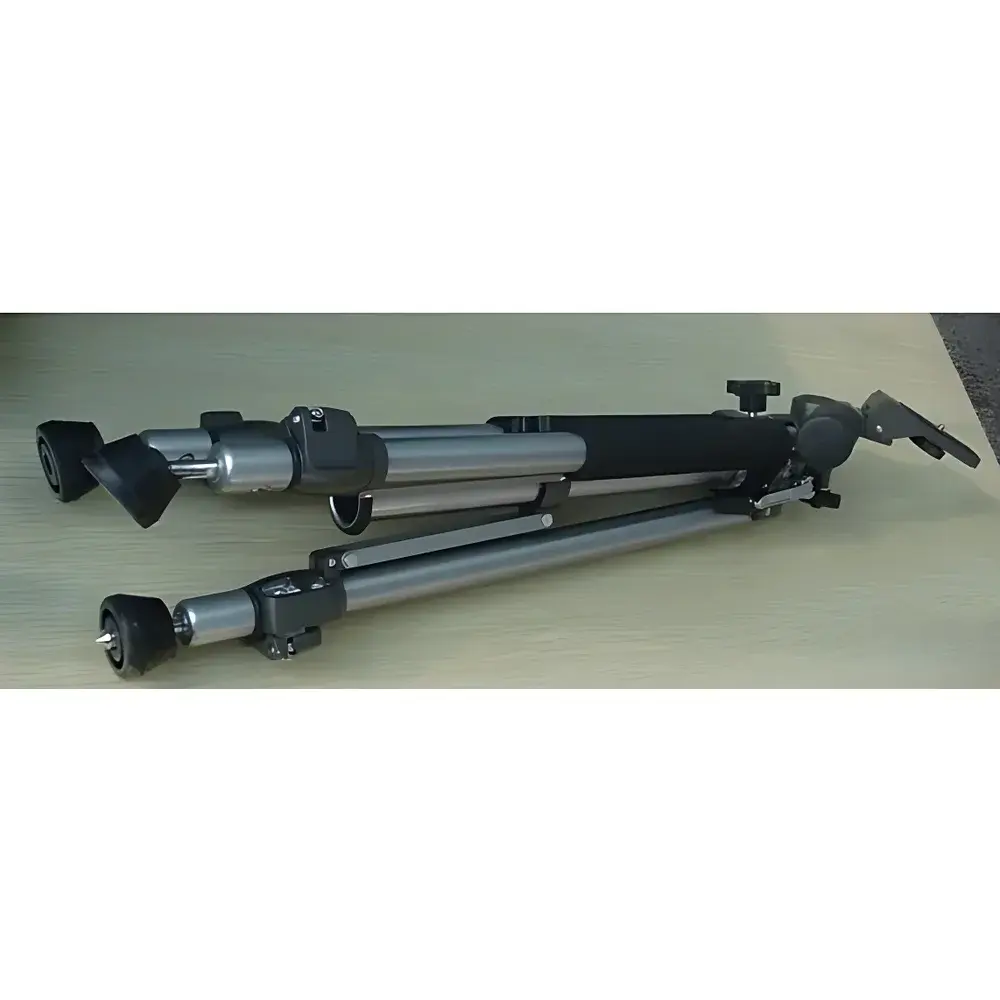

• Built-in 1/4″-20 threaded tripod mount compliant with ISO 12232 and DIN 4503 standards; compatible with all industry-standard survey tripods and leveling heads.

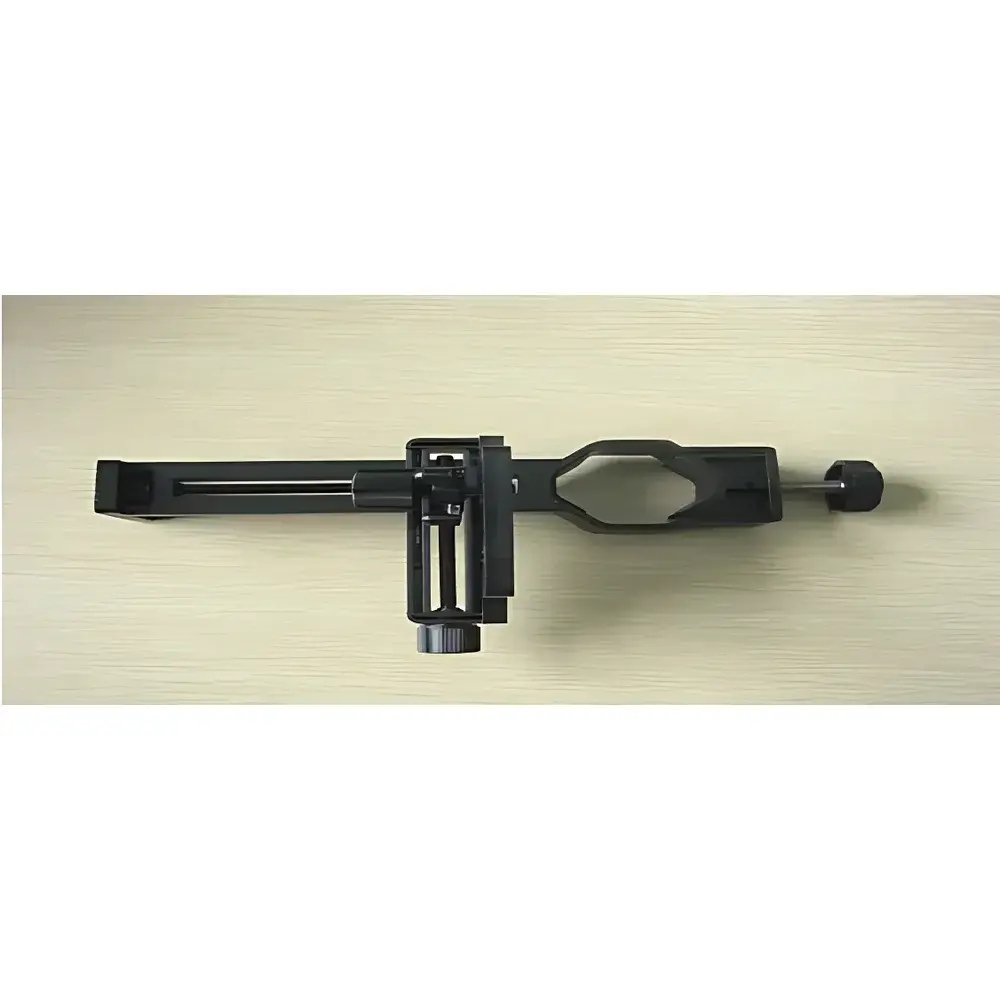

• Optional universal camera adapter bracket supports mechanical coupling of DSLR, mirrorless, and compact digital cameras (no electronic interface required), enabling traceable photographic documentation aligned with GLP audit requirements.

Sample Compatibility & Compliance

The ZY-80 is designed exclusively for ambient-temperature, atmospheric-pressure gaseous effluent streams containing carbonaceous particulates—primarily coal-, oil-, or biomass-fired combustion sources. It does not measure mass concentration (mg/m³), particle size distribution, or chemical composition; rather, it assesses integrated optical attenuation across the visible spectrum (400–700 nm) as perceived by the human eye under daylight conditions (CIE Standard Illuminant D65, ≥2000 lux). Its application scope conforms to ASTM D2156–20 (Standard Test Method for Smoke Density in Flue Gases from Burning Distillate Fuels), EN 15315:2007 (Solid Biofuels – Determination of Smoke Number), and national emission standards requiring periodic visual opacity checks (e.g., China’s GB 13223–2011 and US Clean Air Act §114 compliance protocols). The ≤0.5 accuracy class and ≤2% repeatability meet field instrument tolerances specified in ISO/IEC 17025:2017 for non-automatic measuring systems used in environmental testing laboratories.

Software & Data Management

The ZY-80 operates as a standalone optical instrument with no embedded firmware, software, or data logging capabilities—ensuring zero cybersecurity risk, no firmware updates, and full operational independence from network infrastructure. All observational records are generated externally: users manually log readings (Grade, time, location, wind direction, ambient illumination) in paper-based field notebooks or digital forms compliant with 21 CFR Part 11 when paired with validated electronic data capture (EDC) platforms. When used with optional digital cameras, captured images embed EXIF metadata (timestamp, GPS coordinates if enabled, exposure settings), supporting traceability and retrospective grade verification during regulatory audits. No proprietary software drivers or vendor-specific file formats are involved; outputs are standard JPEG or RAW files compatible with LIMS integration via generic image ingestion workflows.

Applications

• Regulatory stack opacity surveys conducted by provincial and municipal environmental protection bureaus (EPBs) in China and ASEAN member states.
• Pre-compliance screening prior to installation of continuous emission monitoring systems (CEMS) for thermal power plants, cement kilns, and waste incinerators.
• Third-party environmental due diligence assessments during industrial facility acquisitions or ISO 14001:2015 certification audits.
• Educational demonstrations of combustion efficiency and particulate emission principles in university environmental engineering labs.
• Field validation of electrostatic precipitator (ESP) or fabric filter performance where sudden opacity spikes indicate operational anomalies.

FAQ

Is the ZY-80 suitable for indoor or low-light conditions?
No. Per EPA Method 9 and ISO 13571, observations must be conducted during daylight hours with illumination ≥2000 lux and background sky free of clouds or glare. Artificial lighting invalidates Lingerman grading.

Does the instrument require annual recalibration?
No. As a passive optical comparator with no electronic sensors or moving parts, the ZY-80 has no calibration interval per ISO/IEC 17025 Annex A. Users perform functional verification before each use by checking reticle clarity and alignment against a known neutral gray card.

Can it be used for diesel engine exhaust or vehicle emissions testing?
Not recommended. The ZY-80 is optimized for stationary source plumes ≥10 m in height and ≥30 s duration. Transient mobile source emissions fall outside its validated operational envelope per EN 15315 and ASTM D2156.

What training is required for certified opacity readers?
Users must complete EPA Method 9 qualification training (minimum 16 hours) and pass a written and field examination administered by an accredited body—such as the U.S. EPA’s Smoke School program or China’s Ministry of Ecology and Environment–authorized training centers.
