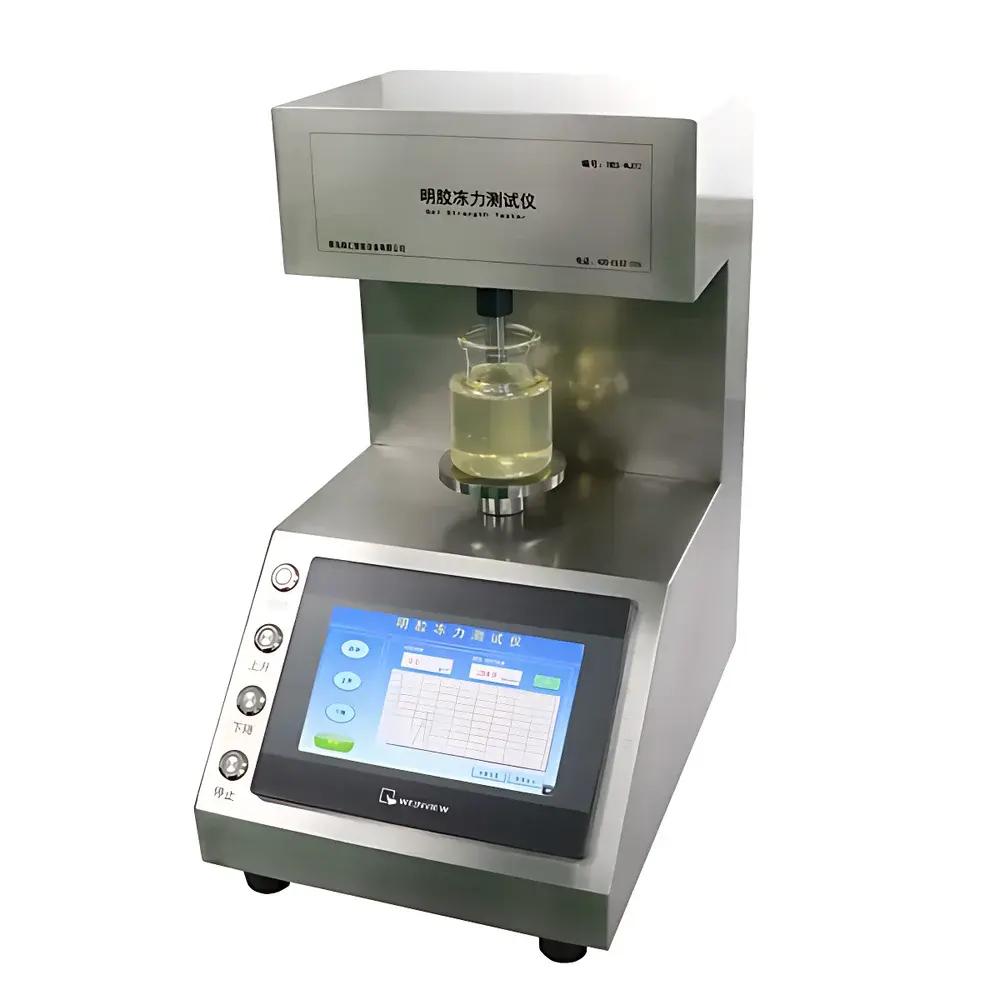

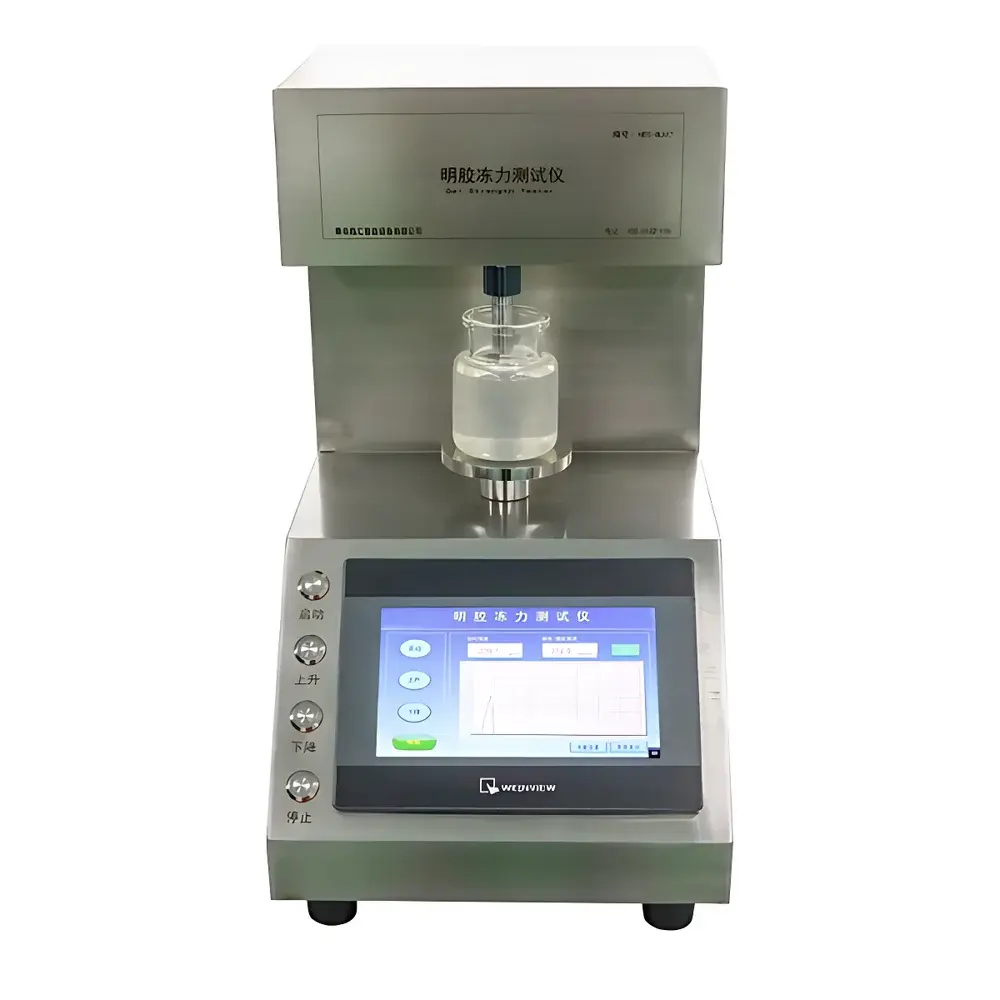

| Brand | Hopebio |
|---|---|
| Model | HBS-NJ02 |
| Measurement Principle | Controlled-depth compression with stainless-steel plunger (12.7 mm Ø) |
| Force Range | 0–3000 g/cm² (gel) / 0–3000 g (Bloom) |
| Resolution | 0.1 g |
| Plunger Diameter | 12.7 ± 0.1 mm (AISI 304 stainless steel) |
| Penetration Depth (gelatin) | 4 mm (adjustable, 1–50 mm range) |
| Stroke Travel | 0–40 mm |
| Pre-test Speed / Test Speed / Retract Speed | Adjustable |
| Data Storage | On-device (36 tests), USB export (FAT32 ≤32 GB, 60-day history) |
| Display | 7-inch capacitive touchscreen |
| Power | 220 V AC, 1 A |
| Operating Temp | 10–40 °C |
| Relative Humidity | <90% RH |
| Dimensions | 350 × 250 × 435 mm |
| Weight | 10 kg |

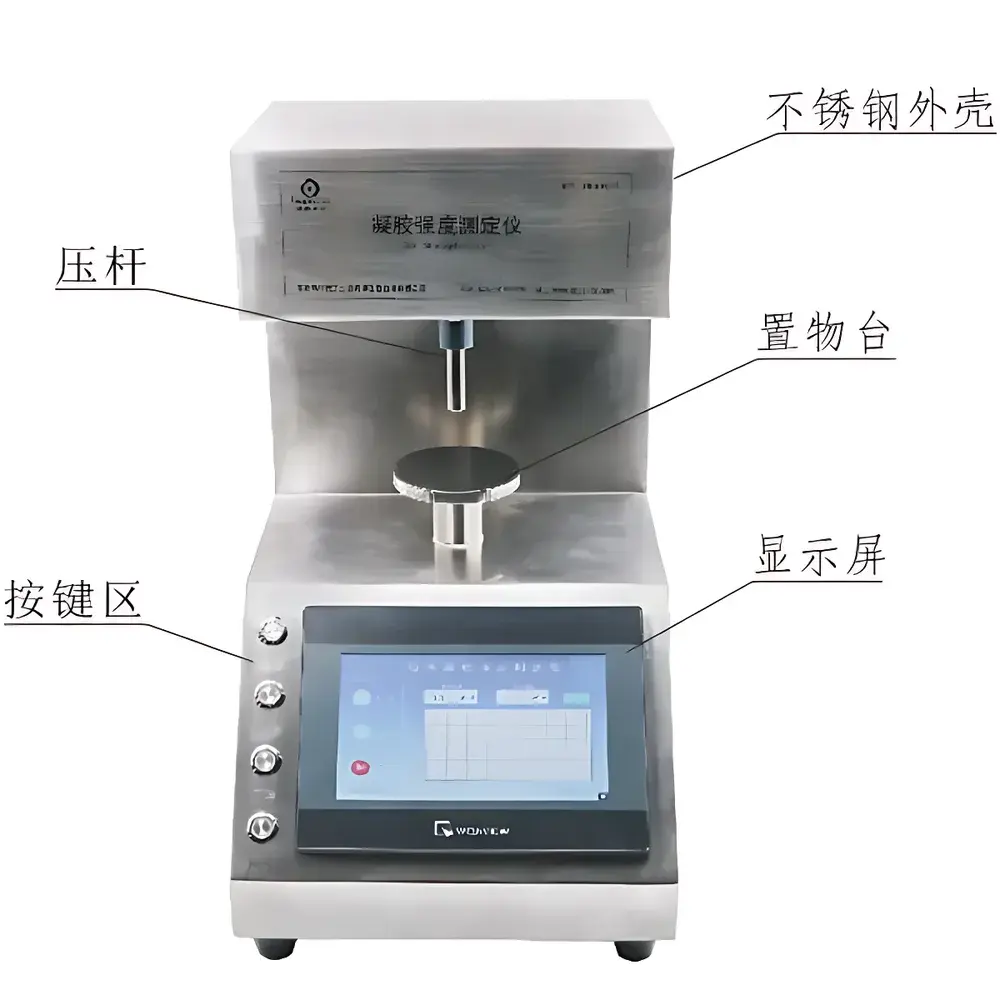

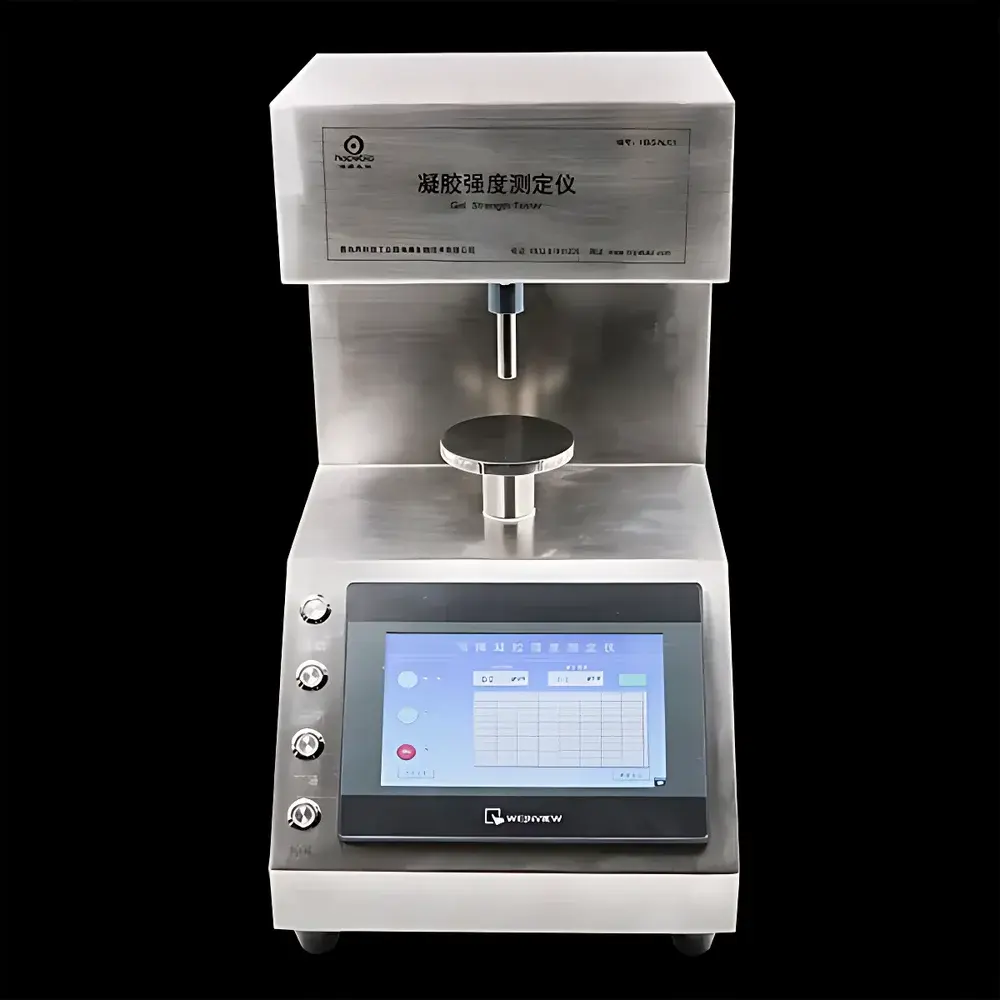

| Brand | Hopebio |
|---|---|
| Model | HBS-NJ01 |
| Measurement Range | 0–3000 g/cm² |
| Resolution | 0.1 g |
| Probe Diameter | 11.28 mm (Cross-sectional Area: 1 cm²) |
| Test Speed | Adjustable (Default: 1.0 mm/s) |
| Retraction Speed & Distance | Adjustable |
| Stroke Travel | 0.01–40 mm |
| Data Storage | 36-cycle buffer memory, 60-day history retention |
| Data Export | USB flash drive (≤32 GB, FAT32, CSV format) |
| Power Supply | 220 V AC, 1 A |
| Dimensions | 350 × 250 × 435 mm |
| Weight | 10 kg |
| Operating Temperature | 10–40 °C |
| Relative Humidity | <90% RH |
| Enclosure | Full stainless-steel housing |
| Control System | PLC-based with 7-inch industrial touchscreen interface |
| Compliance | ISO 9665, GB 28304-2012, GB 6783-2013 |
| Brand | Hopebio |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | HBS-NJ01 |
| Voltage | 220 V AC, 1 A |
| Dimensions | 350 × 250 × 435 mm |
| Weight | 10 kg |
| Operating Temperature | 10–40 °C |
| Relative Humidity | <90% RH |
| Touchscreen | 7-inch capacitive LCD |
| Load Cell Range | 0–3000 g/cm² |
| Resolution | 0.1 g |
| Probe Diameter | 11.28 mm (cross-sectional area: 1 cm²) |
| Penetration Speed | Adjustable, default 1.0 mm/s |
| Retraction Speed & Distance | Adjustable |
| Penetration Depth Range | 0.01–40 mm |
| Data Storage | Internal buffer for up to 36 test records |
| Data Export | USB flash drive, CSV format |
| Compliance | ISO 9665, GB 28304-2012, GB 6783-2013 |
| Brand | Hopebio |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | HBS-NJ02 |
| Measurement Range | 0–3000 g/cm² (gel) / 0–300 Bloom g (gelatin) |
| Probe Diameter | 12.7 ± 0.1 mm |
| Probe Material | AISI 304 Stainless Steel |
| Penetration Depth (adjustable) | 1–50 mm |
| Stroke Range | 0–40 mm |
| Load Cell Accuracy | ±0.1 g |
| Data Storage | Local history (60 days), exportable via FAT32-formatted USB drive (<32 GB) |
| Touchscreen | 7-inch LCD |
| Dimensions | 350 × 250 × 435 mm |
| Weight | 10 kg |
| Compliance | ISO 9665, GB 6783-2013, GB 28304-2012, Chinese Pharmacopoeia 2020 (Capsule-grade Gelatin) |
