| Brand | Bluejing |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |

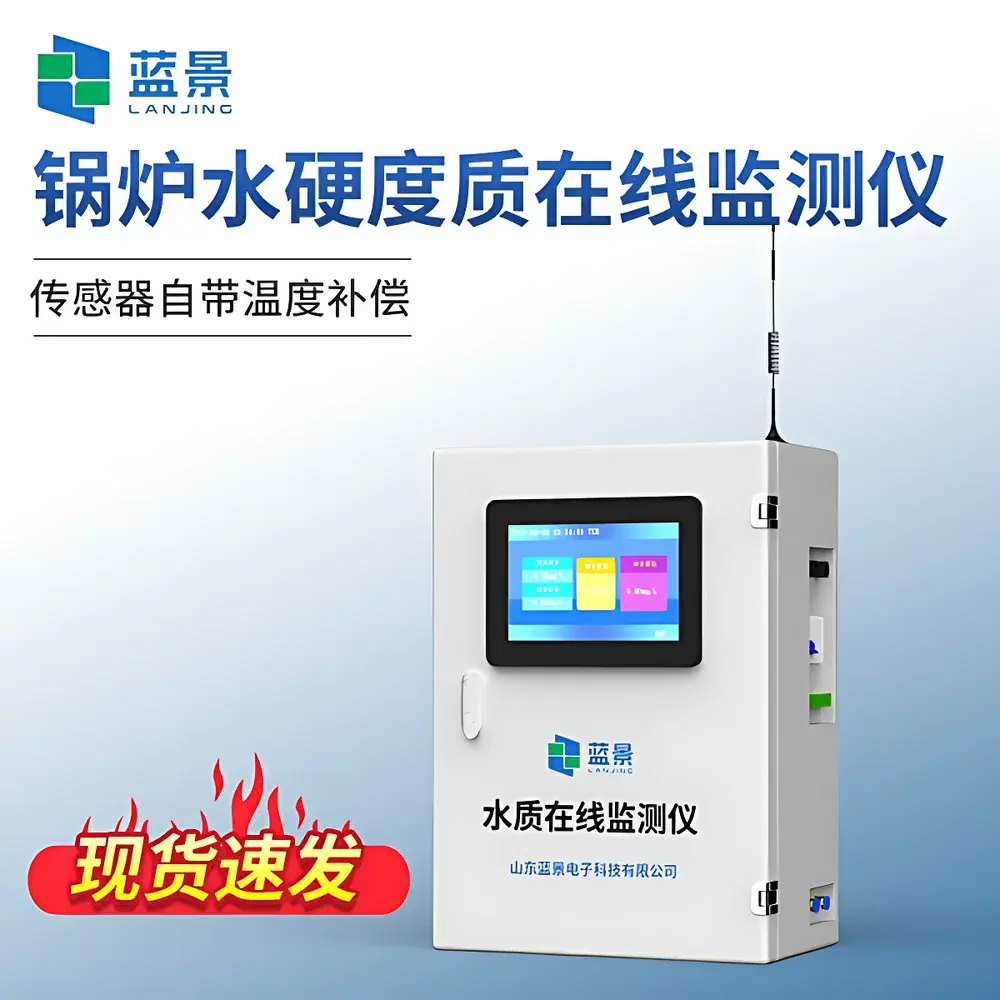

| Model | LJ-YDZ |
| Measurement Parameters | Hardness (0.2–40,000 mg/L as CaCO₃), Chloride Ion, pH/Temp, Dissolved Oxygen (DO), Oxidation-Reduction Potential (ORP) |
| Display | 10-inch Color TFT Touchscreen (Bilingual Chinese/English UI) |
| Output Options | 4–20 mA (opto-isolated), RS-485 / RS-232 (Modbus RTU), Relay Alarms (dual SPDT), Optional HART, NB-IoT/GPRS/LoRa |
| Power Supply | AC 220 V ±10% or DC 24 V |
| Power Consumption | ≥5 W |
| Enclosure Rating | IP65 (main cabinet), IP68 (submersible sensors) |
| Operating Temperature | 0–60 °C (non-freezing) |
| Storage Temperature | −10–60 °C |
| Installation Modes | Top-mount, Top-flange, Side-wall, In-line, Immersion, Flow-through |
| Sensor Protection | Integrated optical-electronic filtration, self-cleaning brush, ruggedized protective cap |
| DO Measurement Principle | Fluorescence-based (membrane-covered, electrolyte-free) |
| Temperature Compensation | Built-in NTC sensor per probe |
| Data Refresh Interval | Adjustable down to 1 s |
| Repeatability | ≤1% FS |
| Hardness Accuracy | ±1–2% of calibrated range |
| Dimensions (Cabinet) | 156 × 150 × 85 mm (W×H×D) |
| Panel Cutout | 156 × 94 mm |
| Standard Cable Length | 10 m (customizable) |
