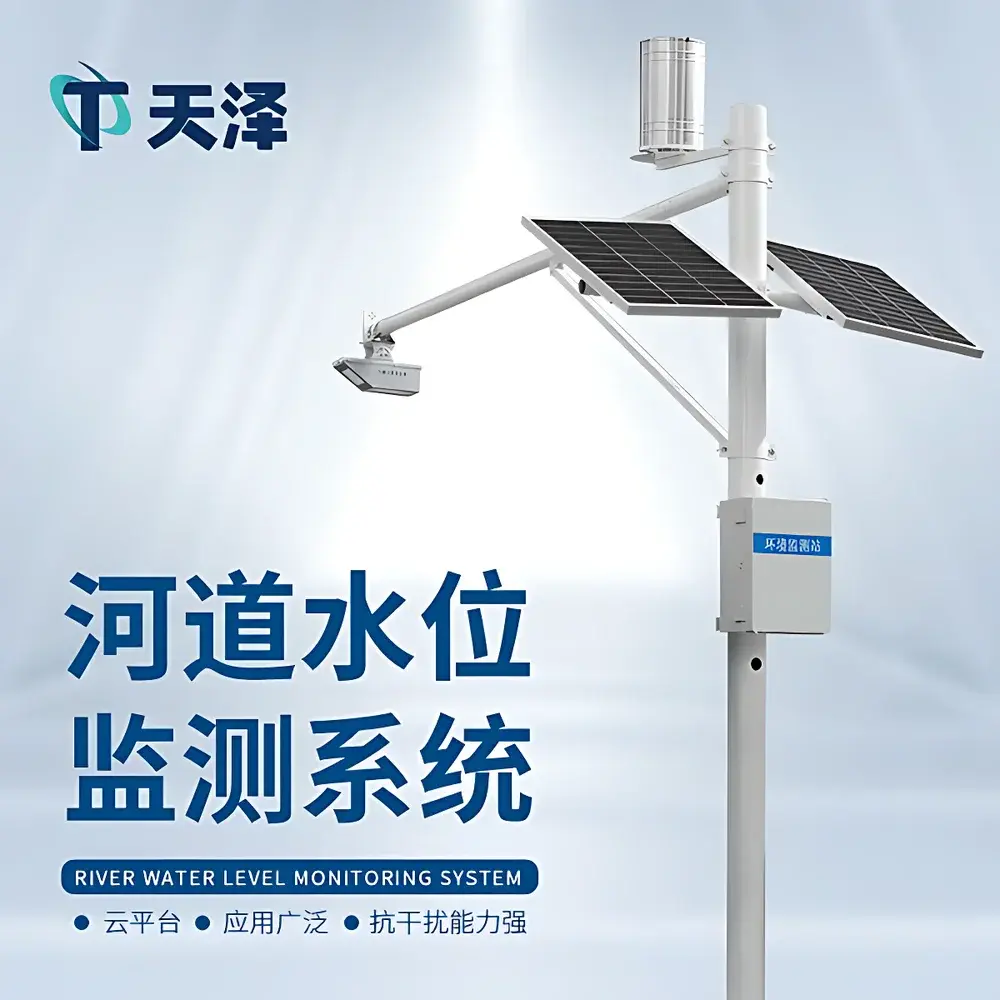

| Brand | Tianze Environmental |
|---|---|
| Model | TZ-SW3A |
| Measurement Principle | K-Band Planar Array Radar (24 GHz) |
| Water Level Range | 0.1–40 m |
| Water Level Accuracy | ±5 mm |
| Water Level Resolution | 1 mm |
| Surface Velocity Range | 0.15–15 m/s |
| Velocity Accuracy | ±2% of reading |
| Velocity Resolution | 0.01 m/s |
| Rainfall Intensity Range | 0–4 mm/min |
| Rainfall Accuracy | ±0.2 mm |
| Rain Collector Orifice | Ø200 mm |
| Operating Temperature | −35 °C to +60 °C |
| Storage Temperature | −40 °C to +60 °C |
| Enclosure Rating | IP68 |
| Power Supply | 12 V DC (100 mA operational, <1 mA standby) |
| Output Interface | RS485 / MODBUS RTU |
| Communication Protocols | HJ-212, HTTP, TCP |
| Solar Power Option | 100 W panel + 3.7 V / 10 Ah LiFePO₄ battery |
| Mounting | 3 m vertical pole + 3 m horizontal arm |
