| Brand | Aist ST |
|---|---|
| Origin | Shanghai, China |

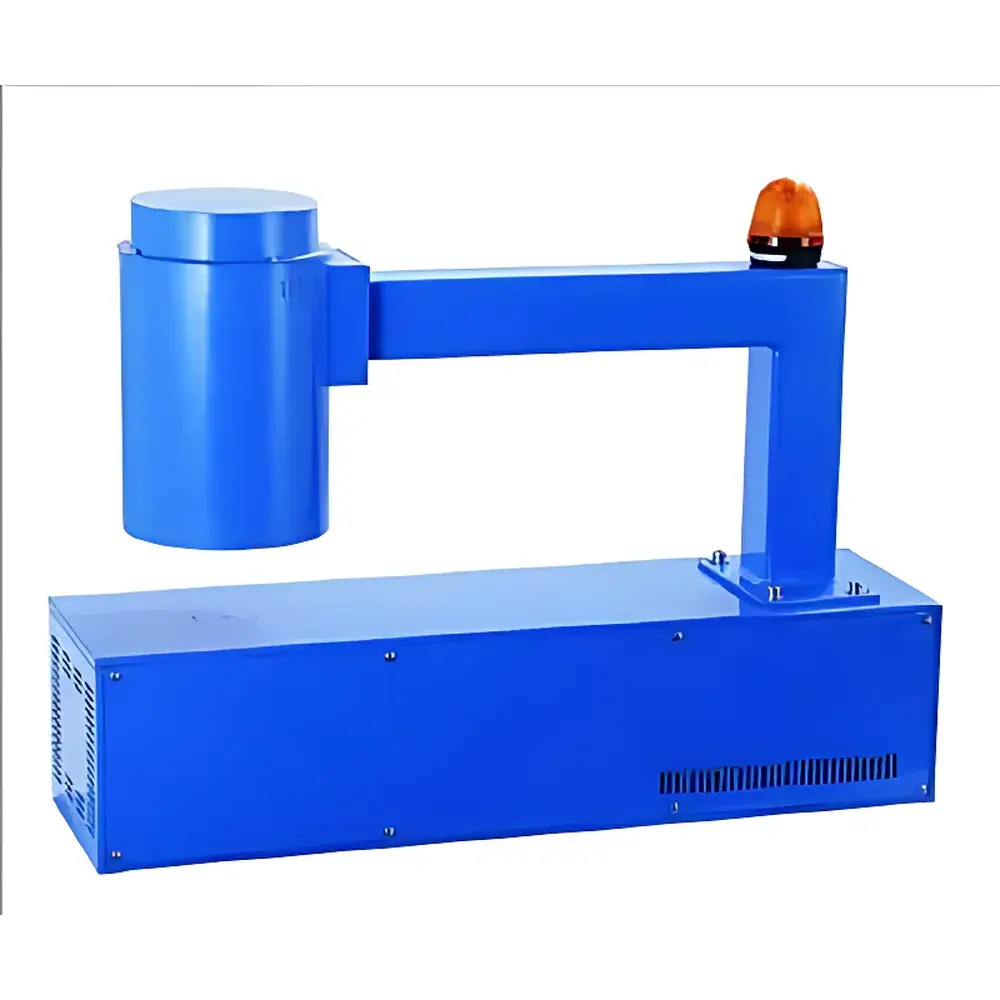

| Model | DM6100 |
| Measurement Principle | X-ray transmission attenuation (dual-energy correction capable) |
| Measuring Range | 0.1–4.0 mm (steel), 0.01–10.0 mm (aluminum) |
| Accuracy | ±0.2% |
| Resolution | 0.001 mm |
| Response Time | 100 ms (63% to 5% thickness step) |
| Sampling Interval | 200/400/600/800 ms selectable |
| Repeatability | 0.2% |
| Long-term Drift | <±0.24% per 8 h |
| Preheat Time | 1 h |
| Auto-calibration Time | ≤20 min |
| Operating Temp. | 0–40 °C |
| Humidity | ≤95% RH at 30 °C |
| Power Supply | 220 V ±20 V, 50 Hz |
| Power Consumption | ≤250 W |
| Dimensions (Operator Console) | 470 × 365 × 160 mm, 15 kg |
| C-frame Dimensions | 673 × 579 × 189 mm, 35 kg |
| Radiation Safety | Fully shielded |
| Regulatory Certification | CMC (Shanghai) No. 沪制02280027 |
