| Brand | Caikon Optical |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Region of Origin | Domestic (China) |

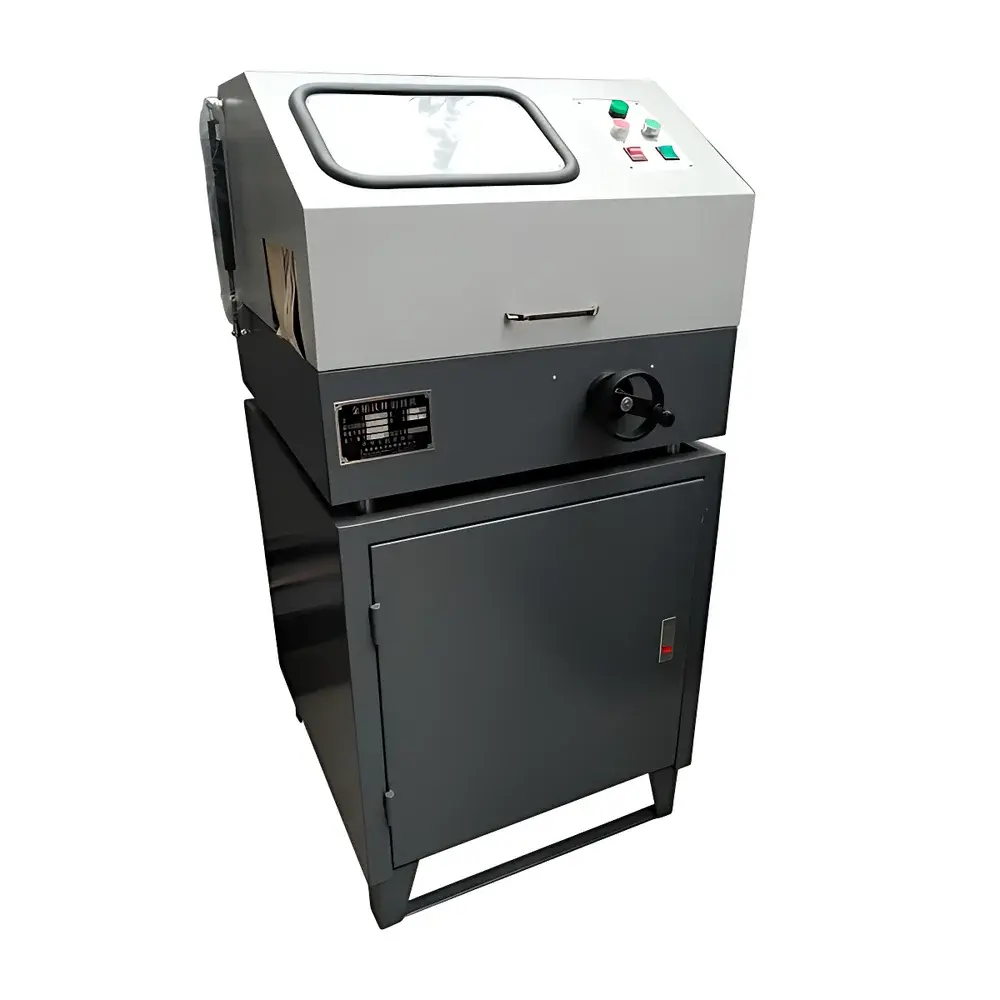

| Model | QG-5 |
| Instrument Type | Metallographic Cutting Machine |
| Cutting Method | Manual, Y-axis Handwheel Feed |
| Max Cutting Cross-section | 100 × 100 mm |
| Grinding Wheel Specification | Φ350 × 2.5 × Φ32 mm |
| Spindle Speed | 2800 rpm |
| Motor Power | 4 kW |
| Cutting Table Dimensions | 195 × 180 mm |
| Quick-Action Fixture | Yes |
| Input Power Supply | 380 V, 50 Hz |
| Machine Dimensions (W×D×H) | 700 × 940 × 1300 mm |
| Net Weight | 190 kg |
| Integrated Coolant Tank Capacity | 32 L |
| Circulating Pump Power | 90 W |
| Pump Flow Rate | 25 L/min |
| Pump Voltage | 380 V, 50 Hz |
| Tank Dimensions | 480 × 320 × 460 mm |
| Tank Weight | 14 kg |
| Construction Materials | Stainless steel clamping jaws, worktable surface, and inner shroud |
| Lighting | Integrated LED illumination |
| Viewing Window | Dual-side transparent acrylic panels |
| Noise Level | Low-noise, waterproof motor |
| Safety Design | Fully enclosed dual-shell housing with interlocked guard doors |
