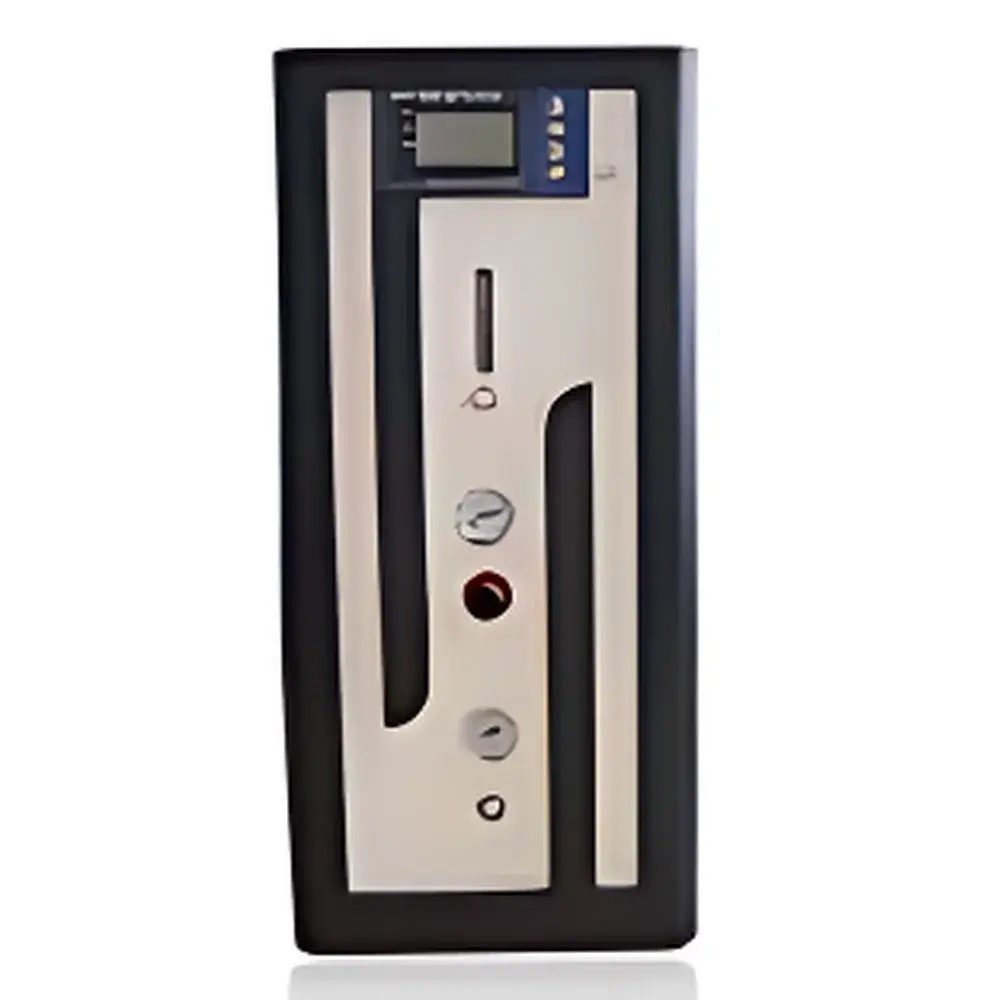

| Brand | Anyan |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-T500 |
| Nitrogen Generation Principle | Membrane Separation |
| Nitrogen Output Flow | 0–500 mL/min |
| Hydrogen Output Flow | 0–500 mL/min |
| Zero Air Output Flow | 0–5000 mL/min |
| Nitrogen Purity | ≥99.999% |
| Nitrogen Dew Point | −45 °C |
| Nitrogen Output Pressure | 0–0.5 MPa (factory-set at 0.4 MPa) |
| Hydrogen Output Pressure | 0–0.4 MPa (factory-set at 0.3 MPa) |
| Zero Air Output Pressure | 0–0.5 MPa (factory-set at 0.4 MPa) |
| Power Supply | 220 V ±10%, 50 Hz ±5% |
| Power Consumption | 450 W |
| Operating Temperature | 10–40 °C |
| Relative Humidity | ≤85% RH (non-condensing) |
| Dimensions (W×D×H) | 450 × 440 × 400 mm |
| Weight | 35 kg |

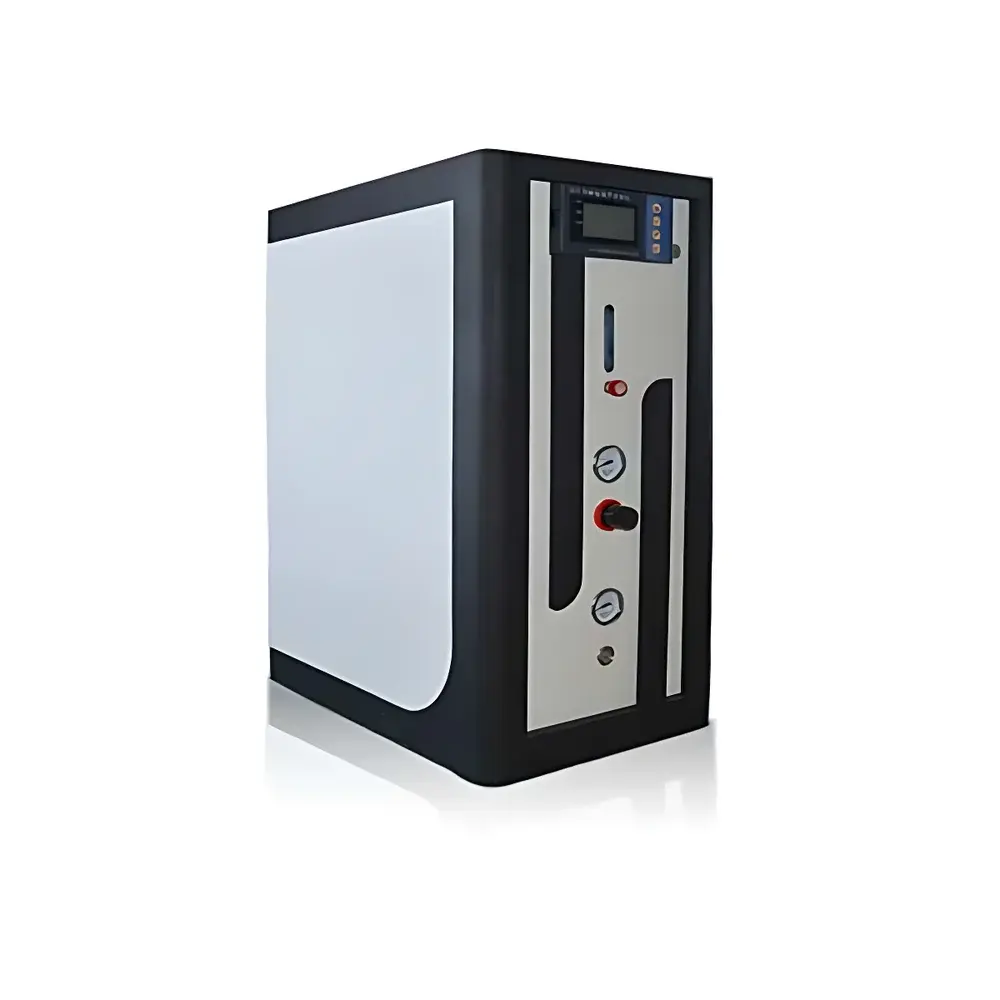

| Brand | Anyan |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-15L |
| Nitrogen Generation Principle | Membrane Separation |
| Output Flow Rate | 15 L/min |
| Output Pressure Range | 0–0.6 MPa |
| Nitrogen Purity | 99% |
| Dew Point | −45 °C |
| Filtration Stages | Three-Stage |
| Power Consumption | 2000 W |
| Input Voltage | 220 V, 50 Hz |
| Compliance | CE-marked design principles |
| Brand | ANYAN |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-DC16G |
| Heating Method | Dry-block heating |
| Temperature Range | Ambient to 100 °C |
| Temperature Stability | ±1 °C |
| Sample Capacity | 16 positions |
| Tube Diameter Compatibility | 16 mm (interchangeable modules available) |
| Nitrogen Flow Rate | 0–15 L/min (adjustable per channel) |
| Heating Power | 300 W |
| Display | 7-inch LCD touchscreen |
| Programmable Temperature Profiles | Up to 50 segments |
| Timing Range | 0–999 min |
| Pressure Regulation Range | 0–0.8 MPa |
| Independent Gas Control | 16-channel precision regulation |
| Sealing System | Dual-seal insulated door with 4-sided transparent viewing window |
| Integrated Exhaust Fan | Yes |
| Motorized Vertical Adjustment | Yes |
| Sample Access | Drawer-type sliding tray |
| Over-Temperature Protection | Yes |
| Brand | Anyan |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Model | AYAN-DA5L |
| Output Flow Rate | 0–5 L/min |
| Output Pressure | 0–0.5 MPa |
| Hydrocarbon Content | < 0.1 ppm (after catalytic oxidation) |
| Dew Point | −45 °C |
| Carbon Filter Replacement Interval | Every 1000 operating hours |
| Desiccant | Indicating silica gel (blue-to-pink transition) |
| Compressor Type | Oil-free diaphragm compressor |
| Gas Storage Tank | Electropolished stainless steel with auto-drain |
| Filtration Stages | Dual-stage particulate + activated carbon + catalytic oxidation + molecular sieve (0.5 µm retention efficiency ≥99.99%) |
| Safety Features | Overpressure protection, thermal overload cutoff, low-pressure startup circuit |
| Brand | Anyan |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | AYAN-F100 |
| Feed Capacity | 0.5 L |
| Effective Evaporation Area | 0.5 m² |
| Evaporator Internal Diameter | 50 mm |
| Collecting Flask Capacity | 5 L |
| Condenser Surface Area | 0.65 m² |
| Brand | Anyan |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-DC12S |
| Heating Method | Water Bath |
| Temperature Range | Ambient to 100 °C |
| Temperature Uniformity | ±1 °C |
| Sample Capacity | 12 positions |
| Tube Compatibility | 50 mL or 150 mL vials |
| Gas Flow Control | 0–15 L/min (adjustable per channel) |
| Heating Power | 1000 W |
| Display | 7-inch capacitive touchscreen |
| Control Modes | 5 preset + 50 programmable temperature ramps |
| Preheated Nitrogen Delivery | ~45 °C |
| Sealing System | Dual-sealed observation door with circulating fan |
| Data Logging | Internal storage for operational parameters and run history |
| Brand | ANYAN |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-F220 |
| Feed Capacity | 2.0–15.0 L/h |
| Effective Evaporation Area | 0.5 m² |
| Evaporator Inner Diameter | 220 mm |
| Condensation Area | 0.65 m² |
| Collecting Flask Ports | 5 |
| Ultimate Vacuum | <10 Pa |
| Heating Temperature Range | Ambient to 200 °C |
| Motor Power | 200 W |
| Rotational Speed | ≤450 rpm |
| Cooling System | Integrated Cryogenic Trap (with Optional External Chiller) |
| Brand | Anyan |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-300ML |
| Output Flow Rate | 300 mL/min |
| Output Pressure | 0–0.4 MPa |
| Nitrogen Purity | >99.999% |
| Dew Point | −45 °C |
| Power Consumption | 150 W |
| Input Power | AC 230 V, 50/60 Hz |
| Dimensions (L×W×H) | 400 × 250 × 350 mm |
| Operating Temperature | 10–40 °C |
| Relative Humidity | <85% RH (non-condensing) |
| Feed Air Requirement | Clean, oil-free, dried compressed air or ambient air with ≥1 MΩ·cm resistivity water for integrated humidification (if equipped) |
| Output Port | 3 mm OD tubing or 1/8″ NPT (M8×1 external thread) |
| Brand | ANYAN |
|---|---|
| Origin | Shanghai, China |
| Model | AYAN-300ML |
| Nitrogen Generation Principle | Hollow-Fiber Membrane Separation |
| Output Flow Rate | 500 mL/min |
| Output Pressure Range | 0–0.4 MPa |
| Nitrogen Purity | >99.999% (v/v) |
| Dew Point | –40 °C to –60 °C (at 0.1 MPa, typical for membrane systems) |
| Power Consumption | ≤150 W |
| Pressure Stability | <±0.2% FS |
| Output Interface | 3 mm OD tubing or 1/8" NPT (M8×1 external thread) |
| Water Consumption | ~10 mL/h |
| Feed Air Requirement | Oil-free, particle-filtered compressed air (ISO 8573-1 Class 1.2.1 recommended) |
| Power Supply | AC 230 V, 50/60 Hz, 2 A fuse |
| Operating Environment | 10–40 °C, RH <85%, non-condensing, low-dust |
| Dimensions (L×W×H) | 400 × 250 × 350 mm |
| Weight | ~18 kg |
| Compliance | CE-marked per Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU |
| Software Interface | None (standalone analog control) |
| Brand | ANYAN |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-DC48S |
| Heating Method | Water Bath |
| Temperature Range | Ambient to 100 °C |
| Temperature Stability | ±1 °C |
| Sample Capacity | 48 positions |
| Tube Diameter Compatibility | 10–29 mm |
| Nitrogen Flow Rate | 330 mL/min |
| Adjustable Pressure Range | 0–0.8 MPa |
| Power Rating | 1000 W |
| Display | 7-inch LCD Touchscreen |
| Programmable Ramp/Soak | 50 segments |
| Timer Range | 0–999 min |
| Integrated Exhaust Fan | Yes |
| Dual-Sealed Door System | Yes |
| Over-Temperature Alarm | Yes |
| Power Supply | 220 V, 50 Hz |
| Brand | ANYAN |
|---|---|
| Model | AYAN-F220-S |
| Construction Material | 304/316L stainless steel |
| Effective Evaporation Area | 0.5 m² |
| Evaporator Inner Diameter | 300 mm |
| Condensation Area | 0.65 m² |
| Feed Capacity | 5 L (customizable) |
| Number of Collecting Flasks | 2 |
| Operating Vacuum | <10 Pa |
| Heating Temperature Range | Ambient to 200 °C |
| Motor Power | 200 W |
| Max Rotational Speed | ≤450 rpm |
| Cold Trap | Integrated |
| External Condenser | Optional |
| Cooling System | Built-in |
| Brand | Anyan |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | General Distributor |
| Product Category | Domestic |
| Model | AYAN-DC25G |
| Price | ¥30,000 |
| Heating Method | Dry-block heating |
| Temperature Range | Ambient to 100 °C |
| Temperature Uniformity | ±1 °C |
| Sample Tube Capacity | 50 mL or 150 mL |
| Gas Flow Rate | 0–15 L/min |
| Sample Positions | 25 |
| Heating Power | 1000 W |
| Brand | Anyan |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Category | Domestic Equipment |
| Model | AYAN-5LG |
| Nitrogen Generation Principle | Hollow-Fiber Membrane Separation |
| Output Flow Rate | 5 L/min |
| Output Pressure | 0–0.6 MPa |
| Nitrogen Purity | 99.9% |
| Dew Point | −45 °C |
| Filtration Stages | Three-Stage Integrated Air Purification |
| Power Consumption | 1000 W |
| Input Voltage | 220 V, 50 Hz |
| Dimensions (W×D×H) | 500 × 330 × 710 mm |

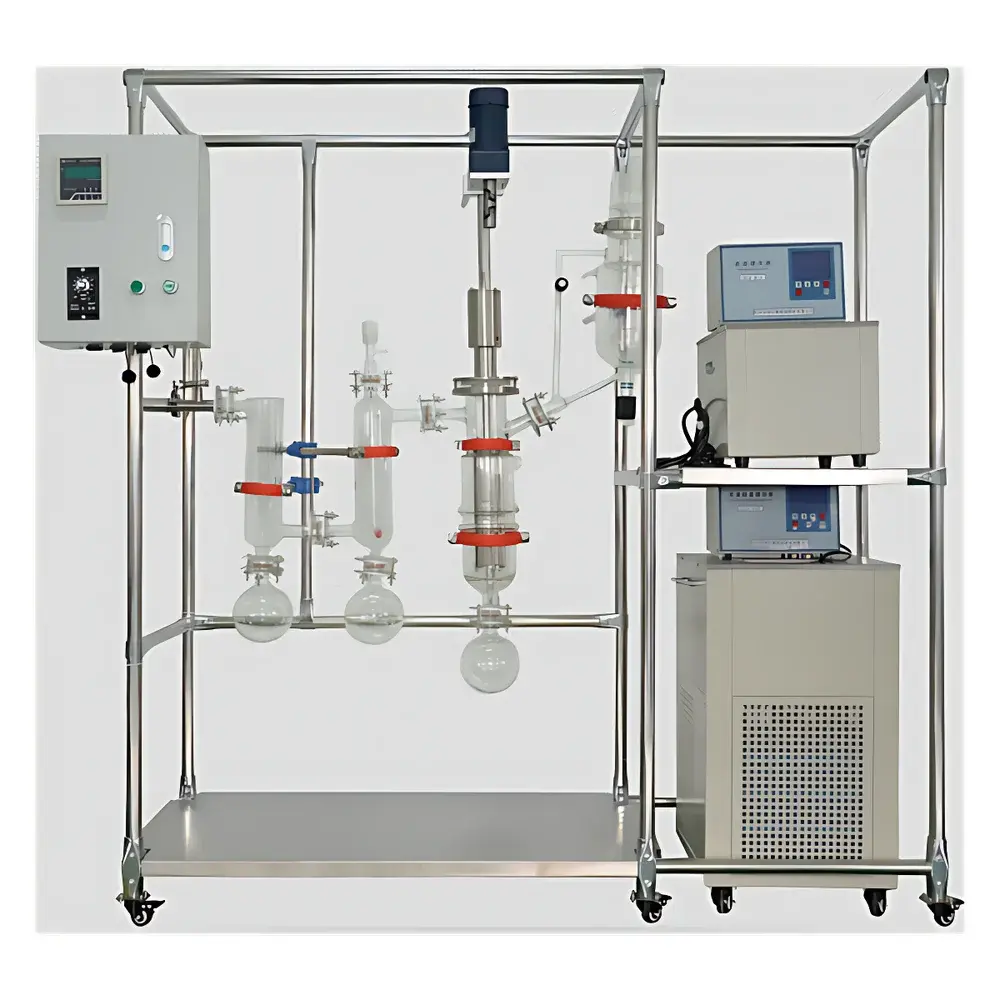

| [Brand | Anyan Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | AYAN-F80 |
| Effective Evaporation Area | 0.15 m² |
| Evaporator Inner Diameter | 100 mm |
| Condensing Area | 0.25 m² |
| Feed Capacity | 2 L (customizable) |
| Number of Collecting Flasks | 2 (customizable)] |
| Brand | Anyan Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | AYAN-B80 |
| Internal Diameter | 80 mm |
| Evaporation Area | 0.1 m² |
| Condensation Area | 0.15 m² |
| Feed Volume | 2 L |
| Processing Flow Rate | 0.5–4.0 L/h |
| Motor Power | 120 W |
| Max Rotational Speed | ≤450 rpm |
| Light Fraction Collection Bottle | 1 L |
| Heavy Fraction Collection Bottle | 1 L |
| Cold Trap | Integrated |
| External Condenser | Equipped |
| Cooling System | Built-in |
| Ultimate Vacuum | <100 Pa |
| Heating Temperature Range | Ambient to 200 °C |
| Brand | Anyan (Hangzhou Anyan Instrument Co., Ltd.) |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-B100 |
| Evaporator Internal Diameter | 100 mm |
| Evaporation Area | 0.15 m² |
| Condensation Area | 0.25 m² |
| Feed Volume | 2 L |
| Processing Flow Rate | 0.5–5.0 L/h |
| Motor Power | 120 W |
| Max Rotational Speed | ≤450 rpm |
| Light Fraction Collection Bottle | 2 L |
| Heavy Fraction Collection Bottle | 2 L |
| Cold Trap | Integrated |
| External Condenser | Equipped |
| Cooling System | Built-in |
| Ultimate Vacuum | <100 Pa |
| Heating Temperature Range | Ambient to 200 °C |
| 刮板材质 | PTFE (standard), optional carbon fiber for >150 °C operation |
| Brand | Anyan (Hangzhou Anyan Instrument Co., Ltd.) |
|---|---|
| Origin | Shanghai, China |
| Model | AYAN-B220 |
| Heating Surface Diameter | 220 mm |
| Evaporation Area | 0.5 m² |
| Condensation Area | 0.65 m² |
| Feed Volume Capacity | 5 L |
| Processing Flow Rate | 2.0–15.0 L/h |
| Motor Power | 200 W |
| Max Rotational Speed | ≤450 rpm |
| 刮板间� | �: 0.5–1.5 mm |
| Vacuum Capability | ≤1 Pa (absolute) |
| Heating Temperature Range | Ambient to 200 °C |
| Light Fraction Collection Bottle | 5 L |
| Heavy Fraction Collection Bottle | 5 L |
| Integrated Cold Trap | Yes |
| External Condenser | Yes |
| Cooling System | Yes |
| Brand | ANYAN (Hangzhou Anyan Instrument Co., Ltd.) |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | AYAN-B150 |
| Price | USD 21,000 (FOB Zhejiang) |
| Brand | Anyan (Hangzhou Anyan Instrument Co., Ltd.) |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | AYAN-B200 |
| Price | USD 28,000 (FOB Shanghai) |

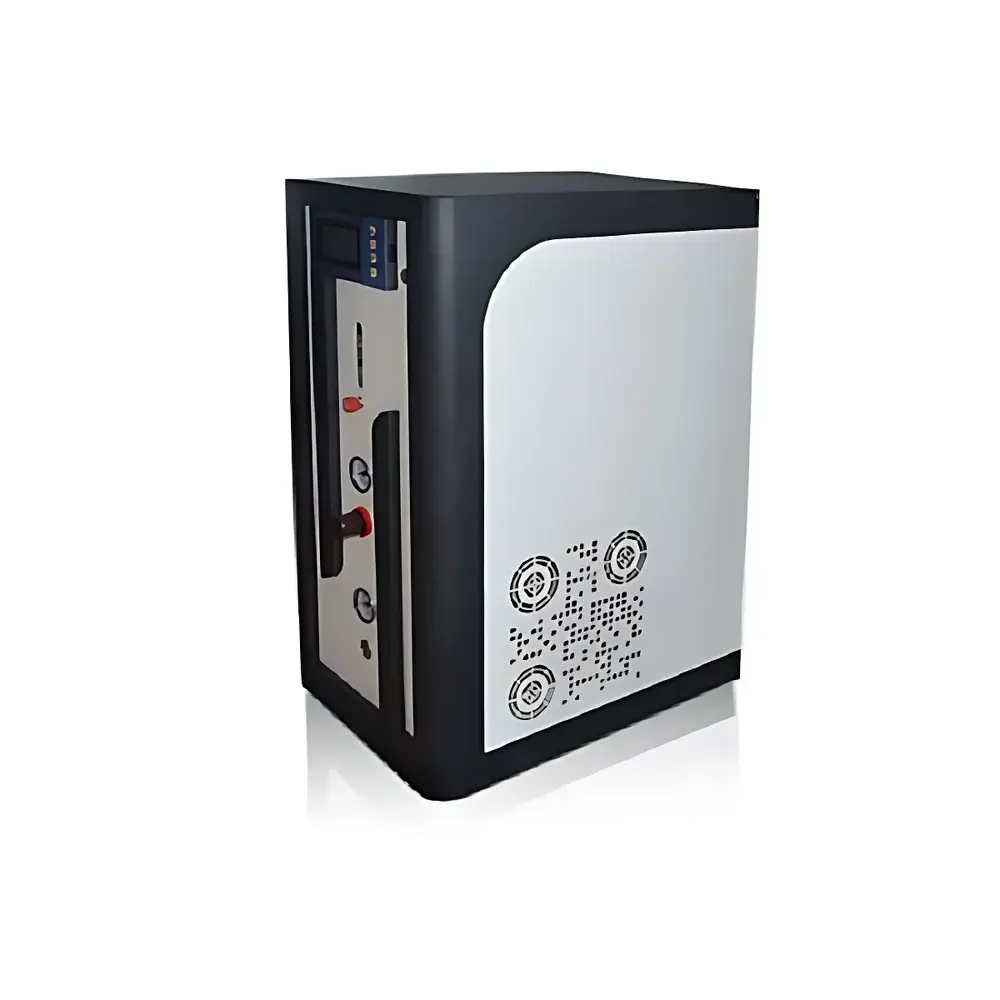

| Brand | ANYAN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | AYAN-500ML |
| Nitrogen Generation Principle | Membrane Separation |
| Output Flow Rate | 500 mL/min |
| Output Pressure Range | 0–0.4 MPa |
| Nitrogen Purity | >99.999% |
| Dew Point | ≤−40 °C (at 0.4 MPa) |
| Pressure Stability | <±0.2% FS |
| Max Power Consumption | 150 W |
| Output Port | 3 mm OD tubing or 1/8" NPT (M8×1 external thread) |
| Water Reservoir Capacity | 1.2 L |
| Water Consumption | ~10 mL/h |
| Feed Water Resistivity Requirement | ≥1 MΩ·cm |
| Input Voltage | AC 230 V, 50/60 Hz |
| Fuse Rating | 250 V / 2 A |
| Operating Ambient | 10–40 °C, RH <85%, non-dusty environment |
| Dimensions (L×W×H) | 400 × 250 × 350 mm |
| Duty Cycle | Continuous operation |
