| Brand | A&D |
|---|---|
| Origin | Japan |
| Model | RTF Series |
| Load Capacity Range | 1 kN to 50 kN |
| Load Accuracy | ±0.5% of reading |
| Crosshead Speed Range | 0.0005–1000 mm/min |
| Speed Accuracy | ±0.1% |
| Sampling Interval | 1 ms |
| Load Frame Rigidity Increase | 30% vs. prior generation |
| Drive System | Brushless digital servo motor with closed-loop microcomputer control |
| Force Sensor | ORIENTEC high-precision transducer |
| Lead Screw | High-accuracy backlash-free ball screw |
| Input Channels | Up to 13 analog/digital signal inputs |
| Compliance | Meets JIS B 7721 Class 0.5 (equivalent to ISO 7500-1 Class 0.5 and ASTM E4) |

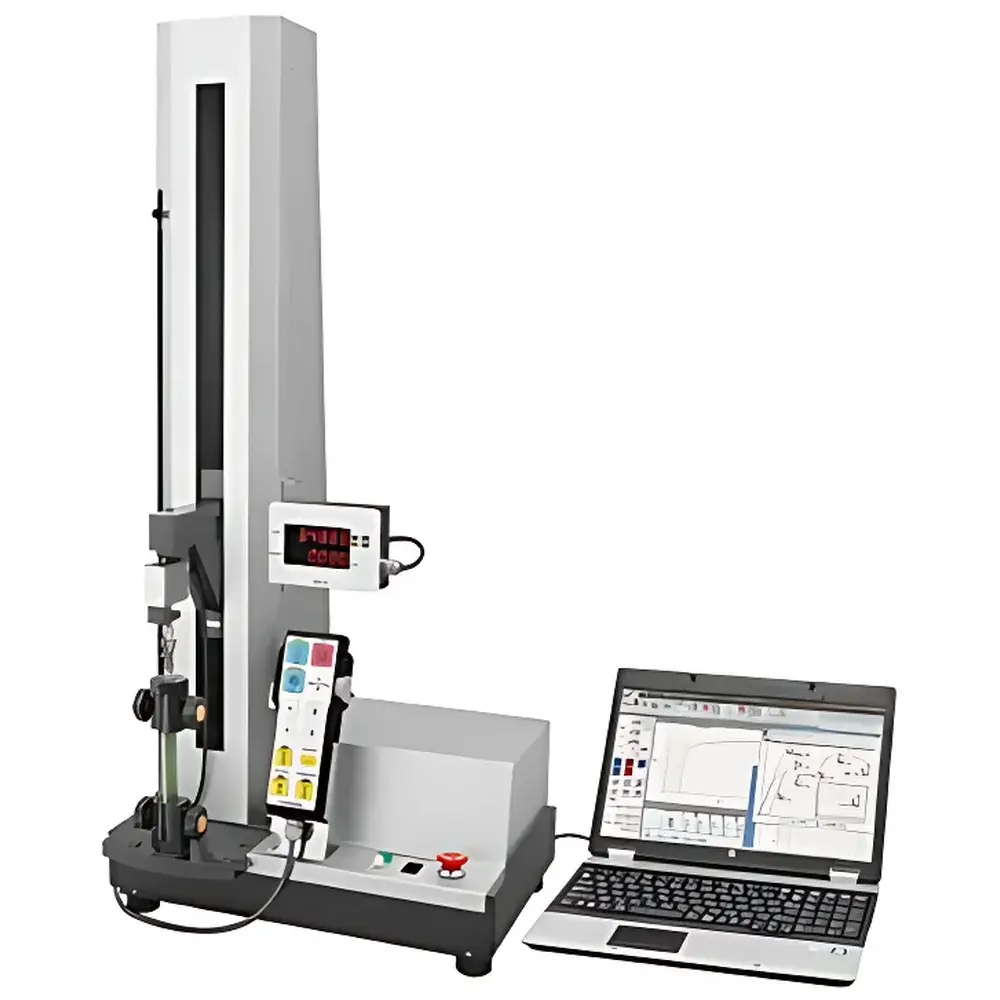

| Brand | A&D |
|---|---|
| Origin | Japan |
| Model | STB Series |
| Type | Electronic Tensile Testing Machine |
| Max Load Capacity | 2.5 kN |
| Effective Travel | 850 mm (STB-1225L) / 550 mm (STB-1225S) |
| Crosshead Speed Range | 0.05–1000 mm/min |
| Speed Resolution | 0.01 mm/min |
| Speed Accuracy | ±0.5% |
| Load Measurement Accuracy | ±1% of reading (within 1/1 to 1/500 of sensor rated capacity) |
| Automatic Load Range Switching | Up to 128× |
| Load Calibration | One-touch, integrated sensor-based calibration with built-in load cell identification |
| Overload Protection | Dual-mode — electronic cut-off detection + mechanical travel limiters (upper/lower) |
| Position Resolution | 0.001 mm (≤10 mm), 0.01 mm (>10 mm) |
| Display | 6-digit digital crosshead position readout |
| Power Supply | AC 100 V, 1φ, 50/60 Hz, 350 VA |
| Operating Environment | 5–40 °C, 20–80 % RH |
| Dimensions (L×H×W) | 470 × 1450 × 335 mm (L-type), 470 × 1050 × 335 mm (S-type) |
| Weight | 56 kg (L), 43 kg (S) |
| Energy Saving | 30% reduced standby power consumption |
| Data Acquisition Rate | 0.2 ms (with TACT interface) |
| Brand | A&D |
|---|---|
| Origin | Japan |
| Model | RTG Series |
| Load Capacity Options | 1 kN, 2.5 kN, 5 kN, 10 kN |
| Crosshead Travel (Effective) | 580–775 mm |
| Crosshead Speed Range | 0.05–1000 mm/min |
| Speed Accuracy | ±0.2% |
| Load Measurement Accuracy | ±1% of reading |
| Sampling Interval | 1 ms |
| Input Channels | up to 13 |
| Load Cell | ORIENTEC high-precision sensor |
| Drive System | Closed-loop microcomputer-controlled brushless digital servo motor |
| Transmission | High-precision backlash-free ball screw |
| Safety Features | Overload protection, dual-limit travel stops, sampling interruption |
| Calibration | One-touch automatic range calibration |
| Compliance | JIS B 7721, ISO 7500-1 Class 1, ASTM E4, ASTM D638, ASTM D3039, USP <1041>, GLP-compliant data traceability (with optional software) |
| Brand | A&D |
|---|---|
| Origin | Japan |
| Model | RTF-2 Series |
| Load Capacity Range | 25 kN – 300 kN |
| Crosshead Speed Range | 0.0005 – 1000 mm/min |
| Speed Accuracy | ±0.2% |
| Load Measurement Accuracy | ±0.5% of reading (Class 0.5) |
| Sampling Rate | 1 ms |
| Input Channels | up to 13 |
| Control System | Closed-loop microcomputer-controlled brushless digital servo |
| Safety Features | Overload protection,行程 limit switches, sampling interruption |
| Calibration | One-touch automatic range calibration |
| Structural Rigidity | 30% higher than previous generation |
| Actuation | High-precision backlash-free ball screw |
| Force Sensor | ORIENTEC high-accuracy transducer |
| Optional | Full-color touch-screen interface |
