| Brand | APURE |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |

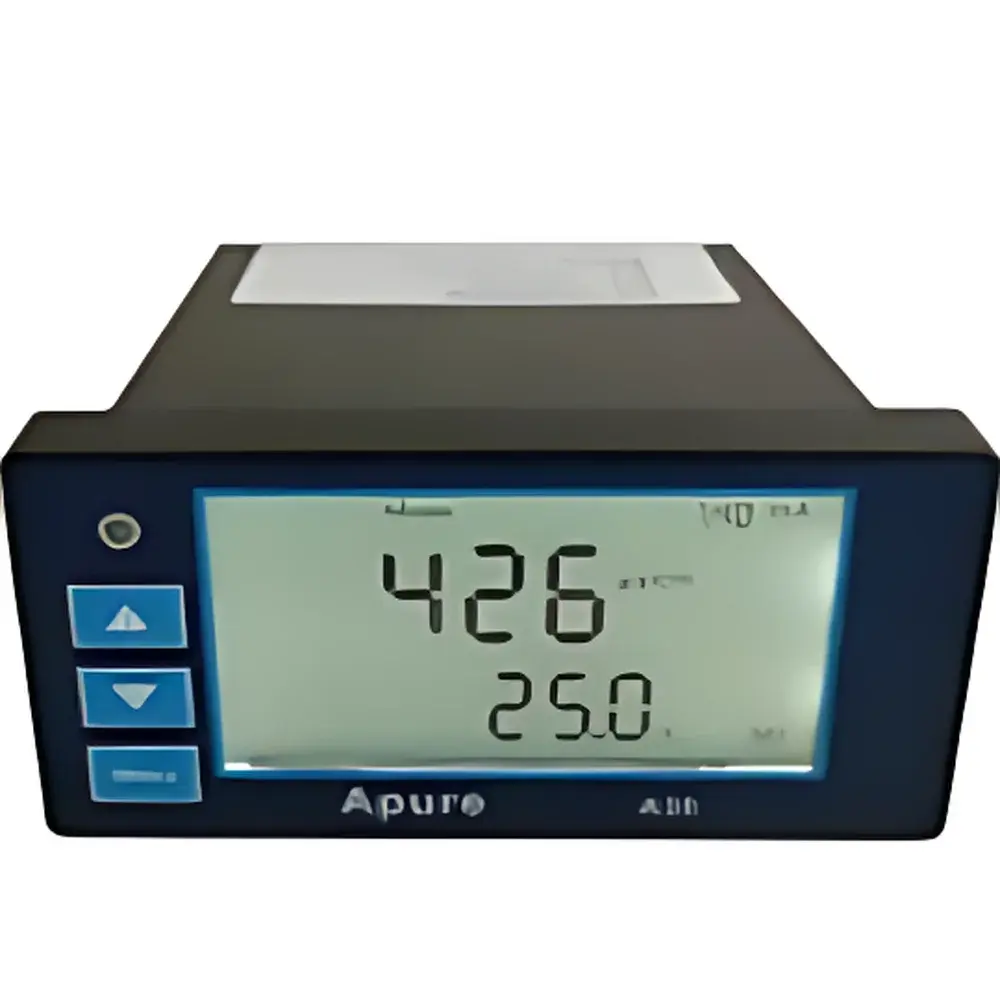

| Model | A30CD-AA1 |
| Conductivity Range | 0.05 µS/cm – 200 mS/cm |
| Resistivity Range | 0.00 – 20.00 MΩ·cm |
| Temperature Range | 0–100 °C |
| Basic Accuracy | ±0.01 µS/cm |
| Resolution | 0.01 µS/cm |
| Dimensions (H×W×D) | 48 × 96 × 110 mm |
| Mounting Cutout | 42 × 90 mm |
| Output | Isolated 4–20 mA (configurable for conductivity, resistivity, or temperature) |
| Relay Output | 1 × SPDT, 3 A / 250 V AC, programmable high/low alarm with adjustable hysteresis |
| Power Supply | AC 220 V ±10% or DC 24 V ±10% |
| Power Consumption | ≤15 W |
| Operating Environment | 0–60 °C, ≤85% RH (non-condensing) |
| Brand | Apure |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM Manufacturer |

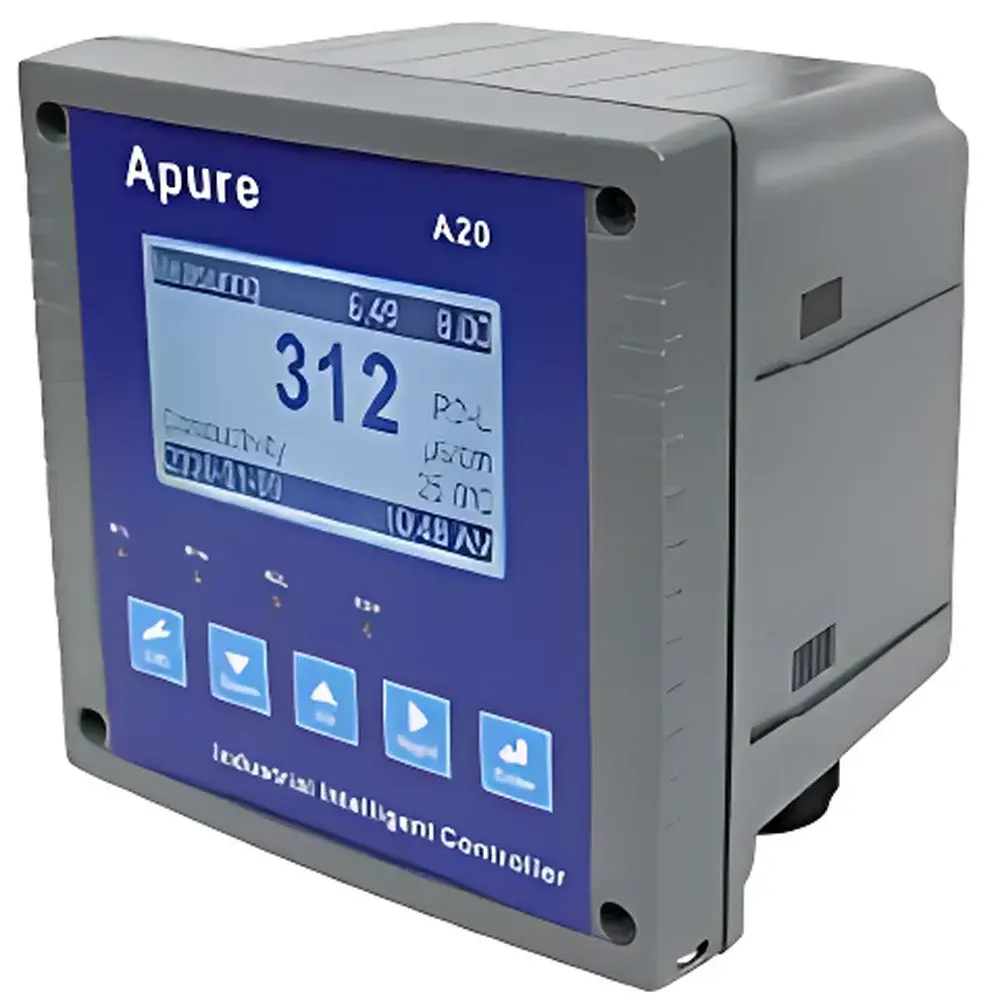

| Model | A20CD-AA1 |
| Conductivity Range | 0.05 µS/cm – 200 mS/cm |
| Resistivity Range | 0.00 – 20.00 MΩ·cm |
| Temperature Range | −30 °C to +150 °C (manual or automatic with PT1000/NTC10K sensor) |
| Basic Accuracy | ±0.01 µS/cm |
| Resolution | 0.01 µS/cm |
| Dimensions | 144 mm (H) × 144 mm (W) × 115 mm (D) |
| Power Supply | AC 220 V or DC 24 V |
| Power Consumption | ≤5 W |
| Environmental Operating Conditions | 0–60 °C, ≤85% RH (non-condensing) |
| Mounting Cutout | 138 mm × 138 mm |
| Analog Outputs | Two isolated 4–20 mA outputs (conductivity/resistivity and temperature, max. load 500 Ω) |
| Relay Outputs | Two SPDT relays (3 A / 250 V AC, NO contact), configurable for high/low alarm with adjustable hysteresis |
| Display Language | Switchable between Chinese and English |
| Password Protection | User-accessible configuration lock |
| Menu Navigation | Context-sensitive on-screen prompts |
| Brand | APURE |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |

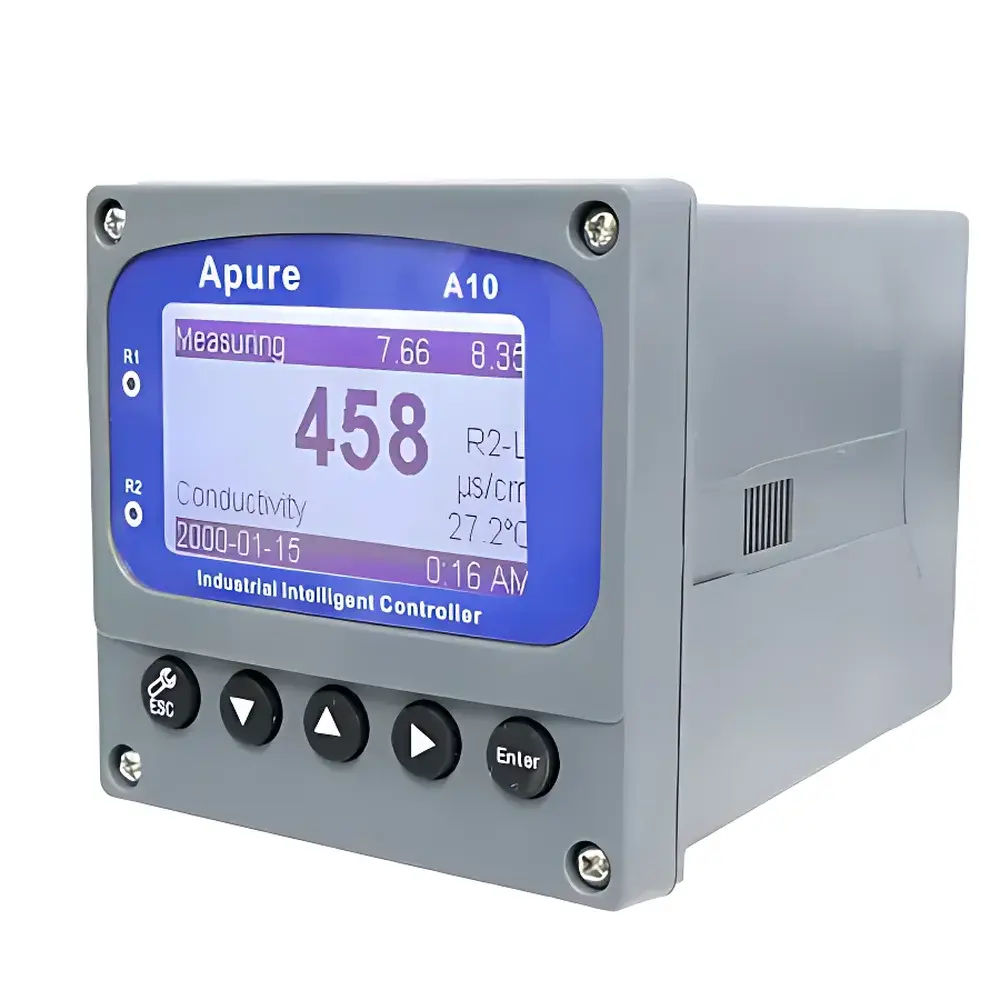

| Model | A10CD-AA1 |
| Conductivity Range | 0.05 µS/cm – 200 mS/cm |
| Resistivity Range | 0.00 – 20.00 MΩ·cm |
| Temperature Range | 0–100 °C (manual or automatic with PT1000/NTC10K sensor) |
| Basic Accuracy | ±0.01 µS/cm |
| Resolution | 0.01 µS/cm |
| Dimensions | 96 × 96 × 132 mm (H×W×D) |
| Power Supply | AC 220 V or DC 24 V |
| Power Consumption | ≤5 W |
| Operating Environment | 0–60 °C, ≤85% RH |
| Output | Dual isolated 4–20 mA (conductivity/resistivity + temperature) |
| Relay Outputs | 2 programmable SPDT relays (3 A / 250 V AC, NO contact) |
| Enclosure Rating | IP65 front panel |
| Mounting Cutout | 92.5 × 92.5 mm |
| Brand | Apure |
|---|---|
| Model | A10CD-A / A10CD-S |
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Measurement Range | 0.05 µS/cm – 200 mS/cm |
| Resistivity Range | 0.00 – 20.00 MΩ·cm |
| Temperature Range | 0–60 °C |
| Resolution | 0.01 µS/cm |
| Output | Dual isolated 4–20 mA (conductivity/resistivity & temperature) |
| Relay Outputs | 2 programmable SPDT relays (3 A / 250 V AC, NO contact) |
| Power Supply | AC 220 V or DC 24 V |
| Power Consumption | ≤5 W |
| Enclosure Dimensions | 96 × 96 × 132 mm (H × W × D) |
| Panel Cutout | 92.5 × 92.5 mm |
| Temperature Compensation | Automatic (PT1000 or NTC10K) or Manual |
| Display Language | Switchable between Chinese and English |
| Environmental Rating | 0–60 °C ambient, ≤85% RH non-condensing |
