| Brand | NAI Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

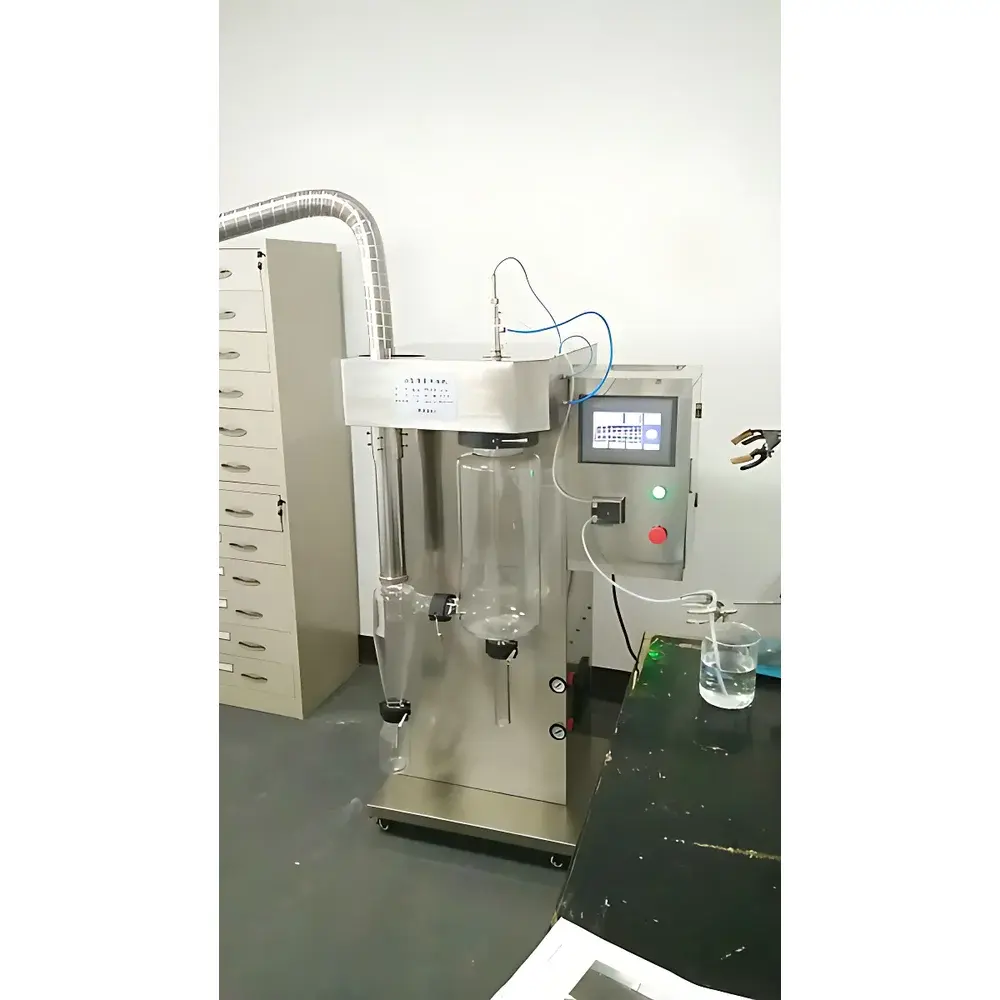

| Model | NAI-GZJ |
| Pricing | Available Upon Request |
| Material Contact Parts | Borosilicate Glass & 304 Stainless Steel |
| Drying System | Open-Circuit |
| Atomization | Dual-Fluid Nozzle (Standard: 0.75 mm Orifice) |
| Airflow Configuration | Co-Current |
| Hot Air Residence Time | 1.0–1.5 s |
| Evaporation Capacity | 1500–2000 mL/h |
| Inlet Air Temperature Range | Ambient to 300 °C (PID-Controlled, ±0.5 °C Accuracy) |
| Outlet Air Temperature Display Range | Up to 140 °C |
| Heating Power | 3 kW |
| Compressed Air Supply | Integrated Oil-Free Air Compressor (0.6 kW, 0.7 MPa) |
| Blower | 0.4 kW, 7 m³/min |
| Total Power Consumption | 4 kW / 220 V AC |
| Dimensions (L×W×H) | 770 × 590 × 1380 mm |
| Net Weight | 100 kg (Glass Tower), 125 kg (Stainless Steel Tower) |
| Minimum Feed Volume | 50 mL |
| Maximum Feed Rate | 2000 mL/h |
| Control System | PCB-Based Controller + 7-inch Color Touchscreen Interface |
| Optional Accessories | Syringe Pump Module, Cold Trap, Inert Gas Purge Kit |
