BrandShengyan Sycs
OriginShanghai, China
Manufacturer TypeAuthorized Distributor
Product CategoryDomestic

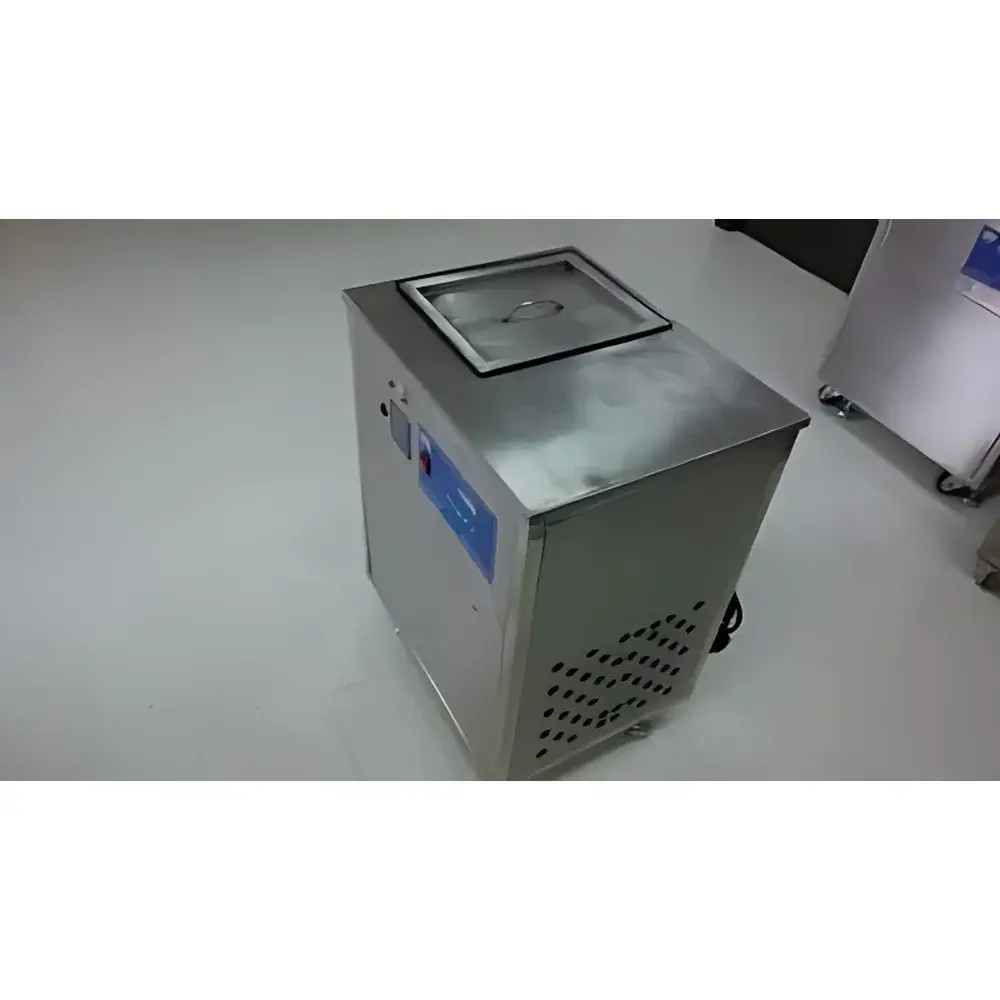

ModelSCQ-HD300A
Instrument TypeConstant-Temperature Bath
Circulation ModeInternal & External Circulation
Tank Capacity5 L
Inner Tank Dimensions (mm)300 × 150 × 100
Heating Power1000 W
Temperature RangeRT to 100 °C
Temperature Stability±0.1 °C
Timer Range1–600 min
Ultrasonic Power Output180 W
Power Supply220 V / 50 Hz
Drain ValveYes
Sound-Dampening LidYes
Stainless Steel Mesh BasketYes
Construction Material304 Stainless Steel Tank & Heater
Cooling SystemSealed, CFC-Free Compressor (Integrated)
Control SystemMicroprocessor-Based with LCD Display
Added to wishlistRemoved from wishlist 0
Add to compare
BrandShengyan Ultrasonic / Sycs
OriginShanghai, China
ModelSCQ-Y600A
Temperature RangeRT to 100 °C
Temperature Accuracy±0.5 °C
Bath Capacity30 L
Internal Dimensions460 × 300 × 250 mm
Heating Power1500 W
Ultrasonic Power600 W
Timer Range1–600 min
Circulation TypeInternal recirculation
Construction304 stainless steel tank and heater
Drain ValveYes
Sound-Dampening Lid & Stainless Steel BasketIncluded
Power Supply220 V / 50 Hz
Added to wishlistRemoved from wishlist 0
Add to compare
BrandShengyan Ultrasonics (SYCS)
OriginShanghai, China
ModelSCQ-HC300A
Temperature RangeRT to 100 °C
Temperature Stability±0.1 °C
Tank Capacity16 L
Internal Dimensions420 × 200 × 200 mm
Heating Power1000 W
Ultrasonic Power300 W
Timer Range1–600 min
Circulation TypeInternal & External
Drain ValveYes
Lid with Sound-Dampening Cover & Stainless Steel Mesh BasketYes
Power Supply220 V / 50 Hz
Construction304 Stainless Steel Tank & Heater
Control SystemMicroprocessor-Based with LCD Display
Added to wishlistRemoved from wishlist 0
Add to compare
BrandShengyan SYCS
OriginShanghai, China
ModelUltrasonic Constant-Temperature Water Bath
Bath Capacity30 L
Temperature Range5–90 °C
Temperature Stability±0.1 °C
Ultrasonic Power900 W
Heating Power1200 W
Refrigeration Power350 W (Emerson Copeland Compressor)
Ultrasonic Frequency40 / 59 kHz
Power Adjustment Range10–100%
Timer Range1 s – 9 h 59 min 59 s
Internal Dimensions (L×W×H)500 × 300 × 200 mm
Construction MaterialFull SUS304 Stainless Steel
Circulation TypeInternal Recirculation
Temperature Control MethodInsulated Jacket with Compressor-Based Cooling
Drain PortYes
Sound-Dampening LidYes
Sample Rack IncludedYes
Power Supply220 V / 50 Hz
Extraction ConfigurationU-shaped Circulating Extraction with Standardized Extraction Cups (50, 100, 200, 500, 1000 mL)
Added to wishlistRemoved from wishlist 0
Add to compare
BrandSYCS
OriginShanghai, China
ModelSCQ-H600A
Bath Volume20 L
Temperature Range0–100 °C
Temperature Stability±0.1 °C
Temperature Resolution0.1 °C
Heating Power1500 W
Cooling Power (Compressor)750 W
Ultrasonic Power400 W
Ultrasonic Frequency Options20 kHz / 25 kHz / 40 kHz (user-selectable)
Input Voltage220 V AC, 50 Hz
Timer Range1–600 min
Circulation TypeInternal & External
ConstructionFull SUS304 Stainless Steel (2.0 mm thickness)
Drain ValveYes
Sound-Dampening Lid & Stainless Steel BasketIncluded
Control InterfaceMicroprocessor-based with LCD display
Added to wishlistRemoved from wishlist 0
Add to compare
OriginShanghai, China
Manufacturer TypeAuthorized Distributor
Product OriginDomestic (China)
ModelSCQ-HD300A
Instrument CategoryConstant-Temperature Bath
Circulation ModeInternal & External Circulation
Temperature ControlRefrigeration & Heating Dual-Mode
Bath Volume5 L
Temperature RangeRT to +100 °C
Temperature Stability±0.1 °C
Ultrasonic Power180 W
Heating Power1000 W
Inner Chamber Dimensions300 × 150 × 100 mm
Timer Range1–600 min
Drain ValveYes
Sound-Dampening Lid & Stainless Steel BasketYes
Power Supply220 V / 50 Hz
Added to wishlistRemoved from wishlist 0
Add to compare
BrandShengyan Ultrasonic (SYCS)
OriginShanghai, China
Manufacturer TypeAuthorized Distributor
Country of OriginChina
ModelSCQ-20140520
Instrument TypeConstant-Temperature Bath
Circulation ModeInternal Circulation
Temperature ControlRefrigeration & Heating Capable
Bath Volume900 L
Temperature RangeAmbient to 100 °C
Temperature Stability±0.1 °C
Heating Power8 kW
Circulation Pump Power0.75 kW
Tank Dimensions (L×W×H)2000 × 900 × 500 mm
External Dimensions (L×W×H)2100 × 950 × 800 mm
Tank MaterialSUS304 Stainless Steel (2 mm wall thickness)
Casing MaterialSUS304 Stainless Steel (1 mm wall thickness)
Filtration SystemIntegrated
Heavy-Duty Mesh RackIncluded
Acoustic Dampening LidIncluded
Inlet/Drain/Outlet PortsProvided
CastersHeavy-Duty Locking Casters
Power Supply220 V / 50 Hz
