| Brand | AMAE |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

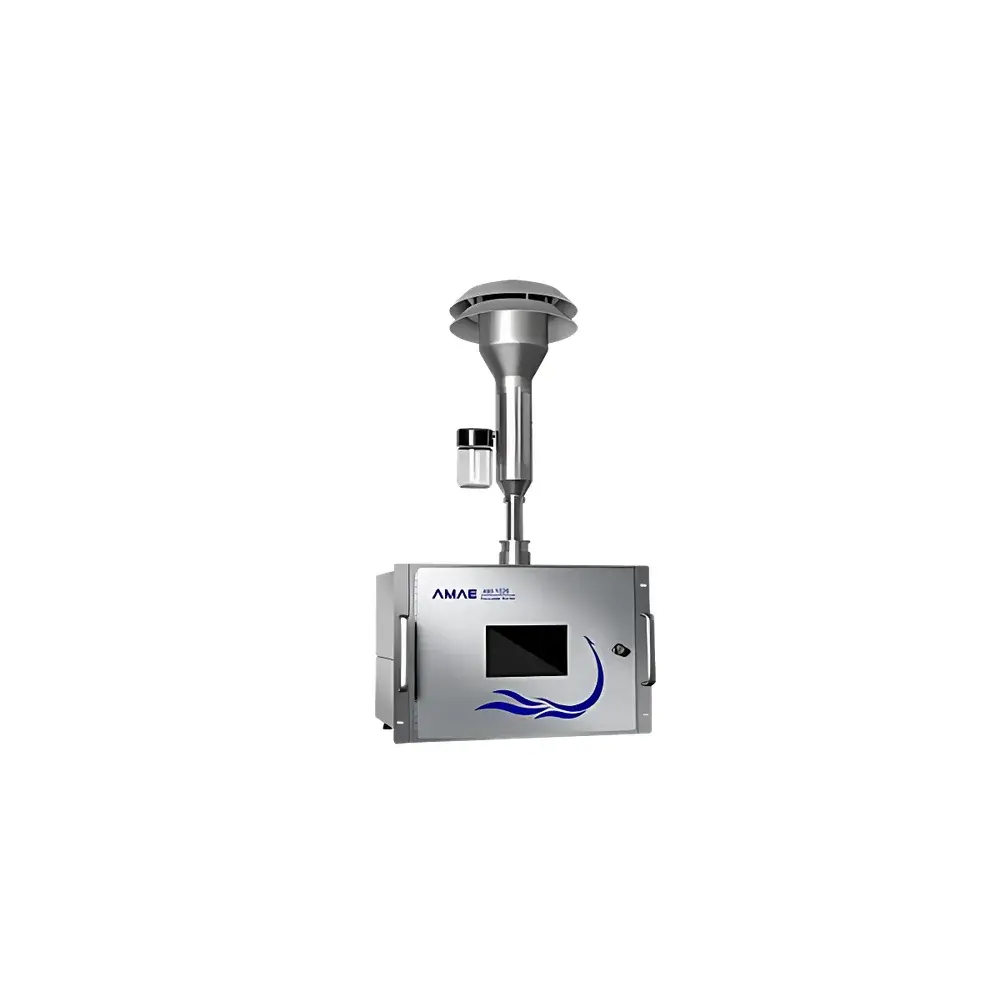

| Model | AM-1026 |
| Pricing | Available Upon Request |
| Brand | AMAE |
|---|---|
| Origin | Jiangsu, China |
| Model | AM-1056 |
| Measurement Principle | Alternating Flow Modulated NDIR (Non-Dispersive Infrared) at 4.67 µm |
| Measurand | Carbon Monoxide (CO) in Ambient Air |
| Range | 0–10 / 25 / 50 ppm (field-expandable) |
| LOD | 0.2 ppm (2σ, ≤10 ppm range) or 0.5% F.S. (2σ, >10 ppm range) |
| Accuracy | ±1.0% F.S. |
| Linearity | ±1.0% F.S. |
| Zero Drift | ±0.5 ppm/day or ±1.0% F.S./day |
| Span Drift | ±1.0% F.S./day or ±3.0% F.S./week |
| Response Time (T90) | ≤80 s |
| Sample Flow Rate | ~1 L/min |
| Dimensions | 483 mm × 545 mm × 133 mm (L×W×H) |
| Power Consumption | 50 W |
| Connectivity | Embedded Web Server (Ethernet/Wi-Fi) |
| Calibration | Scheduled Auto-Calibration Support |
| Enclosure | Industrial Rack-Mountable Chassis (19″, 3U) |
| Brand | AMAE |
|---|---|
| Origin | Jiangsu, China |
| Model | AM-3100 |
| Detection Principle | Photoionization Detection (PID) with 10.6 eV UV Lamp |
| Measurement Range | 0–10,000 ppb (as isobutylene equivalent) |
| Detection Limit | ≤1 ppb (typical) |
| Response Time (T90) | <30 s |
| Operating Temperature | 0–45 °C |
| Humidity Range | 0–90% RH (non-condensing) |
| Data Storage Capacity | ≥3 years of continuous 1-minute interval data and system logs |
| Power Supply | 220 VAC ±10%, 50 Hz with integrated UPS backup |
| Communication Interfaces | RS485, RS232, Ethernet (Modbus TCP/RTU, HTTP API), optional 4G/LTE module |
| Enclosure Rating | IP54 |
| Dimensions | 482 × 360 × 177 mm (19″ rack-mountable) |
| Compliance | CE, RoHS, GB/T 3836.1–2010 (Explosion-Proof Optional) |
| Brand | AMAE (Guoji Instruments) |
|---|---|
| Origin | Jiangsu, China |
| Model | AM-3200 Series |
| Detection Methods | Dual-FID + Optional GC-MS |
| Target Compounds | 57 PAMS VOCs (Dual-FID), up to 117 VOCs including TO-15 compounds and carbonyls (GC-MS mode) |
| Expandable to Odorants | H₂S, CH₃SH, CH₃SCH₃, CH₃SSCH₃, CS₂ |
| Sample Introduction | Continuous, cryo-trap-assisted preconcentration |
| System Inertness | High-inertness valves, tubing, and switching manifolds |
| Software | AMAE proprietary intelligent chromatographic analysis platform with automated peak identification, calibration management, and audit-ready data logging |
| Brand | AMAE (Guoji Instruments) |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

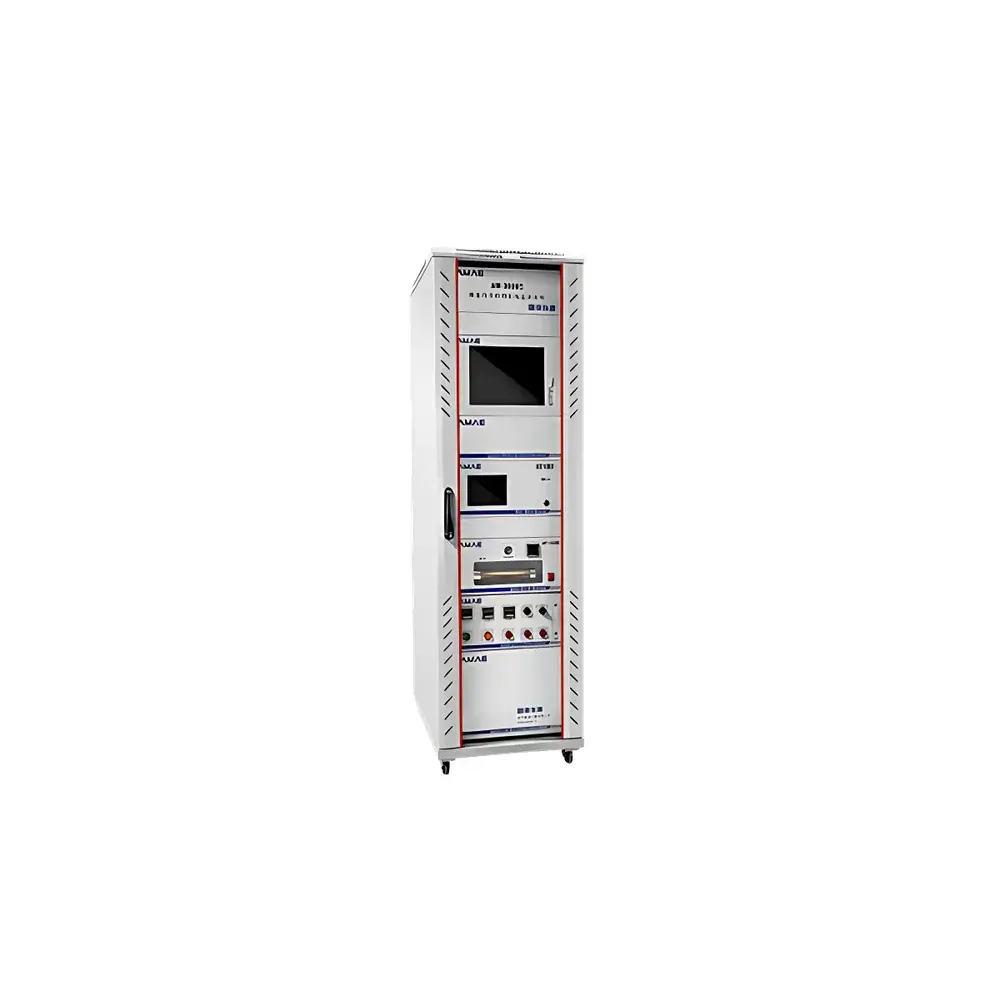

| Model | AM-3000 Series |
| Pricing | Available Upon Request |
