| Brand | SPECTRO |
|---|---|
| Origin | Germany |
| Model | SPECTROCUBE (RoHS-Optimized) |
| Configuration | Benchtop/Free-Standing |
| Detector Type | High-Resolution Silicon Drift Detector (SDD) |
| Count Rate Capability | Up to 100,000 cps |
| Elemental Range | Na (11) to U (92) |
| Minimum Detection Limits (MDL) | Sub-ppm to low-ppm range for regulated elements (Pb, Cd, Hg, Cr, Br, Cl, etc.) |
| Compliance Standards | IEC 62321-5:2013, EN 62321-5:2014, ASTM F2853-21, USP <232>/<233>, ISO 17025-accredited operation support |
| Software | SPECTRO XRF Suite with RoHS-specific method templates, audit trail, and 21 CFR Part 11-compliant user management |
| Brand | SPECTRO |
|---|---|
| Origin | Germany |

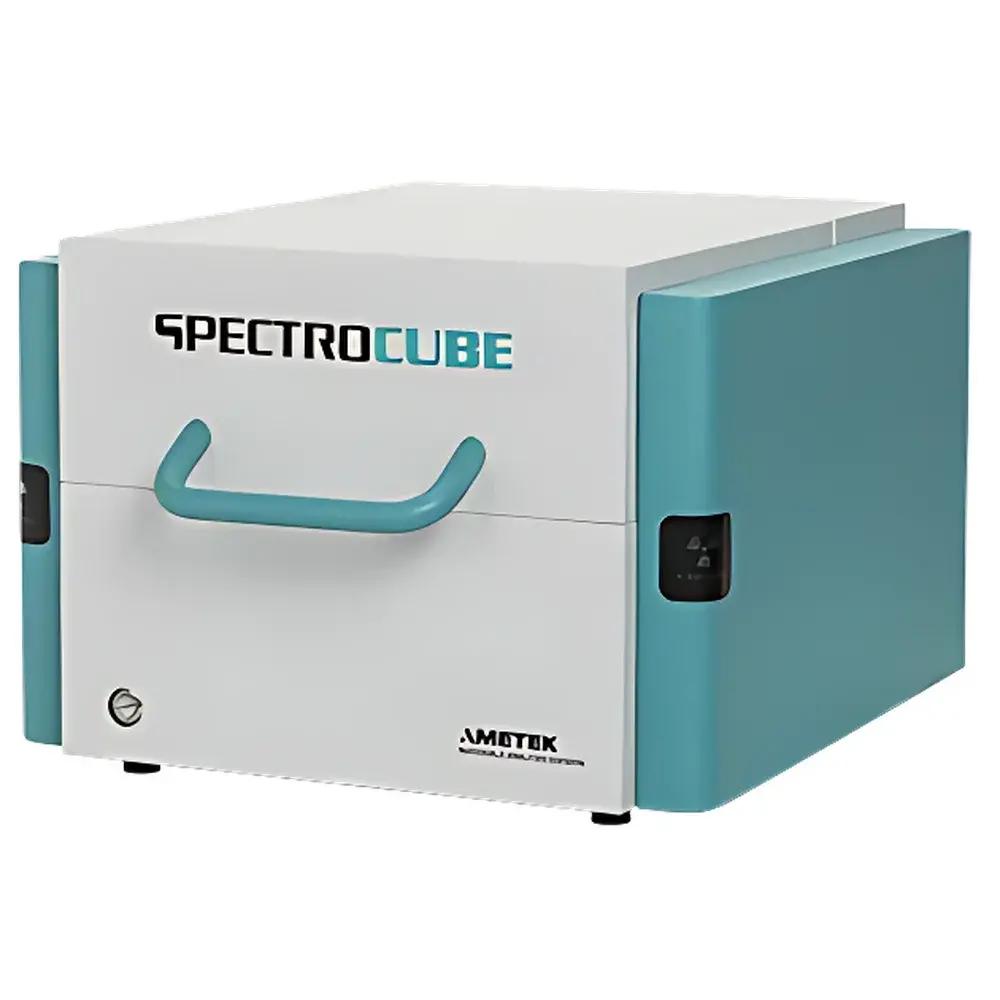

| Model | SPECTROCUBE |
| Configuration | Benchtop/Floor-Standing |
| Elemental Range | Na–U |
| Quantification Range | 0.1 ppm – 99.99% |
| Energy Resolution | 130 eV (at Mn Kα) |
| Repeatability | ≤0.1% RSD (for major elements, n ≥ 10) |
| Detector | Silicon Drift Detector (SDD) |
| Compliance | CE, RoHS, IEC 61000-6-3/6-4 |
| Instrument Class | ED-XRF Spectrometer for Petrochemical QA/QC |
| Brand | SPECTRO |
|---|---|
| Origin | Germany |

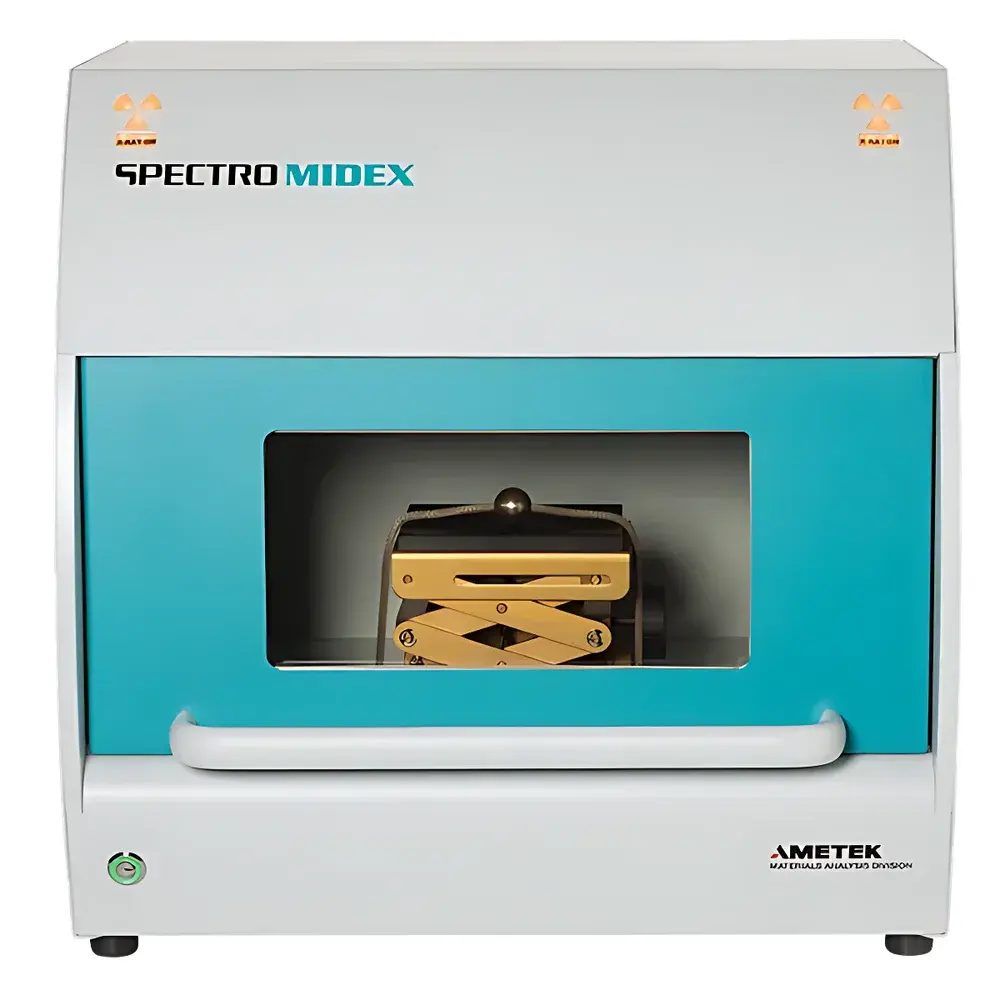

| Model | SPECTROMIDEX |
| Instrument Type | Benchtop ED-XRF Spectrometer |
| Application Scope | General-purpose elemental analysis, optimized for precious metals |
| Compliance | Designed for ISO/IEC 17025-compliant labs, supports GLP/GMP data integrity requirements |
| Detector | High-resolution silicon drift detector (SDD) with micro-focus X-ray source |
| Measurement Principle | Energy-dispersive X-ray fluorescence (ED-XRF) with polycapillary optic collimation |
| Sample Form | Solid, powdered, or plated samples (non-destructive) |
| Software | SPECTRO XRF Analyzer Suite with audit trail, user-level permissions, and 21 CFR Part 11–ready reporting modules |
| Data Export | CSV, XML, PDF |
| Brand | SPECTRO |
|---|---|
| Origin | Germany |
| Model | SPECTRO xSORT XHH04 |
| Application | Field-Portable Elemental Analysis |
| Element Range | Na (11) to U (92) |
| Detector | High-Performance Silicon Drift Detector (SDD) |
| Operating System | Android-based Custom Firmware |
| Display | 5-inch Wide-Angle HD Touchscreen |
| Connectivity | Wi-Fi, Bluetooth 5.0, USB-C, microSD Slot |
| Optional Modules | Integrated GPS, Dual-Camera Imaging System (Sample Positioning + Test Area Documentation), Docking Station for Lab-Grade Expansion |
| Brand | SPECTRO |
|---|---|
| Origin | Germany |
| Model | XEPOS Polarized |
| Instrument Type | Polarized ED-XRF |
| Configuration | Benchtop/Floor-standing |
| Regulatory Compliance | CE, RoHS, ISO/IEC 17025 compatible (when operated under GLP/GMP conditions) |
| Software | TurboQuant II with ASTM E1621, ISO 21043, and USP <233> method support |
| Detector | High-resolution silicon drift detector (SDD), >140 eV Mn Kα resolution |
| Excitation Source | Dual-target polarized X-ray tube (Mo/Rh), variable kV/mA control |
| Multi-layer Analysis Capability | Up to 8 layers, 55 elements simultaneously quantifiable |
| Detection Limits | Sub-ppm for heavy metals in polymer matrices |
| Sample Forms | Solids (flat, irregular, coated), powders (pressed pellets), liquids (in sealed cells) |
| Data Security | FDA 21 CFR Part 11 compliant audit trail, electronic signature, role-based access control |
| Brand | SPECTRO |
|---|---|
| Origin | Germany |
| Model | SPECTRO SCOUT |
| Instrument Type | Polarized ED-XRF |
| Configuration | Benchtop/Field-Deployable |
| Detector | Silicon Drift Detector (SDD) |
| X-ray Tube | Rhodium (Rh) anode, up to 50 kV |
| Elemental Range | Na (11) to U (92) |
| Detection Limits | As low as <1 ppm for selected elements |
| Analysis Time | 3–10 min per sample |
| Dimensions | 270 × 306 × 306 mm |
| Weight | 12.75 kg |
| Battery Life | Up to 5 hours continuous operation |
| Sample Chamber | Large-volume, accommodates irregular and bulk samples |
| Calibration | iCAL single-sample standardization in ≤5 minutes |
| Software Interface | Integrated touchscreen with preloaded application packages |
| Optional | Integrated high-resolution camera for sample positioning and image-result correlation |
| Connectivity | USB, Wi-Fi, Ethernet |
| Brand | SPECTRO |
|---|---|
| Origin | Germany |
| Model | SPECTRO xSORT |
| Portability | Handheld / Field-Deployable |
| Detection Range | Mg (12) to U (92) |
| Display | 5-inch HD touchscreen |
| Operating System | Android-based embedded OS |
| Connectivity | Wi-Fi, Bluetooth, USB, MicroSD |
| Integrated Sensors | GPS, dual cameras |
| Ergonomics | Glove-compatible physical buttons, low-force trigger, balanced weight distribution |
| Compliance | Meets ISO 12847, ASTM E2865, and EU RoHS/WEEE screening requirements |
| Software Platform | XRF Analyzer Pro (PC-based, supports audit trail, method management, and GLP-compliant reporting) |
| Sample Handling | Compatible with portable sample chamber and docking station for lab-grade repeatability |
