| Brand | Semicircle-Instrument |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer | Yes |
| Country of Origin | China |

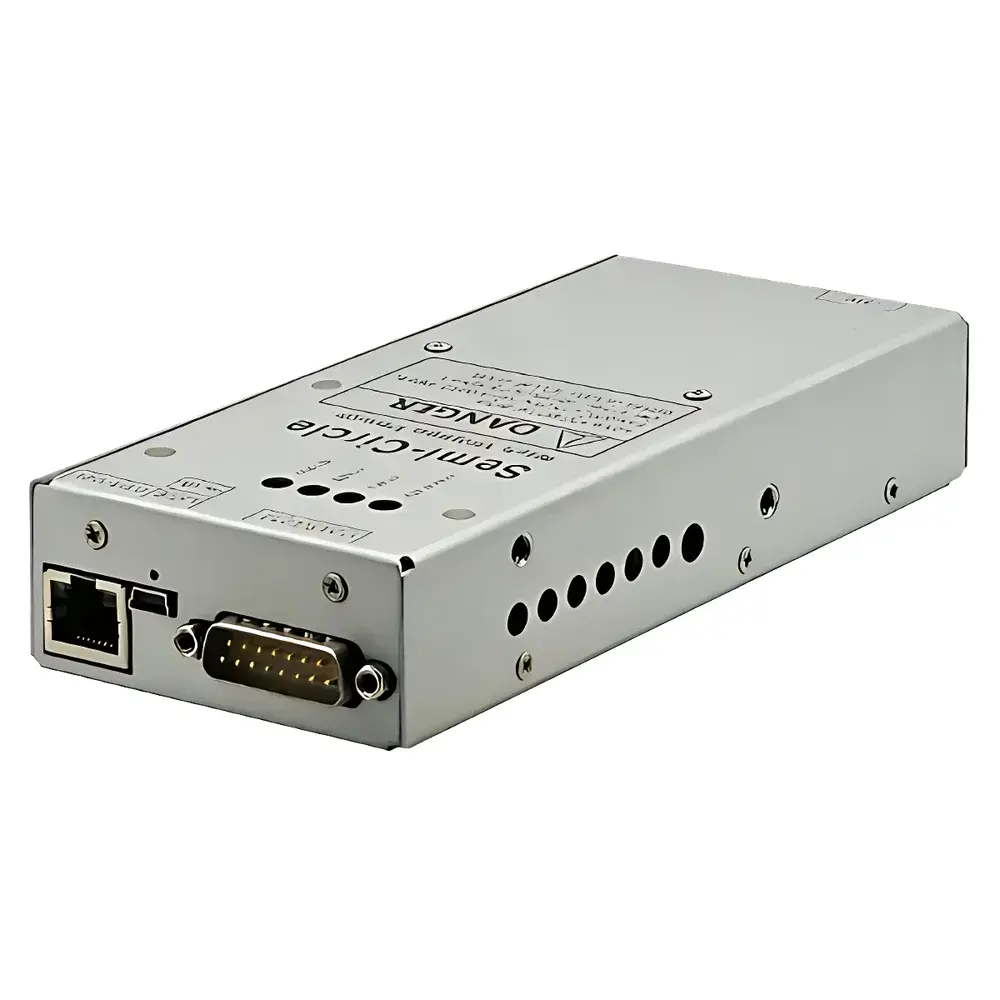

| Model | HVP10P10BN-DS |
| Output Voltage | 0–10 kV DC |
| Output Current | 0–2 mA |
| Max. Output Power | 10 W |
| Filament Supply | 0–4 V DC / 0–2 A (adjustable current limit) |
| Input | 24 V DC ±10%, max. 2.0 A |
| Voltage Regulation | ≤0.01% (load) |
| Current Regulation | ≤0.01% (load) |
| Stability (8 h) | ≤0.05% after 30-min warm-up |
| Ripple | ≤0.3% pk-pk of rated output voltage |
| Monitoring Output | 0–10 V DC proportional to 0–Vmax & 0–Imax (Zout = 1 kΩ, accuracy ±1%) |
| Temp. Coefficient | 0.01% / °C |
| Inrush Surge Peak | ≤1 A @ 25°C |
| Operating Temp. | 0–50°C |
| Storage Temp. | −40 to +85°C |
| Weight | 0.4 kg |
| Dimensions | See mechanical drawing |
