| Brand | Artinis |
|---|---|
| Origin | Netherlands |

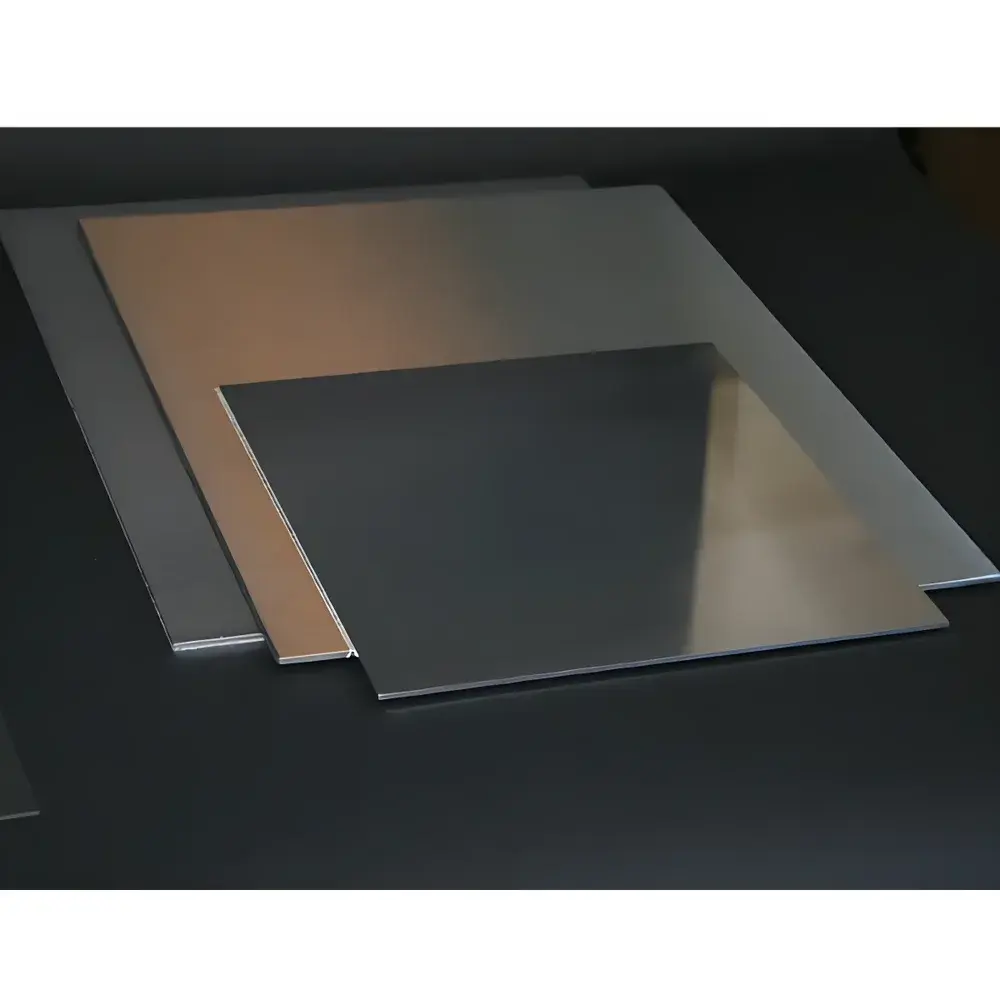

| Model | MTF Test Tool |
| Compliance | EPQC 4th Ed., EUREF Type Test Protocol v1.3, IEC 61223-3-2:2007, IEC 61223-2-6:2019, NHSBSP Equipment Report 0604 (3rd Ed., Apr 2009) |
| Dimensions (Stainless Steel Tool) | 120 × 60 × 0.8 mm |
| Edge Ripple Tolerance | ±50 µm on both 120 mm edges |
| Aluminum Reference Plate | 200 × 200 × 2 mm |
| Thickness Tolerance (Al Plate) | ±50 µm |
| Brand | Artinis |
|---|---|
| Origin | Netherlands |
| Model | CDMAM 3.4 |
| Gold Foil Thickness Range | 0.03–2.00 µm (16 logarithmic steps) |
| Gold Disc Diameter Range | 0.06–2.0 mm (16 logarithmic steps) |
| PMMA Cover Dimensions | 240 × 162 × 3 mm |
| Base Material | 0.5 mm Al (99.5%) |
| PMMA Support Plates | 4 × 10 mm (polished, thickness tolerance ±0.1 mm) |
| Brand | Artinis |
|---|---|
| Origin | Netherlands |

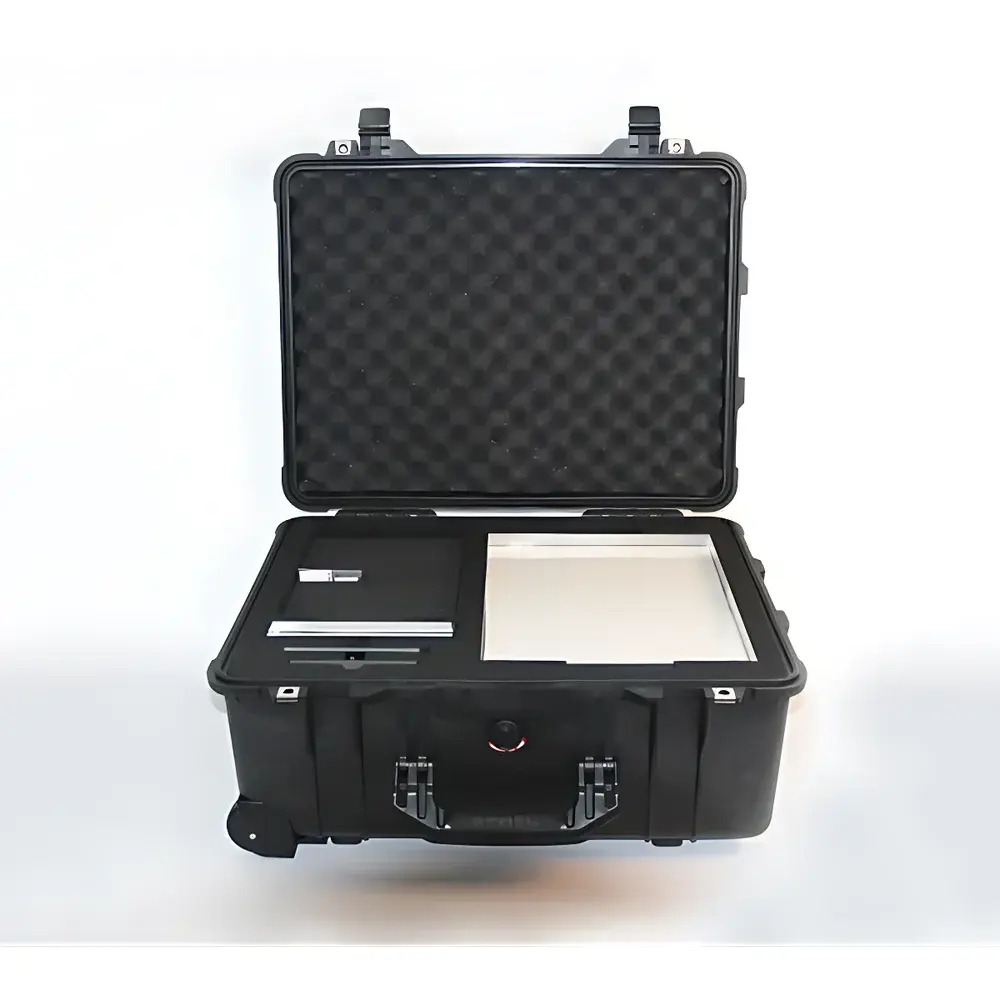

| Model | DBT TOMO |
| Dimensions (Z-resolution plate) | 320 × 260 × 5 mm PMMA with 25 embedded 1 mm Al spheres |
| Homogeneous phantom | 320 × 260 × 45 mm PMMA block, ±0.1 mm thickness tolerance, optically polished |
| Spacer plates | 7 × (320 × 260 × 10 mm PMMA), ±0.1 mm tolerance |
| Z-resolution base plate | 320 × 260 × 5 mm PMMA, ±0.1 mm tolerance |
| Stainless steel support plate | 320 × 260 × 3 mm |
| NPS attenuator | 200 × 200 × 2 mm Al, ±0.05 µm thickness tolerance |
| Stainless steel MTF edge tool | 120 × 60 × 0.8 mm, 50 µm rectangular edge |
| Aluminum foils | 8 × (100 × 100 × 0.1 mm) |
| SDNR foil | 10 × 10 × 0.2 mm Al, ±2 µm tolerance |
| X-ray rulers | 4 pieces, ±5 cm range, 1 mm graduation |
| PMMA test blocks | 2 × (180 × 15 × 10 mm), 2 × (180 × 30 × 30 mm), 7 × (40 × 20 × 2 mm) |
| EU-standard foam inserts | 5 × (240 × 180 × 20 mm) |
| Tungsten wire | 25 µm diameter, 1 m length |
| Transport case | IP67-rated Peli™ Case |
| Brand | Artinis |
|---|---|
| Origin | Netherlands |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Intra Oral QC |
| Price | USD 3,950 (excl. VAT & shipping) |
| Brand | Artinis |
|---|---|
| Country of Origin | Netherlands |
| Model | CD DISC 2.0 |
| Material | Acrylic (PMMA) |
| Tolerance | ±0.03 mm |
| Hole Depth Range | 0.3–8.0 mm (exponential increment) |
| Hole Diameter Range | 0.3–8.0 mm (exponential increment) |
| Total Segments | 240 |
| Concentric Rings | 16 |
| Radial Spokes | 15 |
| Phantom Thickness | Adjustable via stacked acrylic plates |
