| Brand | VEGA |
|---|---|
| Origin | Germany |
| Manufacturer | VEGA Grieshaber KG |
| Product Type | Level Switch |
| Model | VEGASWING 53 |
| Application | Liquid level limit detection (density range: 0.5–2.5 g/cm³) |
| Maximum extension tube length | 1 m |
| Mounting flexibility | Top, side, or bottom |
| Certification | Overflow protection, dry-run protection, pump protection compliant with IEC/EN 61508 SIL 2 and ATEX/IECEx for hazardous areas |
| Enclosure rating | IP66/IP67/IP69K |
| Process connection | G1½", NPT 1½", or flange options |
| Operating temperature | –40 °C to +80 °C (extended range up to +150 °C with optional high-temp fork) |
| Electrical output | PNP/NPN, relay, or 4–20 mA with HART |
| Brand | VEGA |
|---|---|
| Origin | Germany |
| Manufacturer | VEGA Grieshaber KG |
| Product Type | Solid Level Switch |
| Model | VEGAVIB 63 |
| Compliance | ATEX, IECEx, SIL 2 (IEC 61508), IP66/IP67/IP69K |
| Operating Principle | Tuning Fork Resonance Detection |
| Material Density Range | ≥ 20 g/L |
| Max. Extension Length | 6 m |
| Process Temperature | –40 to +150 °C |
| Process Pressure | –1 to +40 bar |
| Housing Material | Stainless Steel 1.4404 (316L) |
| Electrical Output | PNP/NPN, Relay, or IO-Link v1.1 |
| Certifications | FDA-compliant wetted parts (optional), EHEDG, 3-A Sanitary Standard (upon configuration) |

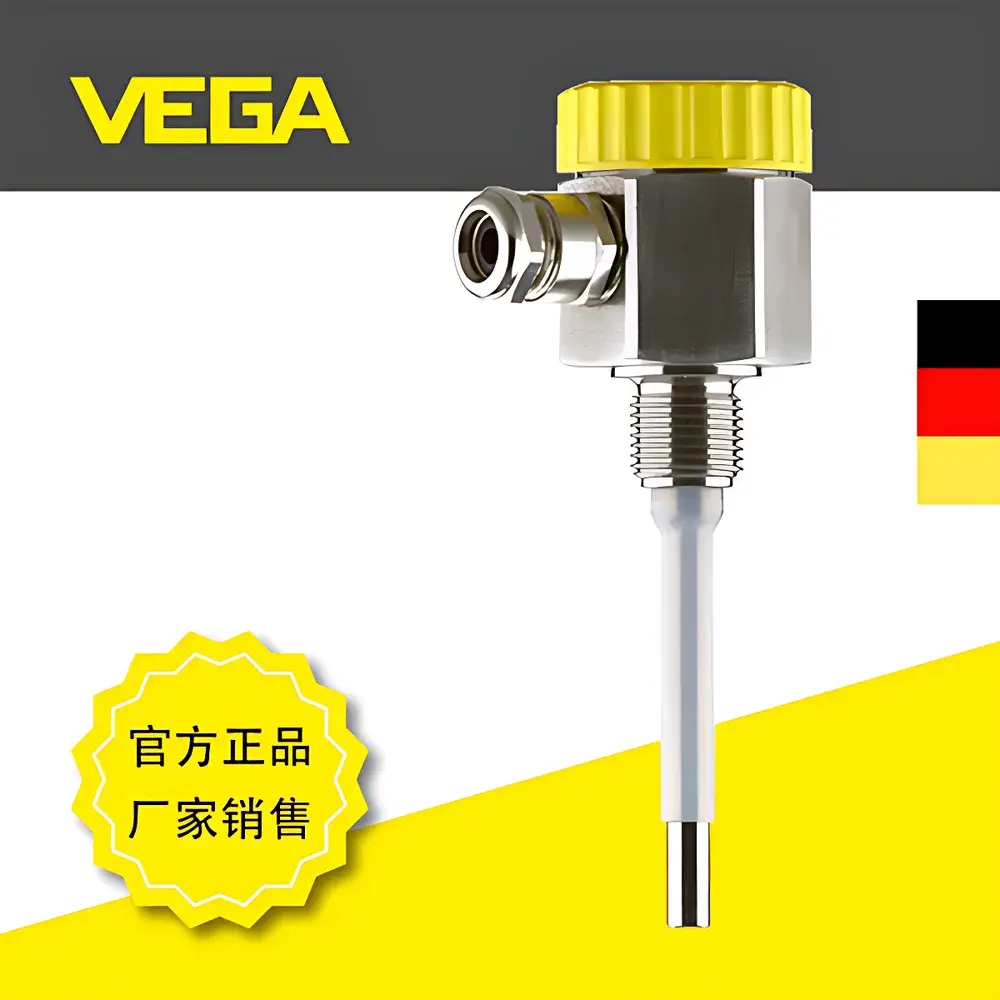

| Brand | VEGA |
|---|---|
| Origin | Germany |
| Manufacturer | VEGA Grieshaber KG |
| Product Type | Conductive Level Switch |
| Model | EL 1 |
| Electrode Insulation | PTFE |
| Max. Electrode Length | 4 m |
| Compatible Controllers | VEGATOR 131, VEGATOR 132, VEGATOR 130 Series |
| Application | Overflow & Dry-Run Protection |
| Compliance | ATEX, IECEx, SIL 2 (per IEC 61508), RoHS, CE |

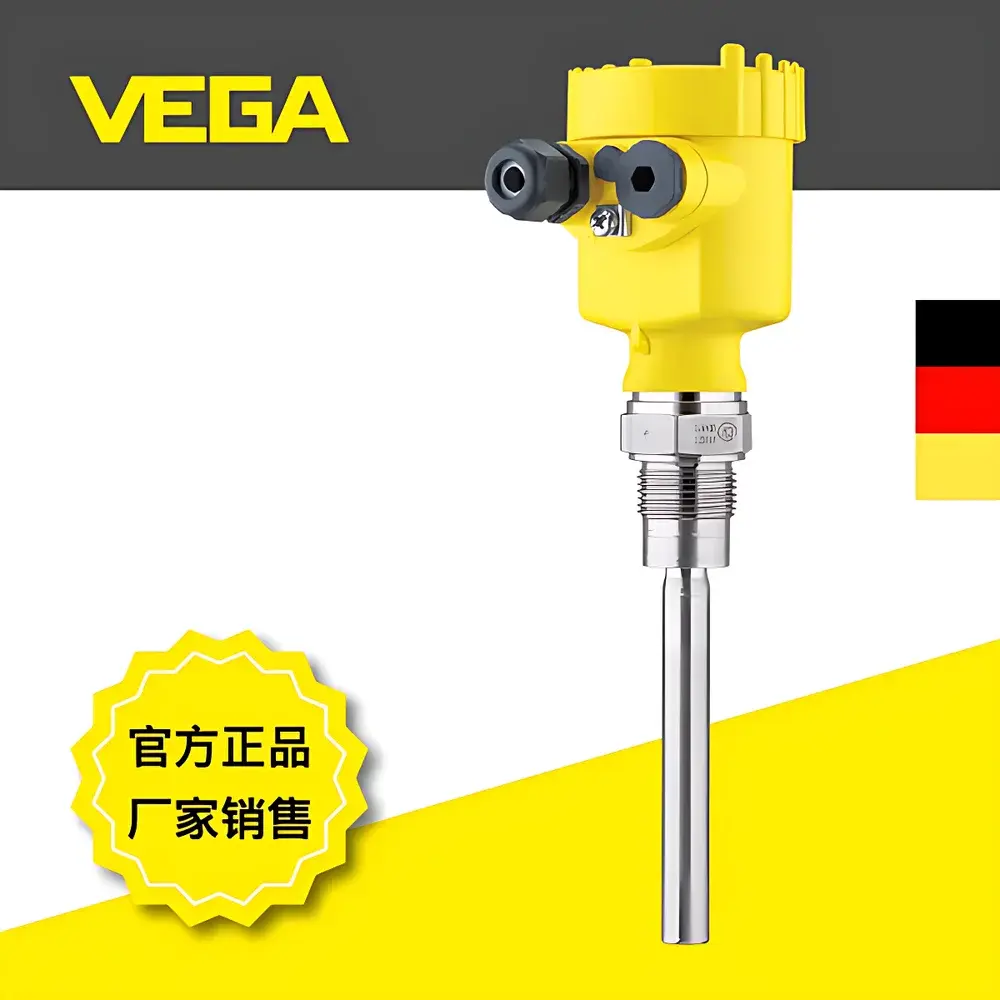

| Brand | VEGA |
|---|---|
| Origin | Germany |
| Manufacturer | VEGA Grieshaber KG |
| Product Type | Vibrating Fork Level Switch |
| Model | VEGAVIB 61 |
| Application | Point level detection for bulk solids |
| Density Range | ≥ 20 g/L |
| Design | Compact, hygienic fork geometry with smooth, edge-free surfaces |
| Compliance | ATEX, IECEx, SIL 2 (IEC 61508), IP66/IP67/IP69K, FDA-compliant materials available |
