| Brand | Sinoptic |
|---|---|
| Model | iLAS |

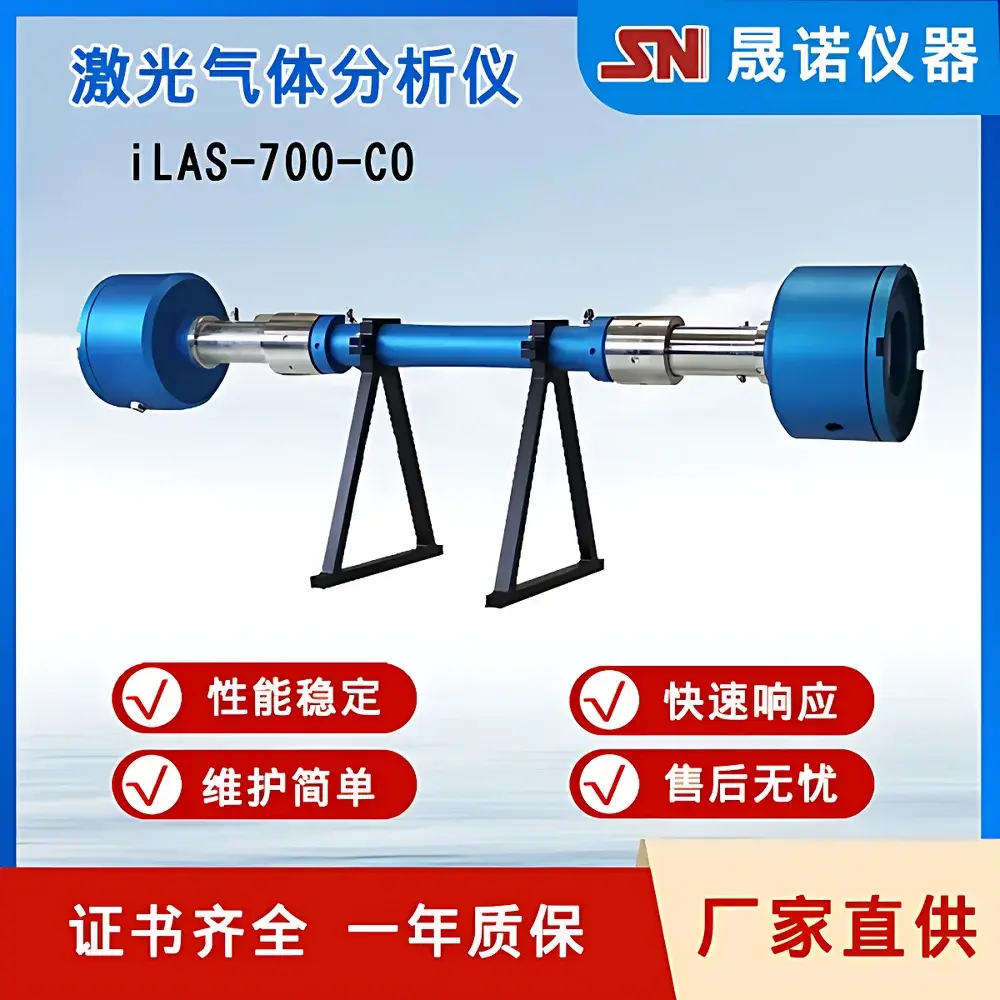

| Type | In-Situ Cross-Beam Tunable Diode Laser Absorption Spectroscopy (TDLAS) Gas Analyzer |
| Origin | Hubei, China |
| Manufacturer | Sinoptic Instrument Co., Ltd. |
| Explosion Protection | Exd II CT6 |
| IP Rating | IP66 |
| Optical Path Length | ≤15 m |
| Sample Gas Temperature | ≤800 °C |
| Ambient Temperature | −30 to 55 °C |
| Humidity | ≤90% RH (non-condensing) |
| Power Supply | AC 220 V / DC 24 V |
| Analog Inputs | 2 × 4–20 mA |
| Analog Outputs | 2 × 4–20 mA (max. load 750 Ω) |
| Digital Interface | RS485, MODBUS RTU |
| Relay Outputs | 3 × (24 V, 1 A) |
| Purge Gas | N₂, 0.4–0.6 MPa |
| Measurable Gases | O₂, CO, CO₂, CH₄, NH₃, HCl, HF, H₂S, C₂H₆, HCN, H₂O (customizable) |
| Detection Limit | 0.01% vol |
| Full Scale Range | 0–99.99% vol |
| Operating Pressure | Atmospheric ±5 kPa |
