| Brand | AIGIS |
|---|---|
| Origin | Fujian, China |
| Manufacturer Type | OEM Manufacturer |
| Product Category | Domestic (China-Made) |
| Model | AGS Valve Manifold Controller |
| Pricing | Upon Request |
| Brand | AIGIS |
|---|---|
| Origin | Fujian, China |
| Manufacturer Type | OEM/ODM Producer |
| Valve Body Material | SUS316L / Alloy N60 / Hastelloy C / Hastelloy B |
| Rotor Material | PEEK |
| Max. Pressure (Gas) | 0.7 MPa |
| Max. Pressure (Liquid) | 3 MPa |
| Max. Operating Temperature | 250 °C |
| Flow Path Bore | 0.4 mm / 0.75 mm |
| Port Thread | 10-32 UNF Internal |
| Actuation | Electric (24 VDC / 2.5 A) or Pneumatic |
| Communication Interfaces | RS232, RS485, Digital I/O |
| Extended Stem Options | 2", 3", 4" |
| Brand | AIGIS |
|---|---|
| Model | Multi-Position Multi-Port Selection Valve Series |
| Valve Types | Inlet Valve, Injection Valve, Column Positioning Valve, Bypass Valve, Fraction Collection Valve |
| Body Material | PEEK / SUS316L |
| Max Operating Pressure | 4.0 MPa |
| Flow Range | 0–300 mL/min |
| Port Configurations | 1–6 positions, 4–14 ports |
| Internal Bore Options | 0.75 mm, 1.0 mm, 1.5 mm, 3.0 mm, 3.2 mm, 4.0 mm |
| Compliance | Designed for GLP/GMP-compliant chromatography workflows |
| Origin | Fujian, China |
| Manufacturer Type | OEM/ODM Manufacturer |

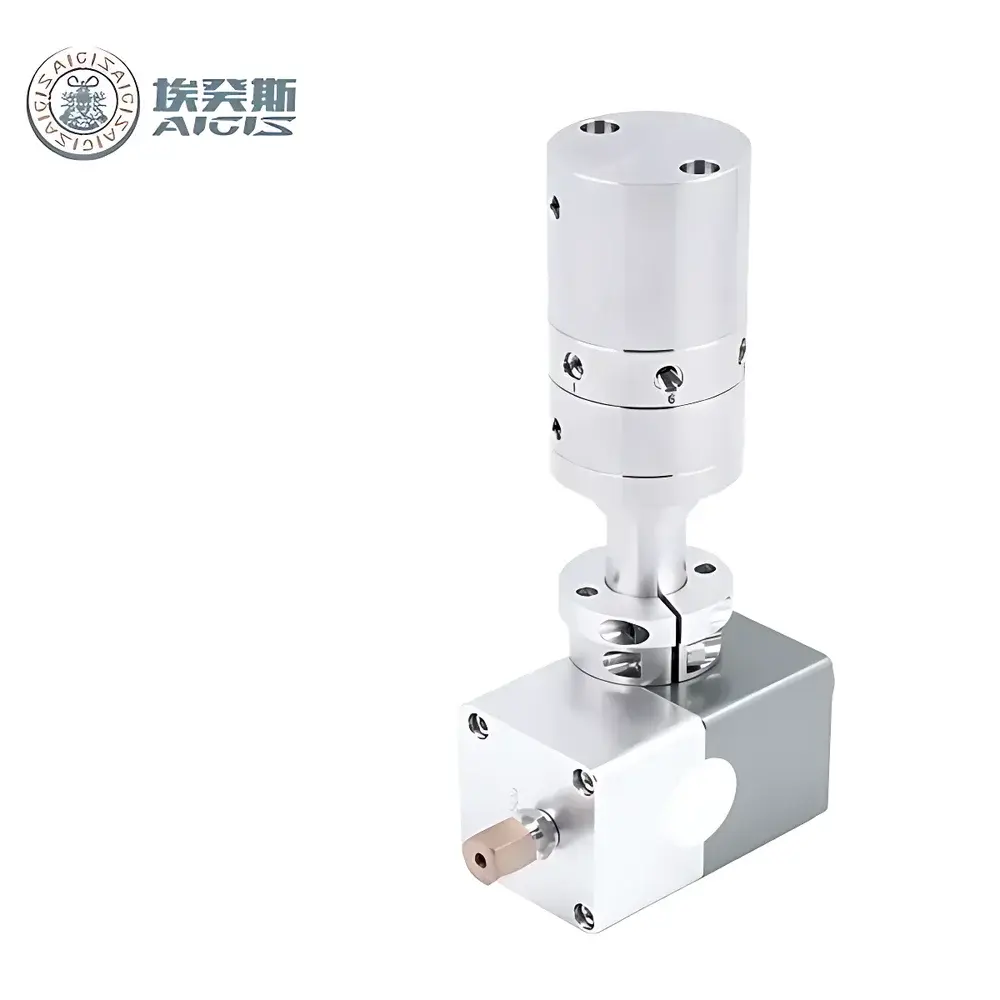

| Brand | AIGIS |
|---|---|
| Origin | Fujian, China |
| Manufacturer Type | OEM/ODM Producer |
| Model | AGS-GBG10-ET-K75S2-2-N-A1-S |
| Valve Type | Multi-port (4/6/8/10/12/14-way) Rotary Switching Valve |
| Rotor Material | PEEK |
| Stator Body Material | SUS316L / Inconel 600 / Hastelloy C-276 |
| Max. Pressure Rating | 0–0.7 MPa (gas), 0–3 MPa (liquid) |
| Max. Operating Temperature | 200 °C |
| Flow Path Bore Diameter | 0.4 mm / 0.75 mm |
| Port Interface | 10-32 UNF female |
| Extension Stem Options | 2", 3", 4", 6" |
| Actuation | Pneumatic or 24 VDC ±10% Electric |
| Pneumatic Supply Pressure | 30–80 psi |
| Electrical Interface | RS232 / RS485 (19200 bps, default address 01) |
