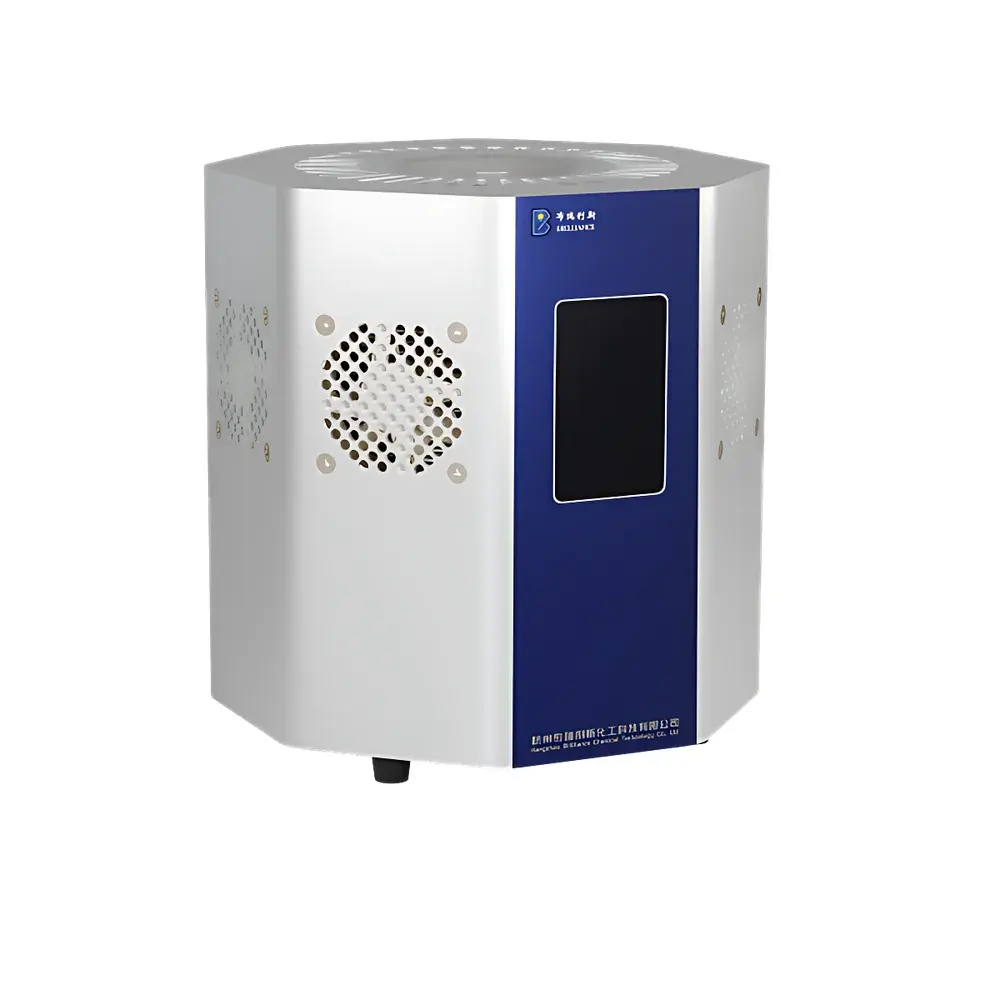

| Brand | Brilliance |
|---|---|
| Model | Bri-PC-T |
| Type | Continuous-flow Photochemical Tubular Reactor |
| Construction Material | FEP (Fluorinated Ethylene Propylene) Coiled Tube |
| Light Source Range | 254–950 nm (standard 365–950 nm |
| Maximum Irradiance | ≤700 mW/cm² |
| Optical Stability | <5% intensity decay per year |
| Active Reaction Volume | 60 mL (equivalent to 20 m of 1/8″ OD FEP tubing |
| Flow Control | Optional dual syringe pumps (100 mL/min each, not included by default) |
| Temperature Control | Ambient only |
| Cooling | Integrated fan + optional jacketed cooling |
| Heating | Not integrated |
| Power Input | 100–240 VAC, 50/60 Hz |
| Control Interface | PLC-based touchscreen HMI with real-time component status visualization and actuation |
| Data Handling | Automated logging, timestamped storage, exportable CSV reports |
| Compliance Support | Designed for GLP-aligned operation |

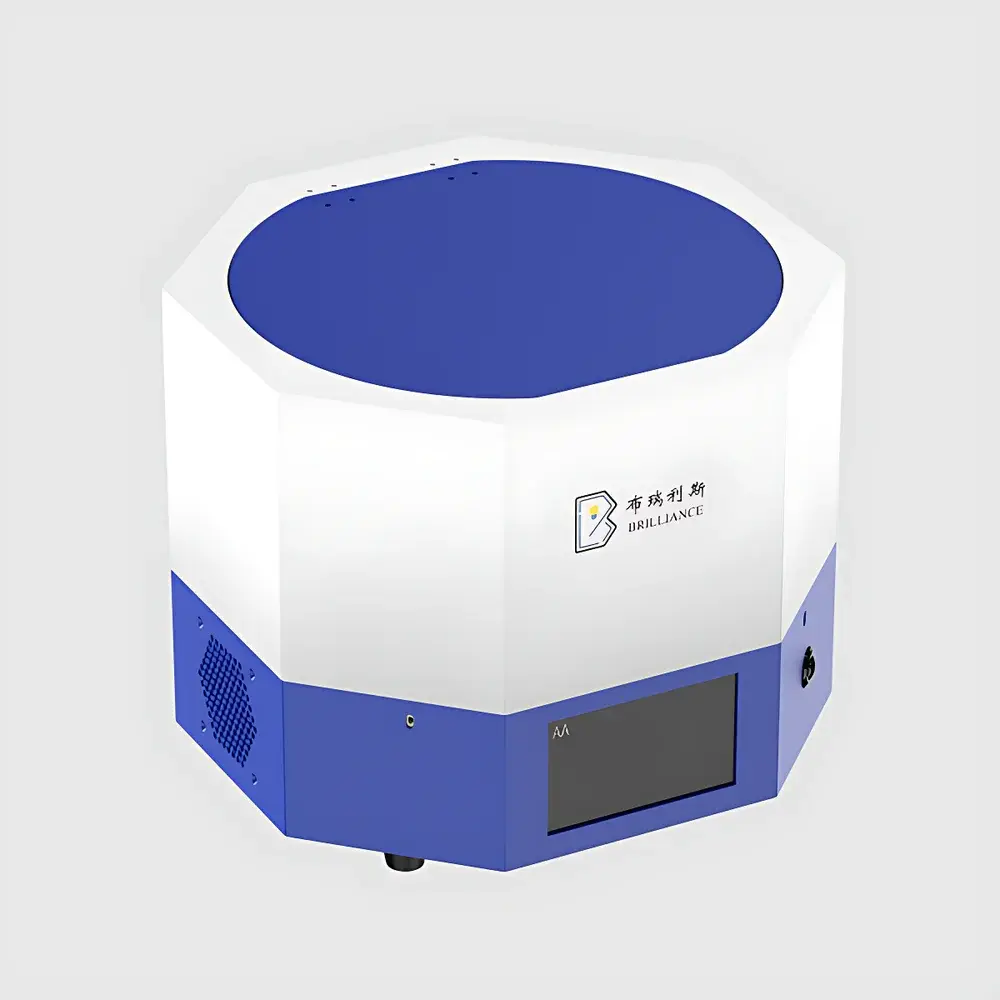

| Brand | Brilliance |
|---|---|
| Model | Bri-PC-R7 / Bri-PC-R8L / Bri-PC-SR1 |
| Reactor Type | Parallel Photochemical Reactor |
| Number of Reaction Stations | 7 / 8 / 1 (Single-Tube) |
| Light Source Range | 254–950 nm (254–365 nm optional upon customization) |
| Individual Channel Power Output | 0–12 W or 0–20 W |
| Light Intensity Control | Independent + Global Dimming |
| Cooling Method | Semiconductor-based Active Cooling / Integrated Chiller Unit / Fan-assisted Heat Dissipation |
| Stirring Mechanism | Magnetic Stirring, 500–2000 rpm (adjustable, non-visible shaft) |
| Reaction Tube OD Compatibility | 10–40 mm (Bri-PC-R7 & Bri-PC-SR1), 22 mm (Bri-PC-R8L) |
| Operating Temperature Range | Ambient +5 °C |
| Input Power | 100–240 VAC, 50/60 Hz |
| Dimensions (W×D×H) | 264×251×340 mm (R7), 160×145×216 mm (R8L), 100×100×100 mm (SR1) |
| Weight | 13 kg (R7), 18 kg (R8L), 1 kg (SR1) |

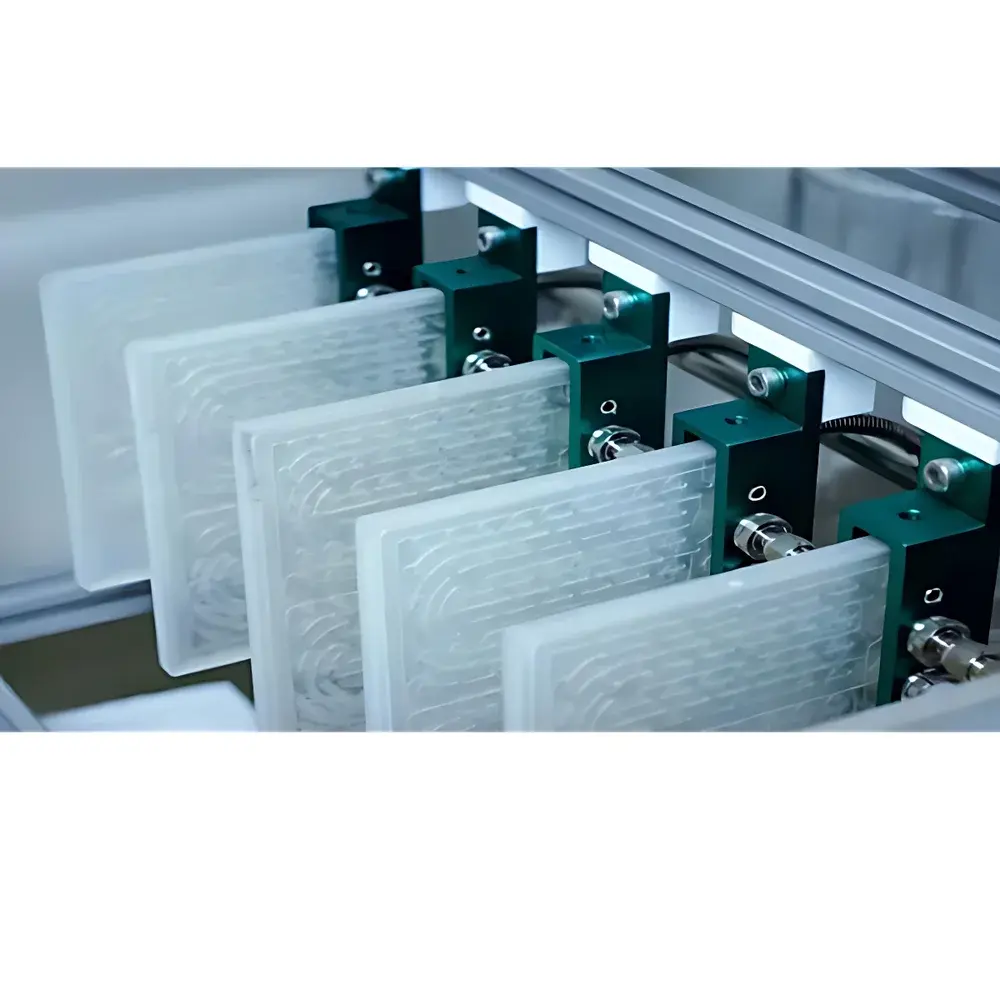

| Brand | Brilliance |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | Bri-CF-PD |
| Instrument Category | Microchannel Reactor |
| Construction Material | Borosilicate Glass or Fused Quartz |
| Maximum Operating Pressure | 2.4 MPa |
| Minimum Channel Width | 10 µm |
| Maximum Hold-up Volume | 500 mL (borosilicate), 100 mL (quartz) |
| Operating Temperature Range | −70 °C to 220 °C |
| Heat Exchange Configuration | Integrated single- or double-layer heat exchange structure (bonded-free, monolithic) |
| Channel Architecture | 3D立体 microfluidic network (monolithically fabricated via femtosecond laser internal engraving) |
| Compliance | Designed for GLP-compliant synthesis workflows and scalable process intensification |

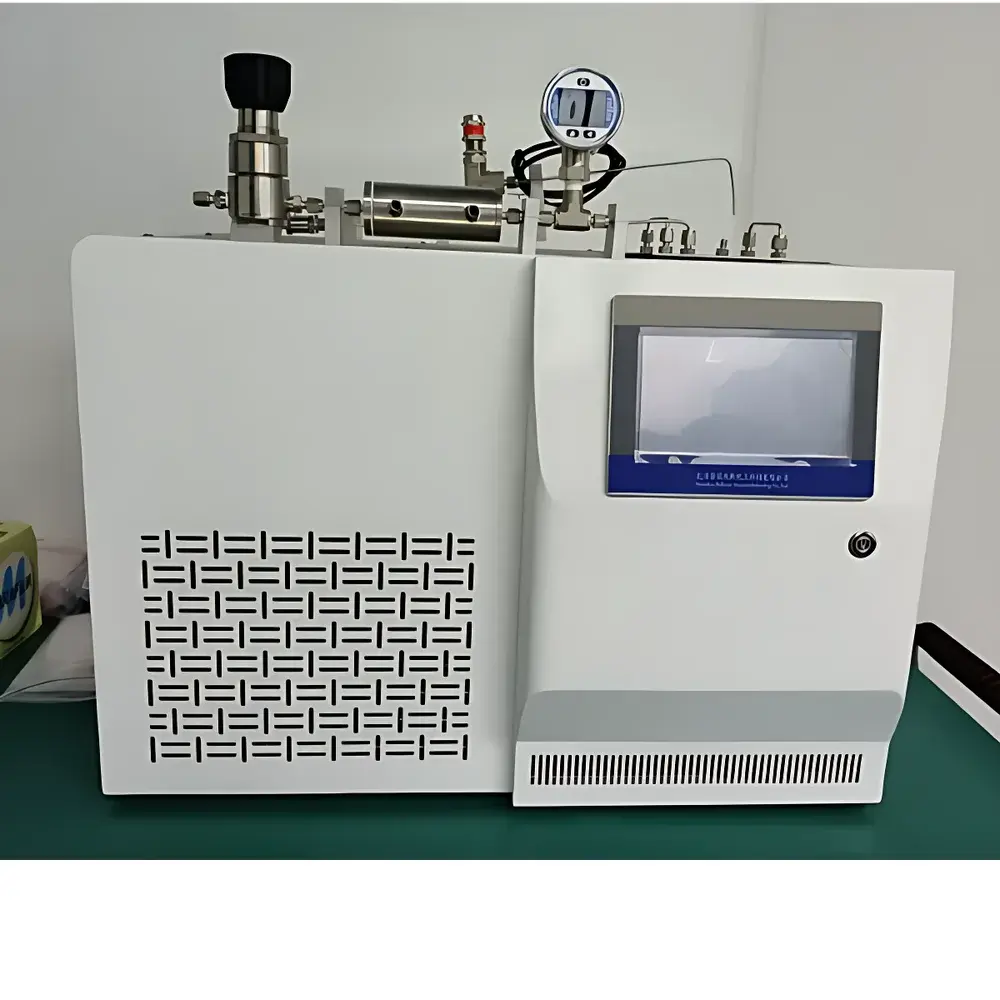

| Brand | Brilliance |
|---|---|
| Model | Bri-CF- |
| Reactor Type | Continuous Flow Tubular Microreactor |
| Construction Material | 316L Stainless Steel / Hastelloy C-276 (optional) |
| Pump Configuration | Dual Plunger Pumps (100 mL/min each, external) |
| Max Flow Rate | ≤200 mL/min |
| Inlet/Outlet Port | 1/8″ NPT |
| Max Operating Pressure | ≤10 MPa |
| Hold-up Volume | 10–60 mL (standard: 30 mL |
| Mixing Zone Volume | 0.12 mL |
| Temperature Range | –20 °C to +200 °C (integrated high-low temperature circulator) |
| Reactor Configurations | 8 interchangeable coil-based reactor modules |
| Compatible Online Analyzers | UV-Vis and Mid-IR flow cells |
| Footprint | 650 × 450 × 600 mm (L×W×H) |
| Exclusion | Suspensions containing particles >50 µm |

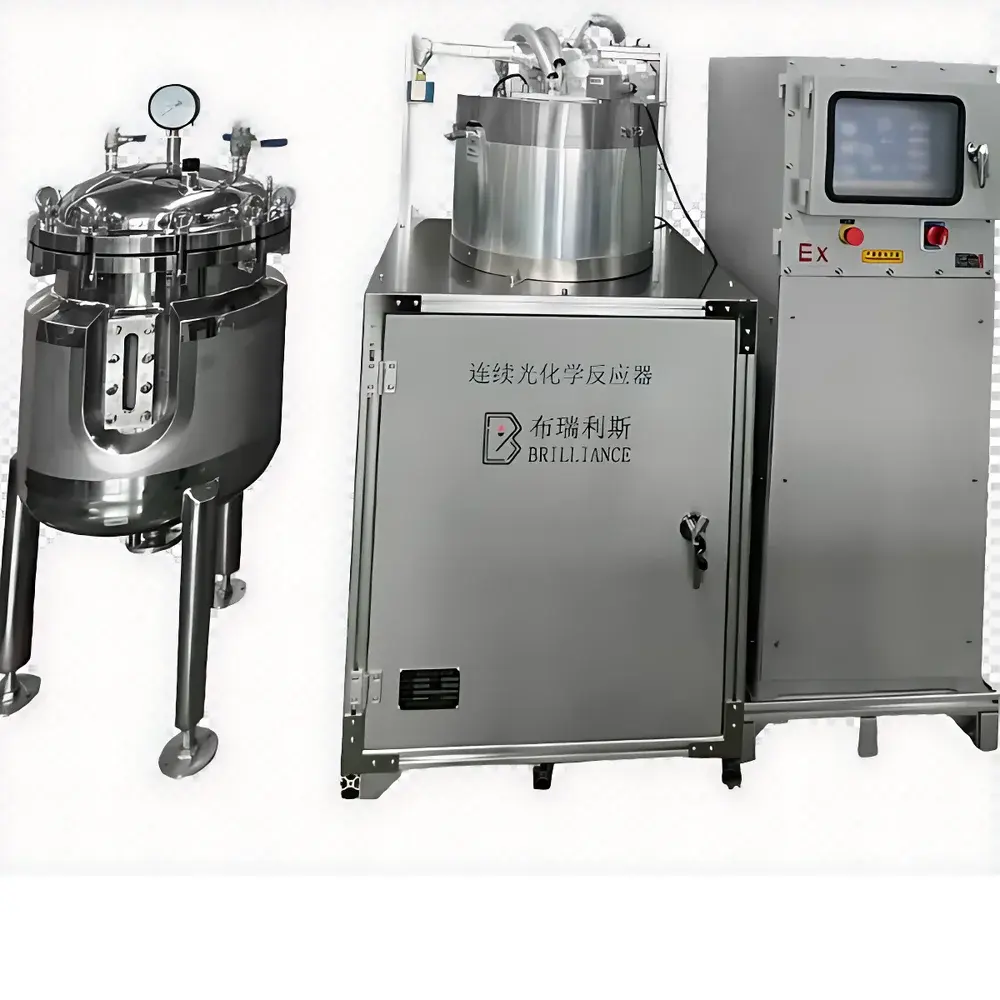

| Brand | Brilliance |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | Bri-PC-T-D |
| Instrument Type | Tubular Reactor |
| Reactor Configuration | Coiled-tube (FEP material) |
| Fluidic Interface | 2-inlet / 1-outlet |
| Hold-up Volume | 200 mL to 10 L (customizable via tube ID/length) |
| Pump Type | Precision Plunger Pump (configurable) |
| Wavelength Range | 254–950 nm (custom wavelengths available) |
| Light Source Power | 100–1000 W (customizable) |
| Irradiance Control | Continuously Adjustable |
| Cooling Method | Integrated Water-Cooled Light Housing |
| Temperature Control | Integrated Dual-Range Thermostatic System (−20 °C to +120 °C typical) |
| Electrical Supply | 100–240 VAC, 50/60 Hz |
| Optional Configurations | Multi-pump manifolds, Multi-wavelength lamp modules, Real-time UV-Vis inline monitoring ports |

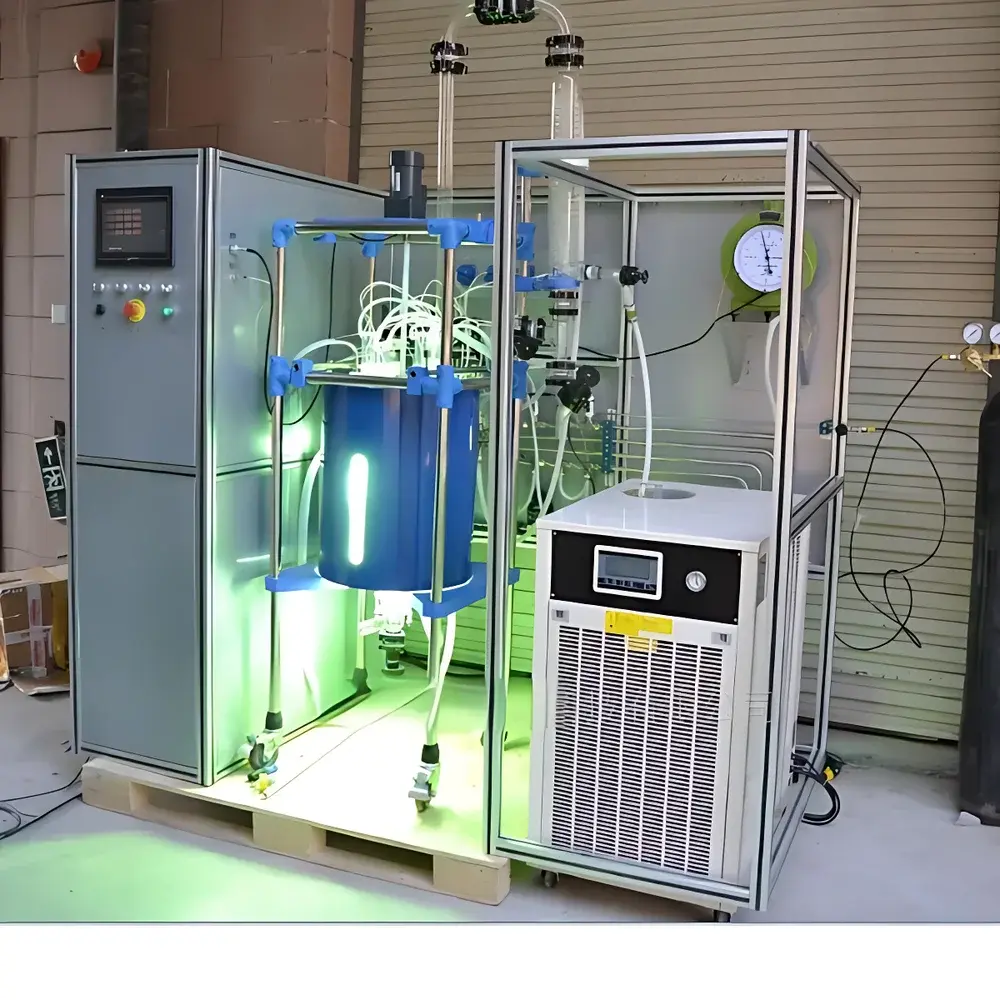

| Brand | Brilliance |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | Bri-PC-F-D |
| Instrument Category | Photochemical Reactor |
| Vessel Material Options | Stainless Steel / Borosilicate Glass / Enamel-Lined Steel |
| Spectral Range | 250–975 nm |
| Light Source | High-Power Tunable LED Array (1–300 kW equivalent photon flux) |
| Working Volume | 1–3000 L |
| Temperature Control | Integrated Electric Heating Furnace with PID Precision Regulation (±0.5 °C) |
| Pressure Rating | Up to 10 MPa (customizable) |
| Optical Window | Sapphire or Fused Silica (AR-coated, UV–NIR transparent) |
| Compliance | Designed per ISO 14001 and ASME BPVC Section VIII Div. 1 for pressure vessel safety |

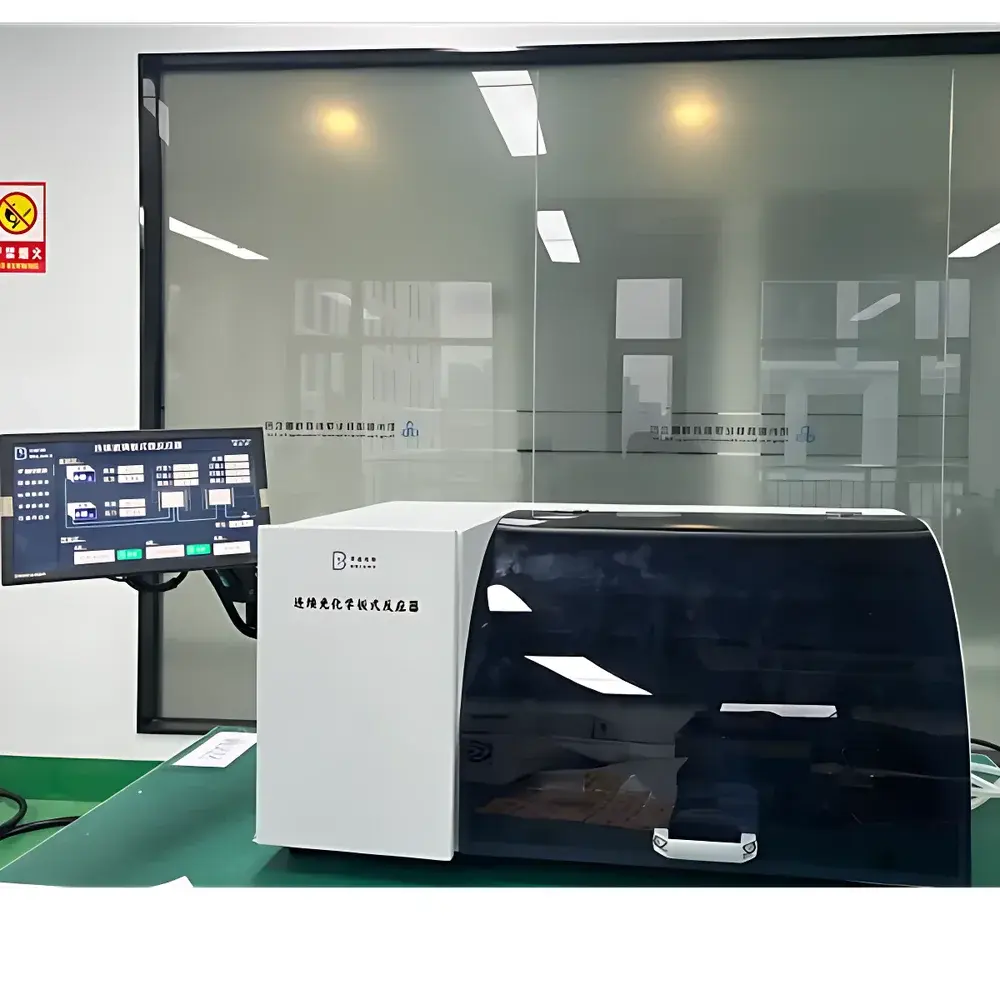

| Brand | Brilliance |
|---|---|
| Model | Bri-PC-P |
| Type | Continuous-flow Photochemical Plate Reactor |
| Construction | Borosilicate Glass / Quartz Glass Plates |
| Channel Geometry | Planar Microchannel |
| Active Volume | 5–50 mL (configurable per module) |
| Light Source Range | 254–950 nm (quartz-compatible down to 254 nm |
| Max Irradiance | ≤700 mW/cm² (measured at channel surface) |
| Light Stability | <5% intensity decay/year |
| Light Power Control | Stepless electronic dimming per illumination panel |
| Thermal Management | External recirculating chiller interface (not included) |
| Pump Configuration | Integrated dual syringe pumps (standard), wetted parts: 316L stainless steel |
| Electrical Input | 100–240 VAC, 50/60 Hz |
| Compliance | Designed for GLP-compliant photochemical process development and scale-up |
