Ontech880 Quad-Cryogenic Trap Atmospheric Pre-concentrator with Liquid Nitrogen Cooling

Overview

The Ontech880 Quad-Cryogenic Trap Atmospheric Pre-concentrator is an advanced sample introduction system engineered for trace-level volatile organic compound (VOC) analysis in ambient air and stack emission matrices. It employs a four-stage cryogenic trapping architecture cooled by liquid nitrogen, enabling precise, quantitative pre-concentration of VOCs across a broad volatility range—from highly volatile C₂ compounds (e.g., ethane, vinyl chloride) to semi-volatile species such as naphthalene (bp 218 °C) and other polycyclic aromatic hydrocarbons (PAHs). Unlike conventional three-stage systems, the Ontech880 decouples water removal from analyte trapping via physically isolated cold zones, eliminating competitive adsorption and irreversible loss of high-boiling-point compounds during desiccation. This design directly addresses a fundamental limitation in legacy pre-concentrators where water co-condensation in the primary trap results in diminished recovery of compounds with boiling points above 150 °C. The instrument operates on the principle of sequential cryofocusing: sample air is drawn through heated, inertized pathways; water and CO₂ are selectively trapped at –190 °C in a dedicated desiccant-free cold trap; VOCs are then captured in two subsequent cryo-traps maintained at programmable temperatures (–100 °C to –160 °C); finally, a high-temperature focusing trap (up to 300 °C) enables rapid, sharp thermal desorption into GC or GC-MS systems. Its architecture supports full compatibility with EPA TO-14A, TO-15, and ASTM D6196 methodologies—while meeting the stringent operational requirements of Chinese environmental standards HJ 759–2023 and HJ 1078–2019.

Key Features

• Four-stage cryogenic trapping with independent temperature control per stage, enabling physical separation of water removal and VOC capture
• Liquid nitrogen–cooled traps achieving stable operation down to –190 °C, ensuring quantitative retention of high-boiling analytes including naphthalene and methyl naphthalenes
• Inert, fully heated sample pathway (up to 200 °C) from inlet fitting through solenoid valves and transfer lines—eliminating cold spots and surface adsorption
• Integrated high-precision mass flow controllers (MFCs) with proprietary startup compensation algorithms, delivering repeatable volumetric sampling without reliance on vacuum canisters
• Dedicated focusing trap optimized for narrow-band thermal desorption, supporting split, splitless, and loop injection modes with peak width reduction ≥35% versus standard three-stage systems

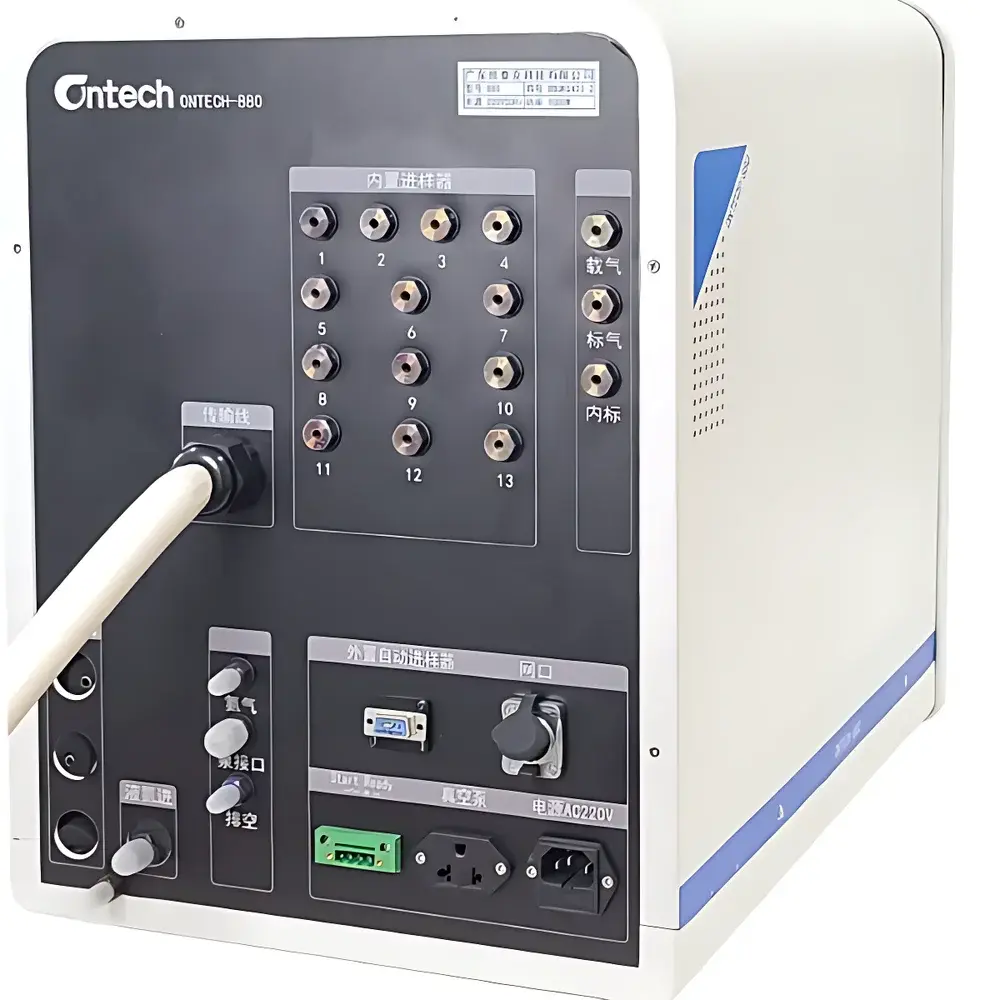

• Modular auto-sampling capability: base configuration includes 3 sample ports; optional internal 13-port sampler or external 28-port autosampler compatible with SUMMA® canisters and Tedlar® gas bags
• Robust mechanical architecture with all-wetted surfaces passivated using SilcoNert® or equivalent inert coating technology

Sample Compatibility & Compliance

The Ontech880 is validated for use with ambient air, indoor air, and fixed-source emission samples collected in electropolished stainless-steel SUMMA® canisters (EPA TO-15), gas-tight Tedlar® bags (HJ 1078–2019), and sorbent tubes. Its four-stage design ensures compliance with method-defined water removal efficiency thresholds (>99.5% H₂O removal at 80% RH) while maintaining ≥92% average recovery for 65 target VOCs specified in HJ 759–2023—including chlorinated benzenes, alkylbenzenes, and oxygenated VOCs. Instrument performance meets data quality objectives outlined in ISO/IEC 17025–2017 for accredited environmental testing laboratories. System operation supports audit-ready electronic records aligned with GLP principles, including timestamped method logs, calibration history, and user-access tracking.

Software & Data Management

The Ontech880 is operated via a Windows-based control platform featuring intuitive workflow-driven interface design. Method development includes full parametric control over trap temperatures, MFC setpoints, desorption ramp rates, hold times, and valve sequencing. All acquisition parameters are stored in encrypted XML files with digital signatures to prevent unauthorized modification. Software supports automated report generation compliant with HJ 759–2023 annex requirements—including compound-specific recovery tables, blank subtraction routines, and integration with LIMS via CSV or ODBC export. Audit trails record every user action (login, method edit, run start/stop) with immutable timestamps, satisfying documentation expectations under CNAS-CL01 and preliminary FDA 21 CFR Part 11 readiness.

Applications

• Regulatory monitoring of ambient VOCs in urban and industrial zones per China’s “2019 National Ambient Air VOC Monitoring Program”
• Source apportionment studies requiring quantitative recovery of both light aliphatics (e.g., isoprene) and heavier aromatics (e.g., biphenyl, fluorene)
• Fixed-source emission testing for sulfur-containing VOCs (e.g., methanethiol, dimethyl sulfide) per HJ 1078–2019
• Indoor air quality assessment in commercial buildings and cleanrooms
• Method development and validation labs requiring flexibility across concentration ranges (pptv to ppmv) and matrix types
• Research applications involving reactive or thermally labile VOCs where narrow peak widths improve chromatographic resolution

FAQ

Does the Ontech880 require vacuum canisters for sampling?

No—it utilizes precision MFCs for direct volumetric sampling, eliminating dependence on evacuated canisters and associated calibration drift.
How does the four-stage design improve recovery of high-boiling compounds?

By isolating the water removal step in a dedicated cryo-trap, high-boiling VOCs bypass the desiccation zone entirely, preventing co-adsorption and thermal degradation.
Is the system compatible with non-Ontech GC or GC-MS instruments?

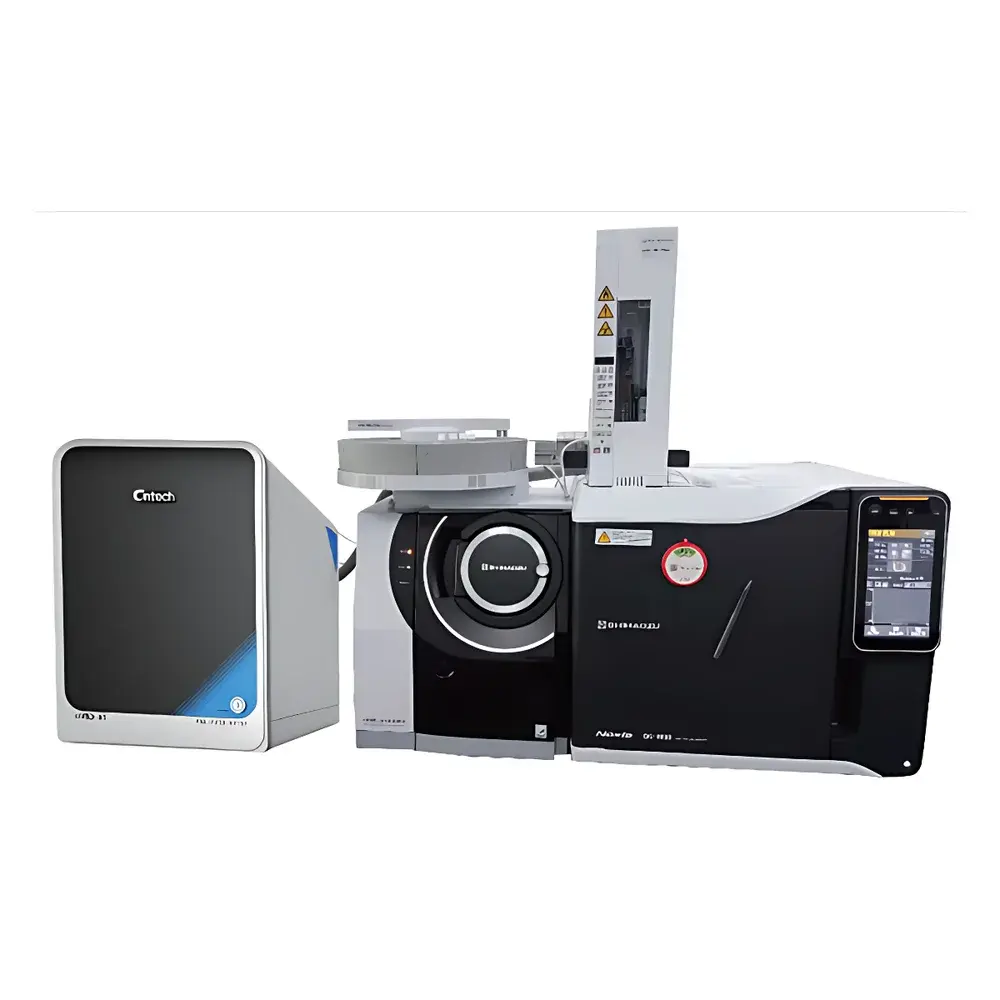

Yes—the Ontech880 features universal pneumatic and electrical interfaces, including standard 1/8″ VCR fittings and TTL-triggered valve synchronization, supporting seamless integration with Agilent, Thermo Fisher, Shimadzu, and PerkinElmer platforms.
What maintenance intervals are recommended for optimal performance?

Quarterly inspection of trap o-rings and MFC calibration verification is advised; annual replacement of cryo-trap liners and inertization re-coating of critical pathways ensures long-term reproducibility.
Can the software generate reports compliant with Chinese environmental reporting formats?

Yes—preconfigured templates align with HJ 759–2023 Annex B and HJ 1078–2019 Appendix A, including mandatory fields for spike recovery, method blanks, and detection limit calculations.
