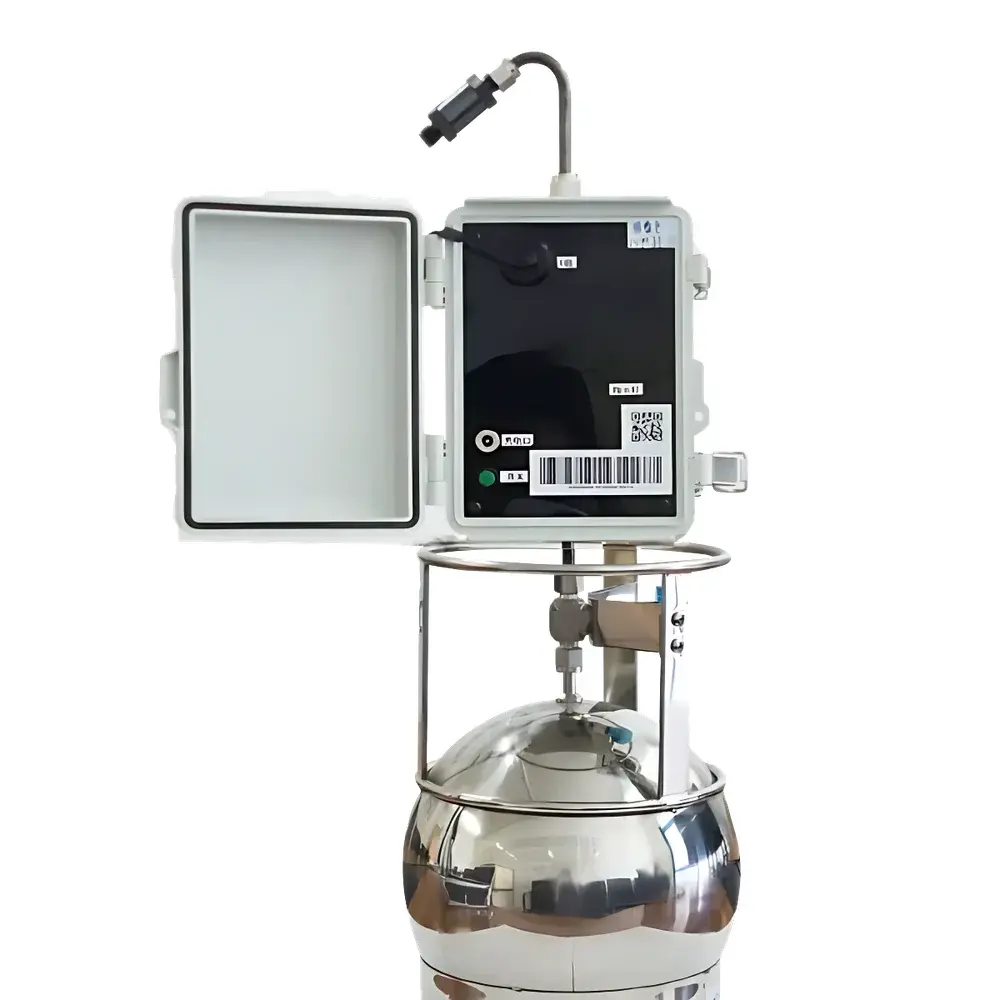

Ontech Ontech825 Automated SUMMA Canister Sampler with Constant-Flow Control

Overview

The Ontech Ontech825 Automated SUMMA Canister Sampler is an engineered field-deployable instrument designed for quantitative, time-integrated or discrete ambient air and emission source sampling in compliance with regulatory method requirements including China’s HJ 759–2023 and U.S. EPA Methods TO-14A and TO-15. It operates on the principle of constant-flow volumetric sampling using a precision electronic mass flow controller (MFC), ensuring traceable and repeatable delivery of representative air volumes into electropolished stainless-steel SUMMA canisters. Unlike passive diffusion or pressure-driven systems, the Ontech825 maintains active flow control across variable backpressures and ambient temperatures (−10 °C to 45 °C), minimizing analyte loss due to adsorption or condensation. Its integrated vacuum manifold, real-time pressure transducer, and programmable timer enable fully autonomous unattended operation—critical for long-duration grid monitoring, fence-line surveillance, and emergency response deployments where power infrastructure is unavailable.

Key Features

• Wide-range electronic mass flow control (0.01–1.0 L/min) with no hardware reconfiguration required for 1–48 h sampling intervals
• Automated pre-sampling leak verification via vacuum decay test—executed prior to each canister fill cycle per EPA TO-15 Section 6.3.2
• Inertized flow path utilizing Silonite®-coated fused silica components to minimize surface adsorption of volatile organic compounds (VOCs), carbonyls, and sulfur species
• Integrated particulate filtration (0.2 µm PTFE membrane) and moisture management compatible with high-humidity environments
• Bluetooth 5.0–enabled mobile application for real-time parameter monitoring, scheduled start/stop, and on-device pressure diagnostics—no pairing password required
• Optional 4G LTE telemetry module supporting remote status reporting, firmware updates, and over-the-air sampling command execution

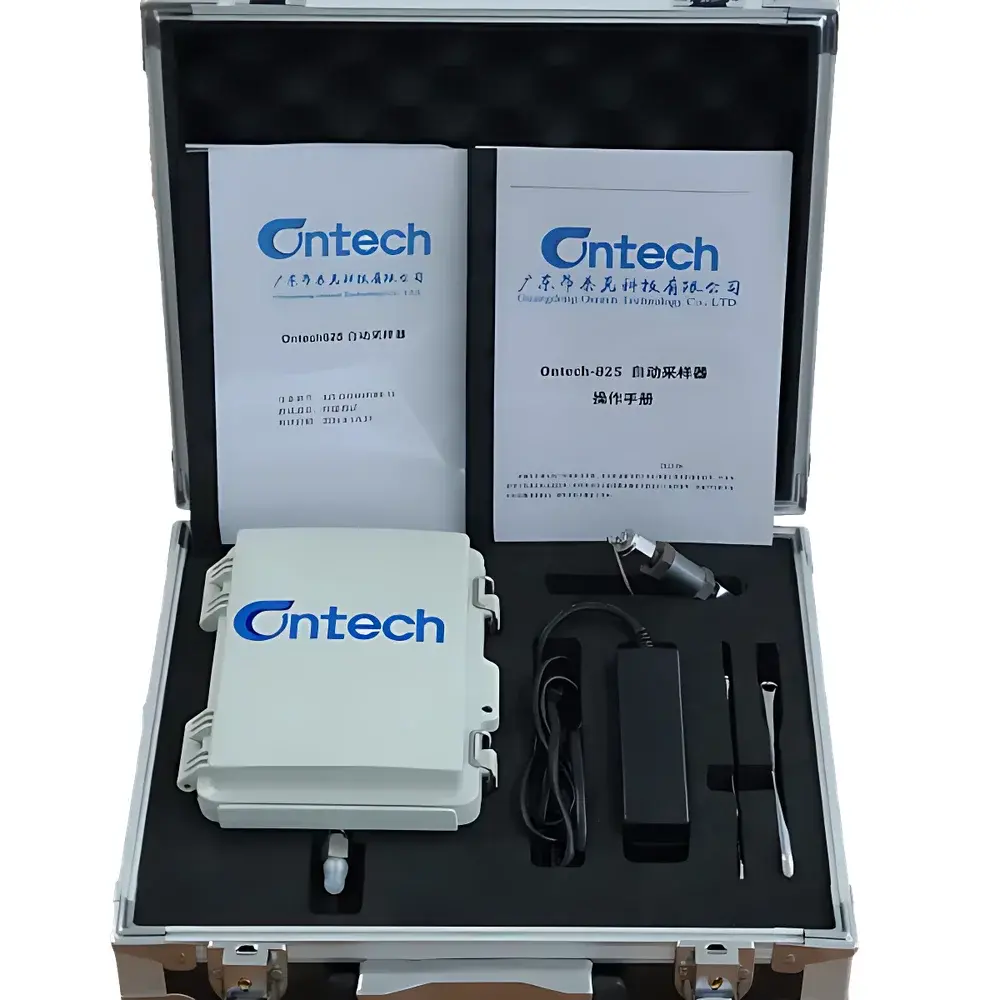

• IP65-rated enclosure with ergonomic carrying case, enabling ruggedized outdoor deployment in rain, dust, or temperature extremes
• Onboard data logging with ISO 8601 timestamps, flow rate history, absolute pressure readings, and system error flags—exportable via USB-C to compliant laboratory information management systems (LIMS)

Sample Compatibility & Compliance

The Ontech825 interfaces seamlessly with standard 6-L, 3-L, and 1-L SUMMA canisters (SilcoCan®, Entech, or equivalent electropolished stainless-steel vessels). All wetted surfaces—including MFC sensor elements, valves, and pressure transducers—are certified inert per EPA Method TO-15 Annex A specifications. The device satisfies the instrumental performance criteria outlined in HJ 759–2023 for VOC speciation in ambient air, including flow accuracy (±2% of setpoint), pressure resolution (0.01 psi), and vacuum stability (<0.05 psi/min drift during hold phase). Its calibration protocol supports NIST-traceable flow verification using primary-standard dry calibrators (e.g., Brooks 5850E or Mesa Labs DryCal DC-3), and internal pressure sensors are factory-calibrated against dead-weight testers. The system architecture complies with GLP documentation requirements, generating audit-ready logs for QA/QC review.

Software & Data Management

The Ontech825 supports dual-mode configuration: local Bluetooth control via the Ontech FieldSync mobile application (iOS/Android) and PC-based setup using Ontech ConfigSuite v3.2 (Windows 10/11). Both platforms record full operational metadata—including start/stop times, actual vs. target flow profiles, vacuum decay curves, and pressure differentials—structured in CSV and XML formats suitable for ingestion into EPA-compliant data reduction workflows (e.g., EPA Compendium Method TO-15A, ASTM D6196). Audit trails include user ID, timestamp, and parameter modification history, satisfying 21 CFR Part 11 electronic record integrity requirements when deployed in regulated environmental laboratories. Firmware updates preserve backward compatibility with legacy calibration certificates and historical dataset schemas.

Applications

• Ambient air quality monitoring networks requiring spatially distributed, time-resolved VOC profiling
• Fence-line and perimeter monitoring at petrochemical facilities, landfills, and wastewater treatment plants
• Source apportionment studies using canister-based GC-MS/FID analysis per EPA Method TO-15
• Emergency response scenarios—rapid deployment for post-incident air toxics screening (e.g., benzene, formaldehyde, chlorinated solvents)
• Method validation and inter-laboratory comparison exercises requiring cross-platform flow reproducibility
• Indoor air quality assessments in occupational health settings under ISO 16000-6 and EN 16755 protocols

FAQ

Does the Ontech825 require external power for field operation?
No—it operates exclusively on its integrated rechargeable lithium battery, delivering ≥12 hours of continuous sampling at 0.2 L/min flow rate. A full charge requires ≤4 h via USB-C PD input.
How is flow calibration verified in the field?
Users may perform on-site verification using a NIST-traceable primary flow standard (e.g., dry calibrator or bubble meter). The device stores calibration coefficients and allows manual entry of correction factors without firmware modification.
Is the Bluetooth connection secure for sensitive environmental data?
Yes—Bluetooth communication uses AES-128 encryption and adheres to Bluetooth SIG Core Specification v5.0. No data is stored on the mobile device beyond active session cache; all permanent records reside only in the instrument’s non-volatile memory or exported files.
Can the Ontech825 be used with non-SUMMA sampling vessels?
It is validated only for use with electropolished stainless-steel canisters meeting EPA TO-15 dimensional and surface finish specifications. Use with glass vials, Tedlar bags, or non-inertized containers is not supported and voids compliance claims.
What maintenance intervals are recommended for routine field use?
Particle filters should be replaced after every 10 sampling events or upon visible clogging. The internal MFC and pressure sensor undergo annual factory recalibration; users may conduct functional checks using the built-in self-test mode before each deployment.
