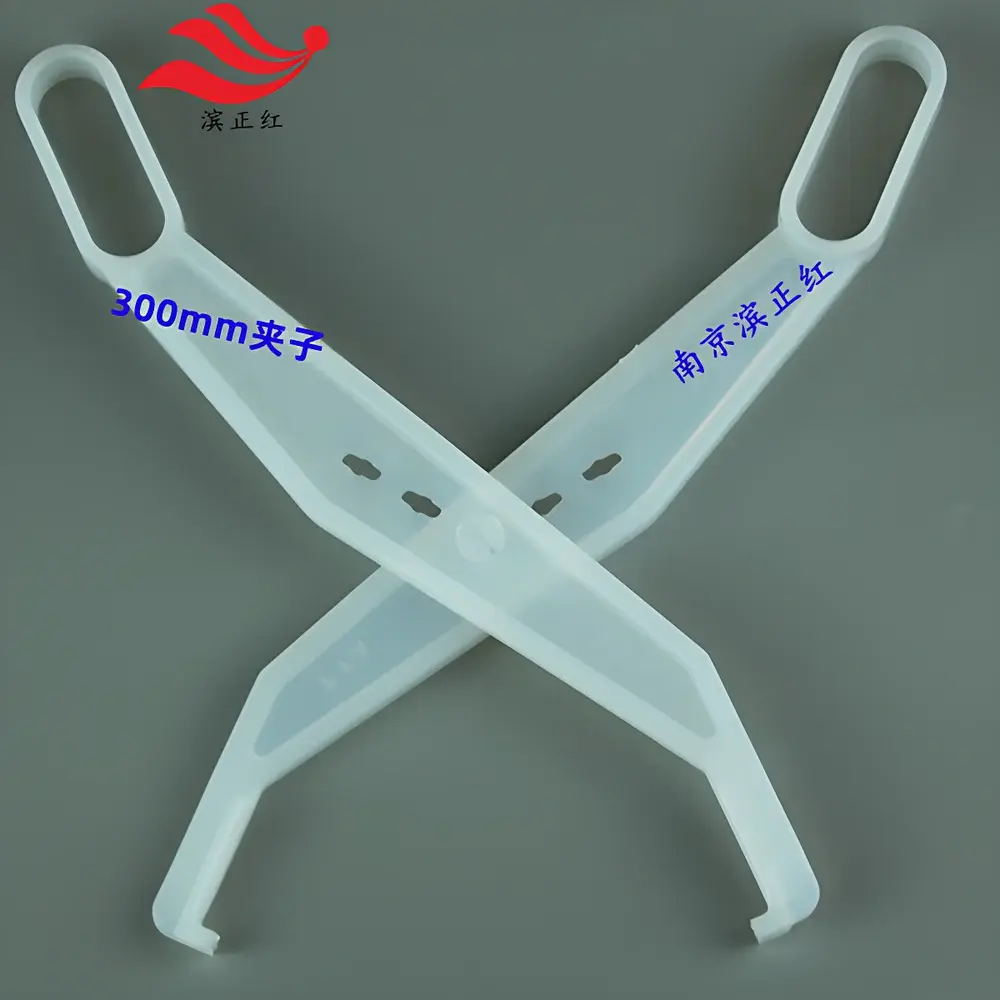

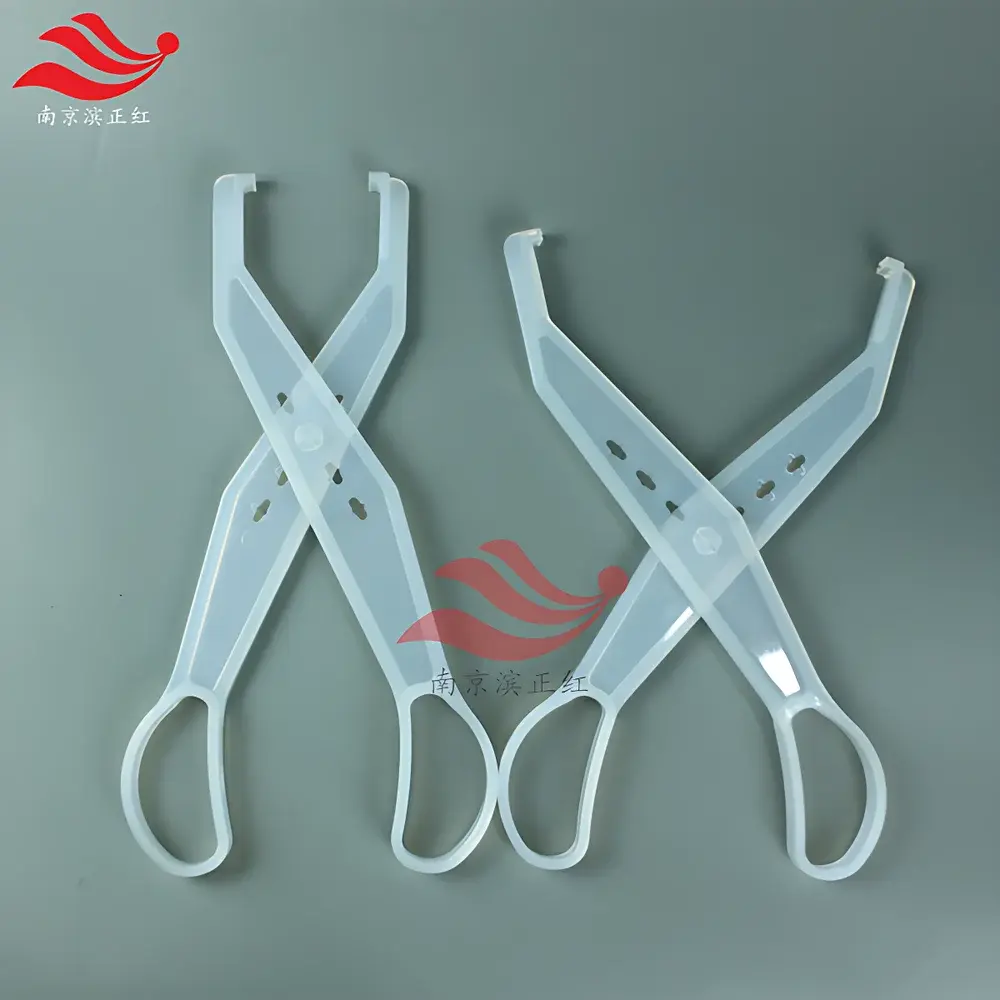

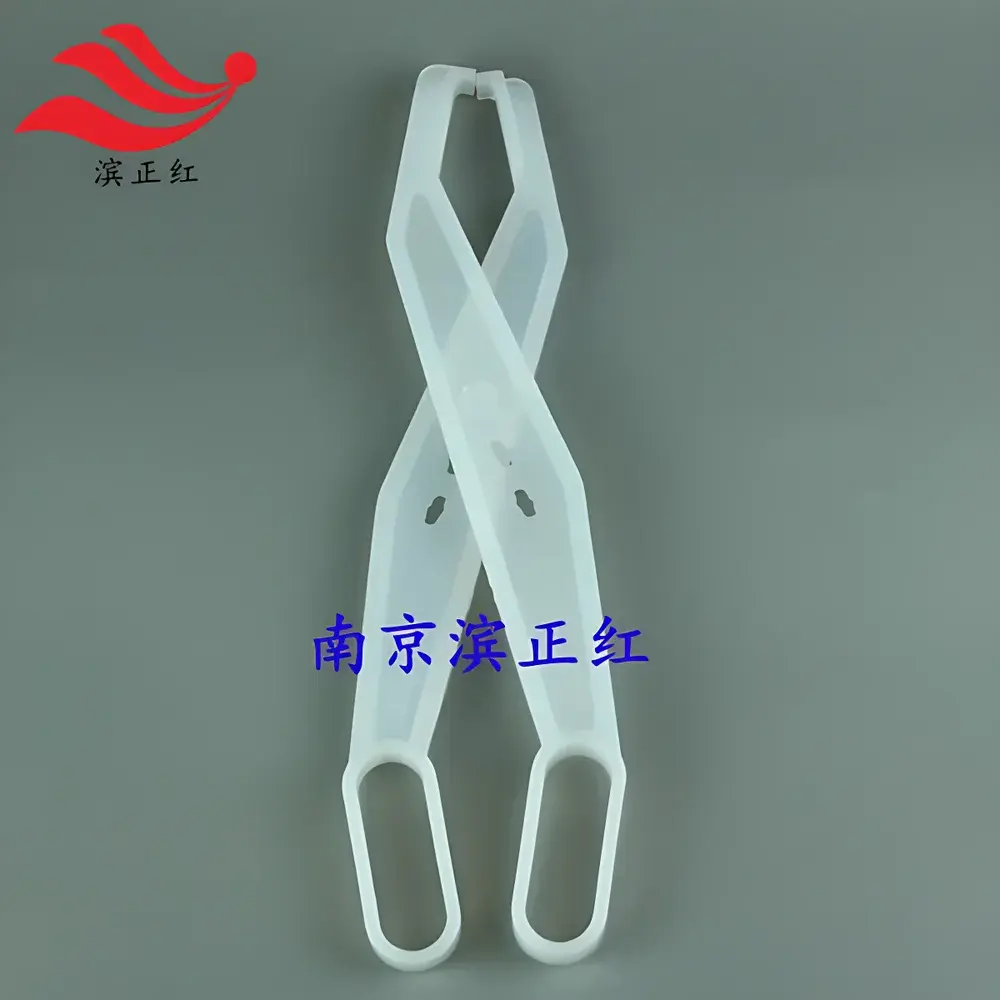

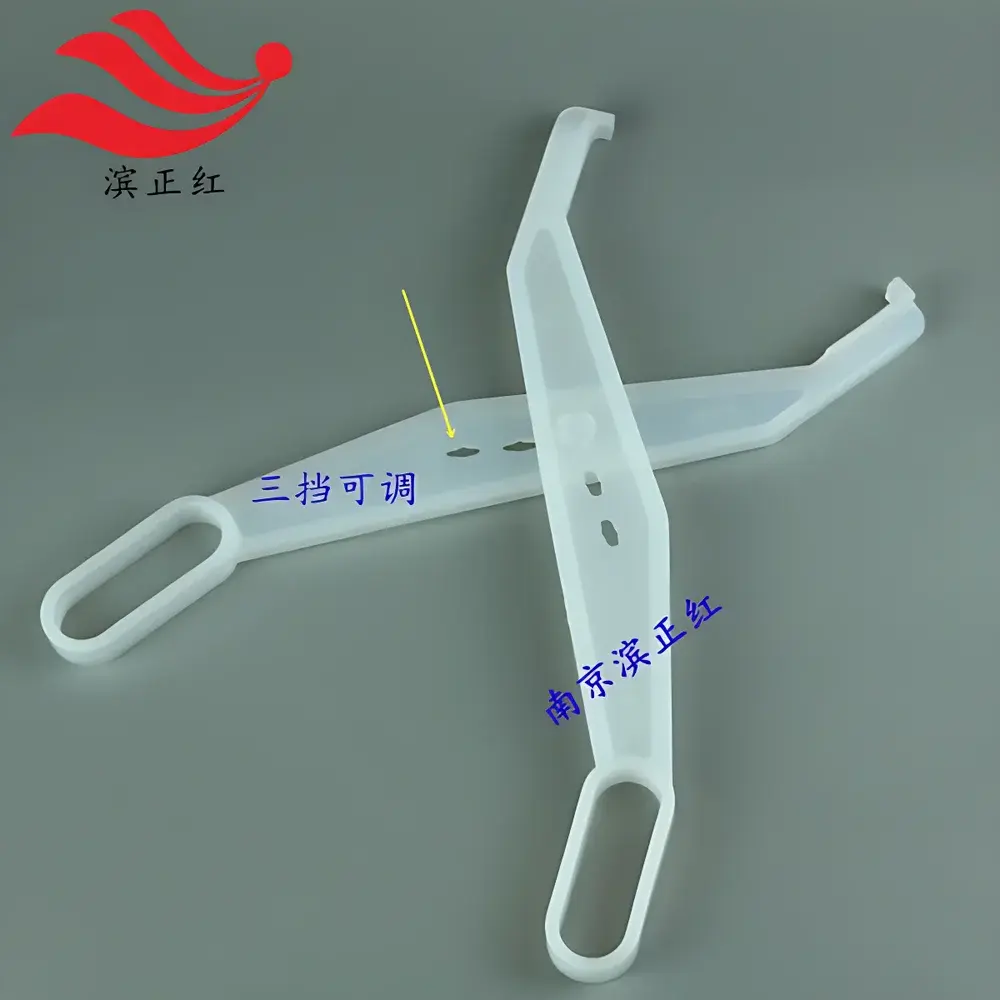

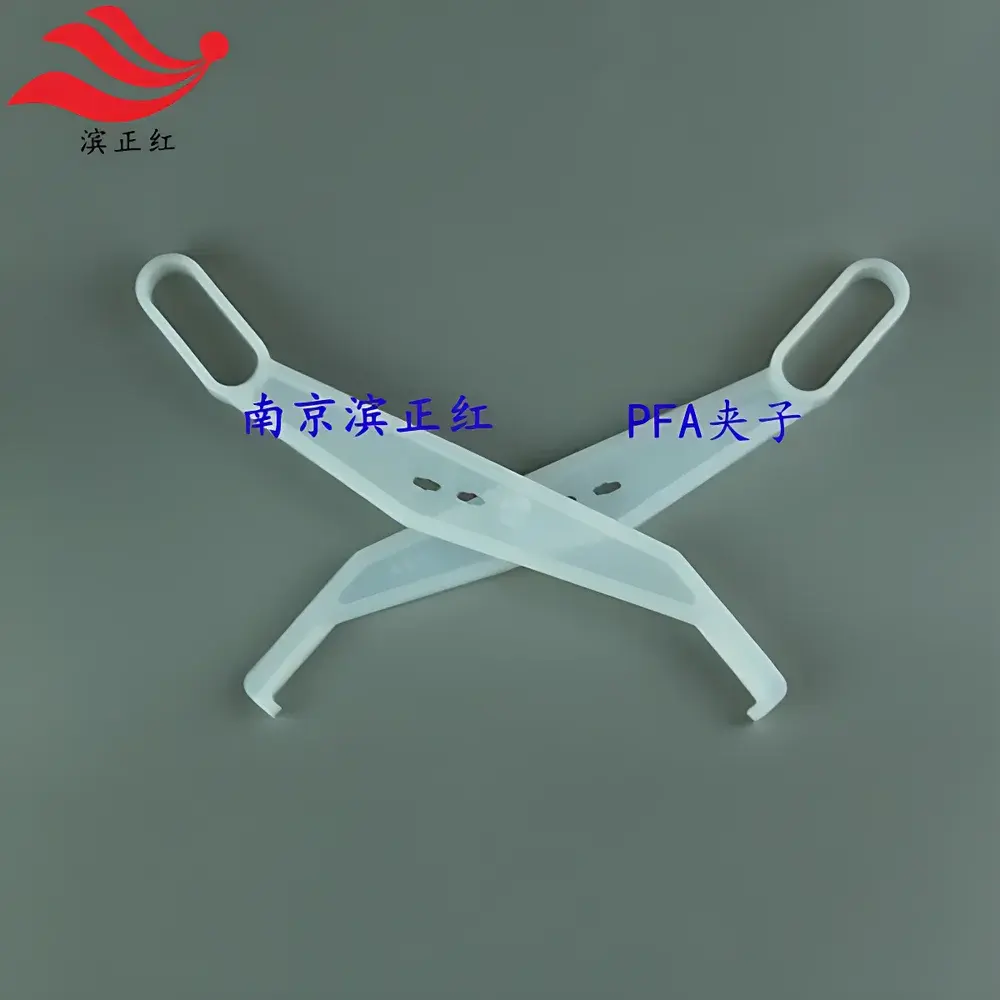

PFA Sampling Clamp with Extended Handle – Fluorinated Polymer Tweezers for Energy Industry Applications

Overview

The Binzhenghong NJ-PFA-JZ is a precision-engineered PFA sampling clamp designed specifically for critical handling tasks in high-purity and chemically aggressive environments typical of nuclear, thermal, and renewable energy facilities. Constructed entirely from perfluoroalkoxy alkane (PFA), this extended-handle clamp leverages the intrinsic properties of fluoropolymer materials—including exceptional chemical resistance across concentrated acids, bases, oxidizers, and organic solvents; ultra-low extractables; non-stick surface characteristics; and compliance with USP Class VI and ISO 10993-5 biocompatibility standards. Its 300 mm length provides enhanced operator reach and ergonomic leverage during remote sampling, vessel access, or confined-space manipulation—minimizing direct hand exposure to hazardous media or elevated temperatures. Unlike stainless steel or silicone alternatives, PFA eliminates metal ion leaching and adsorption artifacts, making it indispensable for trace-level analysis (e.g., ICP-MS, IC) where sample integrity is non-negotiable.

Key Features

• Full-body PFA construction ensures zero metallic contamination and consistent inertness across pH 0–14 and temperatures up to 260°C (short-term); continuous use rated to 200°C.
• Extended 300 mm handle geometry improves mechanical advantage and reduces operator fatigue during repetitive clamping cycles in gloveboxes, hot cells, or reactor coolant loop maintenance zones.
• Smooth, polished jaw surfaces prevent particle generation and minimize surface adhesion—critical for particulate-free sampling of slurries, molten salts, or radioactive precipitates.
• Self-aligning spring mechanism delivers uniform, repeatable clamping force without manual torque adjustment; optimized for secure grip on tubing (OD 1–12 mm), vials, filter housings, and PFA-lined sampling probes.
• Autoclavable and compatible with gamma irradiation (up to 50 kGy), supporting sterilization protocols required under GMP-compliant nuclear fuel cycle QA/QC procedures.

Sample Compatibility & Compliance

The NJ-PFA-JZ is validated for contact with ultrapure water (UPW), nitric/hydrofluoric acid blends, sodium hydroxide solutions, molten fluoride salts (e.g., FLiBe), and borosilicate glassware. It meets ASTM D4894 for fluoropolymer performance in corrosive service and conforms to ISO 10993-5 cytotoxicity testing for material safety in analytical workflows involving human biological samples or environmental monitoring matrices. As a domestically manufactured instrument under China’s GB/T 19001–2016 (ISO 9001:2015) certified production system, each unit undergoes visual inspection, dimensional verification (±0.2 mm tolerance), and functional release testing prior to packaging.

Software & Data Management

This is a passive, non-electronic tool; no embedded firmware, software interface, or digital data output is provided. All usage records—including sterilization logs, calibration intervals (if used in regulated environments), and maintenance history—must be manually documented in accordance with facility-specific GLP/GMP documentation requirements. For integration into electronic lab notebooks (ELN) or LIMS systems, users may assign unique asset IDs and associate the clamp with SOP-controlled sampling procedures (e.g., ASTM D5116 for radiological sample handling).

Applications

• Remote sampling of primary coolant in pressurized water reactors (PWRs) and boiling water reactors (BWRs).
• Handling PFA-lined sample containers during spent fuel pool chemistry monitoring.
• Securing inline filters during ultratrace metal analysis of geothermal brines or hydrogen production electrolytes.
• Manipulating quartz or fused-silica components in solar cell manufacturing cleanrooms where metal-free tools are mandated.
• Clamping flexible PFA tubing in electrochemical flow cells for battery R&D and grid-scale energy storage testing.

FAQ

Is the NJ-PFA-JZ suitable for use in Class 100 cleanrooms?
Yes—its non-shedding surface and absence of lubricants or coatings meet ISO 14644-1 Class 5 particulate limits when handled with appropriate gloves.
Can it withstand repeated autoclaving at 121°C?
Yes—validated for ≥50 cycles at 121°C, 15 psi saturated steam without deformation or loss of spring resilience.
Does it comply with FDA 21 CFR Part 11 requirements?
Not applicable—this is a mechanical tool without electronic data capture or audit trail functionality.
What is the maximum recommended clamping force?
The integrated stainless-steel spring delivers ~2.8 N nominal clamping force at full compression; actual force varies with jaw opening and target material hardness.
Are custom lengths or jaw geometries available?
Binzhenghong offers OEM engineering support for application-specific modifications under NDA; standard lead time is 4–6 weeks.
