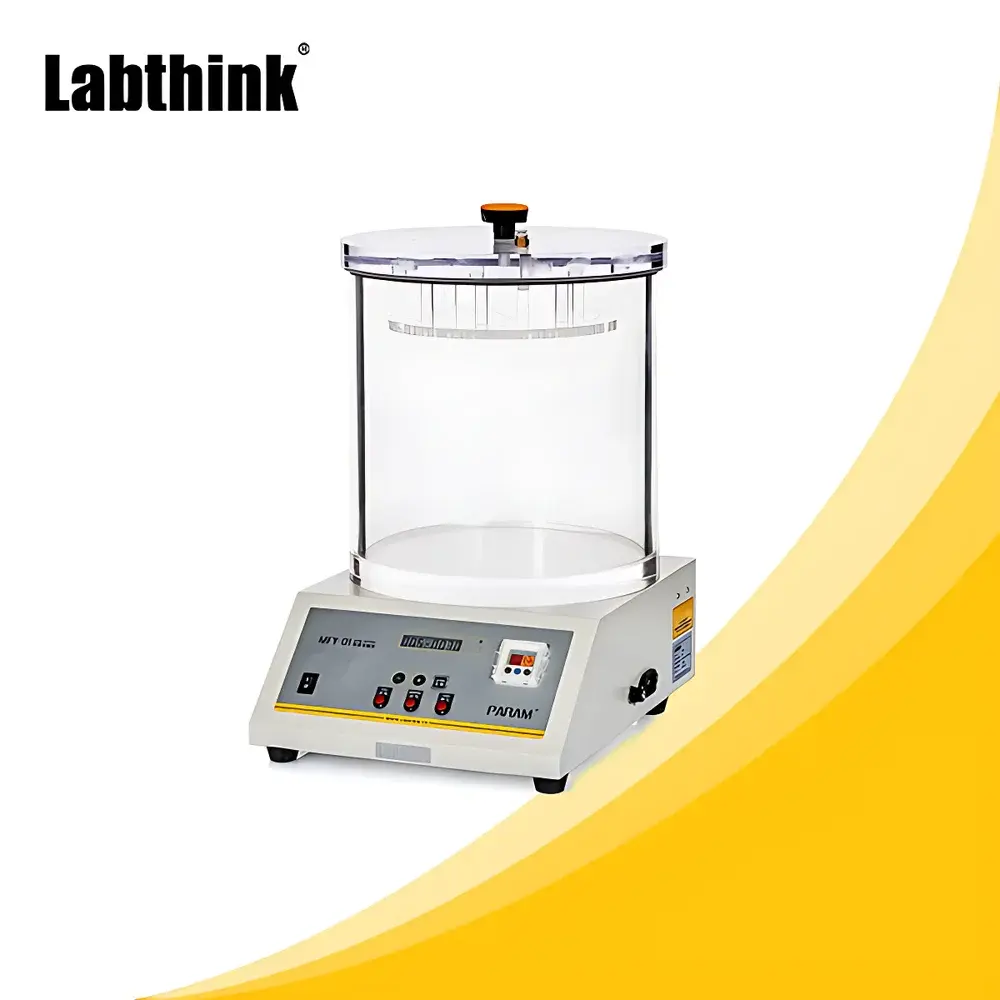

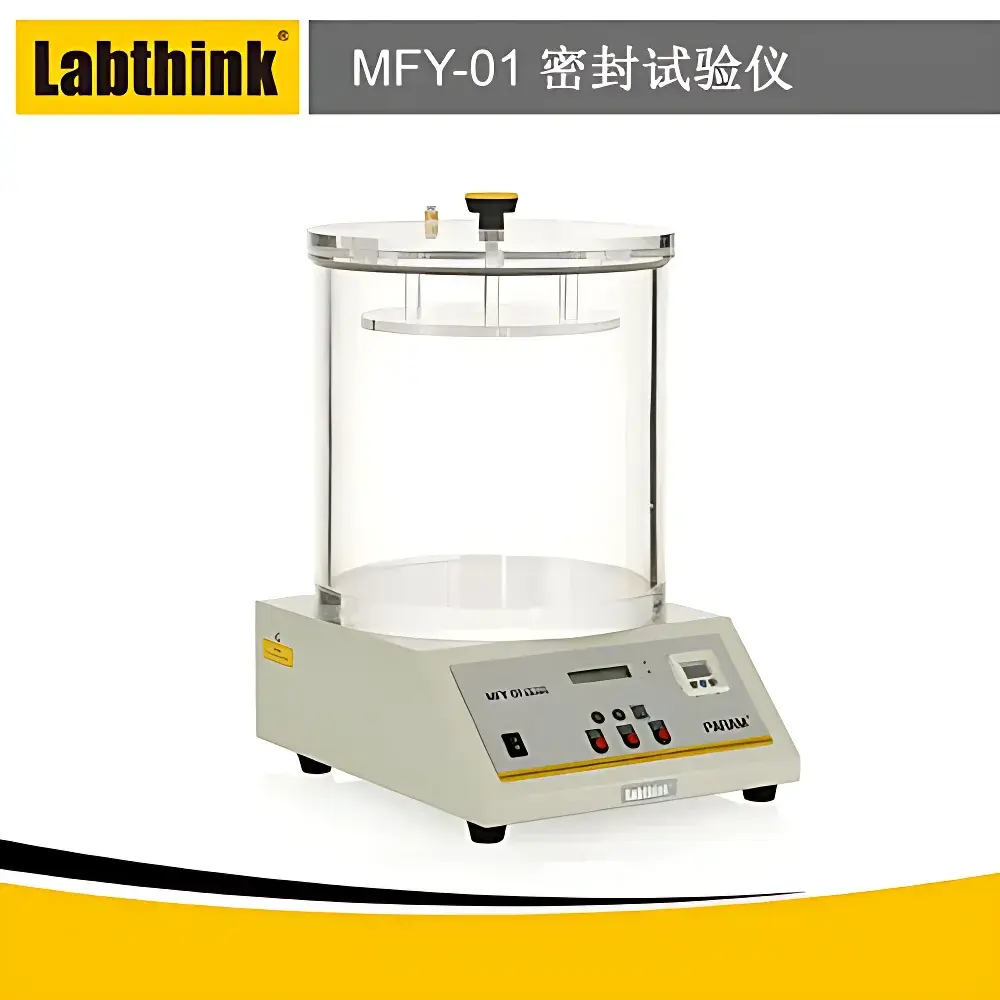

Labthink MFY-01 Vacuum Decay Leak Tester for Packaging Integrity Verification

Overview

The Labthink MFY-01 Vacuum Decay Leak Tester is an engineered solution for non-destructive, quantitative assessment of package integrity across regulated and high-value consumer product sectors. It operates on the principle of vacuum decay testing — a standardized method defined in ASTM D3078 and GB/T 15171 — wherein a sealed package is placed inside a calibrated vacuum chamber, evacuated to a user-defined negative pressure, and monitored for pressure rise (indicative of leakage) or physical deformation (e.g., bubble emission, expansion, or shape recovery). Unlike subjective visual inspection, this method delivers objective, repeatable pass/fail outcomes supported by time-stamped pressure profiles. The instrument is designed for routine quality control in environments requiring traceability, regulatory alignment, and process consistency — particularly where packaging failure poses risks to product sterility, shelf life, or consumer safety.

Key Features

• Digital vacuum presetting with programmable hold time, enabling precise replication of test conditions across shifts and operators
• Imported pneumatic components (solenoid valves, regulators, vacuum generators) ensuring long-term stability and minimal drift under continuous operation
• Microprocessor-based control system with backlit LCD display and intuitive PVC membrane keypad for rapid parameter entry and real-time status feedback
• Auto-compensation mode maintains constant vacuum during test duration via controlled air bleed, eliminating false negatives caused by thermal or elastic relaxation
• Integrated automatic venting and purge cycle upon test completion, minimizing operator intervention and supporting high-throughput lab workflows
• Modular vacuum chamber design: standard Φ270 × 210 mm chamber optimized for pouches, tubes, and small rigid containers; optional larger chambers accommodate bulk packaging, trays, or irregular geometries

Sample Compatibility & Compliance

The MFY-01 accommodates a broad range of primary and secondary packaging formats — including aluminum-plastic blister packs, laminated sachets, HDPE bottles, collapsible tubes, foil-sealed trays, and thermoformed clamshells. It supports post-abuse evaluation: samples subjected to drop testing (per ISTA 2A/3A), compression (ASTM D642), or vibration can be assessed for compromised seals without disassembly. The system complies with ISO 11607-2 requirements for package integrity validation in medical device manufacturing and meets essential criteria for GMP-aligned packaging release testing per FDA Guidance for Industry (2022) on Container Closure Systems. Test records include vacuum setpoint, dwell time, pressure decay rate, and pass/fail flag — all exportable as CSV for audit readiness.

Software & Data Management

While the MFY-01 operates as a standalone benchtop unit with embedded firmware, its data architecture supports GLP/GMP documentation needs. All test parameters and results are timestamped and stored locally in non-volatile memory (up to 1000 records). Optional USB data export enables integration into LIMS or ELN platforms. The interface supports multi-language labels (English default) and allows configurable pass thresholds aligned with internal SOPs. For regulated environments, the system’s deterministic response time (<50 ms valve actuation), calibration lockout function, and manual override logging meet foundational expectations for 21 CFR Part 11 compliance when deployed with supplementary procedural controls (e.g., electronic signatures, audit trails via external software).

Applications

• Pharmaceutical: Seal verification of blister cards prior to cartoning; integrity screening of vial stoppers after lyophilization
• Medical Devices: Detection of micro-leaks in sterile barrier systems (SBS) used for surgical kits and implant packaging
• Personal Care: Evaluation of tube crimp integrity, pump actuator seal retention, and airless bottle diaphragm performance
• Foods & Beverages: Validation of retort pouch seals, vacuum-packed meat tray lidding, and modified atmosphere packaging (MAP) integrity
• Automotive & Electronics: Functional testing of moisture-sensitive component housings and conformal-coated PCB enclosures

FAQ

What types of packages can be tested on the MFY-01?
Rigid, semi-rigid, and flexible packages — including pouches, bottles, tubes, trays, and blister packs — provided they withstand the applied vacuum without permanent deformation.
Is compressed air required for operation?
Yes. A clean, dry, oil-free air supply at 0.7 MPa is mandatory for actuating the pneumatic vacuum control circuit and auto-venting functions.
Does the MFY-01 provide quantitative leak rate values?
No. It delivers qualitative pass/fail outcomes based on observable physical responses (bubble emission, expansion, or shape recovery) per ASTM D3078 — not calculated leak rates in cc/min or mbar·L/s.
Can test parameters be locked to prevent unauthorized changes?
Yes. Firmware-level parameter locking is available via password-protected administrator mode, restricting access to vacuum setpoints, dwell time, and calibration settings.
Are calibration certificates and maintenance protocols included?
Factory calibration certificate is supplied with each unit. Annual recalibration using NIST-traceable pressure standards is recommended; Labthink provides certified service and documented maintenance checklists upon request.
