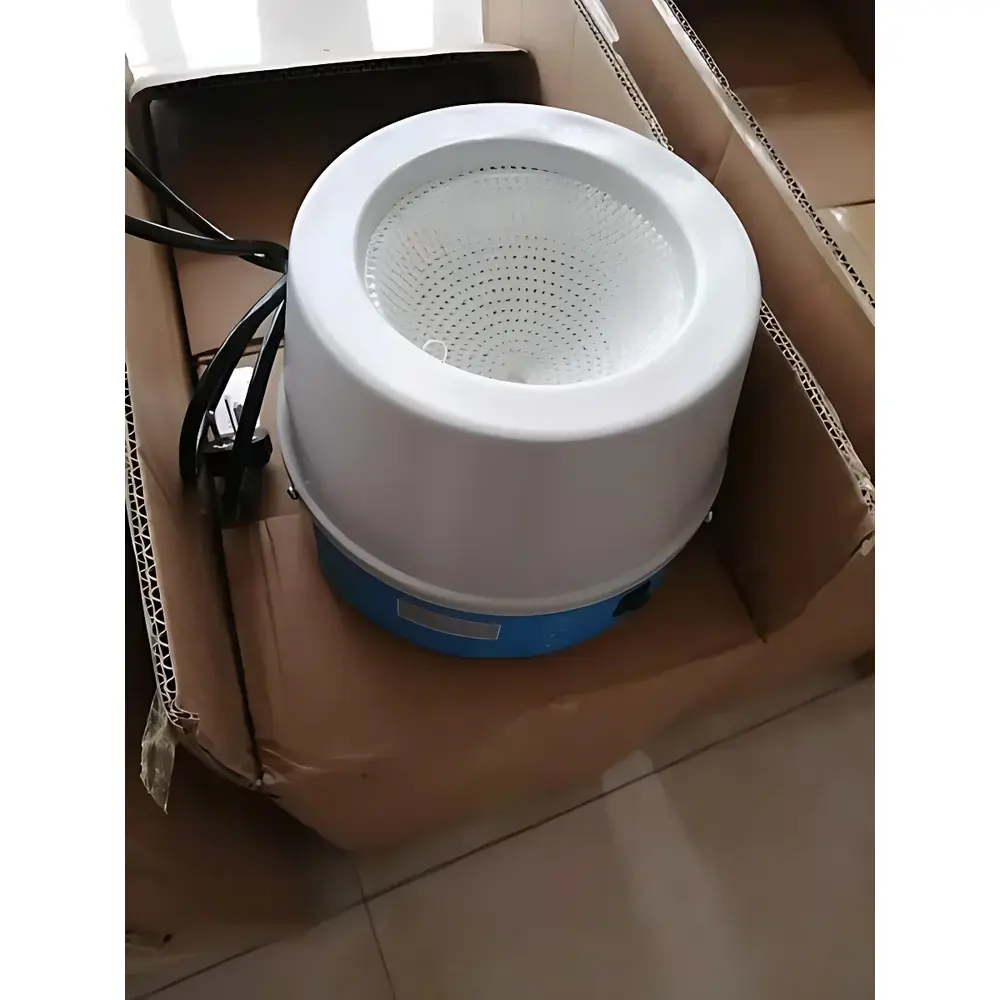

Intelligent Magnetic Stirring Electric Heating Mantle HJ-6

Overview

The Zhongke Aobo HJ-6 Intelligent Magnetic Stirring Electric Heating Mantle is an integrated benchtop thermal and mechanical agitation system engineered for precision heating and uniform mixing of laboratory samples in glass reaction vessels. Unlike conventional hotplates or separate stirrer/heater combinations, the HJ-6 employs a hemispherical, internally wound resistive heating element—constructed from nickel-chromium alloy wire fully encapsulated within high-purity, alkali-free ceramic fiber insulation—to deliver radial, uniform heat distribution across the vessel’s curvature. This design minimizes thermal gradients and eliminates localized overheating, ensuring consistent temperature profiles even during extended operation. The unit operates on the principle of electromagnetic induction-driven stirring: a rotating magnetic field generated by a permanent magnet array beneath the mantle base couples with a PTFE-coated magnetic stir bar placed inside the sample container, enabling contactless torque transmission. Its solid-state electronic controls provide independent, stepless regulation of both heating power and rotational speed without mechanical potentiometers or relay-based switching—reducing wear, electrical noise, and drift over time.

Key Features

• Hemispherical heating mantle geometry optimized for conical and round-bottom flasks (100–50,000 mL capacity), ensuring maximal surface contact and thermal coupling.
• Seamless drawn-metal outer shell with industrial-grade epoxy powder coating for corrosion resistance, mechanical durability, and ease of decontamination.
• Alkali-free, high-temperature ceramic fiber insulation (rated to 550 °C) fully encapsulates the Ni-Cr heating element, preventing oxidation and extending service life under continuous duty.
• Non-contact electronic speed control (0–1200 rpm) with real-time feedback stabilization—maintains setpoint accuracy within ±15 rpm across load variations and ambient fluctuations.
• Surface temperature limit of 380 °C at the heating element (measured per IEC 60519-1), with external mantle surface temperatures remaining below 120 °C under standard operating conditions.
• Compliant with IEC 61010-1:2010 for electrical safety in laboratory equipment, including protection against electric shock, fire hazard, and mechanical instability.

Sample Compatibility & Compliance

The HJ-6 accommodates standard borosilicate glassware—including 100 mL to 50 L round-bottom flasks, three-neck reactors, and jacketed vessels—without requiring clamping fixtures or external supports. Its low-profile, open-top design allows unobstructed access for condenser attachment, thermocouple insertion, or inert gas purging. All electrical components meet RoHS Directive 2011/65/EU restrictions on hazardous substances. While not certified for Class I Div 1 hazardous locations, the unit is suitable for general-purpose chemistry, pharmaceutical synthesis, and QC testing environments operating under GLP-aligned workflows. It supports documentation traceability when used in conjunction with external calibrated thermometers or digital data loggers compliant with FDA 21 CFR Part 11 requirements.

Software & Data Management

The HJ-6 operates as a standalone analog-controlled instrument and does not incorporate embedded microprocessors, USB interfaces, or proprietary software. Temperature and speed are adjusted via front-panel rotary dials with tactile feedback and LED indicators. For laboratories requiring audit-ready records, integration with third-party data acquisition systems (e.g., LabVIEW, MATLAB, or Modbus-enabled PLCs via optional 4–20 mA analog output modules) is feasible using industry-standard signal conditioning hardware. Users performing validation per ISO/IEC 17025 or USP should conduct periodic calibration of external temperature probes (e.g., Pt100 or NIST-traceable thermistors) placed at defined vessel locations.

Applications

• Synthesis and reflux of organic compounds in solvent systems requiring precise thermal control and homogeneous mixing (e.g., Grignard reactions, esterifications).
• Preparation of buffer solutions, culture media, and reagent stock solutions where particulate suspension and dissolution kinetics are critical.
• Accelerated stability testing of formulations under controlled thermal stress (e.g., ICH Q1A guidelines).
• Dissolution testing per USP , particularly for low-volume dosage forms where traditional bath heaters introduce convective interference.
• Sample digestion and extraction protocols in environmental and food testing labs, including EPA Method 3050B and AOAC 999.10.

FAQ

Is the HJ-6 compatible with Teflon-coated stir bars?

Yes—the magnetic drive system is optimized for standard PTFE- or glass-coated stir bars up to 40 mm in length; maximum torque delivery is rated at 80 g·cm at 800 rpm.
Can it be used under inert atmosphere conditions?

Yes—its open-top configuration permits direct integration with Schlenk lines or nitrogen/vacuum manifolds; no internal electronics are exposed to the reaction environment.
Does it support programmable ramp-soak temperature profiles?

No—the HJ-6 features manual analog control only; for programmable thermal profiles, consider the HJ-6A digital variant with RS-485 Modbus RTU interface.
What is the recommended maintenance interval?

Visual inspection every 6 months; cleaning of exterior surfaces with isopropyl alcohol; verification of grounding continuity annually per facility electrical safety policy.
Is replacement insulation available as a service part?

Yes—Zhongke Aobo supplies certified replacement mantles with batch-certified thermal conductivity and dielectric strength test reports upon request.
