| Brand | A&D |
|---|---|
| Origin | Japan |
| Model | AD-4404 |
| Sampling Rate | 100 Hz |
| Internal A/D Resolution | 1 part in 1,000,000 |
| Display Resolution | 1/16,000 |
| Input Sensitivity | 0.3 µV/d |
| Zero Tracking | Static & Dynamic with Real-time Compensation |
| Communication Interfaces | Standard RS-485 + Current Loop Output |
| Optional I/O Modules | BCD, Relay, RS-232/422/485, Parallel, Analog Output |
| Brand | A&D |
|---|---|
| Origin | Japan |
| Manufacturer | A&D Co., Ltd. |
| Type | Imported Industrial Weight Indicator |

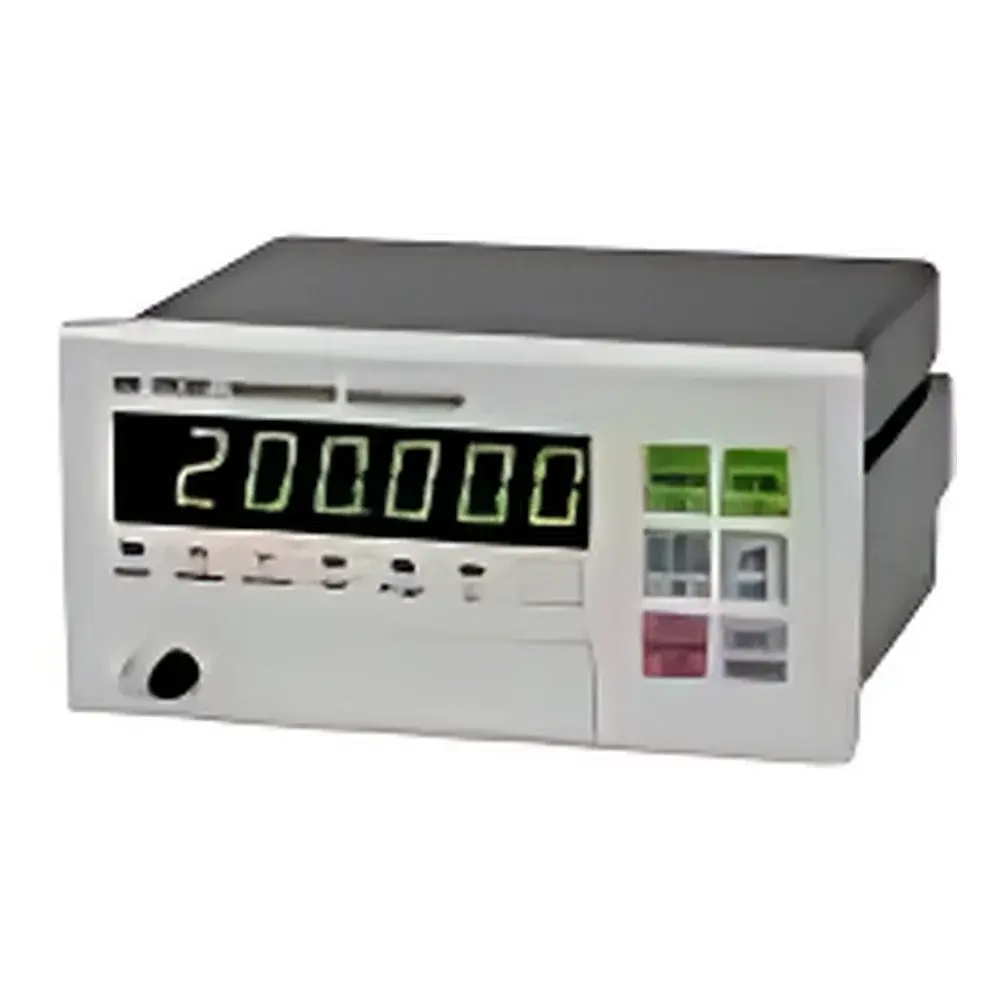

| Model | AD-4408C |
| Pricing | Upon Request |
| Brand | A&D |
|---|---|
| Origin | Japan |
| Model | AD-4532B |
| Input Impedance Compatibility | <10 kΩ |
| Excitation Voltage Options | 5 V (up to four 350 Ω sensors) or 2.5 V (up to four 120 Ω or eight 350 Ω sensors) |
| Calibration | Digital calibration (sensor sensitivity input) or physical load calibration |
| Zero Adjustment Range | ±50% of full-scale output voltage |
| Span Adjustment Range | ±0.25 mV/V to ±3 mV/V |
| Minimum Input Sensitivity | 0.6 µV/d |
| Minimum Display Resolution | 0.12 µV/d |
| Maximum Display | ±999999 |
| Linearity | 0.02% F.S. (within ±1 digit) |
| A/D Conversion Rate | 2000 samples/sec |
| Zero Temperature Coefficient | ±0.5 µV/°C (typ.) |
| Span Temperature Coefficient | ±30 ppm/°C (typ.) |
| Display | 6-digit, 7-segment LED (14 mm height) |
| Keypad | 6 keys |
| Comparison Output | HI/OK/LO relay contacts (0.1 A, 250 V AC) or MOSFET outputs (0.5 A, 30 V DC) |
| Hold Modes | Sample hold, peak hold, valley hold, bipolar hold |
| Analog Amplified Output | ±10 V (fixed at 3.2 mV/V sensitivity), linearity 0.05% F.S., tempco 100 ppm/°C |
| D/A Output | ±10 V, resolution 1/10000, tempco 100 ppm/°C |
| Communication | Modbus-RTU (RS-485) |
| Power Supply | 85–250 V AC, 50/60 Hz, ~20 W |
| Operating Environment | –5 to +40 °C, ≤85% RH (non-condensing) |
| Dimensions (W×H×D) | 96 × 96 × 155 mm |
| Panel Cutout | 92 × 92 mm |
| Optional Interfaces | BCD (AD-4532B-01), RS-232C (AD-4532B-04), ±10 V / 4–20 mA D/A (AD-4532B-07), Ethernet (AD-4532B-08) |
| Brand | A&D |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Imported |

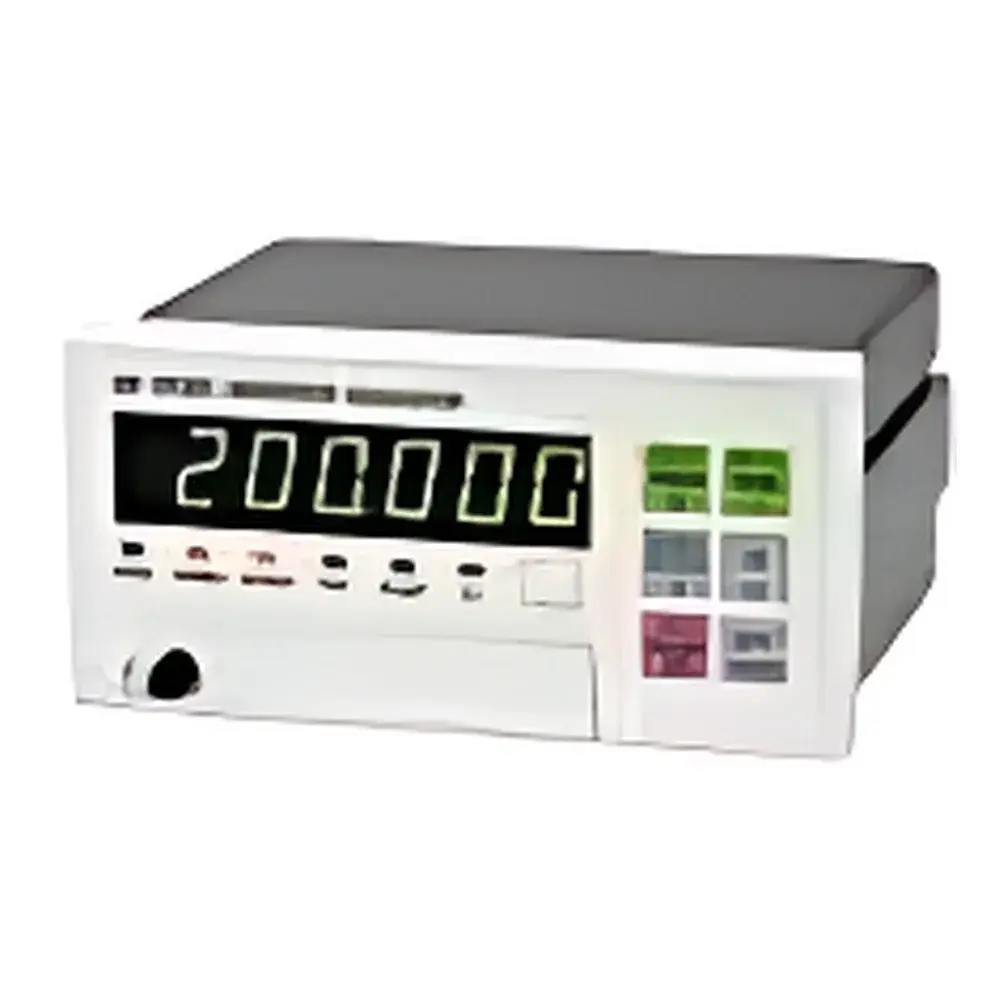

| Model | AD-4408A |
| Pricing | Upon Request |
| Brand | A&D |
|---|---|
| Origin | Japan |
| Model | AD-4402 |
| Analog-to-Digital Conversion | 100 Hz sampling rate, internal resolution 1/1,000,000, display resolution 1/16,000, input sensitivity 0.3 µV/d |
| IP Rating | IP65 front panel |
| I/O Capacity | 11 inputs / 11 outputs (configurable across 50 functions) |
| Recipe Storage | 100 recipes |
| Material Database | 100 materials |
| Alarm Outputs | up to 8 fault signals |
| Communication Interfaces | RS-232, RS-422/485, parallel BCD, relay, analog output, CC-Link, DeviceNet, PROFIBUS (via optional interface boards) |
| Calibration | digital span calibration & gravity compensation (no weights required) |
| Brand | A&D |
|---|---|
| Origin | Japan |
| Model | AD-4401 |
| Sampling Rate | 100 Hz |
| Internal A/D Resolution | 1:1,000,000 |
| Display Resolution | 1:16,000 |
| Input Sensitivity | 0.3 µV/d |
| IP Rating | IP65 |
| Communication Interfaces | RS-232 (current loop & optional voltage), RS-422/485 (up to 10 units daisy-chained), BCD, 4–20 mA analog output |
| Operating Modes | 8 configurable weighing and control modes |
