| Brand | MAIERIC |
|---|---|
| Origin | Anhui, China |

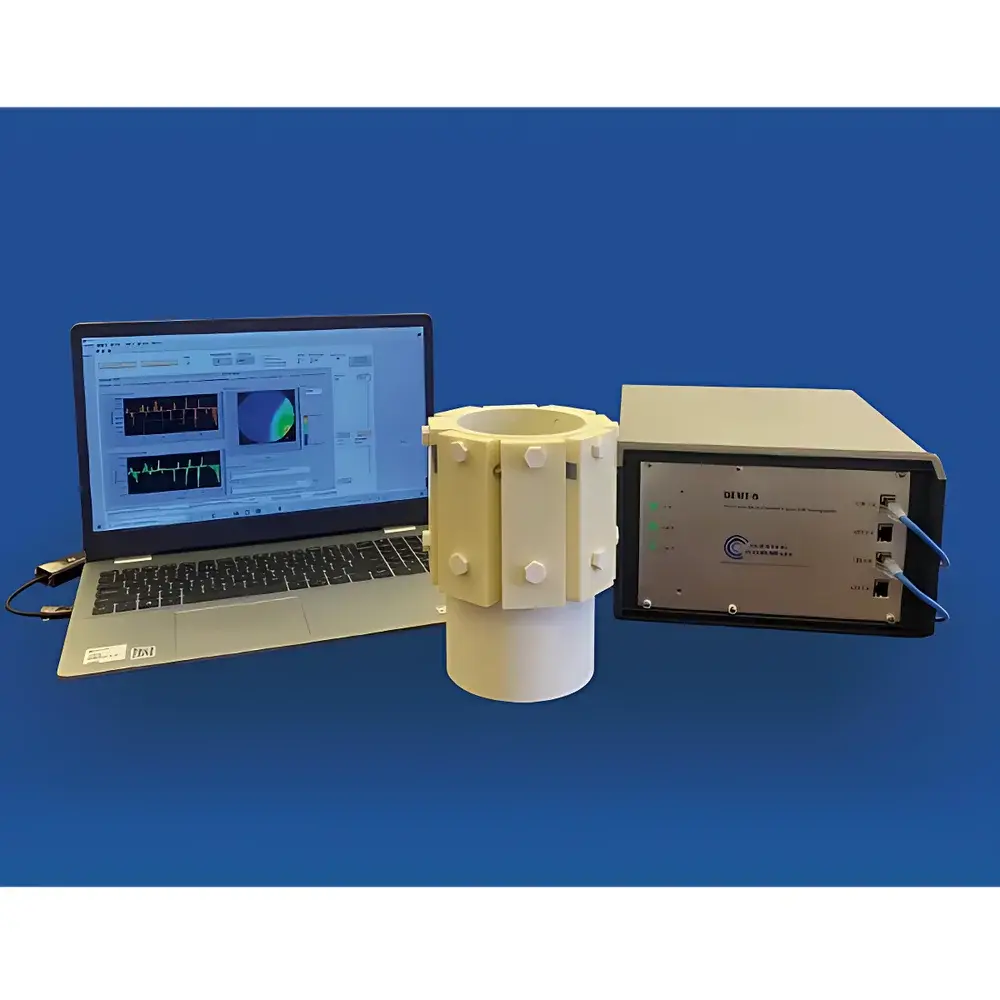

| Model | DEMT-8/16 |
| Detector Type | Custom Electromagnetic Sensor Array |
| Spatial Resolution | 5% of cross-sectional diameter |
| Density Resolution | Configurable (system-dependent) |
| Penetration Capability | Customizable per application |
| Measurement Range | Configurable (up to Ø300 mm cross-section) |
| Dimensional Accuracy | ±5% of cross-sectional dimension |
| Density Measurement Accuracy | Configurable |
| Operating Temperature | Up to 300 °C (non-contact probe interface) |
| Imaging Modes | Dual-mode (Eddy Current Tomography & Metal Flaw Detection) |
| Signal-to-Noise Ratio (SNR) | 60–90 dB |
| Frequency Range | 1 kHz–200 kHz (standard) |
| Channel Configuration | 8 or 16 independently configurable channels |
| Sampling Rate | Up to 100 kS/s per channel (flaw detection mode) |
| Reconstruction Grid | Up to 32×32 pixels (1% cross-sectional area resolution) |
| Front-End Signal Processing | Programmable 3-stage gain amplifier (1×–8×), with optional expansion |
| Data Output | Complex impedance components (real, imaginary, magnitude, phase), full complex-plane representation |
| Core Platform | FPGA-based digital acquisition and real-time processing architecture |
